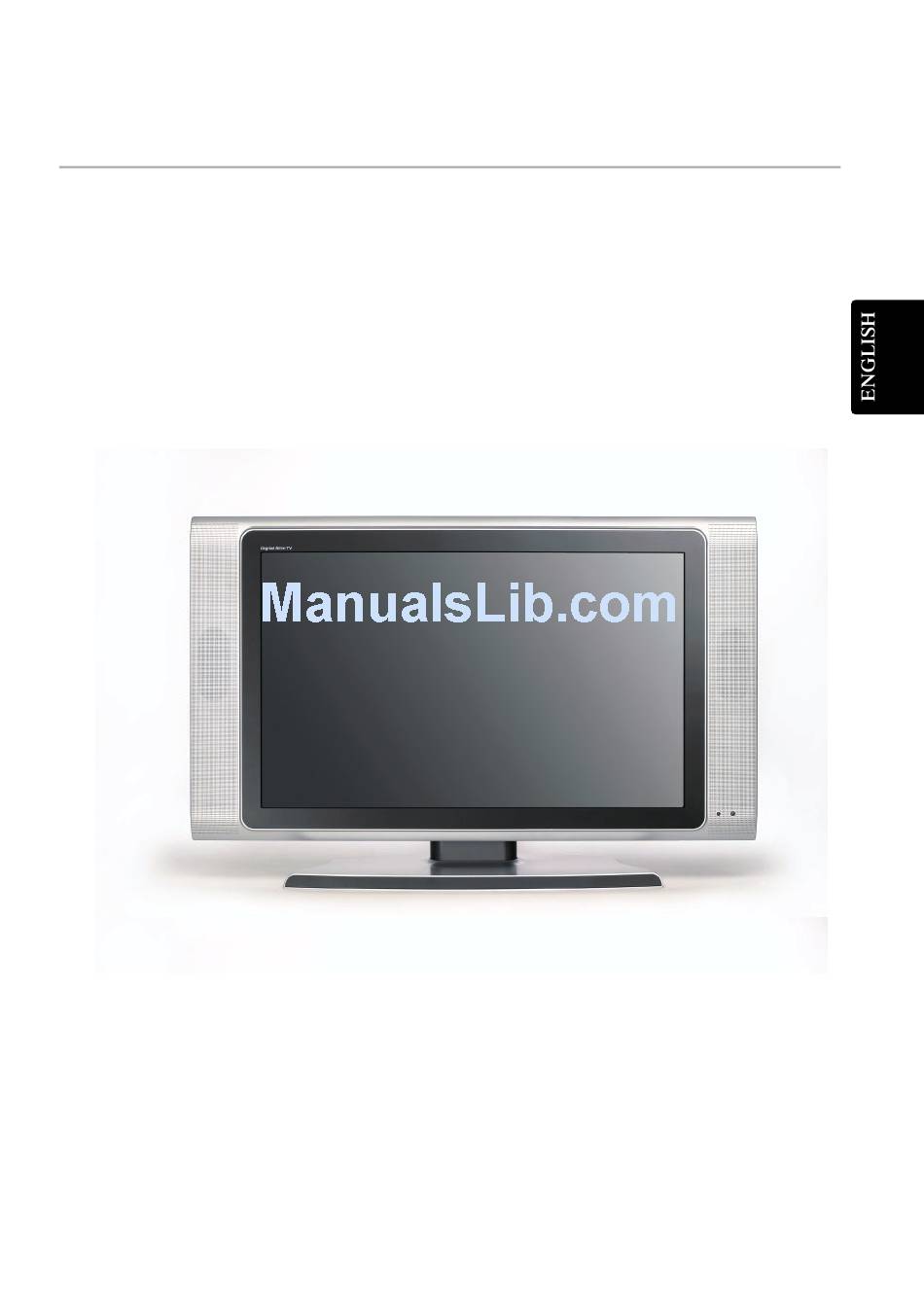

  • Page 1 TFT / LCD TV Instruction Manual LT-26HLFH/32HLFH...

  • Page 2: Warnings 2~3

    The manufacturer shall not warrant for any damage caused by improper maintenance and repair work by third parties. Power(LT-26HLFH) Use only the AC-DC adaptor supplied with the set and never apply an AC mains to the set directly. The AC-DC adaptor operates on an AC mains supply, the voltage is as indicated on the label of the AC-DC adaptor.

  • Page 3: Warnings

    Warnings Service Never remove the back cover of the TV, this can expose you to high voltage and other hazards. If the TV does not operate properly, unplug it and call your dealer. Connect the antenna cable to the connection marked Ant. (on the rear). For best reception, use an outdoor antenna.

  • Page 4: Table Of Contents

    Contents Before operating the set, please read this manual carefully. Warnings Contents Supplied Accessories Installation Controls Controller of panel Remote controller Basic Operation Turning the TV On and Off Programme selection Volume adjustment Q.View Sound mute function On screen Language selection On Screen Menus and Displays Setting up TV Programme 12~15...

  • Page 5: Supplied Accessories

    Supplied Accessories L Make Sure the following accessories are provided with Product. 1. AC/DC adaptor(LT-26HLFH) 2. AC Cord 4. Batteries (type AAA) 3. Remote controller 6. VGA cable 5. Instruction manual Owner’s Manual 26" /32" WIDE LCD TV/MONITOR LT-26HLFH/32HLFH Model:...

  • Page 6: Installation

    Installation Installation Options * You can install the TV on a wall or place it on a table-like surface. * To eliminate any risk of injury from the TV falling, it should be mounted securely. 1. Wall Installation Caution: Do not install the TV on a weak wall surface, like plaster etc.

  • Page 7: Controls

    7. Remote control sensor Accepts the IR signal of remote controller. ✽ 1 . DC IN(LT-26HLFH) 2. HDMI (High Definition Multimedia Interface) IN Connect to the HDMI jack for device with HDMI output. 3. H/P (Headphone out) Connect a headphone to this socket.

  • Page 8: Remote Controller

    Controls All the functions can be controlled with the remote controller. Some functions can also be adjusted with the buttons on the side panel of the set. Remote controller Before you use the remote controller, please install the batteries. 1. POWER Turns the TV on from standby or off to standby mode.
  • Page 9 Controls 14. PICTURE( Recalls your preferred picture setting 15. SOUND( Recalls your preferred sound setting 16. ARC( You can watch TV in various picture formats; Auto, 16:9, 14:9, 4:3, 16:9 Zoom, 14:9 Zoom, 4:3 Zoom. Repeatedly press the ARC button to select your desired picture format.

  • Page 10: Basic Operation

    Basic Operation Turning the TV On and Off Standby Setup: The AC-DC adapter and the AC power cord must be set up and connected to have the TV in standby mode ready to be turned on. Press the ON/OFF button on the side panel of the TV to go into standby mode.

  • Page 11: On Screen Menus And Displays

    On Screen Menus and Displays 1. Press the MENU button to display main menu. Equalizer 2. Press the PRx/PRy button to select menus-Picture, Sound, Special, Setup. Flat Music 3. Adjust each menu with the Ïq button. Movie 4. Press the MENU button to return to preceding Speech User menu.

  • Page 12: Setting Up Tv Programme

    Setting up TV Programme Once you have preset the programmes, you will be able to use the PRx/PRy or NUMBER buttons to scan the Auto Programme programmes you programmed. System Programmes can be tuned using automatic or manual Start modes. Auto Programme All programmes that can be received are stored by this Position :▲▼...

  • Page 13: Manual Programme

    Setting up TV Programme Manual Programme Manual Programme Manual Programme lets you manually tune and arrange the programmes in whatever order you desire. Also you Programme Channel can assign a programme name with 5 characters to each Table V/UHF programme number. System ▶▶▶...

  • Page 14: Programme Edit

    Setting up TV Programme Programme Edit Programme Edit This function enables you to delete or skip the stored P00----- P05----- programmes. P01----- P06----- P02----- P07----- Also you can move some programmes to other P03----- P08----- programme numbers or insert a blank programme data into P04----- P09----- the selected programme number.

  • Page 15: Picture Control

    Picture Control You can adjust picture Contrast, Brightness, Colour, Sharpness and Tint(only in NTSC mode) to the levels you prefer. Picture Manual Picture Control Contrast 1. Press the MENU button. Brightness Colour 2. Select the Picture menu. Sharpness 3. Press the PRx/PRy button select a picture item. 4.

  • Page 16: Sound Control

    Sound Control You can select your preferred sound setting; Flat, Music, Sound Movie or Speech. You can also adjust the sound ▶ Equalizer frequency of equalizer, balance. If you switch AVL to on, Balance the set automatically keeps on an equal volume level even Surround if you change programmes.

  • Page 17: Sound Control

    Sound Control SOUND Effect 1. Press the SOUND( )button. 2. Press the SOUND( ) button repeatedly to select. Each press of the button changes the screen display as below. Flat → Music → Movie → Speech → User • Choose Flat for the standard factory settings. •...

  • Page 18: Other Functions

    Other functions You can control other functions; Clock, Blue Back, Auto Special Sleep, Childlock, Radio and ARC menu. ▶ Clock Blue Back Auto Sleep Clock Childlock Radio Setting the clock is necessary in order to use the various 16:9 timer features of the TV. You can set automatic TV On or Position :▲▼...

  • Page 19: Auto Sleep

    Other functions Auto Sleep If you select Auto Sleep On the set will automatically switch itself to standby mode approximately ten minutes after a TV Channel stops broadcasting. 1. Press the MENU button. 2. Select the Special menu. 3. Press the Ïq button to select the Special menu. 4.

  • Page 20: Radio Control

    Radio Control This function is possible only when the set is in Radio mode.(Radio mode is displayed when the Setting for special menu is radio On.) Radio Setup 1. Use TV/AV button on remote controller to select Mode Auto Radio mode. Frequency 87.50 MHz Programme...

  • Page 21: Other Functions

    Other functions PIP function PIP will let you view two separate source inputs on your TV screen at the same time. Viewing the PIP picture Press the PIP( ) button. (Press the PIP button again, to turn PIP off.) Selecting the PIP picture mode Press the MODE( ) button to adjust the PIP picture mode.

  • Page 22: Teletext

    TELETEXT TEXT On/Off Press the TEXT button to switch to TELETEXT. The initial page or last selected page appears on the screen. The first page number indicates your selection, while the second shows the current page displayed. 1. Press TEXT button once, displays the Teletext pages. 2.

  • Page 23: Special Teletext Function

    TELETEXT Special TELETEXT functions MENU Functions TEXT Changes Teletext mode. Selects double height text. Press this button to enlarge the top half of the page. SIZE Press this button again to enlarge the bottom half of the page. Press this button again to return to the normal display. Stops the automatic page change, which will occur if a Teletext page consists of 2 or more sub pages.

  • Page 24: External Equipment Connection

    External Equipment Connection You can connect additional equipment, such as VCRs, camcorders etc. to your set. Examples are shown below. Antenna connection 1. Connect RF out on the VCR to the Antenna input on the rear of the TV. 2. Connect the antenna cable to the antenna in jack on the VCR.

  • Page 25: S-Video Input

    External Equipment Connection S-VIDEO INPUT If using an S-VIDEO source, the picture quality will be improved over a video source. 1. Connect the S-VIDEO output of a VCR to the S-VIDEO input on the TV. 2. Connect the audio cables from the S-VIDEO on the VCR to the L (MONO), R inputs on the TV.

  • Page 26: Connecting The Pc(Hdmi/Vga) As A Monitor

    Connecting the PC(HDMI/VGA) as a monitor This function is possible only when the set is in PC mode. Use the TV/AV button on remote controller. Main Menu Picture adjustment Picture Sound You can adjust picture Contrast, Brightness, H/V Position Temperature, Clock, Phase and ARC as you prefer. Auto 1.
  • Page 27 Connecting the PC(HDMI/VGA) as a monitor Sound adjustment 1. Press the MENU button. Sound 2. Select the Sound menu. Equalizer 3. Press the PRx/PRy button to select the desired Balance sound item; Equalizer, Balance, AVL, Surround, Surround Sound Mode, Input. Sound Mode 4.

  • Page 28: Position Adjustment

    Connecting the PC(HDMI/VGA) as a monitor Position Adjustment This function is to adjust picture to left/right and up/down H/V Position as you prefer. 1. Press the MENU button. H-Position 2. Select the H/V Position menu. V-Position 3. Press the PRx/PRy button to select the desired position item.
  • Page 29 Connecting the PC(VGA) as a monitor PC INPUT 1. Connect the PC IN cable (D sub jack) from the monitor output socket of the PC to the PC/DTV input socket of the set. 2. Connect the PC AUDIO IN cable from the PC to the PC AUDIO IN of the set. 3.

  • Page 30: Product Specification

    Power consumption 140W 150W External antenna impedance 75Ω Audio output 10W + 10W External input ports • DC 24V IN (* LT-26HLFH) • PC ANALOG IN • HEADPHONE OUT • HDMI IN • SVC port • COMPONENT IN • SCART 1 •...
