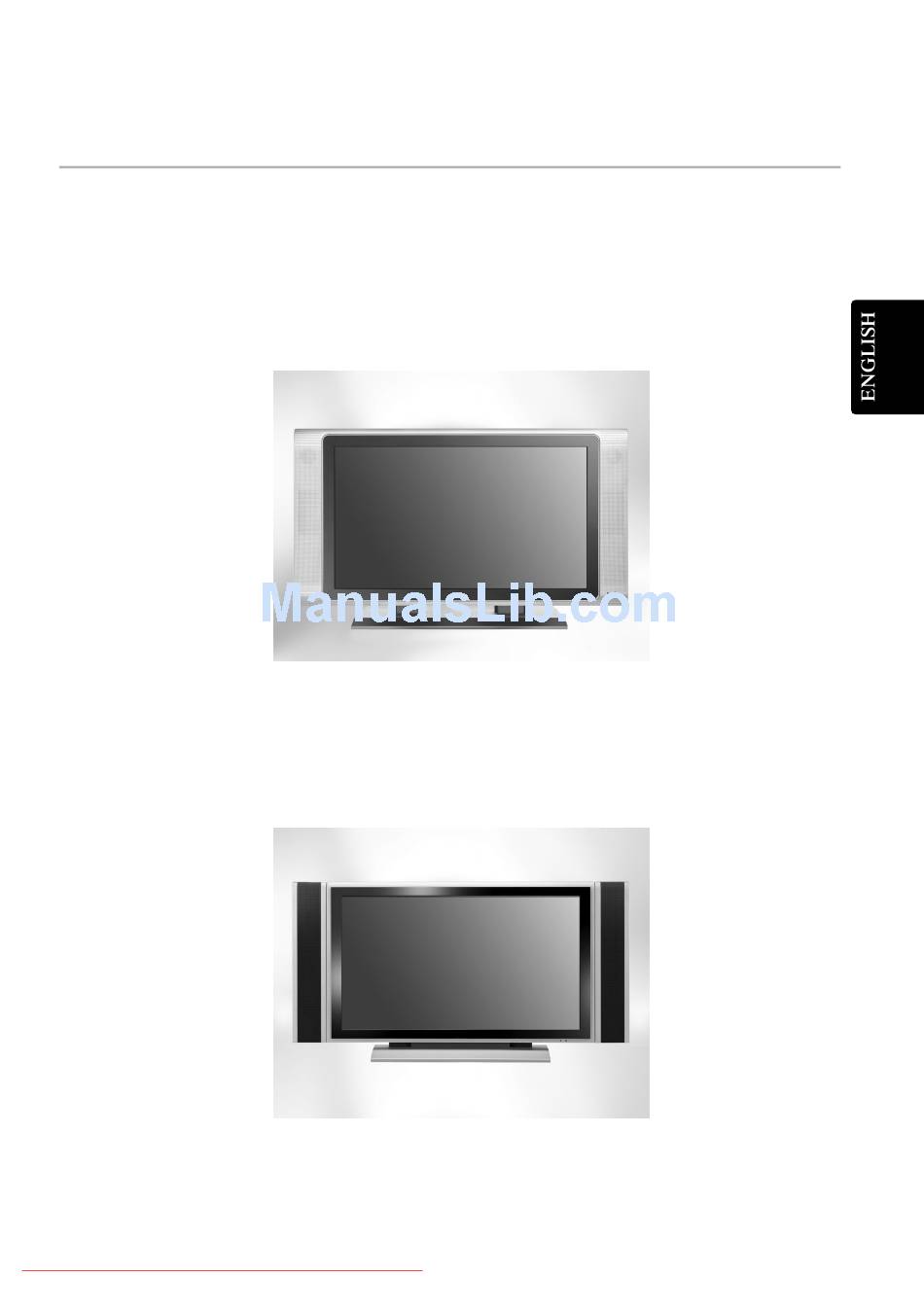

- Page 1 TFT / LCD TV Instruction Manual LT-40H5LPH LT-40T5LPH Downloaded From TV-Manual.com Manuals...
-
Page 2: Warnings 2~3
Warnings WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING : The unit is operated at dangerous voltages. The unit may only be opened by an authorised specialist. All maintenance and servicing work must be carried out by an authorised company. Repairs that are carried out incorrectly could result in fatal injuries to the user. -
Page 3: Warnings
Warnings Location Position your TV so that no bright light or sunlight will shine directly on the screen. Do not expose the TV to vibration, moisture, dust or heat. Also ensure that the TV is placed in a position that allows a free flow of air. Do not cover the ventilation openings on the back cover. -
Page 4: Table Of Contents
Contents Before operating the set, please read this manual carefully. Warnings Contents Supplied Accessories Installation Connecting Speaker Controls 8~10 Controller of panel Remote controller 9~10 Basic Operation On and off Programme selection Volume adjustment P◀P Mute Function On screen Language selection On Screen Menus and Displays Setting up TV Programme 13~15... -
Page 5: Supplied Accessories
Supplied Accessories L Make sure the following accessories are provided with Product. 3. Remote controller 1. AC cord 2. Batteries (2EA) 4. VGA cable 5. Instruction manual Owner’s Manual 40" WIDE LCD TV/MONITOR 6. PC AUDIO IN cable Model: LT-40H5LPH/40T5LPH Battery installation uInserting batteries 1. -
Page 6: Installation
Installation Installation Options * You can install the TV on a wall or place it on a table-like surface. * To eliminate any risk of injury from the TV falling, it should be mounted securely. 1. Wall Installation Caution: Do not install the TV on a weak wall surface, like plaster etc. -
Page 7: Connecting Speaker
Connecting Speaker L Connecting TV and Speaker(LT-40T5LPH) 1. Fix the bracket onto the guide pole located on the rear of TV and Speaker. speaker joint bracket 2. Clamp the speaker and the TV together fasten the screws. 3. Connecting the speaker audio cable to the external speaker output jack on the TV. -
Page 8: Controls
Illuminates in red when the TV is in standby mode./ Illuminates in green when the TV is switched on. 7. Remote control sensor Accepts the IR signal of remote controller. LT-40H5LPH LT-40T5LPH Model: Model: *REAR PANEL 1. PC ANALOG IN (D-SUB) 2. -
Page 9: Remote Controller
Controls All the functions can be controlled with the remote controller. Some functions can also be adjusted with the buttons on the side panel of the set. Remote controller Before you use the remote controller, please install the batteries. 1. POWER Turns the TV on from standby or off to standby mode. -
Page 10: Controls
Controls 11. PRx/PRy (Programme Up/Down) Selects next programme or a menu item. 12. Ïq Adjusts menu settings. 13. VOLÏ/VOLq(Volume Up/Down) Adjuste the sound level. 14. ARC( Selects a screen mode- 16:9, 14:9, ZOOM, 1:1 and Auto Wide. 15. TELETEXT Buttons These buttons are used for TELETEXT. -
Page 11: Basic Operation
Basic Operation Turning the TV On and Off Standby Setup: The AC power cord must be set up and connected to have the TV in standby mode ready to be turned on. Press the ON/OFF button on the side or front panel of the TV to go into standby mode. -
Page 12: On Screen Menus And Displays
On Screen Menus and Display 1. Press the MENU button to display main menu. 2. Press the PRx x /PRy y button to select menus-Picture, Sound, Special, Setup. 3. Adjust each menu with the Ï Ï q q button. 4. Press the MENU button to return to preceding menu. 5. -
Page 13: Setting Up Tv Programme
Setting up TV Programme Once you have preset the programme, you will be able to Auto Programme use the PRx x /PRy y or NUMBER buttons to scan the System programme you programmed. Storage from Programme can be tuned using Auto or Manual Start programme menu. -
Page 14: Manual Programme
Setting up TV Programme Manual Programme Manual programme Manual Programme lets you manually tune and arrange System Channel V/UHF the programme in whatever order you desire. Also you can ▶ ▶ ▶ Fine assign a programme name with 5 characters to each ▶... -
Page 15: Programme Edit
Setting up TV Programme Programme Edit Programme Edit This function enables you to delete, copy, move or skip 0 ----- the stored programme. Also you can move some programme to other programme numbers or insert a blank programme data 8 ----- into the selected programme number. -
Page 16: Picture Control
Picture Control You can adjust picture Contrast, Brightness, Colour, Sharpness to the levels you prefer. Manual Picture Control Picture Contrast 1. Press the MENU button. Brightness 2. Select the Picture. Colour 3. Press the PRx x /PRy y buttons to select a picture item. Sharpness 4. -
Page 17: Sound Control
Sound Control You can select your preferred sound setting; Flat, Music, Sound Movie or Speech and you can also adjust the sound ▶ Equalizer frequency of equalizer, balance. If you switch AVL to on, Balance the set automatically keeps on an equal volume level even if you change programme. -
Page 18: Other Functions
Other functions TV, SCART1, SCART2 and S-VIDEO modes Special (You can’t set PC mode in this menu. Use the TV/AV Input button) Auto sleep Blue back External equipment inputs:S-VIDEO mode are used for Auto wide video devices like VCRs, DVDs, etc.), SCART mode is used for SCART type devices. -
Page 19: Sleep Timer
Other functions Sleep timer You don’t have to remember to switch the set off before you go to sleep. The sleep timer automatically switches the set to standby after the preset time elapses. Press the SLEEP button to select the number of minutes. The display will appear on the screen, followed by 0, 10, 20, 30, 60, 90, 120, 180 and 240. -
Page 20: Programme List
Other functions Calling the programme list Programme list You can check the programmes stored in the memory 0 ----- by displaying the programme LIST. Displaying programme list 8 ----- 1. Press the LIST button to display the Programme list 9 ----- menu. -
Page 21: Teletext
TELETEXT TEXT On/Off Press the TEXT button to switch to TELETEXT. The initial page or last selected page appears on the screen. The first page number indicates your selection, while the second shows the current page displayed. 1. Press TEXT button once, displays the TELETEXT pages. -
Page 22: Special Text Function
TELETEXT Special TELETEXT functions MENU Functions TEXT Changes TELETEXT mode Selects double height text. Press this button to enlarge the top half of the page. SIZE Press this button again to enlarge the bottom half of the page. Press this button again to return to the normal display. Stops the automatic page change, which will occur if a TELETEXT page consists of 2 or more sub pages. -
Page 23: External Equipment Connection
External Equipment Connection You can connect additional equipment, such as VCRs, camcorders etc. to your set. Examples are shown below. Antenna connection 1. Connect RF out on the VCR to the Antenna input on the rear of the TV. 2. Connect the antenna cable to the antenna in jack on the VCR. -
Page 24: Hdmi In
External Equipment Connection Connecting to HDMI (High Definition Multimedia Interface) 1. Connect an HDMI cable between the “HDMI IN” jack on the TV and the HDMI OUT jack on the set-top box. Please check that the HDMI source is powered on. 2. -
Page 25: Connecting Pc(Hdmi/Vga) As Monitor 25~26
Connecting the PC(HDMI, VGA) as a monitor Picture adjustment Contrast You can adjust picture Contrast, Brightness, Horizontal/Vertical position, Ï Ï Clock, Phase, Auto and Reset as you prefer. 1. Press the TV/AV or TV/PC button to select the PC mode. 1024 X 768 AUTO 48.4KHz 60.0Hz... - Page 26 Connecting the PC(HDMI, VGA) as a monitor PC INPUT 1. Connect the PC IN cable (D sub jack) from the monitor output socket of the PC to the PC/DTV input socket of the set. 2. Connect the PC AUDIO IN cable from the PC to the PC AUDIO IN of the set. 3.
-
Page 27: Product Specifications
Product Specifications Model LT-40H5LPH LT-40T5LPH Horizontal size 1135.2 mm Horizontal size 1265 mm Main body (With stand) Thickness 114.5(280) mm Thickness 133(263) mm Height 632.2(704.1)mm Height 606(663) mm Weight 28.3 (32.8) kg Weight 28.6(33.1) kg Television system PAL-BG, I, DK/ SECAM-BG, DK, L...
