External Equipment Connection

You can connect additional equipment, such as VCRs, camcorders etc. to your set.

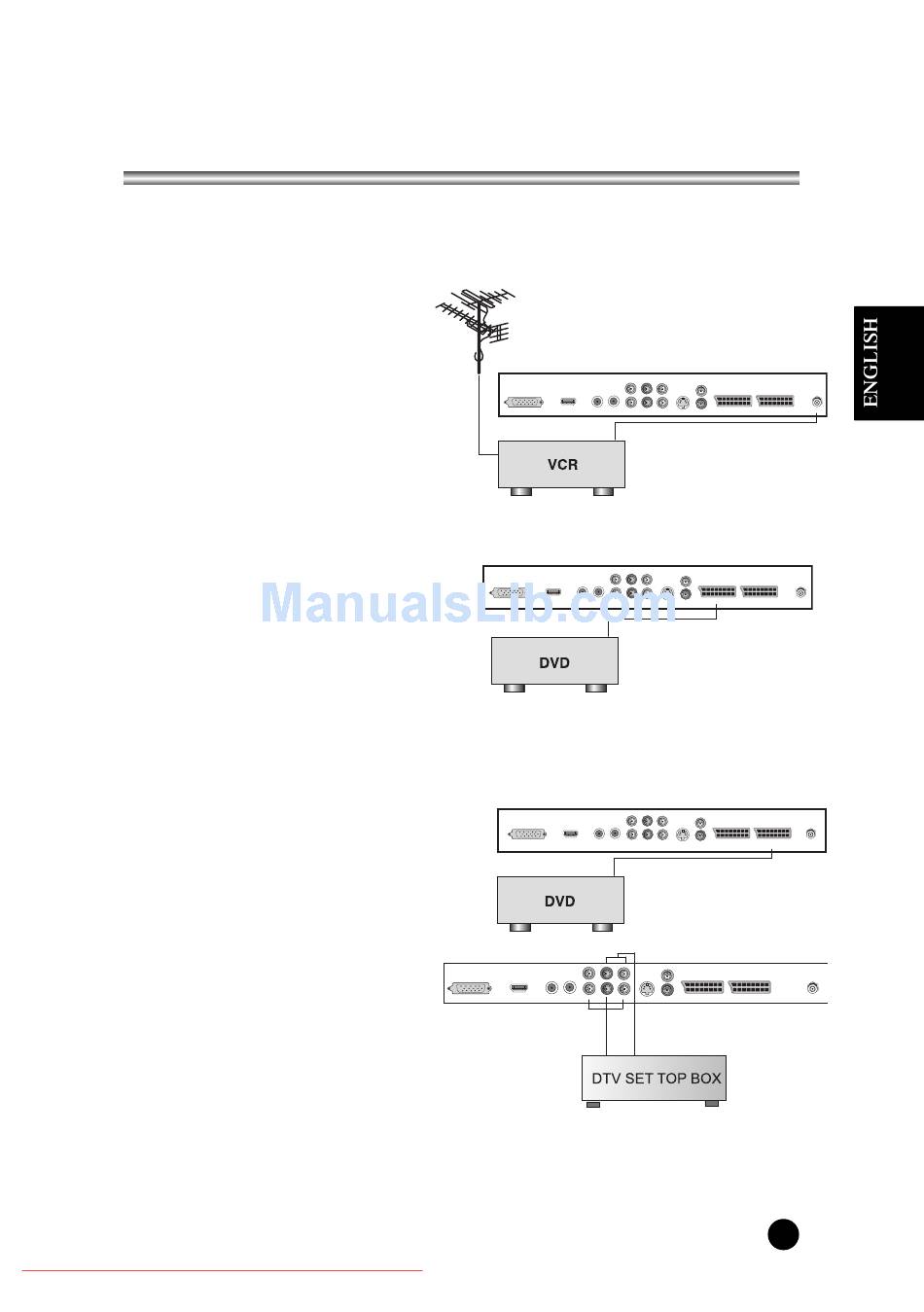

Examples are shown below.
Antenna connection
1. Connect RF out on the VCR to
the Antenna input on the rear of
the TV.
2. Connect the antenna cable to
the antenna in jack on the VCR.
3. Use the TV/AV button to select
TV mode.
SCART 2(AV 2)
1. Connect the AV out jacks on
the AV device to the SCART 2
on the TV.
2. Use the TV/AV button to select
SCART2 mode.
3. Press the PLAY button on the
DVD.
SCART 1(AV 1)
1. Connect the A/V out jacks on the
AV device to SCART jack on the TV.
2. Use the TV/AV button to select
SCART1 mode.
3. Press the PLAY button on the VCR.
The VCR playback picture appears on
the TV screen.

COMPONENT IN

1. Connect a set of audio cables
between the COMPONENT AUDIO IN (L, R)
jacks on the TV and the AUDIO OUT
jacks on the set-top box.
2. Connect a set of video cables between the
COMPONENT(Y, Pb(Cb), Pr(Cr)) jacks on the TV and the
VIDEO OUT jacks on the set-top box.
3. Use the TV/AV button to select COMPONENT mode.
