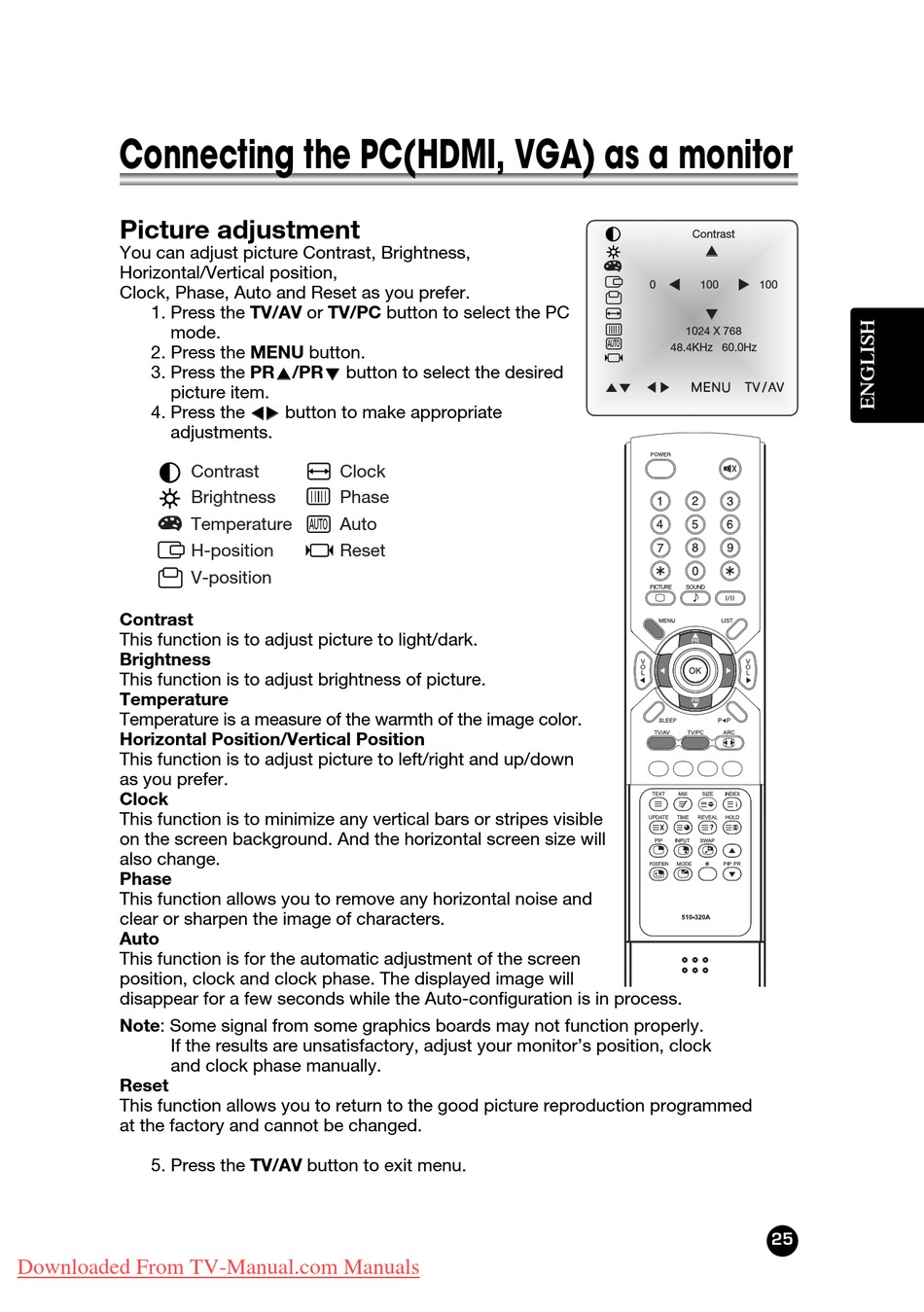

Connecting the PC(HDMI, VGA) as a monitor

Picture adjustment

You can adjust picture Contrast, Brightness,
Horizontal/Vertical position,
Clock, Phase, Auto and Reset as you prefer.
1. Press the TV/AV or TV/PC button to select the PC
mode.
2. Press the MENU button.
3. Press the PRx x /PRy y button to select the desired
picture item.
4. Press the Ï Ï q q button to make appropriate
adjustments.
Contrast
Brightness
Temperature
H-position
V-position
Contrast
This function is to adjust picture to light/dark.
Brightness
This function is to adjust brightness of picture.
Temperature
Temperature is a measure of the warmth of the image color.
Horizontal Position/Vertical Position
This function is to adjust picture to left/right and up/down
as you prefer.
Clock
This function is to minimize any vertical bars or stripes visible
on the screen background. And the horizontal screen size will
also change.
Phase
This function allows you to remove any horizontal noise and
clear or sharpen the image of characters.
Auto
This function is for the automatic adjustment of the screen
position, clock and clock phase. The displayed image will
disappear for a few seconds while the Auto-configuration is in process.
Note: Some signal from some graphics boards may not function properly.
If the results are unsatisfactory, adjust your monitor's position, clock
and clock phase manually.
Reset
This function allows you to return to the good picture reproduction programmed
at the factory and cannot be changed.
5. Press the TV/AV button to exit menu.
Downloaded From TV-Manual.com Manuals
Clock
Phase
Auto
AUTO
Reset
Contrast
x x
Ï Ï q q
0 100 100
y y
1024 X 768
AUTO
48.4KHz 60.0Hz
▲▼ ◀▶ MENU TV/AV
