Summary of Contents for XVision X2C4000
Page 1

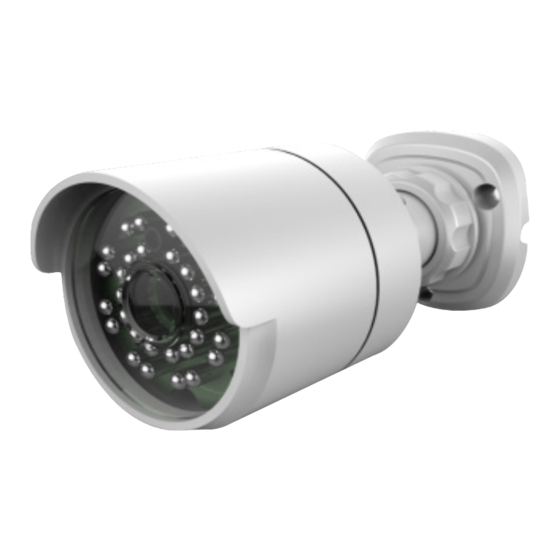

Professional HD IP Camera User Guide Thank you purchasing the X2C4000 HD IP Camera from Xvision Pro HD. Please ensure that you read and understand this User Guide before operating the camera. Please store this User Guide in an easily accessible location.
X2C4000 IPC Manual Functional Descriptions and Features Features Brief Description Optimized H.265/H.264/MJPEG video compression algorithms; Multi- Real time stream transmission ensures high definition image transmission on both monitoring narrowband and wideband. Recording Support simultaneous connection of up to 5 video streams.
SAFETY INSTRUCTION Do not install the equipment in an environment with too much moisture, dust or smoke dust as this may result in fire or electric shock. In the unlikely event that the equipment should malfunction and emit an abnormal smell of smoke, please immediately stop it, shut off the power and contact your supplier.
Introduction This guide is for the Xvision Pro HD X2C4000 Range of IP Cameras. It is recommended that the units are setup and tested before being mounted or installed. These instructions are for guidance only detailed information is in accordance with the product.
IPC Description and Device Connection Appearance Description The X2C4000 cameras can be wall or ceiling mounted, so to install the camera you will need to adjust it to the desired angle. Below you will see how to install each camera type Schematic Diagram(X2C4000BP)...
Page 8
Schematic Diagram(X2C4000BVP) Items Descriptions Helps protect the IPC from sunlight and rain. ① Front cover Fixed with the front cover. ② Rear cover Adjust the focal length of the IPC. ③Focusing lever Lens of IPC ④Lens Infrared IR’s behind glass cover ⑤...
Page 9
Schematic Diagram(X2C4000VAP) ① ② ③ ④ ⑤ Items Descriptions ① Transparent cover Protects the IPC lens and IR’s. Infrared IR LED’s ② Infrared IR’s ③ Lens Lens of IPC ④ Black inner cover Hides IPC mechanics. This will connect to the additional bracket. ⑤...
Page 10
Schematic Diagram(X2C4000VP) ① ② ③ ④ ⑤ ⑥ Items Descriptions Lens of IPC ① Lens ② Infrared lamp Infrared LED lamp ③ Main housing Rotatable and used to adjust the installation angle Secure the position of the Main housing. ④ Fixed guard ⑤...
Device Connection There are two types of connection method: 1. Connect the IPC with your PC. For a direct connection you will need to use a CAT5/6 Cross over cable. You will still need to provide power to the IPC, this can be done with a 12v Dc power supply or a POE Injector.
The search software will search your LAN, you can also use the XIQCMS to find your IPC. Firstly, install .exe file (Device Search) found on the included CD by the following procedures, you can also download this from http://www.Xvision.com. 1. Double click the .exe file 2.
Page 15
4. Click [Install] to begin the installation. 5. Click [Finish] to finish the installation...
Page 16
Once installed, run the Search tool. This will search your LAN for the IPC. Once found it will bring back the IPC, IP Address, Subnet mask and MAC Address. As shown in the following picture: If the searched IP address and PC IP address are not in the same network segment, you will have to change your PC IP Address to be in the same LAN IP range.
Active X Setup Before we can access our newly setup X2C4000 on IE there a few more steps. Open Internet Explorer and type in your IPC IP address in the address bar and press enter on the keyboard. The correct way to type the address is http://192.168.1.100.
Page 18
First, click on (1) “Require sever verification (https :) for all sites in this zone” so that it is not ticked, as shown in the image. Then, you can type the IP address of your X2C4000 into the text box at the top and then click Add. Next, click on Custom Level, you will need to locate all the “ActiveX controls...
Web Browser Interface Live View Open Internet Explorer and input IP address of IPC http://192.168.1.100 if set as above, Default http://192.168.1.168. The login dialog box will appear. See the following picture: You can select stream types and fluent level in the login interface. Input user name (default: admin) and password (default: admin) and click “Login”...
Page 20
Other buttons on the Live interface: Live: This shows the live image. Playback: This will show the play back menu. Remote Settings: Enter the device setting menu and set customized parameters of the device. Local Setting: Snapshot, file ty pe, storage path, etc. ...
Remote Setting Display Live Click ,and enter the following interface (Live interface by default) Channel Name: Name of IPC Channel Display: Enable or disable. Customize the display location. Time Display Enable or disable. Customize the display location. ...
Image Control Click (Display) → (Image Control) to enter the following interface. IRCUT Mode:4 modes: GPIO Auto, Video Auto, Color Mode and Black & White Mode. IR-CUT Delay Set IR cut delay switching time Image flip: Lens flip and angle flip ...
Privacy Zone Click (Display)→ (Privacy Zone) Set privacy zone: 1. Click to enable privacy zone. 2. Press and drag left mouse button to select privacy zone (4 zones at maximum). 3. Click Save to make the privacy zone effective. Delete: Click Refresh, select a privacy zone, click Delete, and click Save.
ROI is region of interest. You can draw an area, this area will be adopted to high encode bit rate, when in preview and record, the resolution is high. Other areas not within the ROI will not be effected. The bit rate is lower, in this way, can save space and bandwidth.
Schedule Here you can change the schedule for recording for – Normal recording Motion recording I/O recording OSC recording – Object care alarm – Goods lost or left PEA recording – Perimeter alarm...
Network Network Setting Type: DHCP or Static. Default type is Static. Client Port: Client port of IPC – For use with XIQCMS Web Port: Web port of IPC – Browser access port Mobile Port: Connection port of mobile client – For use with XIQ Mobile CMS ...
Video Streaming Click (Network) → (Video Streaming) Resolution: mainstream(1280×720), substream(640×480), mobilestream( 320×240) FPS: When flicker control is 50HZ, Can be set as 25 at maximum; when flicker control is 60HZ, can be set as 30 at maximum. Audio: Audio control switch for the stream ...
Email Click (Network) → (Email) Apply this function with alarm function and the images captured during alarming can be sent to an email receiver. Enable Email: Disable or enable SSL: Enable if your SMTP Server requires SSL. SMTP Port : Default value port is 25 ...
IP Filter Click (Network) → (IP Filter) IP connection: allow all IP connection, allow all set IP connection, and disable set Three modes: :Add allowed IP or disabled :Delete added IP...
RTSP Click (Network) → (RTSP) RTSP: Enable or disable. Default setting is “Enable”. If it is set as “Disable”, user may not find through ONVIF. RTSP Port: Default value is 554. The value can be changed in the range of 1024- 65535.
Click (Network) → (FTP) FTP service setting. This function is applied together with alarm function. The captured images or alarm recording can be uploaded to FTP server through network. FTP: Enable or disable User Name: User name for visiting FTP Password: Password for visiting FTP FTP Server: Input FTP server Port: FTP service port, default value is 21...
Alarm Click (Alarm) → (Alarm) Some of the IPC have Alarm I/O function, you can enable what happens when these are triggered here. (Not all IPC support Alarm I/O).
Device SD Card Here you can format the SD card and also change if the SD card is overwritten. Please note that only the X2C4000DVP and X2C4000VAP support SD card.
Click (Device) → (Log) Log Type: System Log Parameter Log Alarm Log Storage Log All Log Set the begin time and end time of the searched log. 1. Click “Search” and the corresponding log information will be displayed below; 2.
System Date/Time Click (System) → (Date/Time) In this interface, you can set Date/Time, including System Time, Date Format and Time Format. After setting, click Save. The device also provides three kinds of automatic time synchronization: DST :Click DST to enable DST function. The device will synchronize time. NTP :Synchronize time with NTP server.
Users Click (System) → (Users) Here you can add and modify the users who have access to the IPC. You can also change Users permissions and access rights, note that you cannot change the Admin accounts permissions.
Firmware Update Click (Advanced) → (Firmware Update) You can download the latest firmware from www.xvision.com, once downloaded you will need to unzip the file in the folder, place this on your desktop or downloads folder. Press the “Scan” button and locate the downloaded file.
PEA (Perimeter Alarm) Here you can enable the PEA. Switch: Enable-on, Disable-off. Latch Time: Continued alarm output time after trigger alarm, the optional time can be 10S,20S,40S,60S,unit is seconds. Post Recording: Continued record time after trigger alarm finished, the optional time can be 10S,20S,40S,60S,unit is seconds.
Page 47
Rule Type: Every rule with a type, Trap Wire-draw warning line, Perimeter-draw perimeter. Two-way: Detection when line is crossed 2 ways. Trap Wire: Use the mouse to draw from top to bottom, this will detect the object come from left to right.
Page 48
Perimeter: Detect any object passing through from this area, use the mouse to place 7 positions, this will become a closed perimeter, when Rule Type set to Perimeter, then Two-way does not work. Notice: 1) Warning line and perimeter setup cannot to be too close to the four side of video, the will find difficult...
OSC –Object Care Object loss detection. Switch: Enable-on, Disable-off. Latch Time: Continued alarm output time after trigger alarm, the optional time can be 10S,20S,40S,60S,unit is seconds. Post Recording: Continued record time after trigger alarm finished, the optional time can be 10S,20S,40S,60S,unit is seconds.
Page 51
Notice: 1) The zone to be detected needs to be larger than the object, example of how not to set, 2) The detected object cannot be covered by other things. Tips Remember that once you have setup the view if you move the IPC you will need to reset the PEA and OSC.
X2C4000 Specification’s Model X2C4000BP Lens Size 3.6mm Night Vision IR cut filter with auto switch Minimum Illumination 0.03Lux @(F1.2,AGC ON) ,0 Lux with IR Video Resolution & 3MP (2048*1536) / Real-Time (50HZ:25fps Frame Rates 60HZ:30fps ); 4MP Half real time...
Page 53
Model X2C4000BVP Lens Size 2.8-12mm Night Vision IR cut filter with auto switch Minimum Illumination 0.03Lux @(F1.2,AGC ON) ,0 Lux with IR Video Resolution & 3MP (2048*1536) / Real-Time (50HZ:25fps Frame Rates 60HZ:30fps ); 4MP Half real time Weather Resistant (IP Rating) IP66 indoor/outdoor Vandal Resistant...
Page 54
Model X2C4000DVP Lens Size 2.8-12mm Night Vision IR cut filter with auto switch Minimum Illumination 0.03Lux @(F1.2,AGC ON) ,0 Lux with IR Video Resolution & 3MP (2048*1536) / Real-Time (50HZ:25fps Frame Rates 60HZ:30fps ); 4MP Half real time Weather Resistant (IP Rating) Indoor Vandal Resistant...
Page 55
Model X2C4000MP Lens Size 3.6mm Night Vision IR cut filter with auto switch Minimum Illumination 0.03Lux @(F1.2,AGC ON) ,0 Lux with IR Video Resolution & 3MP (2048*1536) / Real-Time (50HZ:25fps Frame Rates 60HZ:30fps ); 4MP Half real time Weather Resistant (IP Rating) Indoor Vandal Resistant...
Page 56
Model X2C4000VP Lens Size 3.6mm Night Vision IR cut filter with auto switch Minimum Illumination 0.03Lux @(F1.2,AGC ON) ,0 Lux with IR Video Resolution & 3MP (2048*1536) / Real-Time (50HZ:25fps Frame Rates 60HZ:30fps ); 4MP Half real time Weather Resistant (IP Rating) indoor Vandal Resistant...
Page 57
Model X2C4000VAP Lens Size 2.8-12mm Night Vision IR cut filter with auto switch Minimum Illumination 0.03Lux @(F1.2,AGC ON) ,0 Lux with IR Video Resolution & 3MP (2048*1536) / Real-Time (50HZ:25fps Frame Rates 60HZ:30fps ); 4MP Half real time Weather Resistant (IP Rating) IP66 indoor/outdoor Vandal Resistant...
3/4G you get no connection/image, please contact your mobile provider as they may be blocking access on the XIQCMS mobile port 9988. You can also try and change this port and then try and get access again. For more help and guides please visit http://www.xvision.com...
Page 59
In the unlikely event that you encounter a problem with this product, it should be returned to the place of purchase. Xvision UK, Unit 2 Valley Point, Beddington Farm Road, Croydon, Surrey CR0 4WP www.xvision.com...
