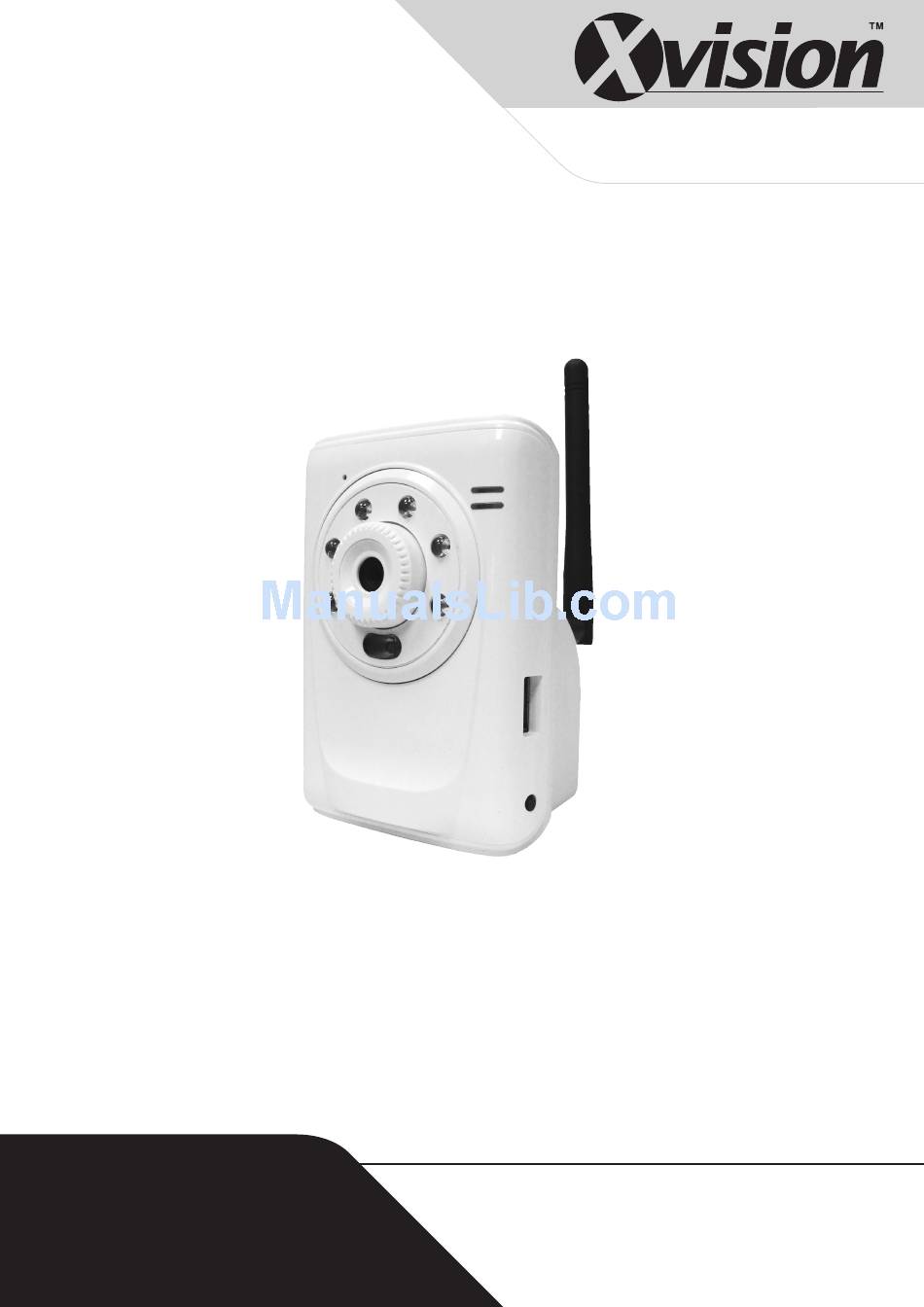

Page 1: Quick Installation Guide
IP CCTV Model: XIP3101 Quick Installation Guide Wireless IP Camera with IR Night Vision & 3G Mobile Phone Access... -
Page 2: Getting Started
Getting Started Package Contents Check the items contained in the package carefully. You should have the following: G One Wireless IP CCTV Camera. G One AC Power Adapter. G One External Antenna. G One Camera Bracket. G One Ethernet Cable (RJ-45 type). G One Installation CD-ROM. -
Page 3: System Requirement
System Requirement Networking LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet. WLAN: IEEE 802.11b/g (Model XIP3001 only). Configuring the Camera: CPU: Pentium 3, 350MHz or above Memory Size: 128MB or above Resolution: 800 x 600 or above Browser: Internet Explorer 6.0 or above Operating Systems: Windows 2000/XP/Vista Viewing the Camera: CPU: Pentium 3, 350MHz or above... -
Page 4: Setting Up The Camera
Setting Up the Camera Installing the Camera Stand The camera comes with a camera stand, which uses a swivel ball screw head to lock to the camera’s screw hole. When the camera stand is attached, you can place the camera anywhere by mounting the camera through the three screw holes located in the base of the camera stand. -
Page 5: Connecting The Camera To Lan/Wlan
Connecting the Camera to LAN/WLAN Use the provided Ethernet cable to connect the camera to your local area network (LAN). When you connect the AC power adapter, the camera is powered on automatically. You can verify the power status from the Power LED on the front panel of the camera. -
Page 6: Accessing The Camera
Accessing the Camera Using IPFinder The camera comes with a conveniently utility, IPFinder, which is included in the Installation CD-ROM, allowing you to search the camera on your network easily. 1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program. 2. -
Page 7: Accessing To The Camera
Accessing to the Camera 1. Open the Web browser on your computer (for example, Microsoft Internet Explorer in this guide) 2. Type the default IP address (192.168.0.30) or the IP address found by IPFinder in the Address bar, and then press [Enter]. 3. - Page 8 4. Click Setup and then Smart Wizard to set up your camera quickly. The Smart Wizard will guide you through the necessary settings with detailed instructions on each step. - 7 -...
- Page 9 Tips For more information, please refer to the Advanced Installation Guide on the provided Installation CD-ROM. For details of operating XView, please refer to the Software User Guide on the provided Installation CD-ROM. - 8 -...
- Page 10 IP CCTV TECHNICAL SUPPORT: For Technical Support for any Xvision product please contact your local distributor. LIMITED WARRANTY: This product is supplied with a 1 Year warranty. The Warranty excludes products that have been misused, (including accidental damage) and damage caused by normal wear and tear.
