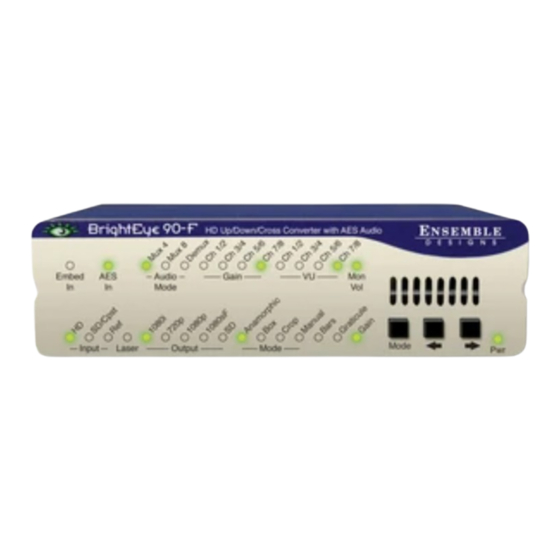

HD Up/Down/Cross Converter
and ARC with AES Audio
and Optical Output
This user guide provides detailed information for using the BrightEye 90-F
HD up/down/cross converter and aspect ratio converter (ARC) with AES audio
and optical output.
The information is organized into the following sections:
• Product Overview
• Functional Description
• Applications
• Rear Connectors
• Operation
• Front Panel Controls and Indicators
• Using The BrightEye Control Application
• Warranty and Factory Service
• Specifications
• Glossary
BrightEye 90-F
BrightEye 90-F - Page 1
TM
Revision 2.4 SW v1.2.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BrightEye 90-F and is the answer not in the manual?

Questions and answers

Related Manuals for Ensemble Designs BrightEye 90-F

Summary of Contents for Ensemble Designs BrightEye 90-F

  • Page 1 ARC with AES Audio and Optical Output Revision 2.4 SW v1.2.3 This user guide provides detailed information for using the BrightEye 90-F HD up/down/cross converter and aspect ratio converter (ARC) with AES audio and optical output. The information is organized into the following sections: •...

  • Page 2: Product Overview

    As shown in the diagrams that follow, when a high definition or standard definition serial digital video input is fed to the BrightEye 90-F, the signal enters the serial digital receiver and is frame synchronized to the reference input. Audio is disembedded and passed around the video processing.
  • Page 3 SDI outputs. When SD SDI is present on the SDI outputs, composite video will be present on the composite output BNC. BrightEye 90-F is powered by a 12 volt DC universal power supply. This power supply can accept an input voltage between 90 and 230 volts, at 50 or 60 Hertz.
  • Page 4 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output BrightEye 90-F - Page 4...
  • Page 5 5) The final output signal is built from this intermediate progressive workspace, which is the most uncompromised version of the image possible. It provides the best possible starting point from which to create the final output signal. BrightEye 90-F - Page 5...
  • Page 6 The BrightEye 90-F can upconvert SD video from many different source types. As shown in the example below, the SD ingest signal from a satellite is fed to a BrightEye 90-F where it is upconverted to feed an HD Master Control Switcher. The optical output can be sent to the fiber backhaul.
  • Page 7 Fiber Backhaul House Reference HD Downconversion 2 As shown in the example below, the BrightEye 90-F can be used to downconvert material originated in HD. The BrightEye 90-F can output signals to feed a server, video monitor and HDMI display simultaneously.
  • Page 8 SD input signal to a different aspect ratio. In the example below, the input from an SD camera with 16:9 lenses can feed an anamorphic signal to the BrightEye 90-F where the aspect ratio can be corrected for input to an SD switcher that requires 16:9 Letterbox.
  • Page 9 BrightEye 90-F Remote Truck/OB Van As shown below, the BrightEye 90-F accepts an SD SDI or HD SDI signal. The user sets the unit to the desired output type. The BrightEye 90-F auto-senses the input format and deter- mines if it should up, down, or cross convert the signal, based on the user’s output format selection.

  • Page 10: Rear Connectors

    BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output REAR CONNECTORS All connections to the BrightEye 90-F are made on the rear of the unit. Refer to the photo below. BrightEye 90-F Rear Connectors Power Connection Connect a modular power supply to the 12 volt DC power input connection on the far left of the unit.
  • Page 11 When the unit is configured as Mux 8, the AES BNCs are inputs. When configured as Demux, the AES BNCs are outputs.When configured as Mux 4, two BNCs are inputs and two BNCs are outputs. BrightEye 90-F - Page 11...

  • Page 12: Operation

    BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output OPERATION Control and operation of the BrightEye 90-F is performed from the front panel or remotely from a networked PC with the BrightEye PC or BrightEye Mac Control application.
  • Page 13 Illuminates green when video gain is set to unity, or red when set to other than unity. Pwr (Power) Illuminates green when power is applied to the unit and the internal voltage regulator is functioning correctly. BrightEye 90-F - Page 13...

  • Page 14: Adjusting Parameters From The Front Panel

    BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output ADJUSTING PARAMETERS FROM THE FRONT PANEL Use the Mode, Right Arrow, and Left Arrow buttons to select and adjust parameters from the front panel. Pressing the Mode button activates the front panel for editing and tabs between each section of editable parameters.

  • Page 15: Using The Brighteye Control Application

    BrightEye 90-F from a personal computer. Installation and instructions for using this software applica- tion are given in the PDF manual on disk. If the BrightEye 90-F is connected to a computer running this software, the following menus are available for controlling and monitoring the unit.
  • Page 16 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output Mode • Mode – indicates the mode in which the unit is running (Upconvert, Downconvert, Cross convert, SD ARC [Aspect Ratio Convert]). The mode is determined by the output selection made in the Format menu.
  • Page 17 Make adjustments by clicking and dragging the slider controls, by using the up and down arrow buttons, or by entering a value directly into the field. Click the Default buttons to return settings to their default values. BrightEye 90-F - Page 17...
  • Page 18 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output Config • Noise Reduce – adjusts the amount of noise reduction on the output signal from Off, Low, Medium, or High. The typical setting for this parameter is Off or Low.
  • Page 19 Make adjustments by clicking and dragging the slider controls, by using the up and down arrow buttons, or by entering a value directly into the field. Click the Default buttons to return settings to their default values. BrightEye 90-F - Page 19...
  • Page 20 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output Video Out • Hor Timing – use this control to adjust the horizontal timing of the output signal to place the leading edge of sync coincident with other sources (range is -2000 to 2000 clocks, default is 0 clocks).
  • Page 21 BrightEye 90-F BrightEye 90-F - Page 21...
  • Page 22 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output Aud Config • Audio Mode – selects the mode of the module as Mux 4 (4 inputs and 4 outputs), Mux 8 (8 inputs), or Demux (8 outputs).

  • Page 23: Multiplexer Mode

    AES BNCs as No Input, Sync Audio, Async Audio, Sync Data, or Async Data. • AES 5/6, 7/8 Status – for Mux 4 mode, the AES inputs will report the AES audio status as being in Output Mode. BrightEye 90-F - Page 23...
  • Page 24 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output Demultiplexer Mode When the module is set for Demux, the Input menu provides the controls shown below. • Group A Status – the status of the audio selected in Group A Select will be displayed as No Audio Present, Group 1 OK, Group 2 OK, Group 3 OK, or Group 4 OK.
  • Page 25 Ch 2 will tie the two control together. Selecting the Tie button in Input Ch 3 or Input Ch 4 will tie the controls for these channels together. Click the Default button to return to the default value. Click the Invert button to invert the phase of the audio content. BrightEye 90-F - Page 25...
  • Page 26 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output Mixer B For Channels 5 – 8, use the Mixer B menu as follows: • Outputs 5-8 – provides Peak/VU status, with the same methodology as the front panel VU indicators, but on a per-channel basis, rather than per- channel pair.
  • Page 27 • HDMI Assign – chooses the audio pair that is output on the HDMI Out port. The HDMI port carries both audio and video signals. Choices are: Chan 1/2, Chan 3/4, Chan 5/6, Chan 7/8, Chan 9/10, Chan 11/12, Chan 13/14, Chan 15/16. BrightEye 90-F - Page 27...

  • Page 28: Warranty And Factory Service

    BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output WARRANTY AND FACTORY SERVICE Warranty Ensemble Designs, Inc. warrants this product to be free from defect in material and workmanship for a period of 5 years from the date of delivery. During this 5 year warranty period, Ensemble Designs, Inc.

  • Page 29: Specifications

    Adjustable from 1 field to 1 frame Processing 12 and 16 bit Impedance 75 Ω Return Loss >15 dB Max Cable Length 300 meters for 270 Mb/s SD 100 meters for 1.485Gb/s HD (Belden 1694A) BrightEye 90-F - Page 29...
  • Page 30 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output HD Standards Supported 1080i 50,59.94 or 60 Hz SMPTE 274M -4,5,6 720p 50,59.94 or 60 Hz SMPTE 296M -1,2,3 1080p 23.98,24 or 25 Hz SMPTE 274M -9,10,11 1080sF 23.98,24 or 25 Hz RP211 -14,15,16...

  • Page 31: Brighteye Power Supply Information

    BERKMT BrightEye Rack Mount. This holds 6 single high BrightEyes or 3 double high BrightEyes, or a combination. BEBP BrightEye Blank Panel. Single high, for empty slots in Rack Mount. BEAC Analog Audio Breakout Cable. BrightEye 90-F - Page 31...
  • Page 32 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output GLOSSARY AES/EBU The digital audio standard defined as a joint effort of the Audio Engineering Society and the European Broadcast Union. AES/EBU or AES3 describes a serial bitstream that carries two audio channels, thus an AES stream is a stereo pair.
  • Page 33 The resultant artifacts of dot crawl (also referred to as chroma crawl) are only the most obvious result. Composite television is the most BrightEye 90-F - Page 33...
  • Page 34 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output commonly used format throughout the world, either as PAL or NTSC. It is also referred to as Encoded video. Color Difference Color Difference systems take advantage of the details of human vision. We have more acuity in our black and white vision than we do in color.
  • Page 35 HDMI is a bit serial interface that carries the video content in digital component form over multiple twisted-pairs. HDMI is closely related to the DVI interface for desktop computers and their displays. BrightEye 90-F - Page 35...
  • Page 36 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output The International Electrotechnical Commission provides a wide range of worldwide standards. They have provided standardization of the AC power connection to products by means of an IEC line cord. The connection point uses three flat contact blades in a triangular arrangement, set in a rectangular connector.
  • Page 37 And secondly, and most importantly, an optical interface can carry a signal for many kilometers or miles without any degradation or loss in the recovered signal. Copper is barely useful at distances of just 1000 feet. BrightEye 90-F - Page 37...
  • Page 38 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output Oversampling A technique to perform digital sampling at a multiple of the required sample rate. This has the advantage of raising the Nyquist Rate (the maximum frequency which can be reproduced by a given sample rate) much higher than the desired passband.
  • Page 39 This allowed it to be recovered in rewind and fast forward when the picture itself could not. Timecode continues to be useful today and is carried in the vertical interval as VITC, and as a digital packet as DVITC. Timecode is the true metadata. BrightEye 90-F - Page 39...
  • Page 40 BrightEye 90-F HD Up/Down/Cross Converter And ARC With AES Audio And Optical Output Tri-Level Sync For many, many years, television systems used composite black as a genlock reference source. This was a natural evolution from analog systems to digital implementations. With the advent of High Definition television, with even higher data rates and tighter jitter requirements, problems with this legacy genlock signal surfaced.
  • Page 41 Cr (R-Y) and Cb (B-Y). Y/Pr/Pb In analog component video, the image is carried in three components. The luminance is Y, the R-Y color difference signal is Pr, and the B-Y color difference signal is Pb. BrightEye 90-F - Page 41...
