Related Manuals for Clevo M660JE

Summary of Contents for Clevo M660JE

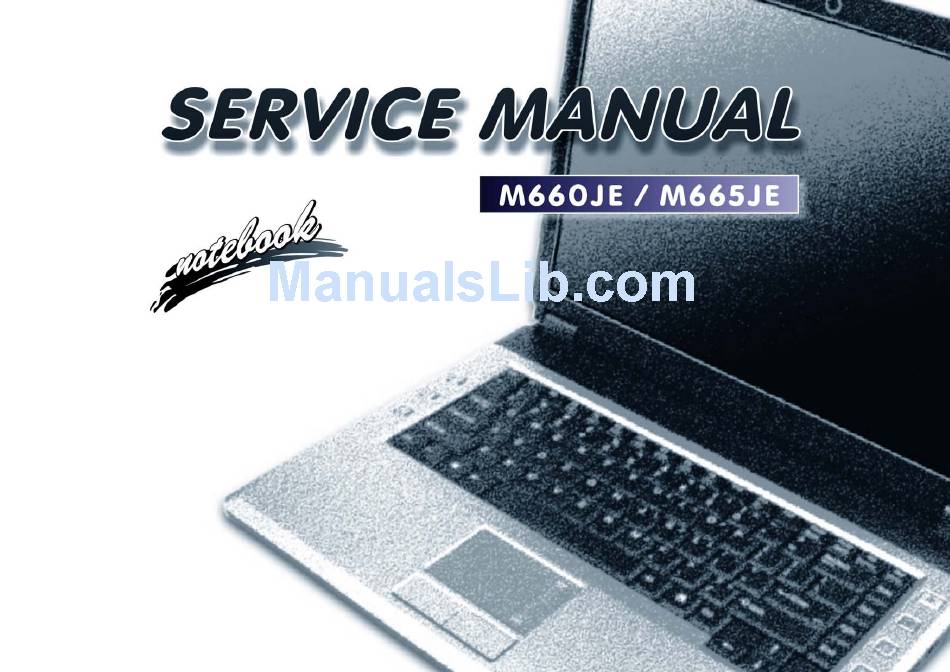

  • Page 3 Preface Notebook Computer M660JE/M665JE Service Manual...
  • Page 4 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven- dor.
  • Page 5 This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and inspection of personal computers. It is organized to allow you to look up basic information for servicing and/or upgrading components of the M660JE/ M665JE series notebook PC.
  • Page 6 Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per- sons when using any electrical equipment: 1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

  • Page 7: Instructions For Care And Operation

    Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...

  • Page 8: Power Safety

    Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag- netic fields. These can hinder proper performance and damage your data. Take care when using peripheral devices. Use only approved brands of Unplug the power cord before peripherals.

  • Page 9: Battery Precautions

    Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
  • Page 10 Preface Related Documents You may also need to consult the following manual for additional information: User’s Manual on CD This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro- gram. It also describes the installation and operation of the utility programs provided with the notebook PC. VIII...

  • Page 11: Table Of Contents

    External Locator - Left & Right Side View ........1-8 Schematic Diagrams......... B-1 External Locator - Bottom View .............1-9 M660JE Mainboard Overview - Top (Key Parts) ......1-10 SYSTEM BLOCK DIAGRAM ............B-2 M660JE Mainboard Overview - Bottom (Key Parts) ....1-11 AMD S1: HT ..................B-3 M660JE Mainboard Overview - Top (Connectors) ......1-12...
  • Page 12 Preface USB & CCD, MDC, Inverter ............B-24 H8 ....................B-25 CRT & LVDS, TV-Out ..............B-26 FAN CONN, LPC ROM .............. B-27 JLED ..................... B-28 MINI CARD, +3VH8 ..............B-29 SUPER I/O ................... B-30 AUDIO ALC883 ................B-31 CHARGER, DC IN ..............B-32 SYSTEM POWER ...............

  • Page 13: Introduction

    Chapter 1: Introduction Overview This manual covers the information you need to service or upgrade the M660JE/M665JE series notebook computer. In- formation about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.

  • Page 14: System Specifications

    Introduction System Specifications Latest Specification Information The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/speeds and CD/DVD device types) may be changed, delayed or updated due to the manufacturer's release schedule. Check with your service center for details.
  • Page 15 Introduction Feature Specification 15.4" WXGA TFT LCD 15.4" WSXGA+ TFT LCD Video Adapter NVIDIA GeForce Go 6100 (C51MV) Integrated Video Supports up to 128MB of Shared Video Memory Integrated High Quality 3D Graphics Engine Supports Microsoft DirectX 9.0 Vertex Shader 3.0 Storage One Changeable 12.7mm(h) Optical Device (CD/DVD) Type Drive Easy Changeable 2.5"...
  • Page 16 Introduction Feature Specification Communication AZALIA 56K Plug & Play Fax/Modem V.90/92 Compliant 10M/100Mb Base-T Ethernet LAN 802.11 b/g USB Wireless LAN Module (Option) USB (2.0) Bluetooth Module - Version 2.0 (Factory Option) 300K or 1.3M Pixel USB PC Camera Module (Factory Option) Power Supports ACPI 2.0 Supports Resume from Modem Ring...

  • Page 17: Model Differences

    Introduction Model Differences The models vary slightly in external cover design and color. Figure 1 Model Differences M660JE M665JE System Specifications 1 - 5...

  • Page 18: External Locator - Top View With Lcd Panel Open

    Introduction External Locator - Top View with LCD Panel Open Figure 2 Top View 1. Optional Built-In PC Camera 2. LCD 3. Speakers 4. Power Button 5. Hot Key Buttons 6. Keyboard 7. TouchPad and Buttons 8. Built-In Microphone 9. LED Indicators 1 - 6 External Locator - Top View with LCD Panel Open...

  • Page 19: External Locator - Front & Rear Views

    Introduction External Locator - Front & Rear Views Figure 3 Front Views 1. LED Indicators Figure 4 Rear Views 1. Serial Port 2. Mini-IEEE 1394 Port 3. 1 * USB Port 4. DC-In Jack 5. Battery External Locator - Front & Rear Views 1 - 7...

  • Page 20: External Locator - Left & Right Side View

    Introduction External Locator - Left & Right Side Views Figure 5 Left Side View 1. Security Lock Slot 2. Optical Device Drive Bay 3. RJ-11 Modem Jack 4. S/PDIF-Out Jack 5. Microphone-In Jack 6. Headphone-Out Jack 7. Line-In Jack Figure 6 Right Side View 1.

  • Page 21: External Locator - Bottom View

    Introduction External Locator - Bottom View Figure 7 Bottom View 1. Vent/Fan Intake 2. Battery 3. Hard Disk Bay Cover 4. CPU/RAM Bay Cover Overheating To prevent your com- puter from overheating make sure nothing blocks the vent/fan in- takes while the com- puter is in use.

  • Page 22: M660Je Mainboard Overview - Top (Key Parts)

    M660JE Mainboard Overview - Top (Key Parts) Figure 8 Mainboard Top Key Parts 1. Realtek RTL8201CL 2. CardBus PC17402 3. Flash BIOS ROM 4. ALC880 Audio Codec 5. Hitachi H8 6. Audio Amp. 1 - 10 M660JE Mainboard Overview - Top (Key Parts)

  • Page 23: M660Je Mainboard Overview - Bottom (Key Parts)

    (w/ Heat sink installed) 2. Southbridge- nVIDIA MCP51M 3. Modem Connector 4. Memory Slots DDRII So-DIMM 5. Mini PCIe Socket 6. 7-in-1 Card Reader Socket 7. CPU Socket (no CPU installed) M660JE Mainboard Overview - Bottom (Key Parts) 1 - 11...

  • Page 24: M660Je Mainboard Overview - Top (Connectors)

    Connector 9. Speaker Cable Connector 10. Keyboard Cable Connector 11. Touch Pad Cable Connector 12. Hotkey Cable Connector 13. Power Hotkey Cable Connector 14. Microphone Cable Connector 15. SATA HDD Connector 1 - 12 M660JE Mainboard Overview - Top (Connectors)

  • Page 25: M660Je Mainboard Overview - Bottom (Connectors)

    M660JE Mainboard Overview - Bottom (Connectors) Figure 11 Mainboard Bottom Connectors 1. DC-In Jack 2. Fan Cable Connector 3. LCD Cable Connector 4. Batterry Connector 5. Optical Device Drive Connector 6. Bluetooth Cable Connector M660JE Mainboard Overview - Bottom (Connectors) 1 - 13...
  • Page 26 Introduction 1 - 14...

  • Page 27: Disassembly

    Chapter 2: Disassembly Overview This chapter provides step-by-step instructions for disassembling the M660JE/M665JE series notebook’s parts and sub- systems. When it comes to reassembly, reverse the procedures (unless otherwise indicated). We suggest you completely review any procedure before you take the computer apart.

  • Page 28: Maintenance Tools

    Disassembly NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the battery is removed too). Maintenance Tools The following tools are recommended when working on the notebook PC: • M3 Philips-head screwdriver •...

  • Page 29: Maintenance Precautions

    Disassembly Maintenance Precautions The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re- moval and/or replacement job, take the following precautions: Power Safety Warning 1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other Before you undertake components could be damaged.

  • Page 30: Disassembly Steps

    Disassembly Disassembly Steps The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM THE DISASSEMBLY STEPS IN THE ORDER INDICATED. To remove the Battery: To remove the Bluetooth: 1. Remove the battery page 2 - 5 1.

  • Page 31: Removing The Battery

    Disassembly Removing the Battery Figure 1 1. Turn the computer off, and turn it over. Battery Removal 2. Slide the latches ( & ) the direction of the arrow, and hold it in place. 3. Slide the battery in the direction of the arrow a.

  • Page 32: Removing The Hard Disk Drive

    Disassembly Removing the Hard Disk Drive The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm Figure 2 (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in HDD Assembly Chapter 4 of the User’s Manual) when setting up a new hard disk.
  • Page 33 Disassembly 4. Carefully grip the mylar tab and slide the hard disk in the direction of arrow . Figure 3 5. Lift the hard disk up Figure d in the direction of arrow. HDD Assembly 6. Remove the screws and separate the mylar from the hard disk Sequence Removal...

  • Page 34: Removing The System Memory (Ram)

    Disassembly Removing the System Memory (RAM) Figure 4 RAM Module The computer has two memory sockets for 200 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting Removal DDRII 677MHz. The main memory can be expanded up to 2GB. The SO-DIMM modules supported are 256MB, 512MB and 1024MB DDRII Modules.
  • Page 35 Disassembly 5. Gently pull the two release latches ( & on the sides of the memory socket in the direction indicated by the Figure 5 arrows (Figure Memory Removal 6. The RAM module(s) will pop-up Figure d , and you can then remove it Sequence c.

  • Page 36: Removing The Processor

    Disassembly Removing the Processor Figure 6 Processor Removal 1. Turn off the computer, and remove the battery (page 2 - 5) and the CPU/RAM bay cover (page 2 - 2. The CPU heat sink will be visible at point on the mainboard. a.
  • Page 37 Disassembly 5. Turn the release latch towards the unlock symbol , to release the CPU (Figure 6. Carefully (it may be hot) lift the CPU up out of the socket (Figure 7. Reverse the process to install a new CPU. 8.

  • Page 38: Removing The Wireless Lan Module

    Disassembly Removing the Wireless LAN Module Figure 8 Wireless LAN 1. Turn off the computer, remove the battery (page 2 - 5) and the module bay cover (page 2 - Module Removal 1. The Wireless LAN module will be visible at point on the mainboard.

  • Page 39: Removing The Modem

    Disassembly Removing the Modem Figure 9 Modem Removal 1. Turn off the computer, remove the battery (page 2 - 5), and remove the hard disk bay cover (page 2 - 2. The modem will be visible at point on the mainboard. a.

  • Page 40: Removing The Bluetooth Module

    Disassembly Removing the Bluetooth Module Figure 10 Bluetooth Removal 1. Turn off the computer, remove the battery (page 2 - 5) and remove the hard disk bay cover (page 2 - 2. The Bluetooth module will be visible at point on the mainboard.

  • Page 41: Removing The Optical (Cd/Dvd) Device

    Disassembly Removing the Optical (CD/DVD) Device Figure 11 Optical Device 1. Turn off the computer, remove the battery (page 2 - Removal 2. Locate the hard disk bay cover and remove screws ( 3. Remove the bay cover a. Remove the screws. 4.

  • Page 42: Removing The Keyboard

    Disassembly Removing the Keyboard Figure 12 Keyboard Removal 1. Turn off the computer, and remove the battery (page 2 - 2. Press the three keyboard latches at the top of the keyboard to elevate the keyboard from its normal position (you a.

  • Page 43: Part Lists

    Part Lists Appendix A:Part Lists This appendix breaks down the M660JE/M665JE series notebook’s construction into a series of illustrations. The com- ponent part numbers are indicated in the tables opposite the drawings. Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure to cross-check any relevant documentation.

  • Page 44: Part List Illustration Location

    The following table indicates where to find the appropriate part list illustration. Table A - 1 Part List Illustration Part M660JE/M665JE Location page A - 3 Top - (M660JE) page A - 4 Bottom page A - 5 LCD - (M660JE) page A - 6 Top - (M665JE)

  • Page 45: Top (M660Je

    Part Lists Top (M660JE) Figure A - 1 Top (M660JE) 無鉛 無鉛 無鉛 無鉛 (加邊框) 無鉛 無鉛 (PVT後設變) 無鉛 無鉛 無鉛 鴻富 無鉛 無鉛 無鉛 無鉛 Top (M660JE) A - 3...

  • Page 46: Bottom

    Part Lists Bottom Figure A - 2 Bottom 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 華力 無鉛 無鉛 鋁 無鉛 無鉛 無鉛 無鉛 (有一字溝槽) 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 螺絲孔位置加厚度補強) 無鉛 無鉛 華力 無鉛 黑色 後設變)無鉛 無鉛 昆山 無鉛 昆山...

  • Page 47: Lcd (M660Je

    Part Lists LCD (M660JE) Figure A - 3 LCD (M660JE) 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 華力 無鉛 華力 華力 無鉛 華力 無鉛 無鉛 無鉛 無鉛 中性 無鉛 無鉛 無鉛 含背膠)(無鉛) 含背膠)(無鉛) LCD (M660JE) A - 5...

  • Page 48: Top (M665Je

    Part Lists Top (M665JE) Figure A - 4 Top (M665JE) 無鉛 無鉛 無鉛 無鉛 (加邊框) 無鉛 無鉛 無鉛 無鉛 無鉛 鴻富 無鉛 無鉛 無鉛 無鉛 A - 6 Top (M665JE)

  • Page 49: Lcd (M665Je

    Part Lists LCD (M665JE) Figure A - 5 LCD (M665JE) 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 無鉛 華力 無鉛 華力 無鉛 無鉛 華力 無鉛 無鉛 無鉛 中性 無鉛 無鉛 無鉛 含背膠)(無鉛) 含背膠)(無鉛) LCD (M665JE) A - 7...

  • Page 50: Hdd

    Part Lists Figure A - 6 A - 8 HDD...

  • Page 51: Combo

    Part Lists COMBO Figure A - 7 COMBO COMBO A - 9...

  • Page 52: Dvd Dual

    Part Lists DVD Dual Figure A - 8 DVD Dual A - 10 DVD Dual...
  • Page 53 Schematic Diagrams Appendix B:Schematic Diagrams This appendix has circuit diagrams of the M660JE/M665JE notebook’s PCB’s. The following table indicates where to find the appropriate schematic diagram. Diagram - Page Diagram - Page Diagram - Page Table B - 1 Schematic...

  • Page 54: Schematic Diagrams

    Schematic Diagrams SYSTEM BLOCK DIAGRAM USB BOARD CLEVO M660JE System Block Diagram 1.DC JACK 1.+1.2V_HT 71-M66N3-D03 2.COM1 2.+2.5VCPU 3.USB PORT DDR2 SDRAM 3.+2.6VS 4.1394 PORT SOCKET 1.+VDD3,+VDD5 AUDIO BOARD 2.+3VH8 PROCESSOR 3.+3V,+5V,+3VS,+5VS 1.AUDIO PHONE JACK SOCKET 533/667 MHz 1.VA,VBAT,VIN AMD S1...

  • Page 55: Amd S1: Ht

    Schematic Diagrams AMD S1: HT U24A +1.2V_HT 40MIL SEC 1 OF 6 C446 4. 7u_08 Z0201 V_HT0_A1 V_HT0_B1 V_HT0_A2 V_HT0_B2 V_HT0_A3 V_HT0_B3 V_HT0_A4 V_HT0_B4 L0_CAD IN _H[15..0] L0_CADIN_H[15..0] L0_C ADOUT_H[15..0] L0_CADOUT_H[15..0] 8 L0_C ADIN_H15 L0_C AD OUT_H15 HT_RXD<15> HT_TXD<15> L0_C ADIN_H14 L0_C AD OUT_H14 HT_RXD<14>...

  • Page 56: Amd S1: Misc

    Schematic Diagrams AMD S1: MISC +1.8V C477 +1.8V +2.6VS 0.1u_X7R R410 Low active to short +1.8V 40MIL VCORE down system. 5/18 S1_VDDA +2.5VCPU 74LVC1G08GW R427 *300 R371 CPURST# CPURST# *300 R381 680_06 Z0301 TRMTRIP# 32 +1.8V S1_VDDA R374 680_06 FCI2012F-R33K 16,23,24,26 PWRGD S1_VDDA...

  • Page 57: Amd S1: Memory

    Schematic Diagrams AMD S1: Memory U24C U24D AMD-638P-SK1 AMD-638P-SK1 SKT638 SKT638 SEC 3 OF 6 SEC 4 OF 6 MEMORY_A MEMORY_B M_A_DATA63 AA12 MA_DATA<63> MA_DM<7> M_A_DM7 M_B_DATA63 AD11 MB _DATA<63> MB_DM<7> AD12 M_B_DM7 M_A_DATA62 AB12 AB16 M_A_DM6 M_B_DATA62 AF11 AC16 M_B_DM6 MA_DATA<62>...

  • Page 58: Amd S1: Power

    Schematic Diagrams AMD S1: Power U24F AMD-638P-SK1 VCORE +1.8V U24E SKT638 AMD-638P-SK1 LAYOUT: PLACE CLOSE TO CPU SEC 6 OF 6 MEMORY VTT SKT638 GROUND SEC 5 OF 6 BETWEEN CPU AND MEMORY VS S CPU VDD AA11 POWER +0.9V VS S AA13 VS S...

  • Page 59: Ddr2-1

    Schematic Diagrams DDR2-1 +0.9V M_A_DATA[0..63] M_A_DATA[0..63] 4 M_A_A1 8P4RX47_04 C184 0.1u M_A_A2 M_A_A[15:0] JDIMM1A M_A_A4 C181 0.1u M_A_A[15:0] M_A_A0 M_A_DATA0 M_A_BS1 M_A_A1 M_A_DATA1 M_A_A5 8P4RX47_04 C182 0.1u M_A_A2 M_A_DATA2 +1.8V M_A_A6 M_A_A3 M_A_DATA3 JDIMM1B M_A_A8 C260 0.1u M_A_A4 M_A_DATA4 M_A_A3 VDD1 VSS16 M_A_A5...

  • Page 60: Ddr2-2

    Schematic Diagrams DDR2-2 +0.9V M_B_A13 RP13 8P4RX47_04 C265 0.1u M_ODT2 M_B_DATA[0..63] M_B_CS0# C270 0.1u M_B_DATA[0..63] 4 M_B_CAS# M_CKE3 8P4RX47_04 C263 0.1u M_B_BS2 M_B_A[15:0] JDIMM2A M_CKE2 C180 0.1u M_B_A[15:0] M_B_A0 M_B_DATA0 M_B_CS2# M_B_A1 M_B_DATA1 M_B_A8 RP10 8P4RX47_04 C178 0.1u +1.8V M_B_A2 M_B_DATA2 M_B_A12 M_B_A3...

  • Page 61: C51 Ht Cpu

    Schematic Diagrams C51 HT CPU U30F L0_CADOUT_H[15..0] L0_CADIN_H[15..0] L0_CADOUT_H[15..0] L0_CADIN_H[15..0] 2 SEC 1 OF 6 L0_CADOUT_H0 L0_CADIN_H0 HT_ CPU_RXD0_P HT_CPU_TXD0_P L0_CADOUT_H1 L0_CADIN_H1 HT_ CPU_RXD1_P HT_CPU_TXD1_P L0_CADOUT_H2 L0_CADIN_H2 HT_ CPU_RXD2_P HT_CPU_TXD2_P L0_CADOUT_H3 L0_CADIN_H3 HT_ CPU_RXD3_P HT_CPU_TXD3_P L0_CADOUT_H4 L0_CADIN_H4 HT_ CPU_RXD4_P HT_CPU_TXD4_P L0_CADOUT_H5 L0_CADIN_H5 HT_ CPU_RXD5_P...

  • Page 62: C51 Ht Mcp

    Schematic Diagrams C51 HT MCP U30A HTMCP_DWN[7..0] HTMCP_DWN[7..0] 13 HTMCP_UP[7..0] SEC 2 OF 6 HTMCP_UP[7..0] HTMCP_UP0 AC24 HTMCP_DWN0 HT_MCP_RXD0_P HT_MCP_TXD0_P HTMCP_UP1 AD23 HTMCP_DWN1 HT_MCP_RXD1_P HT_MCP_TXD1_P HTMCP_UP2 AC22 HTMCP_DWN2 HT_MCP_RXD2_P HT_MCP_TXD2_P HTMCP_UP3 AC20 HTMCP_DWN3 HT_MCP_RXD3_P HT_MCP_TXD3_P HTMCP_UP4 AD10 AB18 HTMCP_DWN4 HT_MCP_RXD4_P HT_MCP_TXD4_P HTMCP_UP5 AD11...

  • Page 63: C51 Pci Express

    Schematic Diagrams C51 PCI Express U30B SEC 3 OF 6 PE0_RX0_P PE0_TX0_P PE0_RX1_P PE0_TX1_P PE0_RX2_P PE0_TX2_P PE0_RX3_P PE0_TX3_P PE0_RX4_P PE0_TX4_P PE0_RX5_P PE0_TX5_P PE0_RX6_P PE0_TX6_P PE0_RX7_P PE0_TX7_P PE0_RX8_P PE0_TX8_P PE0_RX9_P PE0_TX9_P PE0_RX10_P PE0_TX10_P PE0_RX11_P PE0_TX11_P PE0_RX12_P PE0_TX12_P PE0_RX13_P PE0_TX13_P AC 1 PE0_RX14_P PE0_TX14_P AD 2...

  • Page 64: C51 Dac / Ifp

    Schematic Diagrams C51 DAC / IFP U30C SEC 4 OF 6 C51_RED-C_MUX R428 FCM1608K-121T06_06 LVDS-LCLKP C51_RED-C_MUX DAC_RED IFPA_ TXC_P LVDS-LCLKP 25 C51_GREEN-Y_MUX R424 FCM1608K-121T06_06 GREEN LVDS-LCLKN C51_GREEN-Y_MUX DAC_GREE N IFPA_TXC_N LVDS-LCLKN 25 C51_BLUE-PB_MUX R418 FCM1608K-121T06_06 BLUE C51_BLUE-PB_MUX DAC_BLUE LVDS-L0P U30D IFP A_TX D0_P LVDS-L0P 25 DAC_HSYNC...

  • Page 65: C51 Pwr / Gnd-Decoupling

    Schematic Diagrams C51 PWR / GND-DECOUPLING U30E +1.2VS +1.2VS SEC 5 OF 6 1P2VPEA_PWR HCB2012K-121T30_08 +1.2V_CORE +1.2V_PEA +1.2V_CORE +1.2V_PEA +1.2V_CORE +1.2V_PEA C429 C104 C424 C107 C426 C106 C427 C425 C423 C105 C480 C481 5/18 +1.2V_CORE +1.2V_PEA +1.2V_CORE +1.2V_PEA 22u_12 22u_12 0.1u 0.1u 0.1u...

  • Page 66: Mcp51 Ht

    Schematic Diagrams MCP51 HT RESISTOR FOR 4X4 LINK RESISTOR FOR 4X4 LINK OK TO FLOAT UNUSED PINS OK TO FLOAT UNUSED PINS R120 *49.9_1%_06 HTMCP_DWN#7 +1.2VS R127 *49.9_1% HTMCP_DWN7 U31G BGA-508 MCP51 HTMCP_DWN[7..0] HTMCP_UP[7..0] SEC 1 OF 7 HTMCP_DWN[7..0] HTMCP_UP[7..0] 9 HTMCP_DWN0 HTMCP_UP0 HT_MCP_RXD0_P...

  • Page 67: Mcp51 Pci

    Schematic Diagrams MCP51 PCI U31A BGA-508 PCI_AD[31..0] MCP51 PCI_AD[31..0] SEC 2 OF 7 PCI_AD0 AF19 AA22 PCI_REQ0# PCI_AD0 PCI_REQ0* PCI_AD1 AB21 AE22 PCI_REQ1# PCI_AD1 PCI_REQ1* PCI_REQ1# 20 PCI_AD2 AC19 AF21 PCI_REQ2# PCI_AD2 PCI_REQ2* PCI_AD3 AA20 AF22 PCI_REQ3# PCI_AD3 PCI_REQ3*/GPIO PCI_AD4 AA19 AE23 PCI_REQ4#...

  • Page 68: Mcp51 Sata / Ide

    Schematic Diagrams MCP51 SATA / IDE U31B BGA-508 MCP51 SEC 3 OF 7 SATATXP0 Z15002 SATATXP0 SATA_A0_TX_P IDE_DATA_P0 SATATXN0 Z15003 SATATXN0 SATA_A0_TX_N IDE_DATA_P1 Z15004 IDE_DATA_P2 SATARXN0 Z15005 SATARXN0 SATA_A0_RX_N IDE_DATA_P3 SATARXP0 Z15006 SATARXP0 SATA_A0_RX_P IDE_DATA_P4 Z15007 IDE_DATA_P5 Z15008 IDE_DATA_P6 IDE_PDD7 IDE_DATA_P7 Z15009 IDE_DATA_P8...

  • Page 69: Mcp51 Audio / Usb / Misc

    Schematic Diagrams MCP51 AUDIO / USB / MISC R113 *10K R471 *10K AC_RST* 1 = *RGMII R475 *10K Z16013 U31C 0 = MII BG A-508 AC_RST* SPDIF0 MCP51 SPDIF0 (SIO CLK) +3VS C516 SEC 4 OF 7 1 = 24MHZ *10p TP_AC97_CLK_R AC26...

  • Page 70: Mcp51 Rgmii

    Schematic Diagrams MCP51 RGMII U31D BGA-508 CLOSE PHY MCP51 SEC 5 OF 7 RGMII_TXD0 R237 RGMII_TD_R<0> TP_MCP51_NC1 RGMII_TD0/MII_TXD0 RGMII_TXD0 RGMII_TXD1 R239 RGMII_TD_R<1> TP_MCP51_NC2 RGMII_TD1/MII_TXD1 RGMII_TXD1 RGMII_TXD2 R244 RGMII_TD_R<2> TP_MCP51_NC3 RGMII_TD2/MII_TXD2 RGMII_TXD2 RGMII_TXD3 R255 RGMII_TD_R<3> TP_MCP51_NC4 RGMII_TD3/MII_TXD3 RGMII_TXD3 RGMII_TXCLK R234 RGMII_TXC_R TP_MCP51_NC5 RGMII_TXC/MII_TXCLK RGMII_TXCLK...

  • Page 71: Mcp51 Pwr / Gnd

    Schematic Diagrams MCP51 PWR / GND MCP51 BACKSIDE DECOUPLING +1.2VS BACKSIDE CAVITY +1.2VS +5VS +3VS U31E C122 C160 C191 C169 C189 C188 C187 C193 C156 +5VS BGA-508 +3VS 22u_12 4.7u_08 0.1u 0.1u 0.1u 0.1u 0.1u MCP51 C214 C151 SEC 6 OF 7 C147 C142 C213...

  • Page 72: Hdd & Cdrom

    Schematic Diagrams HDD & CDROM INT_CD_R & CD_GND & INT_CD_L must parallel routing to Audio Codec. The space must be equal. Other Signal Signal:Space = 1:2 CD_R Signal:Space = 1:1 From CD_G AUDIO CD-ROM Signal:Space = 1:1 CODEC CD_L Signal:Space = 1:2 Other Signal SATA CONN TO CD ROM...

  • Page 73: Card Reader/1394

    Schematic Diagrams CARD READER/1394 R278 R279 6.34K_1% +3VS Z20106 Z20107 U13B U13A Z20094 C344 PCI_AD[31..0] Z20076 24.576MHz PCI_AD[31:0] RSVD PCI_AD0 Z20078 Z20108 C352 RSVD PCI_AD1 Z20077 TPBIAS0 RSVD PCI_AD2 Z20016 Z20079 CAD31/D10 RSVD PCI_AD3 Z20017 Z20080 Z20093 R243 CAD30/D9 RSVD PCI_AD4 Z20018 Z20081...

  • Page 74: Card Socket/New Card

    Schematic Diagrams CARD SOCKET/NEW CARD 3 IN 1 SOCKET SD/MMC/MS(Pro) Card Reader Power JREADER1 SD_CD# SD_CD# CD_SD MS_D2 DAT2_SD +3VS +3VS MS_D3 CD/DAT3_SD MS_BS CMD_SD VSS_SD VDD_SD +VCC_CARD SD_CLK C629 SD_CLK CLK_SD R334 VSS_SD MS_D0 0.1u DAT0_SD MS_D1 100K DAT1_SD SD_WP WP_SD SD_WP...

  • Page 75: Lan Rtl8201Cl

    Schematic Diagrams LAN RTL8201CL JLAN1 OUT 1.8V PWFBOUT HCB2012K-121T30_08 PWFBIN GND1 C323 C305 C295 GND2 22u_12 0.1u 0.1u PJS-28VL3 +A3V_LAN please close NS0013LF R224 1.5K RGMII_MDC RGMII_MDC PWFBOUT +A3V_LAN RGMII_MDIO HCB2012K-121T30_08 C304 RGMII_MDIO MDIO AVDD33 RGMII_TXD0 Sheet 22 of 40 RGMII_TXD0 TXD0 RGMII_TXD1...

  • Page 76: Usb & Ccd, Mdc, Inverter

    Schematic Diagrams USB & CCD, MDC, Inverter 5/18 *1000p Z23011 +5VS 100K_06 0_06 R550 0_06 Z23010 AO3409 +5VS 100K_06 Z23012 2N7002 5/18 CCD_PWREN Z23009 C523 0.1u_25V_06 0.1u_25V_06 JCCD1 VOUT +VCCUSB0 R151 0_06 Z30003 USB_PN4 +3VS USB_PN4 USB_PP4 0.1u_25V_06 10u_08 USB_PP4 R153 JBLUETOOTH1 C484...
  • Page 77 Schematic Diagrams VER. VOLTAGE +VDD3 +VDD3 +VDD3 H8_BAT0_TEMP C282 +VDD3 +VDD5 +3VH8 +VDD3 V1.0 1.06V H8_BAT0_V C280 V2.0 100K_1% 1.65V R183 R219 LID# R231 100K H8_CURSEN C279 C296 C299 C273 C297 C298 C274 C275 C276 V3.0 200K 2.20V 100K R226 150K_06 WLBT_EN_LED R228...

  • Page 78: Crt & Lvds, Tv-Out

    Schematic Diagrams CRT & LVDS, TV-Out 0.56uH 5/18 MTV_DACB_OUT TV-Y +5VS *FCM1608K-121T06_06 JSVIDEO1 Z25021 0.56uH MTV_DACA_OUT MTV_DACC_OUT TV-C MTV_DACB_OUT *FCM1608K-121T06_06 MTV_DACC_OUT 74HCT125 2.6VDDA 2.6VDDA C421 0.1u PLVDD +5VS JLCD1 Z25016 Z25017 Z25020 *150_1% *82p *150_1% *82p *82p *82p *360511-X C422 *BAV99 *BAV99 *BAV99...

  • Page 79: Fan Conn, Lpc Rom

    Schematic Diagrams FAN CONN, LPC ROM HC B2012K-500T40_08 +VDD5 +VDD5 C 463 C470 R608 *100K 10u_08 0.1u_25V_06 CP U-FAN_VCC C 563 U 25A 0.1u CPU-F AN R 401 4.99K_06_1% Z 26010 D 41 Z 26001 R409 2.2K R206 R400 10K_06 Z 26002 SCS551V CPU FAN...

  • Page 80: Jled

    Schematic Diagrams JLED CHANGE LED KPB-3025Y SGC KPB-3025Y SGC +5VS GREEN GREEN Z27015 R336 200_06 Z27007 Z27017 R338 200_06 Z27005 +3VS +VDD5 +VDD5 R343 Z27016 R335 200_06 Z27008 Z27018 R337 200_06 Z27006 4.7K_06 ORANGE ORANGE DTA114EUA PD_LED# SATA_LED# 1SS355 LED_BAT_CHG LED_ACIN LED_PWR LED_BATT_FULL...

  • Page 81: Mini Card, +3Vh8

    Schematic Diagrams MINI CARD, +3VH8 +3VS +1.5VS MINI CARD C 246 C216 0.1u 0.1u C241 C 240 C173 +3VS 0. 1u 0.1u 0.1u R166 WLAN _CLKR EQ# 16, 21 PCI -E_WAKE# WAKE# +3V_1 BT_DATA BT_D ATA GN D7 BT_CHCLK BT_C HC LK +1.5V_1 CLKREQ# U IM_PWR...

  • Page 82: Super I/O

    Schematic Diagrams SUPER I/O HCB1608K-121T25_06 Z29033 C377 C373 C614 +3VS 0.1u 1u_06 0.1u C312 C313 C372 C331 C307 C308 0.1u 0.1u 0.1u 0.1u 4.7u_08 4.7u_08 Z29024 Z29022 C379 0.1u Z29025 Z29023 C413 C376 Z29026 C412 0.1u 0.1u 0.1u Z29027 LPC_AD0 Z29010 TXDO 14,24,26...

  • Page 83: Audio Alc883

    Schematic Diagrams AUDIO ALC883 +5VS +3VS 2,3,6,7,10,11,12,13,14,15,16,18,19,20,21,23,25,26,27,28,29,32 R326 +5VS 16,18,19,23,24,25,26,27,29,32 +5VS +5VS CHSEL R284 3,11,14,16,17,18,21,22,23,26,28,32,33,35 MIC1_VREFO_L MIC1_VREFO_R AUD5VS +VDD5 2,16,24,26,27,28,31,32 Tied at one point only under the +3VH8 24,28 C537 R282 AUD5VS codec or near the codec C390 2N7002 AUD_VDD 29 Not Support UAJ 0.1u Sense B...

  • Page 84: Charger, Dc In

    Schematic Diagrams CHARGER, DC IN 23, 32,33, 34,35 2,11,16,23,24,26,29,32,33,34,35 +VDD3 3,23,24,26,32,33,34 +VDD5 2,16,24,26,27,28,32 VBAT 5/18 PQ34 PD 30 SM340A PC 103 SI4835 10u_12 Z32005 PR76 20m_2512 Z 32002 Z32003 PR91 25m _2512 Z32004 PD 14 SM340A PC240 PC 241 JU SB1 PC98 PC211 10uH...

  • Page 85: System Power

    Schematic Diagrams SYSTEM POWER PR166 1M_06 Z32052 VIN1 1SS355 PC76 PR167 1M_06 Z32069 0.1u_25V_06 PC56 PC57 PC195 PC71 PC72 PC193 PC61 PC202 PC203 PC62 PC75 10U_25V_12 0.1u_25V_06 0.1u_25V_06 0.1u_25V_06 10u_10V_12 0.1u 0.1u_25V_06 10U_25V_12 0.1u_25V_06 RB751V PC77 PQ63 0.1u Z32048 Z32050 PC67 BOOST1 INTVCC...

  • Page 86: +1.8V, 0.9V

    Schematic Diagrams +1.8V, 0.9V PC168 0.1u_25V_06 SYS5V PR143 0_06 CGND1 FS1J3 PD21 PC173 0.1u_25V_06 Z32091 EN 1.8V VDDQEN OCDDQ PR138 6.04K_1%_06 PC172 0.22u_06 VTTEN VTTEN BOOST PC156 PC27 PC28 PC166 PR145 *10K_06 Z32078 PC176 10u_12 10u_12 10u_12 0.1u_25V_06 SYS5V FPWM# VCCP 4.7u_08 PR149...

  • Page 87: Vs, +1.5Vs

    Schematic Diagrams +1.2VS, +1.5VS PR 134 0_06 PC 36 PC 44 SY S5V PC 43 10u_12 10u_12 PD 5 0.1u_25V_06 +1.2VS_PG 26 PR 27 PR 131 R B751V 10_06 910K_06 PC 226 PU 7 0.1u_25V_06 5/18 EN/PSV R SS90N 03 1.5U H +1.2VS VOU T...

  • Page 88: Vcore

    Schematic Diagrams VCORE VID0 PR120 1K_06 CPU_VID0 VID1 PC18 PC17 PC123 CPU_VID1 VID2 PC135 PR118 10u_25V_12 10u_25V_12 10u_25V_12 CPU_VID2 PQ48 VID3 0.01u_06 *1k_06 CPU_VID3 HDR1G IRF7821 VID4 CPU_VID4 VCORE VID5 HDR1 PR178 0_06 0.36uH(10x10) CPU_VID5 5VDC PC207 PR114 PR15 * 10k PC19 PC133 5VDC...

  • Page 89: Pwr Hot Board

    Schematic Diagrams PWR HOT BOARD PPSW1 PPSW2 PPWEB5# PPWEB4# HCH STS-05 HCH STS-05 P IN5 ,6 =PP G ND P IN5 ,6 =P PG ND PPGND PPGND PPSW4 PPSW3 PPM_BTN# PPWEB3# Sheet 36 of 40 HCH STS-05 P IN5 ,6 =P PG ND HCH STS-05 PPGND P IN5 ,6 =PP G ND...

  • Page 90: Hotkey Lt Board

    Schematic Diagrams HOTKEY LT BOARD HSW1 HSW2 HSW3 HWEB2# HWEB0# HWEB1# HCH STS-05 HCH STS-05 HCH STS-05 PIN5,6=HGND PIN5,6=HGND PIN5,6=HGND HGND HGND HGND Sheet 37 of 40 HOTKEY LT BOARD HJHOTKEY1 HWEB0# HWEB1# HWEB2# CON6A HGND C67D67 C67D67 C237D91 C237D91 C237D91 HGND HGND...

  • Page 91: Usb Board

    Schematic Diagrams USB BOARD UJUSB2 UJAC1 UPF1 UVA+ UVA++ UPR2 *0(1206) Z3801 GND1 UPL1 GND2 UGND UGND UPC1 UPC2 UPC3 ACIN_CON U+5V 0.1UF/50V_0805 0.1UF/50V_0805 P IN G ND3~4 =UG ND U+5V U+3VH8 UGND 0.1UF/50V_0805 EMI_CHOKE UUSB_OC2# URING# Z3802 UUSB_PN2 UDTR# UPR1 *0(1206) UUSB_PP2...

  • Page 92: Audio & Modem Board

    Schematic Diagrams AUDIO & MODEM BOARD AGND 680PF HCB1608KF-121T25 AJSPDIF1 ASSURR-R Z3405 Z3406 SPDIF OUT Z3407 /Side Surronnd ASPD_IFO ASPDIF FCM1608K-121T06 AHMDCC1 AJMODEM1 HK2125 R10J-T 1000PF AUDIO JACK_SPDIF AGND Z3401 Z3403 Z3402 Z3404 RING HCB2012KF-121T30 AGND AL10 85204-2 AGND AJMIC1 PIN GND1=AGND 680PF ALFE...

  • Page 93: Click Board

    Schematic Diagrams CLICK BOARD TSW2 TSW1 TPBUTTON_L TPBUTTON_R HCH STS-05 HCH STS-05 PIN5,6=T GND PIN5,6=T GND TGND TGND Sheet 40 of 40 CLICK BOARD TJTP1 Z4001 TPBUTTON_R T+5VS TPBUTTON_L TJTP2 Z4002 Z4003 TTP_CLK Z4004 TTP_DATA TGND TTP_CLK TTP_DATA CON4 T+5VS TGND 87151-1207G 0.1u_04...
  • Page 94 Schematic Diagrams B - 42...
  • Page 95 www.s-manuals.com...

This manual is also suitable for:

M665je

Table of Contents
