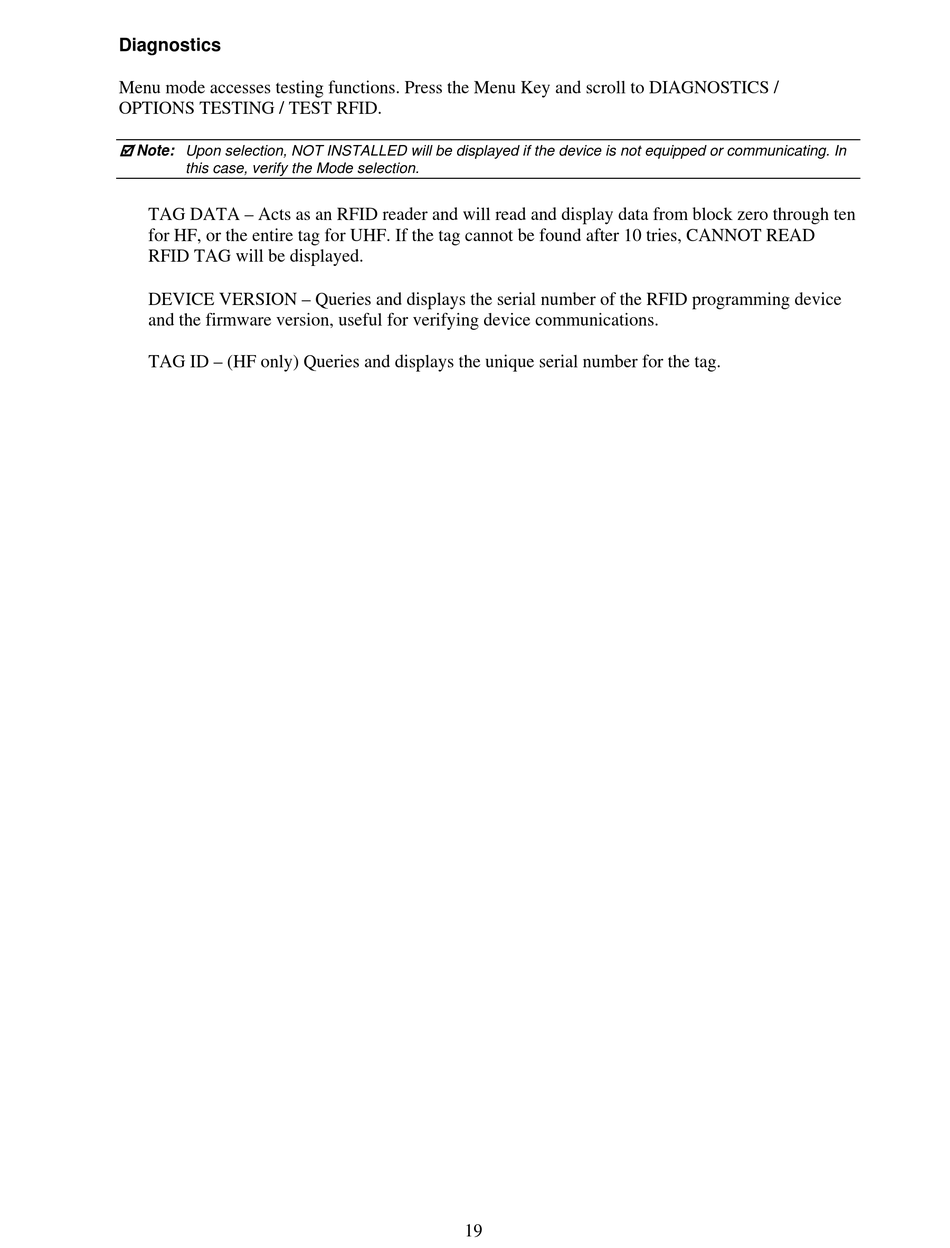

Diagnostics

Menu mode accesses testing functions. Press the Menu Key and scroll to DIAGNOSTICS /
OPTIONS TESTING / TEST RFID.

Note: Upon selection, NOT INSTALLED will be displayed if the device is not equipped or communicating. In
this case, verify the Mode selection.
TAG DATA – Acts as an RFID reader and will read and display data from block zero through ten
for HF, or the entire tag for UHF. If the tag cannot be found after 10 tries, CANNOT READ
RFID TAG will be displayed.
DEVICE VERSION – Queries and displays the serial number of the RFID programming device
and the firmware version, useful for verifying device communications.
TAG ID – (HF only) Queries and displays the unique serial number for the tag.
19
