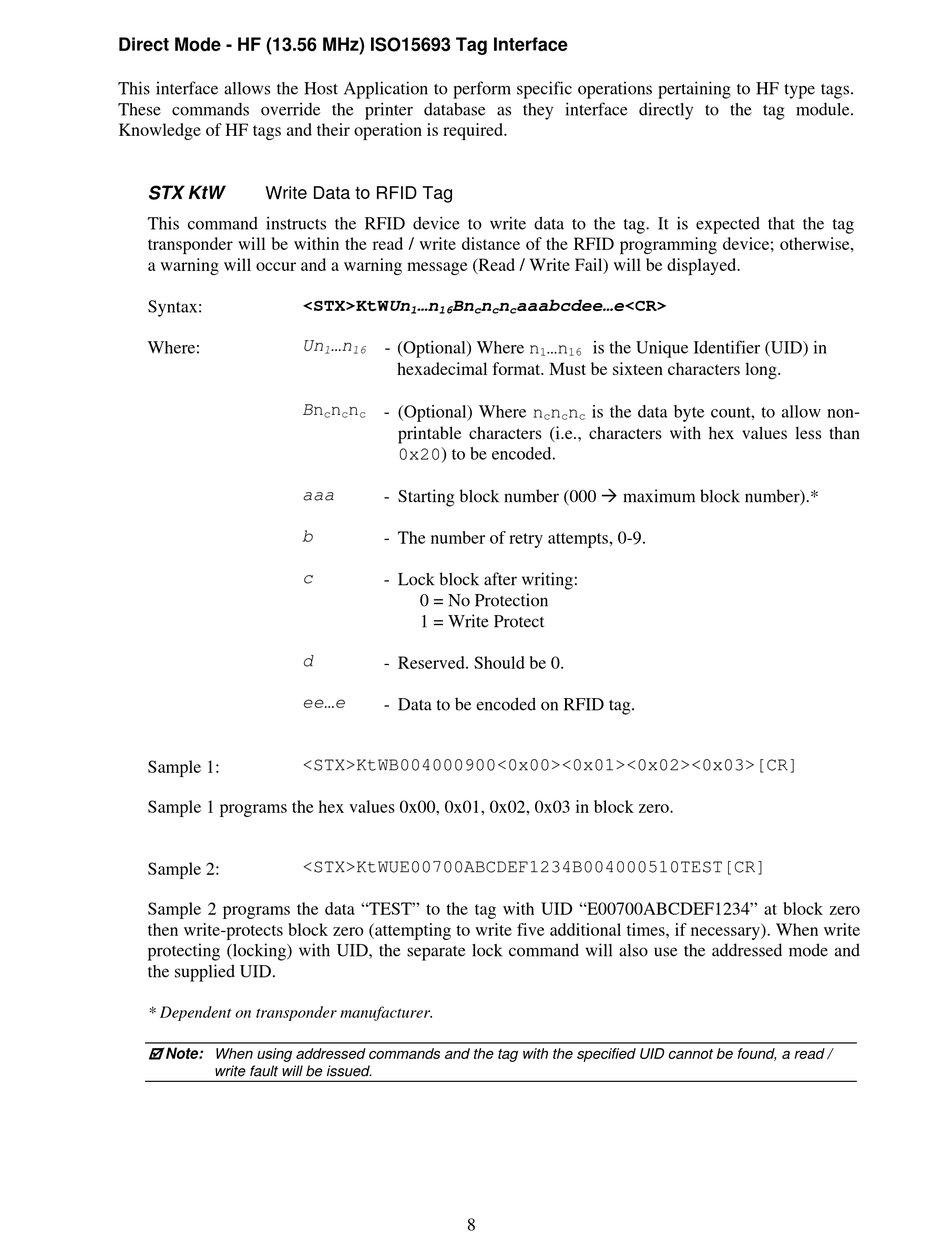

Direct Mode - HF (13.56 MHz) ISO15693 Tag Interface

This interface allows the Host Application to perform specific operations pertaining to HF type tags.
These commands override the printer database as they interface directly to the tag module.
Knowledge of HF tags and their operation is required.
STX KtW
Write Data to RFID Tag
This command instructs the RFID device to write data to the tag. It is expected that the tag
transponder will be within the read / write distance of the RFID programming device; otherwise,
a warning will occur and a warning message (Read / Write Fail) will be displayed.
Syntax:
Where:
Sample 1:
Sample 1 programs the hex values 0x00, 0x01, 0x02, 0x03 in block zero.
Sample 2:
Sample 2 programs the data "TEST" to the tag with UID "E00700ABCDEF1234" at block zero
then write-protects block zero (attempting to write five additional times, if necessary). When write
protecting (locking) with UID, the separate lock command will also use the addressed mode and
the supplied UID.
* Dependent on transponder manufacturer.
Note: When using addressed commands and the tag with the specified UID cannot be found, a read /
write fault will be issued.
<STX>KtWUn
...n
Bn
1
16
c
Un
...n
- (Optional) Where n
1
16
hexadecimal format. Must be sixteen characters long.
Bn
n
n
- (Optional) Where n
c
c
c
printable characters (i.e., characters with hex values less than
0x20) to be encoded.
- Starting block number (000  maximum block number).*
aaa
b
- The number of retry attempts, 0-9.
c
- Lock block after writing:
0 = No Protection
1 = Write Protect
d
- Reserved. Should be 0.
ee...e
- Data to be encoded on RFID tag.
<STX>KtWB004000900<0x00><0x01><0x02><0x03>[CR]
<STX>KtWUE00700ABCDEF1234B004000510TEST[CR]
8
n
n
aaabcdee...e<CR>
c
c
is the Unique Identifier (UID) in
...n
1
16
is the data byte count, to allow non-
n
n
c
c
c
