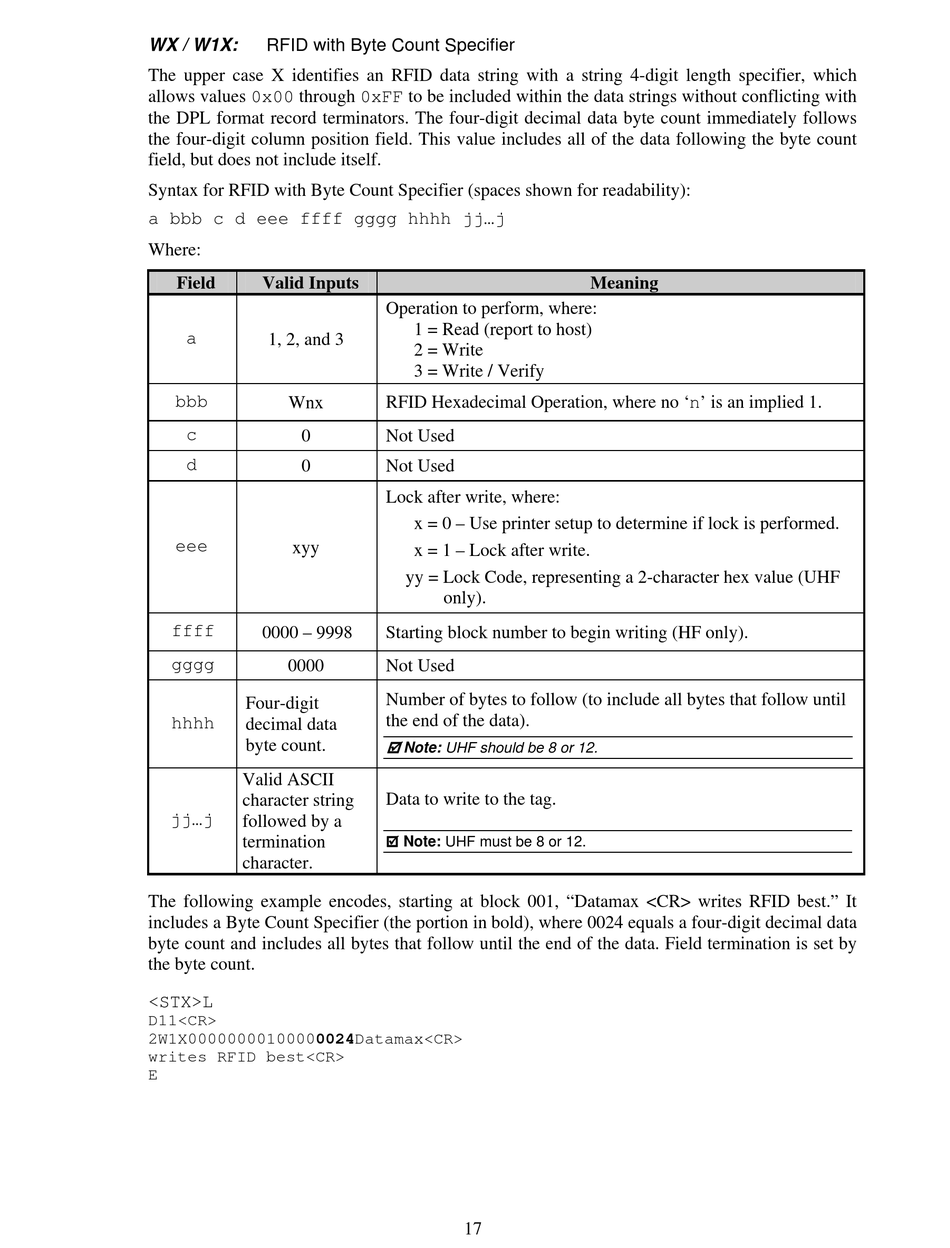

WX / W1X:

RFID with Byte Count Specifier

The upper case X identifies an RFID data string with a string 4-digit length specifier, which
allows values 0x00 through 0xFF to be included within the data strings without conflicting with
the DPL format record terminators. The four-digit decimal data byte count immediately follows
the four-digit column position field. This value includes all of the data following the byte count
field, but does not include itself.
Syntax for RFID with Byte Count Specifier (spaces shown for readability):
a bbb c d eee ffff gggg hhhh jj...j
Where:
Field Valid Inputs
a
1, 2, and 3
bbb
Wnx
c
0
d 0
eee xyy
ffff
0000 – 9998
gggg
0000
Four-digit
hhhh decimal data
byte count.
Valid ASCII
character string
jj...j
followed by a
termination
character.
The following example encodes, starting at block 001, "Datamax <CR> writes RFID best." It
includes a Byte Count Specifier (the portion in bold), where 0024 equals a four-digit decimal data
byte count and includes all bytes that follow until the end of the data. Field termination is set by
the byte count.
<STX>L
D11<CR>
2W1X00000000100000024Datamax<CR>
writes RFID best<CR>
E
Operation to perform, where:
1 = Read (report to host)
2 = Write
3 = Write / Verify
RFID Hexadecimal Operation, where no 'n' is an implied 1.
Not Used
Not Used
Lock after write, where:
x = 0 – Use printer setup to determine if lock is performed.
x = 1 – Lock after write.
yy = Lock Code, representing a 2-character hex value (UHF
only).
Starting block number to begin writing (HF only).
Not Used
Number of bytes to follow (to include all bytes that follow until
the end of the data).

Note: UHF should be 8 or 12.
Data to write to the tag.
 Note: UHF must be 8 or 12.
17
