Control Panel

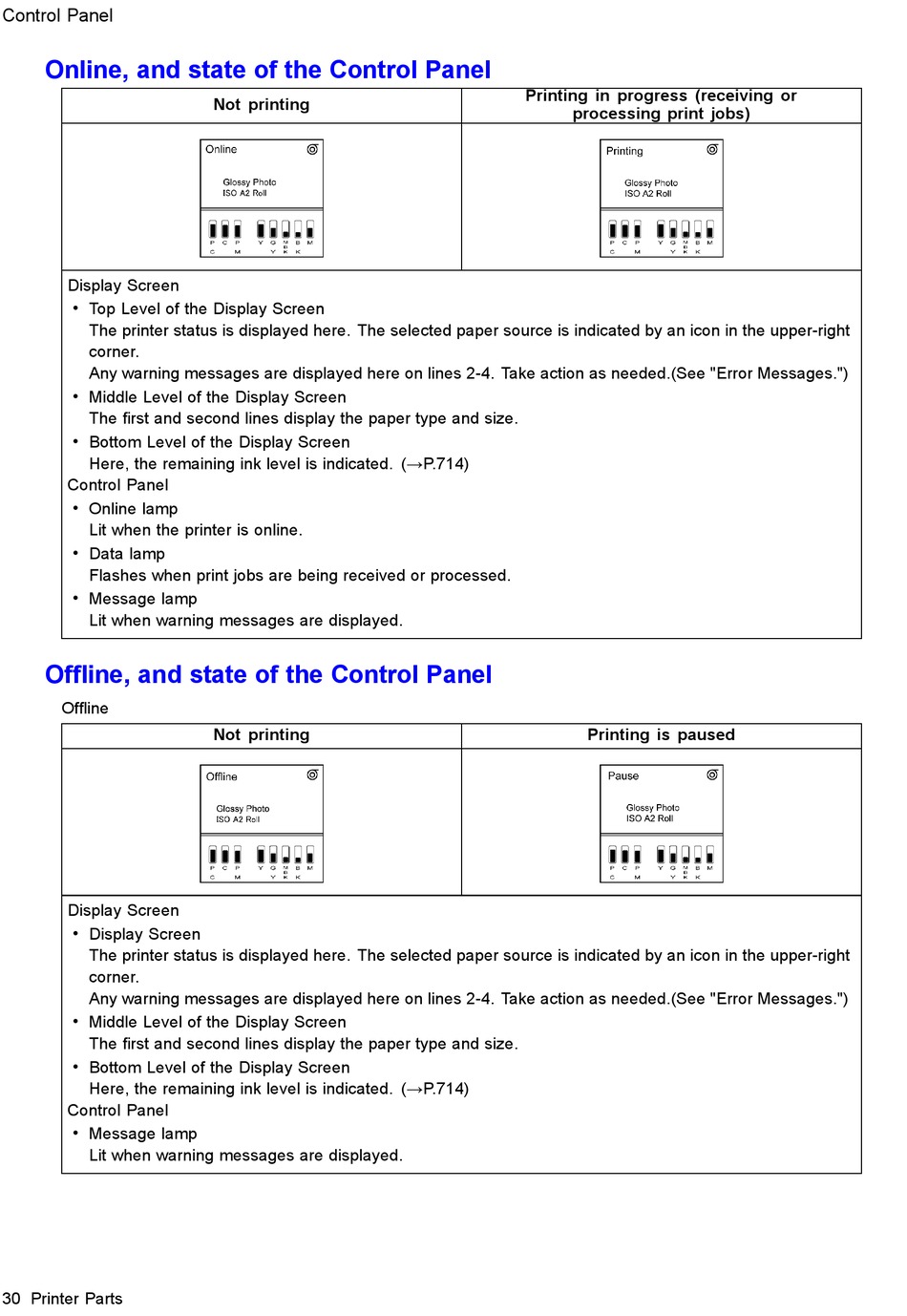

Online, and state of the Control Panel
Display Screen
•
Top Level of the Display Screen
The printer status is displayed here. The selected paper source is indicated by an icon in the upper-right
corner.
Any warning messages are displayed here on lines 2-4. Take action as needed.(See "Error Messages.")
•
Middle Level of the Display Screen
The rst and second lines display the paper type and size.
•
Bottom Level of the Display Screen
Here, the remaining ink level is indicated. (→P.714)
Control Panel
•
Online lamp
Lit when the printer is online.
•
Data lamp
Flashes when print jobs are being received or processed.
•
Message lamp
Lit when warning messages are displayed.
Ofine, and state of the Control Panel
Ofine
Display Screen
•
Display Screen
The printer status is displayed here. The selected paper source is indicated by an icon in the upper-right
corner.
Any warning messages are displayed here on lines 2-4. Take action as needed.(See "Error Messages.")
•
Middle Level of the Display Screen
The rst and second lines display the paper type and size.
•
Bottom Level of the Display Screen
Here, the remaining ink level is indicated. (→P.714)
Control Panel
•
Message lamp
Lit when warning messages are displayed.
30 Printer Parts
Not printing
Not printing
Printing in progress (receiving or
processing print jobs)
Printing is paused
