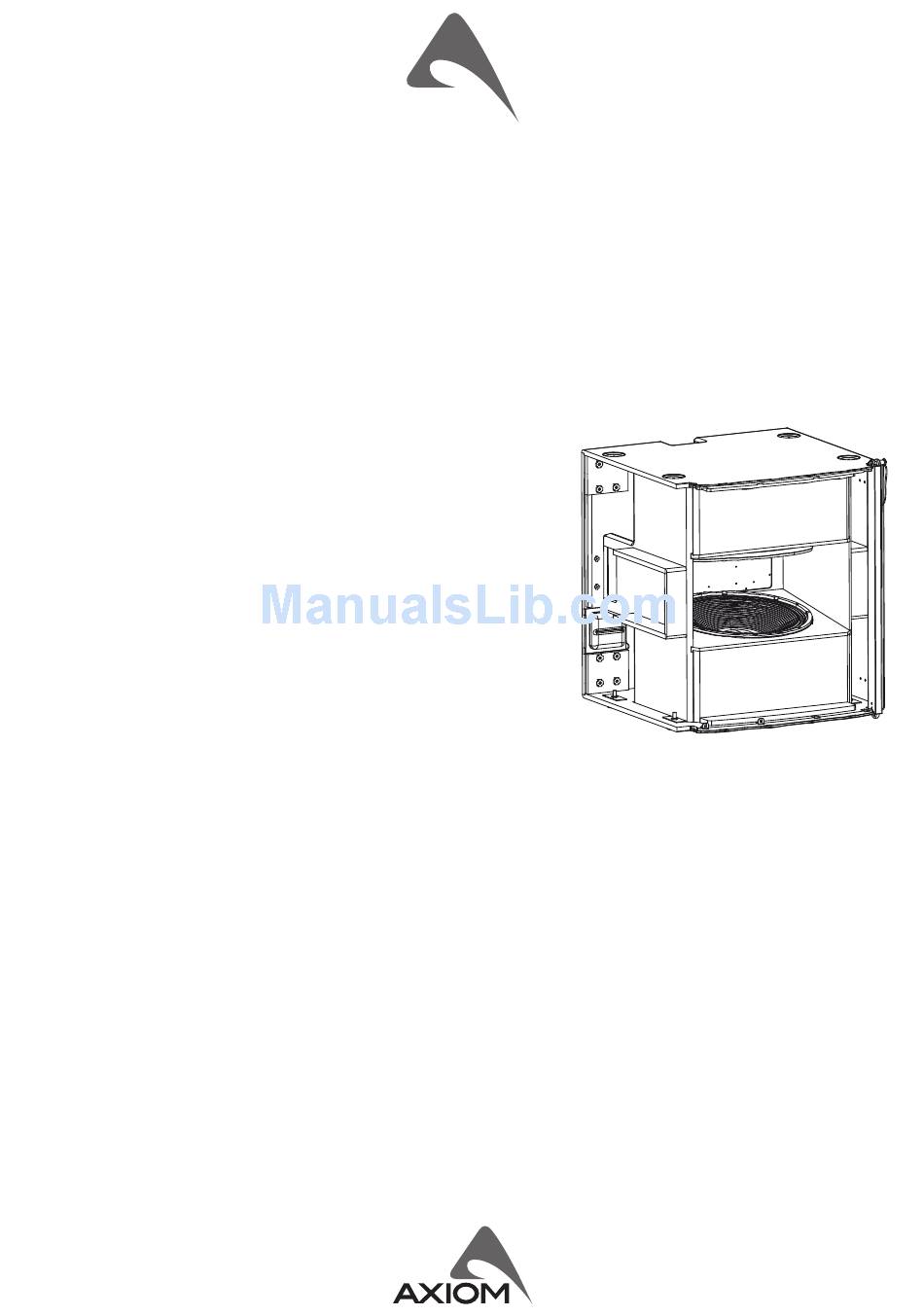

Axiom SW36XFP User Manual

KEY FEATURES

• Very High Output
• High-strength, water repellent, glass fiber reinforced cones • Tetracoil® dual voice coil for extended linear response and increased power handling

INTRODUCTION

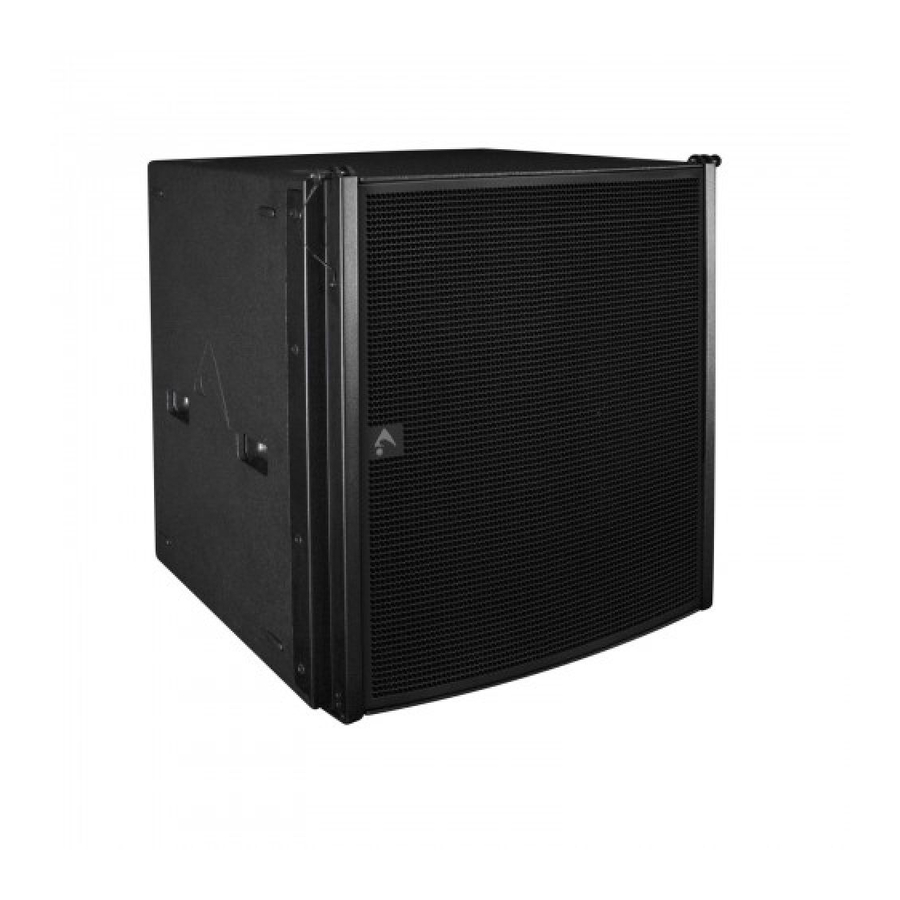

The SW36XFP subwoofer is designed to deliver high quality low frequency reproduction
where very high output is a key requirement, together with well defined deep bass response
and fast transient response. Its compact size and light weight make it suitable for several
different uses, ranging from touring applications to fixed installations and high-level dance
clubs.
The SW36XFP is a very high quality powered subwoofer system featuring some of the most
advanced technologies for low frequency reproduction. Its unique and innovative design is
based on a configuration that can be defined as Manifolded Band Pass.
It uses manifolding of the front side of the cones to maximize the mutual coupling between
the two drivers. This innovative configuration does not use any large resonant cavity to load
the speaker, but very compact cavities in order to obtain advantages in terms of definition,
both at the lowest end and the upper bass.
The SW36XFP subwoofer system is equipped with two high power 18" (460mm) transducers
capable of very long excursion (up to 30mm peak-to-peak), and featuring a a large
displacement suspension system. These transducers use Tetracoil technology, where two
different, axially separated magnetic gaps and two inside-outside 100mm (4" ) diameter
voice coils are wound on the same former and suspended evenly in the two magnetic gaps.
This creates an equivalent voice coil diameter greater than 6", resulting in a larger heat
dissipation area for and increased power handling. Additional key advantages of the Tetracoil
technology are also minimized distortion and a very symmetric and flat inductance curve. Cones are made of very high-stiffness fiberglass reinforced
paper, featuring also invisible water repellent treatment.

TECHNICAL SPECIFICATION

Acoustical
System type
Transducer
Frequency response (±3 dB)
Frequency range (±10 dB)
Sensitivity (1.41V @ 1m, 2Pi)
Maximum Peak SPL @ 1m
Electrical
Nominal Impedance
Minimum Impedance
Power Handling Continuous*
Power Handling Program
Power Handling Peak
Power Compression
* AES Pink Noise Power
revision 2015-08-07
USER MANUAL
SW36XFP
passive subwoofer
Manifolded Band Pass
Two 18" (460 mm), 100mm (4in) Tetracoil®
dual voice coil, equivalent to a single coil
diameter larger than 152mm (>6in).
Water repellent cone and epoxy coated
plates.
Ultra linear suspension behavior.
36 Hz – 100 Hz (Processed)
28 Hz – 300 Hz (Unprocessed)
101dB (averaged from 40 to 100Hz)
143 dB
8 Ω + 8 Ω
5.7 Ω + 5.7 Ω
1800 W + 1800 W
3600 W + 3600 W
7000 W + 7000 W
@ -10 dB Power = 0.6 dB
@ -3 dB Power = 2.0 dB
@ 0 dB Power = 3.4dB
• Manifolded Band Pass configuration for very high output in compact size
Connectors
Connector Type
Input Wiring
Mechanical
Width
Height
Depth
Depth Including Wheels
Construction
Paint
Wheels
Transport
Net Weight
Neutrik® Speakon® NL4 x 2
LF1 = Pin 1+/-; LF2 = Pin 2+/-)
746 mm (29.4")
795 mm (31.3")
710 mm (27.9")
838 mm (32.9")
15 mm, reinforced Phenolic Birch
High resistance, water based paint
4 heavy-load 100 mm ø (optional)
6 handles
87.4 Kg (192.7 lbs.) without wheels
