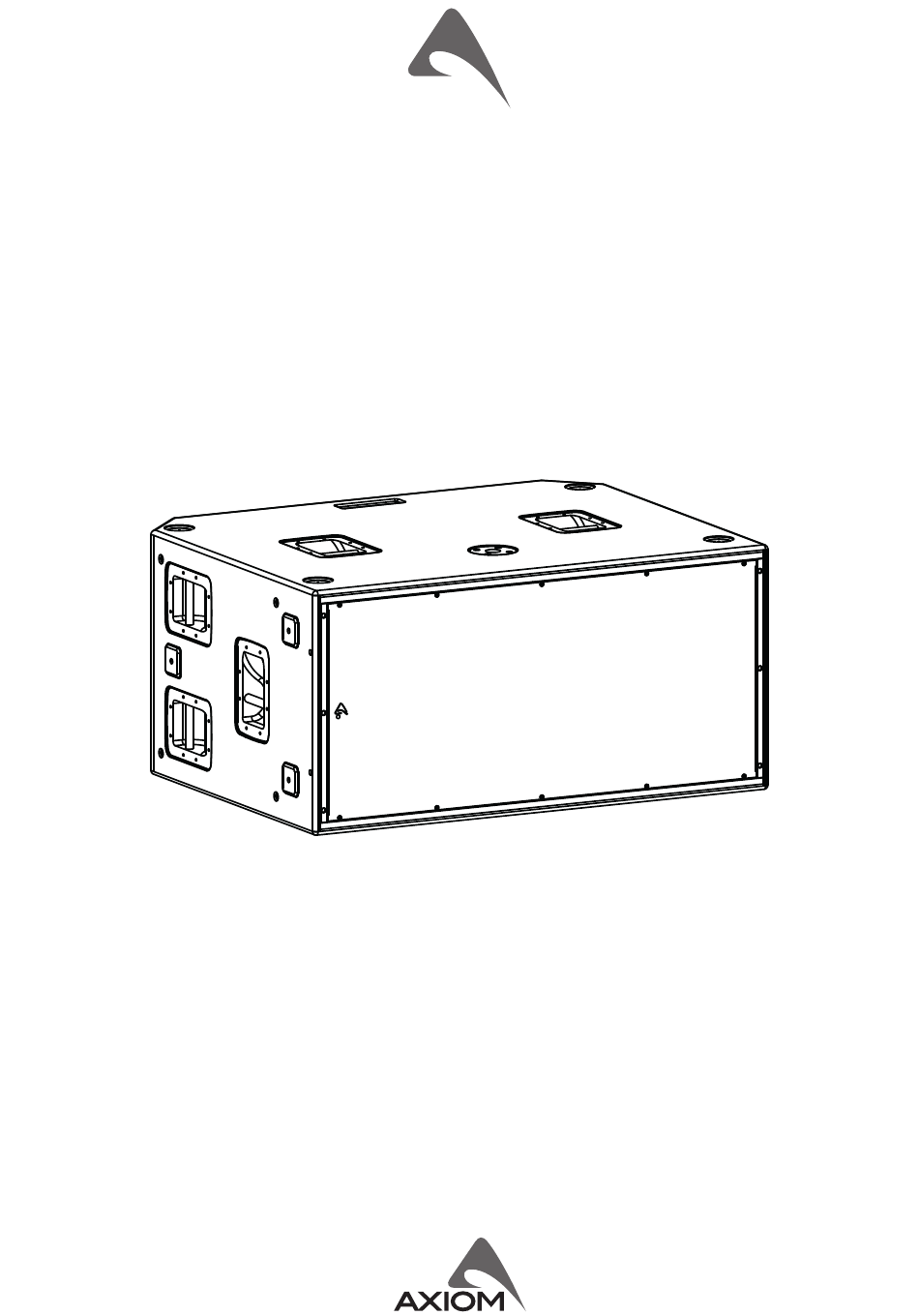

- Page 1 SW218XP passive subwoofer USER MANUAL revision 2023-09-11...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 DECLARATION OF CONFORMITY The product is in compliance with: RoHS Directive 2011/65/EU and 2015/863/EU, WEEE Directive 2012/19/EU. The product is in compliance with: S.I. 2012/3032 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase.
-
Page 4: Table Of Contents
The SW218XP is a very high quality powered subwoofer system featuring some of the most advanced technologies for low frequency reproduction. Its unique and innovative design is based on a configuration that can be defined as Manifolded Transmission Line. -
Page 5: Mechanical Drawing
MECHANICAL DRAWING with optional wheels 121.5 cm 107.8 cm 47.83" 42.44" Swivel Mounting Pole Castor OPTIONAL ACCESSORIES NL4FX Neutrik Speakon® PLUG with optional transport dolly PC260 2 in 6 out digital loudspeaker processor USB2CANDV2 PRONET network converter DHSS10M20 Sub-Speaker ø35mm Pole with M20 screw see http://www.axiomproaudio.com/ for detailed description and other available accessories. -
Page 6: Input
INPUT Power input for the external amplifier. The SW218XP does not include a passive crossover for filtering the signal. The connections are the following: INPUT - LINK NL4 pin number internal connection LF1+ LF1- LF2+ LF2- WARNING! To avoid speaker damage during use both loudspeaker must be always connected and driven with same input signal and equal amplified power. -
Page 7: Prediction Software: Ease Focus 3
NOTE: in this figure is shown the result of an front line array with 7 box at 80Hz octave. NOTE: With SW218XP (passive version) use only the “Standard Preset” input configuration for all boxes in the array to obtain a... - Page 8 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
