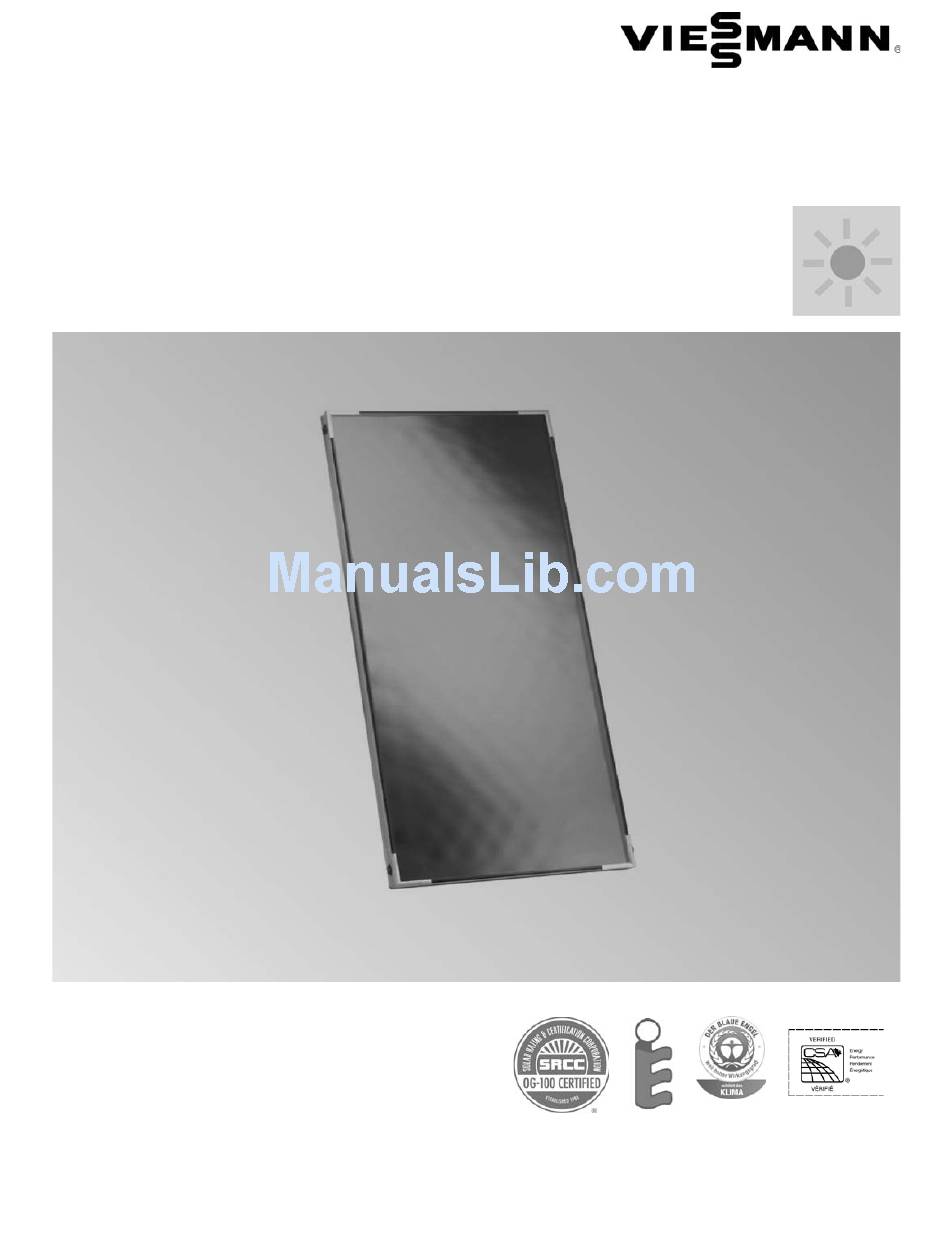

Technical Data Manual
Model Nos. and pricing: see Price List
Flat plate solar collectors for the harnessing of solar energy
Panels with 25 ft.
2
(2.32 m
2
) absorber surface
VITOSOL
100-F
r
Product may not be exactly as shown
VITOSOL 100-F
Model SV1B and SH1B
Flat plate solar collectors
For vertical or horizontal installation on sloped and flat roofs.
To produce domestic hot water or to supplement
low-temperature heating systems or swimming pools
RAL UZ 73
via a heat exchanger.
5354 729 - 01
04/2016
Advertisement
Table of Contents
Related Manuals for Viessmann VITOSOL 100-F SV1B
Summary of Contents for Viessmann VITOSOL 100-F SV1B
- Page 1 Technical Data Manual Model Nos. and pricing: see Price List Flat plate solar collectors for the harnessing of solar energy Panels with 25 ft. (2.32 m ) absorber surface VITOSOL 100-F Product may not be exactly as shown VITOSOL 100-F Model SV1B and SH1B Flat plate solar collectors For vertical or horizontal installation on sloped and flat roofs.
- Page 2 Product Information Vitosol 100-F Technical Data Product Description Benefits ■ High performance flat plate collector at an attractive price, thanks to a highly-efficient selectively-coated copper absorber. ■ Suitable for many residential or commercial applications with vertical or horizontal versions available. Best suited for DHW or pool heating.
- Page 3 Product Information Vitosol 100-F Technical Data Specification Vitosol 200-F SV1B SH1B Total surface area 27.0 (2.51) 27.0 (2.51) Absorber surface area 25.0 (2.32) 25.0 (2.32) Aperture*1 25.1 (2.33) 25.1 (2.33) Dimensions*2 Width in. (mm) 41¾ (1056) 93¾ (2380) Height in. (mm) 93¾...
- Page 4 Vitosol 100-F, Models SH1B and SV1B come fully Required for freestanding, flat roof installations. assembled in shrink-wrap packaging and ready to be connected. Note: Viessmann offers complete solar heating system combi packages, as well as comprehensive design support in order to facilitate the component selection process.
