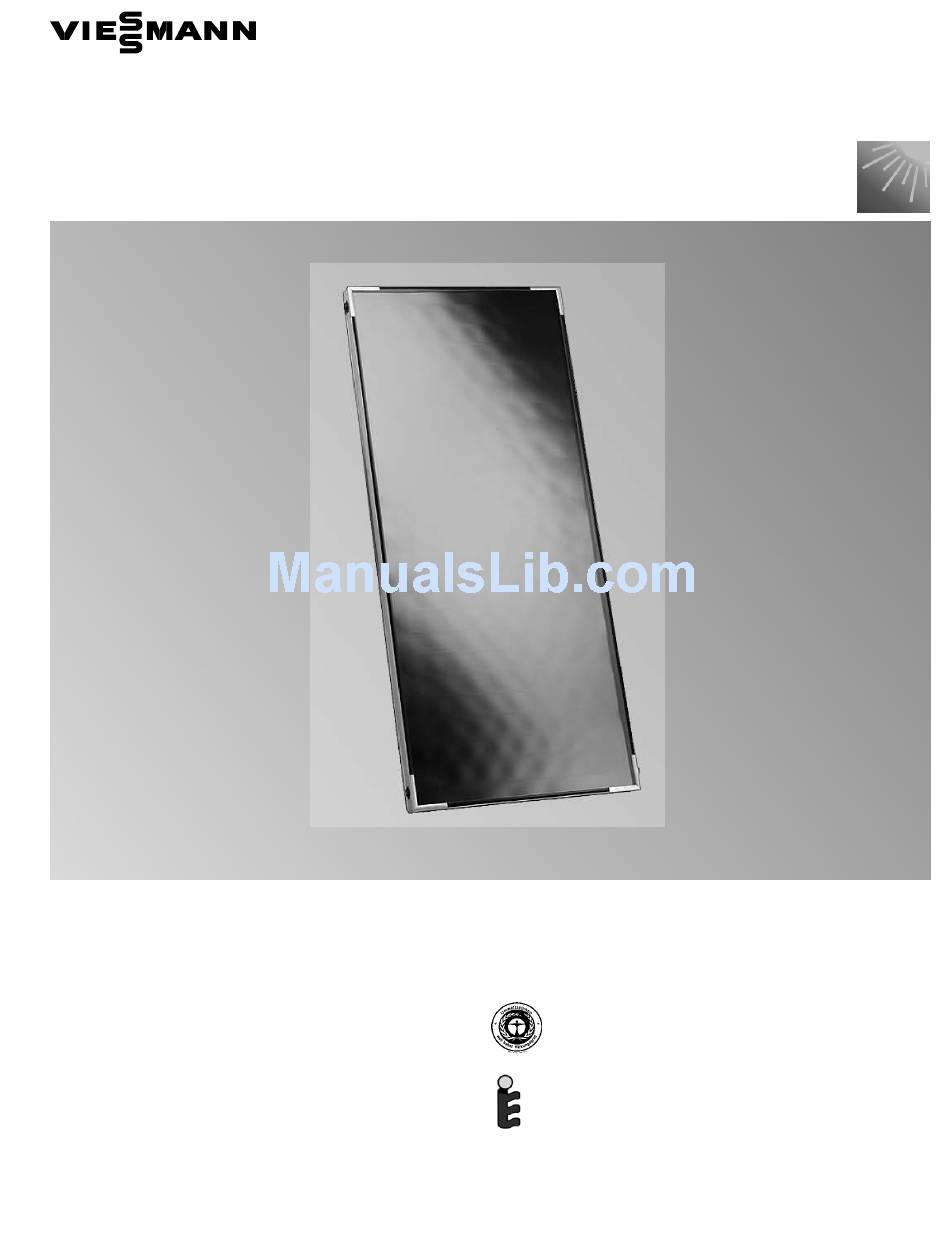

Viessmann VITOSOL 100-F SV1 Technical Data Manual

Flat plate solar collectors

Part Nos. and Pricing: see Price List

VITOSOL 100-F

Model SV1 and SH1

Flat plate solar collectors

for vertical or horizontal installation

on sloped and flat roofs

To produce domestic hot water, or to supplement

low-temperature heating systems or swimming pools

via a heat exchanger

5354 729 v1.0 03/2008

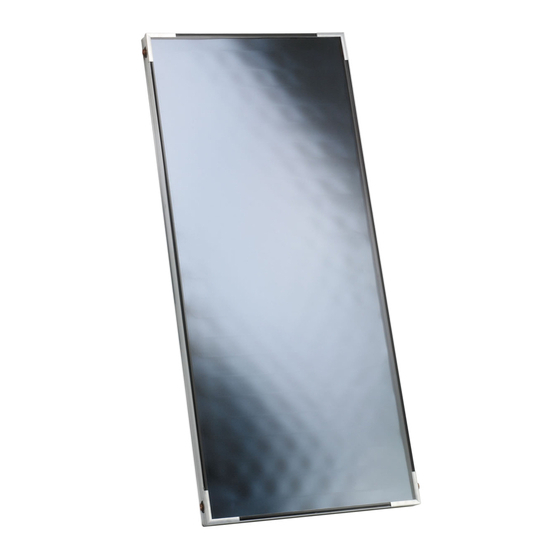

Flat plate solar collectors for the harnessing of solar energy

Panels with 25 ft.

Meets the requirements of the German "Blue Angel"

certificate of environmental excellence to RAL UZ 73.

Certified in accordance with Solar Keymark testing

requirements.

VITOSOL 100-F

/2.32 m

absorber surface

Table of Contents

Need help?

Do you have a question about the VITOSOL 100-F SV1 and is the answer not in the manual?

Page 1 VITOSOL 100-F Flat plate solar collectors for the harnessing of solar energy Panels with 25 ft. /2.32 m absorber surface Technical Data Manual Part Nos. and Pricing: see Price List VITOSOL 100-F Model SV1 and SH1 Flat plate solar collectors Meets the requirements of the German “Blue Angel”...
Page 2 Product Information Vitosol 100-F Models SV1, SH1 The benefits at a glance: H High performance at an attractive price. H Collector surface area: 25 ft /2.32 m horizontal or vertical installation. H High efficiency through selectively coated absorber, integrated piping and extremely effective thermal insulation.
Page 3: Technical Data
Technical Data Technical Data Model - Vitosol 100-F Total surface area 27.0 / 2.51 27.0 / 2.51 Absorber surface area 25.0 / 2.32 25.0 / 2.32 Aperture 25.1 / 2.33 25.1 / 2.33 Dimensions Width inches 41¾ 93¾ 1056 2380 Height inches 93¾...
Page 4 Roof brackets, mounting plates, mounting rails, connecting elements for mounting rails, clamping bolts, screws and nuts. Please note Viessmann offers complete solar heating system combi packages, as well as comprehensive design support in order to facilitate the component selection process.
