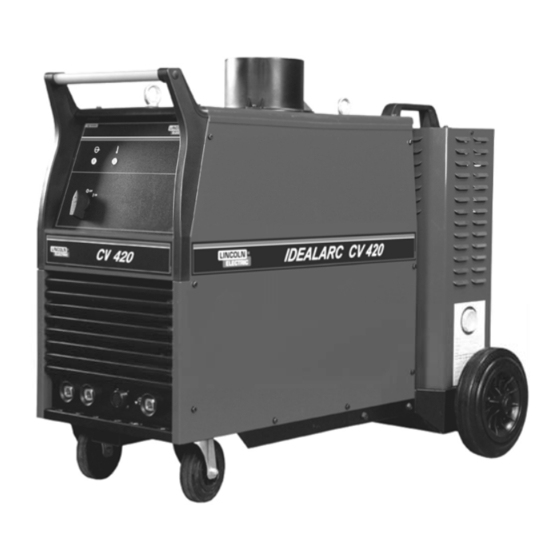

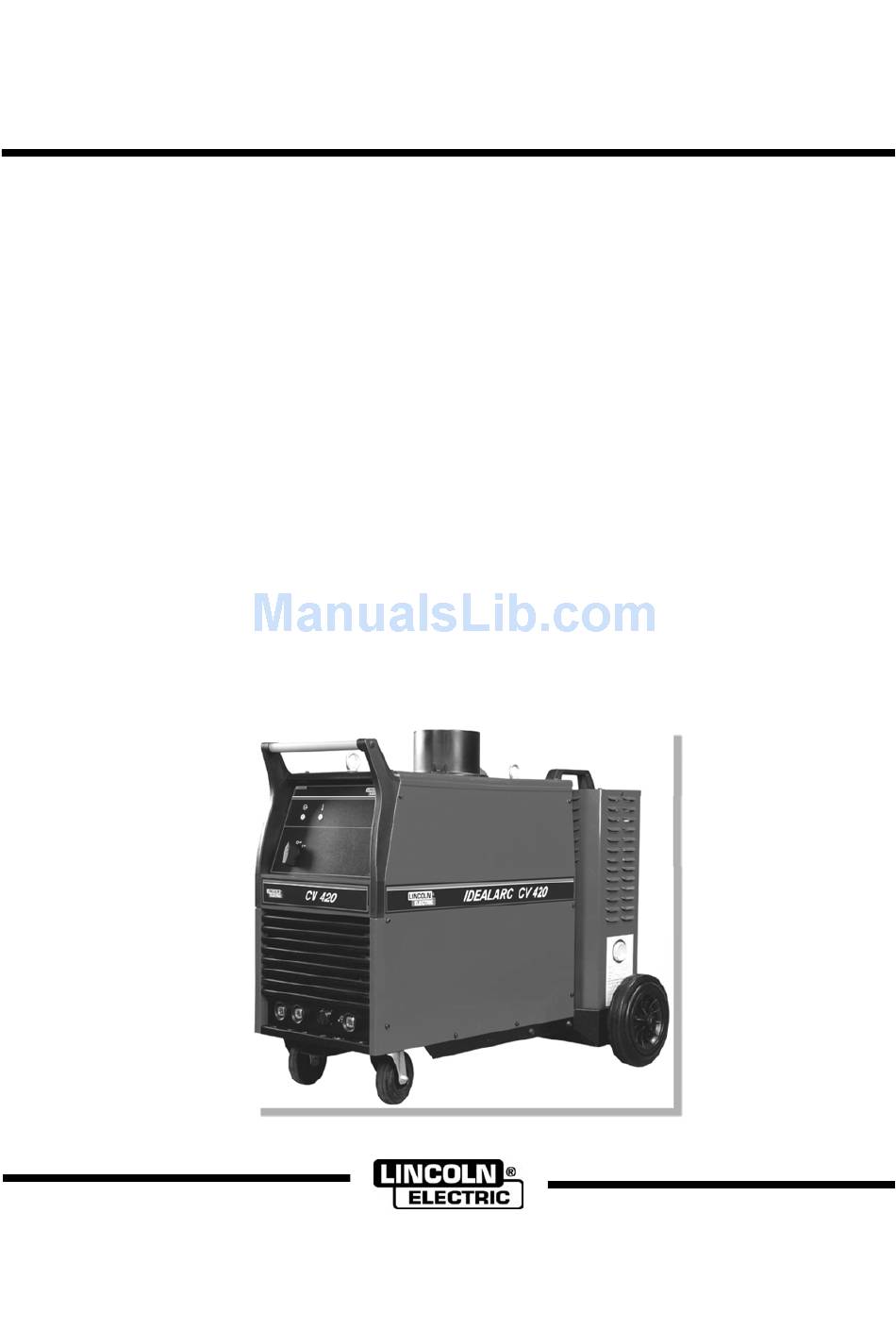

- Page 1 IM3027 02/2011 Rev. 1 IDEALARC CV 420 & CV 505 OPERATOR’S MANUAL MANUALE OPERATIVO BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'UTILISATION BRUKSANVISNING OG DELELISTE GEBRUIKSAANWIJZING BRUKSANVISNING INSTRUKCJA OBSŁUGI KÄYTTÖOHJE MANUAL DE INSTRUÇÕES Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland...
-
Page 2: Declaration Of Conformity
2006/95/CEE, 2004/108/CEE and has been designed in compliance with the following standards: EN 60974-1, EN 60974-10 (2005) Paweł Lipiński Operations Director Lincoln Electric Bester Sp. z o.o., ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland 12/05 English English... -
Page 3: Table Of Contents
12/05 THANKS! For having choosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code &... -
Page 4: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. -
Page 5: Installation And Operator Instructions
CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and pressure used. Always keep cylinders in an upright position securely chained to a fixed support. Do not move or transport gas cylinders with the protection cap removed. - Page 6 Power Switch ON/OFF (O/I): It controls the machine power input. Be sure the power source is connected to the mains supply before turning power on ("I"). Power Indicator Light: It indicates that the power is Thermal Indicator Light: It indicates that the machine is overloaded or that the cooling is not sufficient.
-
Page 7: Electromagnetic Compatibility (Emc)
Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances. -
Page 8: Technical Specifications
S greater than or equal to 7,76MVA (CV 420) and 9,95MVA (CV 505). Technical Specifications IDEALARC CV 420 & CV 505 INPUT Input Power at Rated Output EMC Group / Class... -
Page 9: Spare Parts
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine.
