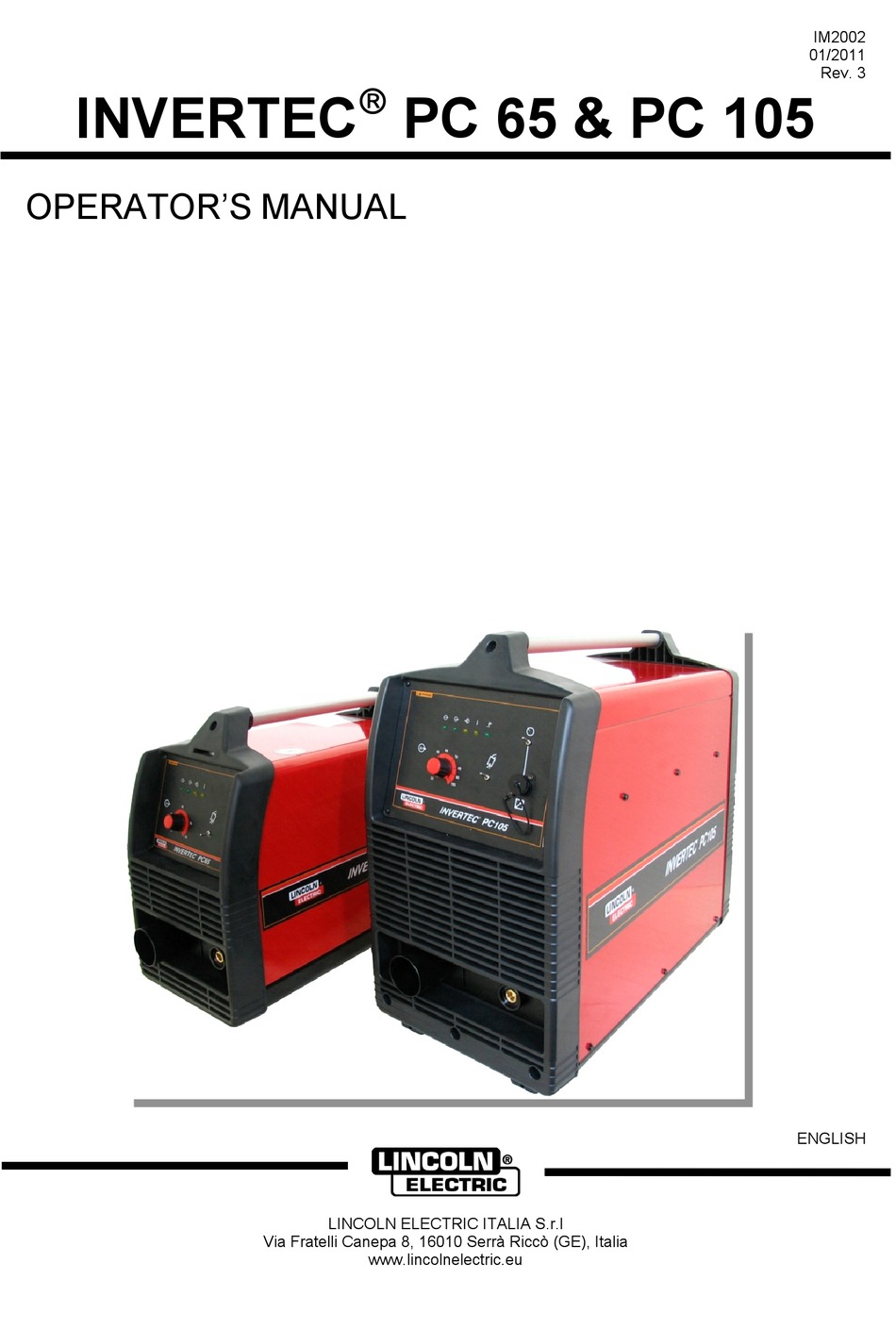

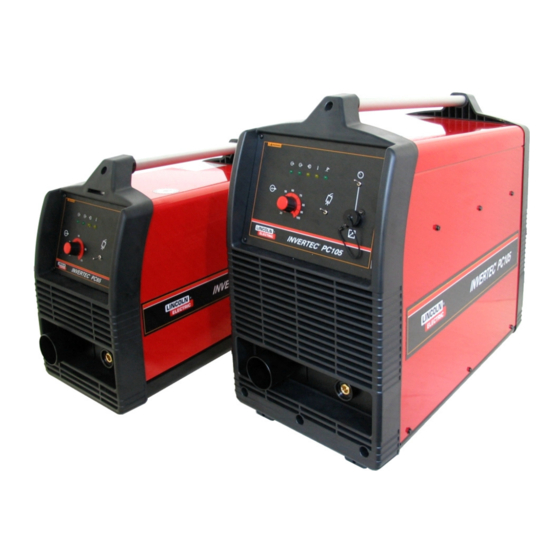

- Page 1 IM2002 01/2011 Rev. 3 INVERTEC PC 65 & PC 105 OPERATOR’S MANUAL ENGLISH LINCOLN ELECTRIC ITALIA S.r.l Via Fratelli Canepa 8, 16010 Serrà Riccò (GE), Italia www.lincolnelectric.eu...
-
Page 2: Declaration Of Conformity
2006/95/CEE, 2004/108/CEE and has been designed in compliance with the following standards: EN 60529, EN 60974-1, EN 60974-10 (2005) Dario Gatti European Engineering Director Machines LINCOLN ELECTRIC ITALIA S.r.l., Via Fratelli Canepa 8, 16010 Serra Riccò (GE), Italia 12/05 English English... -
Page 3: Table Of Contents
12/05 THANKS! For having choosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code &... -
Page 4: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. -
Page 5: Installation And Operator Instructions
The plasma arc can cause injury and burns. Keep your body away from nozzle and plasma arc. Turn off power before disassembling torch. Do not grip material near cutting path. Wear complete body protection. Electric shock from torch or wiring can kill. Wear dry insulating gloves. - Page 6 Controls and Operational Features H. Remote ON/OFF Switch (PC 105 only): This switch enables/disables the Remote Control Connector. Remote Control Connector (PC 105 only): Connect here the remote control unit. Refer to the picture below for the functions related to each pin of the connector (front view): INPUT 0-5Vdc: Output Current Adjustment.
- Page 7 WARNING For any maintenance or repair operations it is recommended to contact the nearest technical service center or Lincoln Electric. Maintenance or repairs performed by unauthorized service centers or personnel Power Switch: It turns ON / OFF the input power to will null and void the manufacturers warranty.
-
Page 8: Electromagnetic Compatibility (Emc)
Lincoln Electric. The Class A equipment is not intended for use in residential locations where the electrical power is provided by the public low-voltage supply system. -
Page 9: Technical Specifications
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine.
