READ FIRST ABOUT BATTERY OPERATIONS!
BY OBSERVING A FEW SIMPLE RULES, YOU CAN EXTEND THE
LIFESPAN OF THE SEALED LEAD ACID (SLA) BATTERIES THAT
OPERATE YOUR AMPLIVOX BATTERY POWERED PORTABLE PA
SYSTEM OR ACCESSORY:
·
ALWAYS KEEP YOUR AMPLIVOX PORTABLE PA SYSTEM
PLUGGED IN AND CHARGING WHEN NOT IN USE.
·
FOR LONG TERM STORAGE (OVER 1 MONTH) WE
RECOMMEND DISCONNECTING THE SLA BATTERIES TO
AVOID GRADUAL, CONTINUOUS DISCHARGE.
·
ALWAYS STORE SLA BATTERIES IN A CHARGED
CONDITION WHEN REMOVED FROM SERVICE.
·
NEVER LET THE BATTERY VOLTAGE DROP BELOW 10V.
·
FOR SLA BATTERIES IN STORAGE, APPLY A TOPPING
CHARGE EVERY SIX MONTHS.
·
AVOID REPEATED DEEP DISCHARGES. THIS PRACTICE
WILL CUT THE LIFE OF THE BATTERY SIGNIFICANTLY.
·
AVOID OPERATING SLA BATTERIES AT ELEVATED
AMBIENT TEMPERATURES.
·
BATT STAT INDICATOR - RED = NO BATTERY POWER,
YELLOW = 1 HOUR LEFT. CHARGE BATTERY OVERNIGHT

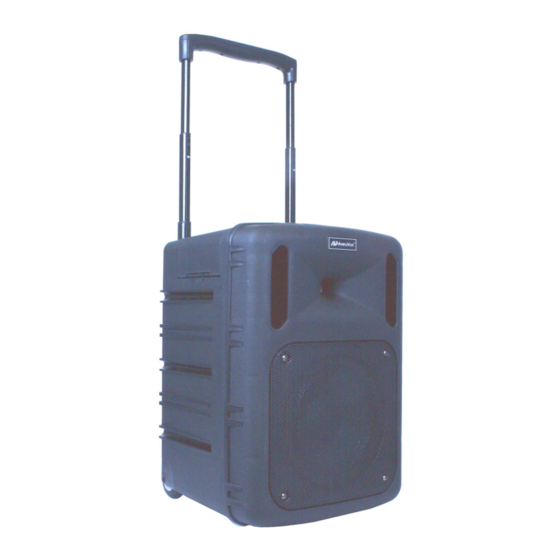

Thank you for choosing the SC800 Wireless Companion
Battery Powered Speaker from AmpliVox Portable Sound
Systems.
We are excited in introducing this truly unique system. Our
system combines flexibility with functionality. Please refer to
this user guide as you enjoy the unique capabilities of an-
other quality product from AmpliVox Portable Sound Sys-
tems.
We encourage you to visit our website www.ampli.com to
register your product for its warranty coverage, sign up to
receive our newsletter, download our catalog, and learn
more about the complete line of AmpliVox audio visual
products, including portable PA systems, and lecterns.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com
User Guide
SC800 Wireless Companion
Battery Powered Speaker
TABLE OF CONTENTS
SAFETY INSTRUCTIONS...................................2
GETTING STARTED / QUICK SETUP.......................3
SPECIFICATIONS.............................................3
CONTROL / BACK PANEL ....................................... 4
OPERATION .........................................................4
WIRELESS TRANSMITTER CONNECTION............. 5
WIRELESS SPEAKER RECEIVER........................5
AUDIO FUNCTION.............................................6
INPUTS ................ ................................................. 6
TROUBLESHOOTING.............................................. .7
WARRANTY......................................................8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AmpliVox SC800
Summary of Contents for AmpliVox SC800
- Page 1 TROUBLESHOOTING..........7 more about the complete line of AmpliVox audio visual products, including portable PA systems, and lecterns. WARRANTY...…………………………………………...8 AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information. Troubleshooting & Servicing Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not at- tempt to modify the device in anyway.
- Page 3 (SW800). 5. Turn on wireless speaker transmitter (SW800) S1692T. If the RF LED on the SC800 receiver lights up you are now all set. 6. Adjust the VOLUME knob, located in the center of panel, as needed to the appropriate level.
- Page 4 The red LED of the battery status LED’s will be flashing, indicating battery is charging. The batteries will charge when unit is If after replacing the fuses, the SC800 does not “power on”, operating with AC power, HOWEVER the unit will charge faster with please call AmpliVox Customer Service at 800-267-5486.
- Page 5 If using a cable connection instead of the wireless speaker transmitter, connect the LINE OUT jack of the SW800 to the LINE IN jack of the SC800. Must use supplied speaker cable with XLR male plug on each end. SC800...
- Page 6 LINE IN JACK The SC800 panel has one XLR jack labeled LINE IN. The LINE IN receives an external audio signal from any equipment the plug’s cable is attached to. When using this input you must also move switch position (see below).
- Page 7 AC outlet for several hours. After a · year or two the battery may need to be replaced. Batter- Check battery terminals ies are available from AmpliVox. · Check 25A Circuit Breaker. Reset if needed. · To replace the batteries use a Phillips screwdriver and...
- Page 8 To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Return Authorization number (RA#). After receiv- ing a RA#, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of protection.
