SW925 DIGITAL AUDIO TRAVEL PARTNER PLUS
READ FIRST ABOUT BATTERY OPERATION!
BY OBSERVING A FEW SIMPLE RULES, YOU CAN EXTEND THE
LIFESPAN OF THE SEALED LEAD ACID (SLA) BATTERIES THAT
OPERATE YOUR AMPLIVOX BATTERY POWERED PORTABLE
PA SYSTEM OR ACCESSORY:
• ALWAYS KEEP YOUR AMPLIVOX PORTABLE PA SYSTEM
PLUGGED IN AND CHARGING WHEN NOT IN USE.
• FOR LONG TERM STORAGE (OVER 1 MONTH) WE
RECOMMEND DISCONNECTING THE SLA BATTERIES TO
AVOID GRADUAL, CONTINUOUS DISCHARGE.
• ALWAYS STORE SLA BATTERIES IN A CHARGED
CONDITION WHEN REMOVED FROM SERVICE.
• NEVER LET THE BATTERY VOLTAGE DROP BELOW 10V.
• FOR SLA BATTERIES IN STORAGE, APPLY A TOPPING
CHARGE EVERY SIX MONTHS.
• AVOID REPEATED DEEP DISCHARGES. THIS PRACTICE
WILL CUT THE LIFE OF THE BATTERY SIGNIFICANTLY.
• AVOID OPERATING SLA BATTERIES AT ELEVATED
AMBIENT TEMPERATURES.
• BATTERY STATUS INDICATOR - RED = NO BATTERY POW-
ER, YELLOW = ABOUT 3 HOURS LEFT. CHARGE BATTERY
OVERNIGHT
Thank you for choosing the SW925 Digital Audio
Travel Partner Plus PA System from AmpliVox Port-
able Sound Systems.
We are excited in introducing this truly unique system.
Our system combines flexibility with functionality.
Please refer to this user guide as you enjoy the
unique capabilities of another quality product from
AmpliVox Portable Sound Systems.
We encourage you to visit our website
www.ampli.com to register your product for its war-
ranty coverage, sign up to receive our newsletter,
download our catalog, and learn more about the com-
plete line of AmpliVox audio visual products, including
portable PA systems, and lecterns.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com
User Guide
Battery Powered PA System

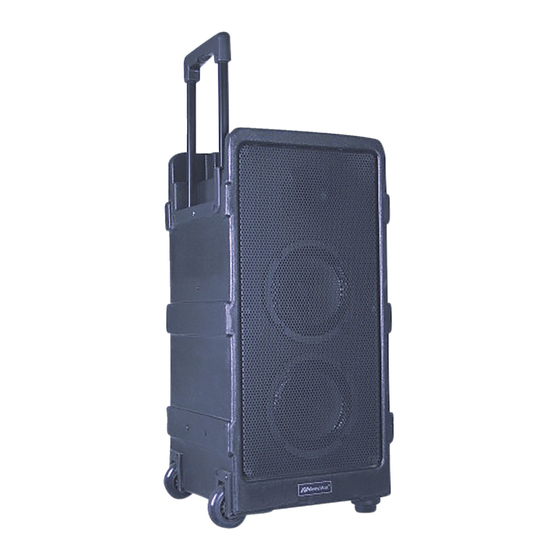

Photo may appear different then your actual unit.

TABLE OF CONTENTS

CONTROL / BACK PANEL ........................... 4
MEDIA PLAYER ...................................... 5
AUDIO FUNCTIONS ................................. 5
BLUETOOTH MODULE ............................. 7
OPTIONAL EQUIPMENT
TROUBLESHOOTING.................................. 9
WARRANTY...........................................10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW925 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AmpliVox SW925

Summary of Contents for AmpliVox SW925

  • Page 1: Table Of Contents

    WARRANTY…………………………………….10 plete line of AmpliVox audio visual products, including portable PA systems, and lecterns. AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information. Troubleshooting & Servicing Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not attempt to modify the device in anyway.

  • Page 3: Getting Started/Quick Setup

    • For Bluetooth turn on with the volume control switch. Press center button to start pairing. Select AmpliVox / AmpliVox S1500 or 0000. • WIRELESS MIC - Turn power on. Select channel using the up/ down buttons. Channel must match channel on microphone.

  • Page 4: Control / Back Panel

    To charge the batteries, connect the unit to 110-220VAC using the supplied power cord. The yellow/orange CHARGE LED will If after replacing the fuse, the SW925 does not ““power be illuminated indicating battery is charging. The batteries will on”, please call AmpliVox Customer Service at 800-267- charge when unit is operating with AC power, HOWEVER the 5486.

  • Page 5: Media Player

    It can be used to drive an external recording device or 3 MASTER AUDIO CONTROLS: AmpliVox S1297 Powered Speaker. The advantage to this VOLUME: This is the master volume control for the system. configuration is that the external system’s own EQ & volume BASS: This control cuts or boosts the bass level.

  • Page 6: Wireless Receiver / Transmitter

    -10 dB position. Adjust to prevent distortion while speaking. WIRELESS HANDHELD MICROPHONE—MODEL S1695 If you are using the AmpliVox S1695 Wireless Handheld Microphone Transmitter, screw off the lower bottom section of microphone and insert 2 - "AA" 1.5 Volt alkaline batteries.

  • Page 7: Bluetooth Module

    Bluetooth module. “The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Amplivox Portable Sound Systems is under license. Other trademarks and trade names are those of their respective owners.

  • Page 8: Wireless Speaker Transmitter

    • The transmitter has its own POWER / VOLUME Control (E). First make sure that you have screwed on the UHF antenna (Position #4). Turn Main Power On of the SW925, then turn transmitter Power On (E). A Frequency Channel will appear in the Channel Display (A). Press Select Buttons (D) to select a channel. Channel number must match channel number on wireless receiver of the S1297 Speaker.

  • Page 9: Troubleshooting

    • Reduce or eliminate Feedback by - Pointing the microphone in a different SW925 MAKES BUZZING NOISE direction. • Check cables – a damaged cable will - Keeping the microphone BEHIND the cause this. Unplug cables one at a time speakers.

  • Page 10: Warranty

    To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Return Authorization number (RA#). After receiv- ing a RA#, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of protection.
