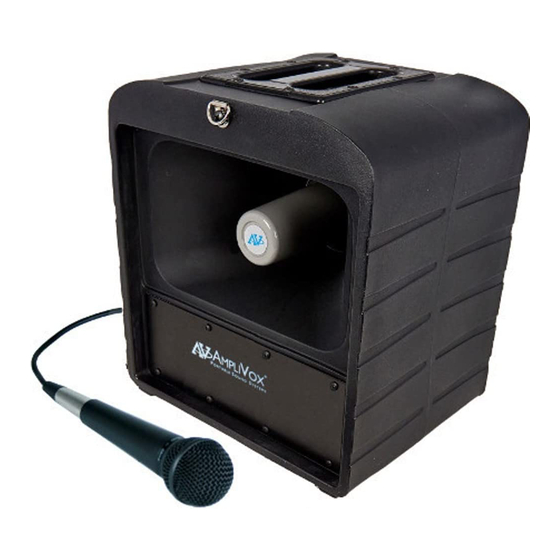

Mega Hailer S680 / SW680 / SW685
Battery Powered PA System with
READ FIRST ABOUT BATTERY OPERATION!
BY OBSERVING A FEW SIMPLE RULES, YOU CAN EXTEND THE
LIFESPAN OF THE SEALED LEAD ACID (SLA) BATTERIES THAT
OPERATE YOUR AMPLIVOX BATTERY POWERED PORTABLE
PA SYSTEM OR ACCESSORY:
• ALWAYS KEEP YOUR AMPLIVOX PORTABLE PA SYSTEM
PLUGGED IN AND CHARGING WHEN NOT IN USE.
• FOR LONG TERM STORAGE (OVER 1 MONTH) WE
RECOMMEND DISCONNECTING THE SLA BATTERIES TO
AVOID GRADUAL, CONTINUOUS DISCHARGE.
• ALWAYS STORE SLA BATTERIES IN A CHARGED
CONDITION WHEN REMOVED FROM SERVICE.
• FOR SLA BATTERIES IN STORAGE, APPLY A TOPPING
CHARGE EVERY SIX MONTHS.
• AVOID REPEATED DEEP DISCHARGES. THIS PRACTICE
WILL CUT THE LIFE OF THE BATTERY SIGNIFICANTLY.
• AVOID OPERATING SLA BATTERIES AT ELEVATED
AMBIENT TEMPERATURES.
• BATTERY STATUS INDICATOR - RED = NO BATTERY POW-
ER, YELLOW / ORANGE= ABOUT 4 HOURS LEFT. CHARGE
BATTERY OVERNIGHT FOR BEST RESULTS.
Thank you for choosing one of the Mega Hailer Series PA
Systems with
Systems.
We are excited in introducing this truly unique system. Our
system combines flexibility with functionality. Please refer to
this user guide as you enjoy the unique capabilities of another
quality product from AmpliVox Portable Sound Systems.
We encourage you to visit our website www.ampli.com to
register your product for its warranty coverage, sign up to re-
ceive our newsletter, download our catalog, and learn more
about the complete line of AmpliVox audio visual products,
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by AmpliVox Portable
Sound Systems is under license.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com
User Guide
from AmpliVox Portable Sound
TABLE OF CONTENTS
SAFETY INSTRUCTIONS ................................................. 2
WHAT'S IN THE BOX ....................................................... 3
SPECIFICATIONS ............................................................ 3
BACK PANEL / AUDIO CONTROLS .................................... 4
WIRELESS RECEIVER .................................................... 5
WIRELESS HANDHELD MICROPHONE ......................... 5
BLUETOOTH ..................................................................... 6
BATTERY COMPARTMENT ............................................. 9
SPEAKER STAND MOUNT .......................................... 8
WIRELESS SPEAKER TRANSMITTER .......................... 9
TROUBLESHOOTING / SERVICING.................................... 10
WARRANTY.......................................................................... 11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AmpliVox Mega Hailer S680
Summary of Contents for AmpliVox Mega Hailer S680
- Page 1 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by AmpliVox Portable WARRANTY……..............11 Sound Systems is under license. AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com...
-
Page 2: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information. Cleaning When cleaning the device, please use a soft, dry cloth. Never use benzene, paint-thinner, or other chemicals on the device Location Place the device in stable location, so it will not fall causing damage to the device or bodily harm. -
Page 3: What's In The Box
WHAT’S IN THE BOX SW680 Model Shown SW680 SW685 S680 Mega Hailer PA Mega Hailer PA Mega Hailer PA • • • 16 Channel Wireless 16 Channel Wireless Wired Handheld Micro- • • • Receiver phone (not shown) Receiver Headset / Lavalier Mi- Universal Power Sup- •... -
Page 4: Back Panel
BACK PANEL QUICK SET-UP GUIDE Instructions, when this manual cannot be found. 16 CHANNEL DIGITAL AUDIO CONTROLS WIRELESS RECEIVER BLUETOOTH AUDIO CONTROLS POWER SWITCH B : Press to turn ON. Power LED and • Battery Level Meter J will light. •... -
Page 5: Wireless Receiver
-10 dB position. Adjust to prevent distortion while speaking. WIRELESS HANDHELD MICROPHONE - MODEL SW685 ONLY If you are using the AmpliVox S1695 Wireless Handheld Microphone Transmitter, screw off the lower bottom section of microphone and insert 2 - "AA" 1.5 Volt alkaline batteries. -
Page 6: Bluetooth
Bluetooth module. “The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Amplivox Portable Sound Systems is under license. Other trademarks and trade names are those of their respective owners. -
Page 7: Battery Compartment
BATTERY COMPARTMENT BATTERY REPLACEMENT The AmpliVox Hailer has two (2) SLA (Sealed Lead Acid) batteries located at the front behind the metal plate that has the AmpliVox logo (Fig. 1). To access the battery compartment, remove the eight (8) screws and remove plate. Set aside. -
Page 8: Speaker Stand Mount
Your Hailer has a built-in 1 3/8" (35mm) dia. pole mount for mounting on standard speaker tripods (AmpliVox Model S1080 or S1090). -
Page 9: Wireless Speaker Transmitter
WIRELESS SPEAKER TRANSMITTER S1692T (OPTIONALEQUIPMENT) OPERATES ON DIFFERENT FREQUENCIES THAN AMPLIVOX WIRELESS MICROPHONE / RECEIVER 16 CH UHF WIRELESS SPEAKER TRANSMITTER FEATURES • Channel Display (A) Frequency: 655 - 679 MHz • TX - Radio Frequency Indicator (B) lights when turned on •... -
Page 10: Troubleshooting / Servicing
AC outlet for several hours. After a UNIT OPERATES ON AC BUT NOT BATTERY year or two the battery may need to be replaced. Bat- • Charge battery teries are available from AmpliVox. • Replace battery NEED HELP? Call 800-267-5486 SOUND IS MUFFLED •... -
Page 11: Warranty
To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Repair Authorization number (RA#). After receiv- ing a RA#, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of protection. - Page 12 NOTES AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com NOV, 2017...
