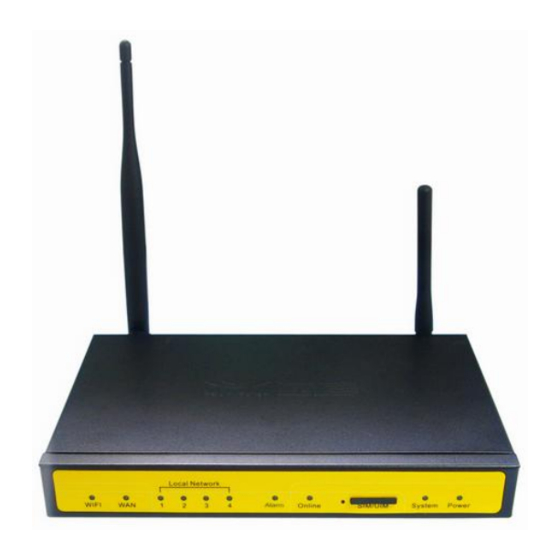

F3X33 Series
User Manual
F3X33 Series User Manual
The user manual is suitable for the following model:
Documentation No.
Product Name：
Model
Product Type
F3133
GPRS ROUTER
F3233
CDMA ROUTER
F3333
EDGE ROUTER
F3433
WCDMA ROUTER
F3533
TD-SCDMA ROUTER
F3633
EVDO ROUTER
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J3,3rd Floor,No.44,GuanRi Road,SoftWare
Park,XiaMen,China
Tel：+86 592-6300326 ，6300325，6300324
Fax:+86 592-5912735
http://www.fourfaith.com
Product Version
Zip Code:361008
Page
Total:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F3133 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Four-Faith F3133

Summary of Contents for Four-Faith F3133

  • Page 1 The user manual is suitable for the following model: Model Product Type F3133 GPRS ROUTER F3233 CDMA ROUTER F3333 EDGE ROUTER F3433 WCDMA ROUTER F3533 TD-SCDMA ROUTER F3633 EVDO ROUTER Xiamen Four-Faith Communication Technology Co., Ltd. Add：J1-J3,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China Zip Code:361008 Tel：+86 592-6300326 ，6300325，6300324 Fax:+86 592-5912735 http://www.fourfaith.com...
  • Page 2 User Manual Files Revised Record Date Version Remark Author Xiamen Four-Faith Communication Technology Co.,Ltd. Page 2 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...

  • Page 3: Copyright Notice

    Four-Faith Communication Technology Co., Ltd. Without written permission, all commercial use of the files from Four-Faith are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual (all files shall be not revised, and the copyright and other proprietorship notice shall be reserved) are welcome.
  • Page 4 User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 4 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...

  • Page 5: Table Of Contents

    3.3.17 L2TP Client ......................34 3.3.18 IPSEC Client ......................35 3.3.19 Dynamic DNS ...................... 35 3.3.20 Serial Settings ...................... 37 Chapter 4 Appendix ........................39 Xiamen Four-Faith Communication Technology Co.,Ltd. Page 5 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：...

  • Page 6: Chapter 1 Brief Introduction Of Product

     Ethernet port: 1.5KV magnetic isolation protection  RS232/RS485/RS422 port: 15KV ESD protection  SIM/UIM port: 15KV ESD protection  Power port: reverse-voltage and overvoltage protection  Antenna port: lightning protection(optional) Xiamen Four-Faith Communication Technology Co.,Ltd. Page 6 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：...

  • Page 7: Working Principle

    User interface 10/100M 4 ports RS232 Power WIFI Indicator HOST switch · lights 1.4 Specifications Cellular Specification Xiamen Four-Faith Communication Technology Co.,Ltd. Page 7 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
  • Page 8 800MHz,800/1900MHz(optional) upload speed:1.8Mbps 450MHz (optional) CDMA2000 1X RTT, IS-95 A/B WIFI Specification Item Content Standard IEEE802.11b/g IEEE802.11n (optional) Xiamen Four-Faith Communication Technology Co.,Ltd. Page 8 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
  • Page 9 Standard 3-PIN power jack, reverse-voltage and overvoltage protection Reset Restore the router to its original factory default settings Standard A type USB host interface (reserved) Power Input Xiamen Four-Faith Communication Technology Co.,Ltd. Page 9 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：...
  • Page 10 Operating -25~+65º C（-13~+149℉） Temperature Extended -30~+75º C（-22~+167℉） Operating Temperature Storage -40~+85º C（-40~+185℉） Temperature Operating 95% ( Non-condensing) Humidity Xiamen Four-Faith Communication Technology Co.,Ltd. Page 10 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...

  • Page 11: Chapter 2 Installation Introduction

    Network cable Console cable optional Power adapter Manual CD Certification card Maintenance card 2.3 Installation and Cable Connection Xiamen Four-Faith Communication Technology Co.,Ltd. Page 11 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
  • Page 12 DB9F end of the console cable into the RS232 serial interface of user’s device. The signal connection of the console cable is as follows: RJ45 DB9F The signal definition of the DB9F serial communication interface is as follows: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 12 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：...

  • Page 13: Power

    Network ON / The corresponding interface of switch is connected BLINK /Communicating The interface of WAN is not connected Xiamen Four-Faith Communication Technology Co.,Ltd. Page 13 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...

  • Page 14: Reset Button Introduction

    The router has a “Reset” button to restore it to its original factory default settings. When user press the “Reset” button for up to 15s, the router will restore to its original factory default settings and restart automatically. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 14 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...

  • Page 15: Chapter 3 Configuration And Management

    Ethernet port is 192.168.1.1). It will prompt a login page. The default username and password are both “admin”. Please input the username and password login to access the configuration pages. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 15 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...

  • Page 16: Configuration

    This page is used to configure the Internet access parameters. WAN Wireless Note: Model Username and password Call center F3133 Cmnet null *99***1# Uninet Xiamen Four-Faith Communication Technology Co.,Ltd. Page 16 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
  • Page 17 You can also use your own DNS address. If you want to use your own DNS, please make sure the DNS address you configured is usable and stable. Keep Online Detection Xiamen Four-Faith Communication Technology Co.,Ltd. Page 17 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...

  • Page 18: Wifi Settings

    3.3.3 WIFI Settings WIFI enable Wifi Enable: Enable or disable WIFI function. Wireless Network Xiamen Four-Faith Communication Technology Co.,Ltd. Page 18 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324...
  • Page 19 WI-FI Protected Access Pre-Shared Key WPA/WPA2-PSK WI-FI Protected Access Pre-Shared Key Configure WEP Wireless Security When you choose WEP security options, the WEP configure page is as following: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 19 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：...
  • Page 20 Encryption Method: It can be “TKIP”,”AES” or “AUTO” method. Passphrase: A word or group of 8-63 printable characters WPA2-PSK, WPA/WPA2-PSK configurations are the same as WPA-PSK. Note: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 20 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...

  • Page 21: Lan Settings

    The router causes your entire local network to appear as a single machine to the Internet, You can make a local server visible and available to the Internet, This is done using the NAT (Network Address Translation). The NAT configuration page is as following: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 21 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...
  • Page 22 NAT module, the destination port will be 5001~ 5003 correspondingly and the packet will be sent to host 192.168.0.249. Delete a NAT item Xiamen Four-Faith Communication Technology Co.,Ltd. Page 22 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...

  • Page 23: Dmz

    Discard The Following--Discard all packets matched the custom filter rules, Accept all other packets Only Accept The Following--Accept all packets matched the custom filter rules, Discard all other packets Xiamen Four-Faith Communication Technology Co.,Ltd. Page 23 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
  • Page 24 Example: If want to block local network PC 192.168.0.249 telnet(TCP port 23) to any other Internet Address ,the filter item could be configured as following: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 24 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
  • Page 25 Only Accept The Following -- Accept all packets matched the custom MAC Restrict rules, Discard all other packets MAC Address: The MAC Address applied to this MAC Restrict item. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 25 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...

  • Page 26: Static Routes

    Metric: A number between 1 and 15, It represents the number of routers between your network and the destination. Usually, a setting of 2 or 3 works If you want to delete one custom static route, choose this item and press “Delete” button. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 26 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...

  • Page 27: Router Status

    Domain Name Server: The Domain Name Server (DNS) IP Address. IP Address: the LAN port IP Address DHCP: the DHCP server status IP Subnet Mask: The LAN port subnet mask Xiamen Four-Faith Communication Technology Co.,Ltd. Page 27 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...

  • Page 28: Backup Settings

    To save your configuration, click the “Backup” button, y our browser will extract the configuration file from the router and will prompt you for a location on your computer to Xiamen Four-Faith Communication Technology Co.,Ltd. Page 28 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...

  • Page 29: Load Default

    “No” to give up. 3.3.12 Router Upgrade The software of the router is stored in FLASH memory, and can be upgraded as new software is released by Four-Faith. Upgrade files can be downloaded from the Four-Faith Web site( www.four-faith.com ). If the upgrade file is compressed (.ZIP file or .RAR), you must first extract the binary ( .IMG) file before sending it to the router.

  • Page 30: Set Password

    This function is used to debug the software, when there is some problem with the router, you can get the log information and send it to us to diagnose the problem. Normally this function should be disabled. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 30 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...
  • Page 31 Log Way: there are three log ways The log message is displayed on this web page. You can save the log message to a file by click “Save Log” button. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 31 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...
  • Page 32 When you configure the serial port settings , press “call” button ,The router log message will be displayed. You can capture the log message into a file: From the menu, choose “Transfer” ”capture text” Xiamen Four-Faith Communication Technology Co.,Ltd. Page 32 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...

  • Page 33: Misc

    IP Address and run a syslog server program on it. . 3.3.15 Misc Normally, the four-faith web config tool listens on port 80. If you want to change listening port, please configure “web config port” item. To reboot the router , press the “Reboot” button.

  • Page 34: L2Tp Client

    L2TP Server dynamically. You can also use the fixed local tunnel IP if the L2TP Server support User Name: Username to login the L2TP Server. Password: Password to login the L2TP Server. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 34 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...

  • Page 35: Ipsec Client

    DNS service, which will allow you to register your domain to their IP address, and will forward traffic directed at your domain to your frequently-changing IP address. The four-faith router currently support 88ip(www.88ip.net) and 3322(www.3322.org) Dynamic DNS provider. Xiamen Four-Faith Communication Technology Co.,Ltd.
  • Page 36 Service Provider: the DDNS service provider Host Name: The 3322 provider’s server hostname Customer Domain: Your custom 3322 domain name. User Name: Your 3322 account username Xiamen Four-Faith Communication Technology Co.,Ltd. Page 36 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...

  • Page 37: Serial Settings

    3.3.20 Serial Settings There is a console port on Four-Faith router. Normally, this port is used to debug the router. This port can also be used as a serial port. The router has embedded a serial to TCP program. The data sent to the serial port is encapsulated by TCP/IP protocol stack and then is sent to the destination server.
  • Page 38 Enable Serial TCP Function: Enable the serial to TCP function Protocol Type: The protocol type to transmit data. UDP(DTU) – Data transmit with UDP protocol , work as a Four-Faith DTU which has application protocol and hear beat mechanism. Pure UDP – Data transmit with standard UDP protocol.

  • Page 39: Chapter 4 Appendix

    3. Choose the correct COM port which connects to modem, choose “OK” 4. Configure the serial port parameters as following, choose “OK” Bits per second: 115200 Xiamen Four-Faith Communication Technology Co.,Ltd. Page 39 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
  • Page 40 Data bits: 8 Parity: None Stop bits: 1 Flow control: None 5. Complete Hyper Terminal operation, It runs as following Xiamen Four-Faith Communication Technology Co.,Ltd. Page 40 of 40 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324...
