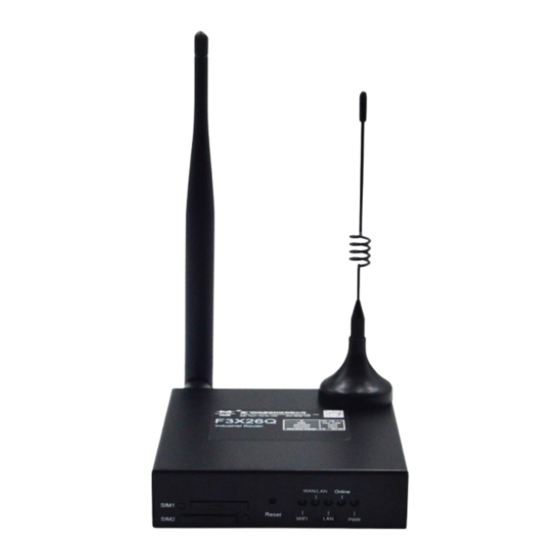

Four-Faith F3X26Q User Manual

4g industrial router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
F3X26Q 4G Industrial
Document Version
Security Classification
Router User Manual
V1.0.0
Product Series: F3X26Q
Total: 91 pages
F3X26Q 4G Industrial Router User
Manual
Xiamen Four-Faith Communication Technology Co.,Ltd
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen
Tel：+86 592-5907276
Fax:+86 592-5912735
Web:en.four-faith.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F3X26Q and is the answer not in the manual?

Questions and answers

Related Manuals for Four-Faith F3X26Q

Summary of Contents for Four-Faith F3X26Q

  • Page 1 Document Version Security Classification Router User Manual V1.0.0 Product Series: F3X26Q Total: 91 pages F3X26Q 4G Industrial Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen Tel：+86 592-5907276 Fax:+86 592-5912735 Web:en.four-faith.com...
  • Page 2 F3X26Q 4G Industrial Router User Manual Files Revised Record Date Version Remark Author 2018-7-21 V1.0.0 Initial Version Harven Page 2 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China. Website: en.four-faith.com Tel: +86-592-5907276 Fax: +86-592-5912735...

  • Page 3: Copyright Notice

    Trademark Notice Four-Faith, 四信, are all registered trademarks of Xiamen Four-Faith Communication Technology Co., Ltd., illegal use of the name of Four-Faith, trademarks and other marks of Four-Faith is forbidden, unless written permission is authorized in advance. FCC Statements This device complies with part 15 of the FCC rules.
  • Page 4 F3X26Q 4G Industrial Router User Manual ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. Federal Communication Commission (FCC) Radiation Exposure Statement When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements.

  • Page 5: Product Picture

    F3X26Q 4G Industrial Router User Manual Product Picture Note: There may be differences between models of accessories and interfaces, actual products shall prevail. Page 5 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China. Website: en.four-faith.com...

  • Page 6: Table Of Contents

    F3X26Q 4G Industrial Router User Manual Contents Chapter 1 Brief Introduction of Product ..................8 1.1 General ..........................8 1.2 Working Principle Diagram ....................9 1.3 Specification ........................9 Chapter 2 Installation Introduction ..................... 11 2.1 Overview ........................... 11 2.2 Encasement List ......................... 11 2.3 Installation and Cable Connection ..................
  • Page 7 F3X26Q 4G Industrial Router User Manual 3.3.7.1 Port Forwarding ..................66 3.3.7.2 Port Range Forward ................67 3.3.7.3 DMZ ......................68 3.3.8 QoS Setting ......................69 3.3.8.1 Basic ......................69 3.3.8.2 Classify ..................... 69 3.3.9 Applications ......................70 3.3.9.1 Serial Application ..................70 3.3.10 Administration ....................

  • Page 8: Chapter 1 Brief Introduction Of Product

    F3X26Q 4G Industrial Router User Manual Chapter 1 Brief Introduction of Product 1.1 General F3X26Q Industrial Router is an IoT wireless communication router. It is using public cellular network GPRS/CDMA/WCDMA/EVDO/LTE to provide long distance, wireless and large data transmission function for users.

  • Page 9: Working Principle Diagram

    F3X26Q 4G Industrial Router User Manual Working Principle Diagram 1.3 Specification Product Interface Note: There may be differences between models of accessories and interfaces, actual products shall prevail. Power Item Content Input Voltage DC 12V/1.5A Accepted Voltage Range DC 5~36V...
  • Page 10 F3X26Q 4G Industrial Router User Manual Physical Properties Item Content Casing Metal casing, IP30 protection level, suitable for most industrial control applications. Dimensions 93x89x24mm (excluding antennas and mountings) Weight 250g Others Item Content Operating Temperature -35~+75℃ Storage Temperature -40~+85℃ Relative Humidity...

  • Page 11: Chapter 2 Installation Introduction

    F3X26Q 4G Industrial Router User Manual Chapter 2 Installation Introduction 2.1 Overview Router must be installed correctly before they achieve the designed features, the device must be installed by the guidance of a qualified engineer who recognized by the Company.
  • Page 12 F3X26Q 4G Industrial Router User Manual DIN Rail Style Router Dimension Wall Mount Style Router Dimension Note: This router device uses DIN Rail to install, use M3 screw to secure the clip, the depth is 3-4mm. Antenna Installation: Page 12 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
  • Page 13 F3X26Q 4G Industrial Router User Manual Wireless WAN antenna interface is a standard SMA female antenna interface (marked as ‘ANT’), put the cellular antenna on the interface, make sure it has been tightening to avoid affect the signal quality. Wireless LAN antenna interface is a standard SMA male antenna interface (marked as ‘WIFI’), put the WIFI antenna on the interface, make sure it has been tightening to avoid...
  • Page 14 F3X26Q 4G Industrial Router User Manual Ethernet Cable Connection: Connect one side of the ethernet cable to the LAN port on the router, the other side to the user device’s ethernet port. The cable’s definition is as following: RJ45-1 RJ45-2...
  • Page 15 F3X26Q 4G Industrial Router User Manual 3.5mm Terminal Block Interface Definition： The 5-pin terminal block includes POWER and RS232(RS485) function. The definition is as following: Definition Description Extension Device power supply positive Device power supply negative RS232 GND RS232 receiving...

  • Page 16: About Power

    F3X26Q 4G Industrial Router User Manual 2.4 About Power The F3X26Q router is usually used in complex external environments. To fit the environment and improve the system stability, the router uses advanced power technology. User can use standard 12VDC/1.5A power adapter which come with the device, or use any DC 5-36V power to provide power supply directly for the device.

  • Page 17: Reset Button

    F3X26Q 4G Industrial Router User Manual WAN/LAN WAN/LAN no connection On/Flashing WAN/LAN already connected/Communicating WIFI WIFI is not on WIFI is on 2.6 Reset Button Router has a rest button, marked as ‘Reset’. This button is used for restoring the device back to factory setting.

  • Page 18: Chapter 3 Configuration And Management

    F3X26Q 4G Industrial Router User Manual Chapter 3 Configuration and Management 3.1 Configuration Connection The router should be connected to the PC with the supplied ethernet cable or WIFI connection before doing the configuration for the router. When using the wired connection method, insert the ethernet cable into any LAN port of the router, insert the other side of the cable into the ethernet port on your PC.

  • Page 19: Login To Configuration Page

    F3X26Q 4G Industrial Router User Manual Second method: static IP Set the PC IP address as 192.168.1.9 (or other IP address in the same 192.168.1 segment), subnet mask is 255.255.255.0, default gateway is 192.168.1.1. DNS can be set to any DNS server available in that area.
  • Page 20 F3X26Q 4G Industrial Router User Manual You will see a page which similar as the following page after clicking the button. User may need to type in username and password in order to access any items of the menu. Page 20 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.

  • Page 21: Configuration And Management

    F3X26Q 4G Industrial Router User Manual Type in the correct username and password, then click Submit. the default username is admin, password is admin. You can change it under the Management section. 3.3 Configuration and Management 3.3.1 Setting Click ‘Setup’, the first page is for basic settings. On this page, you can change some basic settings, click ‘Saved’...
  • Page 22 F3X26Q 4G Industrial Router User Manual Disable WAN port connection Type 2: Static IP This connection type usually used for dedicated line such as business or enterprise fiber. The ISP will provide you with the detail parameters such as IP address, subnet mask, gateway and DNS.
  • Page 23 F3X26Q 4G Industrial Router User Manual the router. User Name: the user name for login to the Internet Password: the password for login to the Internet Type 5: 3G Link 1 User Name: login users' ISP(Internet Service Provider) Password: login users' ISP...
  • Page 24 F3X26Q 4G Industrial Router User Manual Type 7: DHCP-4G WAN IP obtained by DHCP-4G Type 8: DHCP-BKUP4G WAN IP obtained by DHCP-BKUP4G Keep Online This function is used to detect whether the Internet connection is active. If this setting is on, the router will automatic check the internet connection.
  • Page 25 F3X26Q 4G Industrial Router User Manual Backup Detection Server IP: the server used to response the Router’s detection packet. Force reconnect: this option schedules the PPPOE or 3G reconnection by killing the pppd daemon and restart it. Time: needed time to reconnect STP (Spaning Tree Protocol) can be applied to loop network.
  • Page 26 F3X26Q 4G Industrial Router User Manual Local IP Address: IP address of the Router Subnet Mask: the subnet mask of the Router Gateway: set internal gateway of the Router. If default, internal gateway is the address of the Router Local DNS: DNS server is auto assigned by network operator server. Users enable to use...
  • Page 27 F3X26Q 4G Industrial Router User Manual Enter DHCP Server if set DHCP Type to DHCP Forwarder as blow: DHCP Server: keep the default Enable to enable the Router's DHCP server option. If users have already have a DHCP server on their network or users do not want a DHCP server, then...

  • Page 28: Dynamic Dns

    F3X26Q 4G Industrial Router User Manual NTP Client: Get the system time from NTP server Time Zone: Time zone options Summer Time (DST): set it depends on users' location Server IP/Name: IP address of NTP server, up to 32 characters. If blank, the system will find...

  • Page 29: Clone Mac Address

    F3X26Q 4G Industrial Router User Manual User Name: users register in DDNS server, up to 64 characteristic Password: password for the user name that users register in DDNS server, up to 32 characteristic Host Name: users register in DDNS server, no limited for input characteristic for now Type: depends on the server Wildcard: support wildcard or not, the default is OFF.

  • Page 30: Advanced Router

    F3X26Q 4G Industrial Router User Manual Clone MAC address can clone three parts: Clone LAN MAC, Clone WAN MAC, Clone Wireless MAC. Noted that one MAC address is 48 characteristic, can not be set to the multicast address, the first byte must be even. And MAC address value of network bridge br0 is determined by the smaller value of wireless MAC address and LAN port MAC address.
  • Page 31 F3X26Q 4G Industrial Router User Manual Note：Dynamic Routing is not available in Gateway mode Static Routing Select set number: 1-50 Route Name: defined routing name by users, up to 25 characters Metric: 0-9999 Destination LAN NET: the Destination IP Address is the address of the network or host to...

  • Page 32: Networking

    F3X26Q 4G Industrial Router User Manual 3.3.1.5 Networking Bridging-Create Bridge: creates a new empty network bridge for later use. STP means Spanning Tree Protocol and with PRIO users are able to set the bridge priority order. The lowest number has the highest priority.
  • Page 33 F3X26Q 4G Industrial Router User Manual Enter relewant bridge IP address and subnet mask, click 'Add' to create a bridge. Note: Only create a bride can apply it. Assign to Bridge option: to assign different ports to created bridge. For example: assign port (wireless port) is ra0 in br1 bridge as below: Prio means priority level: work if multiple ports are within the same bridge.
  • Page 34 F3X26Q 4G Industrial Router User Manual Port Setup: Set the port property, the default is not set Choose not bridge to set the port's own properties, detailed properties are as below: MTU: maximum transfer unit Multicast forwarding: enable or disable multicast forwarding...

  • Page 35: Wireless

    F3X26Q 4G Industrial Router User Manual configured as eth0), the second means whether to on DHCP . Start means start address, Max means maximum assigned DHCP clients, Leasetime means the client lease time, the unit is second, click 'Save' or 'Apply' to put it into effect after setting.
  • Page 36 F3X26Q 4G Industrial Router User Manual B-only：Only supports the 802.11b standard wireless devices. G-only：Only supports the 802.11g standard wireless devices. NG-Mixed：Support 802.11g, 802.11n wireless devices. N-only：Only supports the 802.11g standard wireless devices. 8021.11n Transmission Mode ： In the wireless network mode to "N-only" choose to transfer its transmission mode.

  • Page 37: Wireless Security

    F3X26Q 4G Industrial Router User Manual Virtual Interfaces ： Click Add to add a virtual interface. Add successfully, click on the remove, you can remove the virtual interface. AP Isolation： This setting isolates wireless clients so access to and from other wireless clients are stopped.
  • Page 38 F3X26Q 4G Industrial Router User Manual WEP： Is a basic encryption algorithm is less secure than WPA.Use of WEP is discouraged due to security weaknesses, and one of the WPA modes should be used whenever possible. Only use WEP if you have clients that can only support WEP (usually older, 802.11b-only clients).
  • Page 39 F3X26Q 4G Industrial Router User Manual WPA Personal/WPA2 Personal/WPA2 Person Mixed: TKIP/AES/TKIP+AES, dynamic encryption keys. TKIP + AES, self-applicable TKIP or AES. WPA Person Mixed, allow WPA Personal and WPA2 Personal client mix. WPA Shared Key：Between 8 and 63 ASCII character or hexadecimal digits..

  • Page 40: Services

    F3X26Q 4G Industrial Router User Manual 3.3.3 Services 3.3.3.1 Services DHCP Server DHCP assigns IP addresses to users local devices. While the main configuration is on the setup page users can program some nifty special functions here. Use NVRAM for client lease DB: users can store data to the system NVRAM area is...
  • Page 41 F3X26Q 4G Industrial Router User Manual local DNS service (DNSmasq). Additional DHCPd Options: some extra options users can set by entering them DNSMasq DNSmasq is a local DNS server. It will resolve all host names known to the Router from dhcp (dynamic and static) as well as forwarding and caching DNS entries from remote DNS servers.
  • Page 42 F3X26Q 4G Industrial Router User Manual SNMP Location: equipment location Contact: contact this equipment management Name: device name RO Community: SNMP RO community name, the default is public, Only to read. RW Community: SNMP RW community name, the default is private, Read-write...
  • Page 43 F3X26Q 4G Industrial Router User Manual secure than a simple password) System log Enable Syslogd to capture system messages. By default they will be collected in the local file /var/log/messages. T o send them to another system, enter the IP address of a remote syslog server.

  • Page 44: Vpn

    F3X26Q 4G Industrial Router User Manual 3.3.4 VPN 3.3.4.1 PPTP PPTP Server Broadcast support: enable or disable broadcast support of PPTP server Force MPPE Encryption: enable of disable force MPPE encryption of PPTP data DNS1/DNS2/WINS1/WINS2: set DNS1/DNS2/WINS1/WINS2 Server IP: input IP address of the Router as PPTP server, differ from LAN address Client IP(s): IP address assigns to the client, the format is xxx.xxx.xxx.xxx-xxx...

  • Page 45: L2Tp

    F3X26Q 4G Industrial Router User Manual Server IP or DNS Name: PPTP server’s IP Address or DNS Name Remote Subnet: the network of the remote PPTP server Remote Subnet Mask: subnet mask of remote PPTP server MPPE Encryption: enable or disable Microsoft Point-to-Point Encryption.
  • Page 46 F3X26Q 4G Industrial Router User Manual Client IP(s): IP addressassigns to the client, the format is xxx.xxx.xxx.xxx-xxx.xxx.xxx.xxx CHAP Secrets: user name and password of the client using L2TP service Note: client IP must be different with IP assigned by Router DHCP .

  • Page 47: Openvpn

    F3X26Q 4G Industrial Router User Manual Refuse PAP: enable or disable refuse to support the pap authentication Require Authentication: enable or disable support authentication protocol 3.3.4.3 OPENVPN OPENVPN Server Start Type: WAN UP----start after on-line, System----start when boot up Config via: GUI----Page configuration, Config File----config File configuration...
  • Page 48 F3X26Q 4G Industrial Router User Manual Pool end IP: pool end IP of the client allowed by OPENVPN server Gateway: the gateway of the client allowed by OPENVPN server Netmask: netmask of the client allowed by OPENVPN server Port: listen port of OPENVPN server...
  • Page 49 F3X26Q 4G Industrial Router User Manual Redirect default Gateway: enable or disable redirect default gateway Allow Client to Client: enable or disable allow client to client Allow duplicate cn: enable or disable allow duplicate cn TUN MTU Setting: set the value of TUN MTU...
  • Page 50 F3X26Q 4G Industrial Router User Manual Additional Config: additional configurations of the server CCD-Dir DEFAULT file: other file approaches TLS Auth Key: authority key of Transport Layer Security Certificate Revoke List: configure some revoke certificates OPENVPN Client Server IP/Name: IP address or domain name of OPENVPN server Page 50 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
  • Page 51 F3X26Q 4G Industrial Router User Manual Port: listen port of OPENVPN client Tunnel Device: TUN----Router mode, TAP----Bridge mode Tunnel Protocol: UDP and TCP protocol Encryption Cipher: Blowfish CBC , AES-128 CBC , AES-192 CBC , AES-256 CBC , AES-512 CBC...

  • Page 52: Ipsec

    F3X26Q 4G Industrial Router User Manual TCP MSS: mss of TCP data TLS Cipher: TLS (Transport Layer Security) encryption standard supports AES-128 SHA and AES-256 SHA TLS Auth Key: authority key of Transport Layer Security Additional Config: additional configurations of OPENVPN server...
  • Page 53 F3X26Q 4G Industrial Router User Manual Closed: this connection does not launch a connection request to opposite end Negotiating: this connection launch a request to opposite end, is under negotiating, the connection has not been established yet. Establish: the connection has been established, enabled to use this tunnel...
  • Page 54 F3X26Q 4G Industrial Router User Manual Name: to indicate this connection name, must be unique Enabled: If enable, the connection will send tunnel connection request when it is reboot or re-connection, otherwise it is no need if disable Local WAN Interface: local address of the tunnel Remote Host Address: IP/domain name of end opposite;...
  • Page 55 F3X26Q 4G Industrial Router User Manual Advanced Settings: this part contains relevant setting of IKE, ESP , negotiation mode, etc. Enable Advanced Settings: enable to configure 1 and 2 phase information, otherwise it will automic negotiation according to opposite end...

  • Page 56: Gre

    F3X26Q 4G Industrial Router User Manual 3.3.4.5 GRE GRE (Generic Routing Encapsulation, Generic Routing Encapsulation) protocol is a network layer protocol (such as IP and IPX) data packets are encapsulated, so these encapsulated data packets to another network layer protocol (IP)transmission. GRE Tunnel (tunnel) technology, Layer Two Tunneling Protocol VPN (Virtual Private Network).

  • Page 57: Security

    F3X26Q 4G Industrial Router User Manual Peer Tunnel IP：The remote tunnel ip address Local Tunnel IP：The local tunnel ip address Local Netmask：Netmask of local network Keepalive：Enable or disable GRE Keepalive function Retry times：GRE keepalive detect fail retries Interval：The time interval of GRE keepalive packet sent Fail Action：The action would be exec after keeping alive failed.
  • Page 58 F3X26Q 4G Industrial Router User Manual Additional Filters Filter Proxy: Wan proxy server may reduce the security of the gateway, Filtering Proxy will refuse any access to any wan proxy server. Click the check box to enable the function otherwise disabled.
  • Page 59 F3X26Q 4G Industrial Router User Manual from outside. Click the check box to enable the function otherwise disabled. Block WAN SNMP access: This feature prevents the SNMP connection requests from the WAN. After Complete the changes, click the Save Settings button to save your changes. Click the Cancel Changes button to cancel unsaved changes.
  • Page 60 F3X26Q 4G Industrial Router User Manual enable, the following page will appear. Log Level: Set this to the required log level. Set Log Level higher to log more actions. Options: When select Enable, the corresponding connection will be recorded in the journal, the disabled are not recorded.

  • Page 61: Access Restrictions

    F3X26Q 4G Industrial Router User Manual 3.3.6 Access Restrictions 3.3.6.1 WAN Access Use access restrictions, you can block or allow specific types of Internet applications. You can set specific PC-based Internet access policies. This feature allows you to customize up to ten different Internet Access Policies for particular PCs, which are identified by their IP or MAC addresses.
  • Page 62 F3X26Q 4G Industrial Router User Manual Days: Choose the day of the week you would like your policy to be applied. Times: Enter the time of the day you would like your policy to be applied. Website Blocking by URL Address: You can block access to certain websites by entering their URL.
  • Page 63 F3X26Q 4G Industrial Router User Manual set up Internet access policy Select the policy number (1-10) in the drop-down menu. For this policy is enabled, click the radio button next to "Enable" Enter a name in the Policy Name field.

  • Page 64: Url Filter

    F3X26Q 4G Industrial Router User Manual unsaved changes. Click the Close button to return to the Filters screen. If you want to block the listed PCs from Internet access during the designated days and time, then keep the default setting, Deny. If you want the listed PCs to have Internet filtered during the designated days and time, then click the radio button next to Filter.

  • Page 65: Packet Filter

    F3X26Q 4G Industrial Router User Manual only discard the matching URL Discard packets conform to the following rules: address in the list. receive only with Accept only the data packets conform to the following rules: custom rules of network address, discarded all other URL address.

  • Page 66: Nat

    F3X26Q 4G Industrial Router User Manual Direction input: packet from WAN to LAN output: packet from LAN to WAN Protocol: packet protocol type Source Ports: packet's source port Destination Ports: packet's destination port Source IP: packet's source IP address Destination IP: packet's destination IP address 3.3.7 NAT...

  • Page 67: Port Range Forward

    F3X26Q 4G Industrial Router User Manual Application: Enter the name of the application in the field provided. Protocol: Chose the right protocol TCP, UDP or Both. Set this to what the application requires. Source Net: Forward only if sender matches this ip/net (example 192.168.1.0/24).

  • Page 68: Dmz

    F3X26Q 4G Industrial Router User Manual Application: Enter the name of the application in the field provided. Start:Enter the number of the first port of the range you want to seen by users on the Internet and forwarded to your PC.

  • Page 69: Qos Setting

    F3X26Q 4G Industrial Router User Manual assigned to it because its IP address may change when using the DHCP function. DMZ Host IP Address: To expose one PC to the Internet, select Enable and enter the computer's IP address in the DMZ Host IP Address field. To disable the DMZ, keep the default setting：Disable...

  • Page 70: Applications

    F3X26Q 4G Industrial Router User Manual Netmask Priority You may specify priority for all traffic from a given IP address or IP Range. Check all values and click Save Settings to save your settings. Click the Cancel changes button to cancel your unsaved changes.
  • Page 71 Pure UDP – Data transmit with standard UDP protocol. TCP(DTU) -- Data transmit with TCP protocol, work as a Four-Faith P MODEM device which has application protocol and hear beat mechanism.

  • Page 72: Administration

    F3X26Q 4G Industrial Router User Manual Server Port: The data service center’s listening port. Device ID: The Router’s identity ID. Device Number: The Router’s phone number. Heartbeat Interval: The time interval to send heart beat packet. This item is valid only when you choose UDP(DTU) or TCP(DTU) protocol type.
  • Page 73 F3X26Q 4G Industrial Router User Manual Protocol： This feature allows you to manage the Router using either HTTP protocol or the HTTPS protocol Auto-Refresh ： Adjusts the Web GUI automatic refresh interval. 0 disables this feature completely Enable Info Site： Enable or disable the login system information page Info Site Password Protection：...
  • Page 74 F3X26Q 4G Industrial Router User Manual Shell. Note that SSH daemon needs to be enable in Services page. Note： If the Remote Router Access feature is enabled, anyone who knows the Router's Internet IP address and password will be able to alter the Router's settings.

  • Page 75: Keep Alive

    F3X26Q 4G Industrial Router User Manual Remote Management Login Server: In the case of more than one servers,the remote management login server is a general server.Connect the Router to this login server, the login server will assign an available server IP and port for the Router to connect for remote management.

  • Page 76: Factory Defaults

    F3X26Q 4G Industrial Router User Manual Run Command：You can run command lines via the web interface. Fill the text area with your command and click Run Commands to submit. Startup： You can save some command lines to be executed at startup's Router. Fill the text area with commands (only one command by row) and click Save Startup.

  • Page 77: Firmware Upgrade

    F3X26Q 4G Industrial Router User Manual Any settings you have saved will be lost when the default settings are restored. After restoring the Router is accessible under the default IP address 192.168.1.1 and the default password admin. 3.3.10.5 Firmware Upgrade Firmware Upgrade：New firmware versions are posted at www..com and can be...

  • Page 78: Status

    F3X26Q 4G Industrial Router User Manual Backup Settings：You may backup your current configuration in case you need to reset the Router back to its factory default settings. Click the Backup button to backup your current configuration. Restore Settings ： Click the Browse... button to browse for a configuration file that is currently saved on your PC.
  • Page 79 F3X26Q 4G Industrial Router User Manual Router Name: name of the Router Router Model: model of the Router, unavailable to modify Firmware Version: software version information MAC Address: MAC address of WAN, setting - Clone MAC Address to modify Host Name: host name of the Router, setting - basic setting to modify...
  • Page 80 F3X26Q 4G Industrial Router User Manual reserve and the kernel of binary code bytes) Free: free memory, the Router will reboot if the memory is less than 500kB Used: used memory, total available memory minus free memory Buffers: used memory for buffers,...

  • Page 81: Wan

    F3X26Q 4G Industrial Router User Manual Timeouts: connection timeouts, unit is second Source Address: source IP address Remote Address: remote IP address Service Name: connecting service port Status: displayed status 3.3.11.2 Connection Type: disabled, static IP , automatic configuration-DHCP , PPPOE, PPTP , L2TP , 3G/UMTS Connection Uptime: connecting uptime;...
  • Page 82 F3X26Q 4G Industrial Router User Manual Login Status: connection status of WAN Disconnection: disconnect Connection: connect Module Type: module type in 3G/UMTS way Signal Status: signal intensity of the module in 3G/UMTS way Network: network type of the module in 3G/UMTS way Page 82 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.

  • Page 83: Lan

    F3X26Q 4G Industrial Router User Manual Total Flow: flow from power-off last time until now statistics, download and upload direction Monthly Flow: the flow of a month, unit is MB Last Month: the flow of last month Next Month: the flow of next month...
  • Page 84 F3X26Q 4G Industrial Router User Manual Host Name: host name of LAN client IP Address: IP address of the client MAC Address: MAC address of the client Conn. Count: connection count caused by the client Ratio: the ratio of 4096 connection...
  • Page 85 F3X26Q 4G Industrial Router User Manual Interface: the interface assigned by dial-up system User Name: user name of PPPOE client Local IP: IP address assigned by PPPOE client Delete: click to delete PPPOE client Interface: the interface assigned by dial-up system...

  • Page 86: Wireless

    F3X26Q 4G Industrial Router User Manual Interface: the interface assigned by dial-up system User Name: user name of the client Local IP: tunnel IP address of PPTP client Remote IP: IP address of PPTP client Delete: click to delete PPTP client 3.3.11.4...

  • Page 87: Bandwidth

    F3X26Q 4G Industrial Router User Manual Rate: reflection rate of wireless network Encryption-Interface wl0: enable or diasbal Encryption-Interface wl0 PPTP Status: show wireless pptp status 3.3.11.5 Bandwidth Bandwidth Monitoring-LAN Graph abscissa axis: time vertical axis: speed rate Page 87 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.

  • Page 88: System-Info

    F3X26Q 4G Industrial Router User Manual Bandwidth Monitoring-WAN Graph abscissa axis: time vertical axis: speed rate System-Info 3.3.11.6 Router Name: the name of the Router Router Model: the model of the Router LAN MAC: MAC address of LAN port Page 88 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China.
  • Page 89 F3X26Q 4G Industrial Router User Manual WAN MAC: MAC address of WAN port Wireless MAC: MAC address of the wireless WAN IP: IP address of WAN port LAN IP: IP address of LAN port Radio: display whether radio is on or not...
  • Page 90 F3X26Q 4G Industrial Router User Manual DHCP Server: enabled or disabled ff-radauth: enabled or disabled USB Support: enabled or disabled Total Available: the room for total available of RAM (that is physical memory minus some reserve and the kernel of binary code bytes)

  • Page 91: Appendix

    F3X26Q 4G Industrial Router User Manual Appendix The following steps describe how to setup Windows XP Hyper T erminal. Press “Start” ”Programs” ”Accessories” ”Communications” ”Hyper T erminal” Input connection name, choose “OK” Choose the correct COM port which connects to modem, choose “OK”...
  • Page 92 F3X26Q 4G Industrial Router User Manual Parity: None Stop bits: 1 Flow control: None Complete Hyper T erminal operation, It runs as following Note If the user is using the win7 system, you can download a win7 super terminal on the internet.
