F7X33 Series
User Manual
F7X33 Series User Manual
The user manual is suitable for the following model:
Documentation No.
Product Name：
model
F7133
GPS+GPRS ROUTER
F7233
GPS+CDMA ROUTER
F7333
GPS+EDGE ROUTER
F7433
GPS+WCDMA ROUTER
F7533
GPS+TD-SCDMA ROUTER
F7633
GPS+EVDO ROUTER
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J3,3rd Floor,No.44,GuanRi Road,SoftWare
Park,XiaMen,China
Tel：+86 592-6300326 ，6300325，6300324
Fax:+86 592-5912735
http://www.fourfaith.com
Product Version
Product Type
Zip Code:361008
Page
Total:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Four-Faith F7X33 Series
Summary of Contents for Four-Faith F7X33 Series
- Page 1 The user manual is suitable for the following model: model Product Type F7133 GPS+GPRS ROUTER F7233 GPS+CDMA ROUTER F7333 GPS+EDGE ROUTER F7433 GPS+WCDMA ROUTER F7533 GPS+TD-SCDMA ROUTER F7633 GPS+EVDO ROUTER Xiamen Four-Faith Communication Technology Co., Ltd. Add：J1-J3,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China Zip Code:361008 Tel：+86 592-6300326 ，6300325，6300324 Fax:+86 592-5912735 http://www.fourfaith.com...
- Page 2 User Manual Files Revised Record Date Version Remark Author Xiamen Four-Faith Communication Technology Co.,Ltd. Page 2 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
- Page 3 Four-Faith Communication Technology Co., Ltd. Without written permission, all commercial use of the files from Four-Faith are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual (all files shall be not revised, and the copyright and other proprietorship notice shall be reserved) are welcome.
- Page 4 User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 4 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
-
Page 5: Table Of Contents
3.3.18 IPSEC Client ......................36 3.3.19 Dynamic DNS ...................... 36 3.3.20 Serial Settings ...................... 38 3.3.21 GPS Settings ......................39 Chapter 4 Appendix ........................41 Xiamen Four-Faith Communication Technology Co.,Ltd. Page 5 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：... -
Page 6: Chapter 1 Brief Introduction Of Product

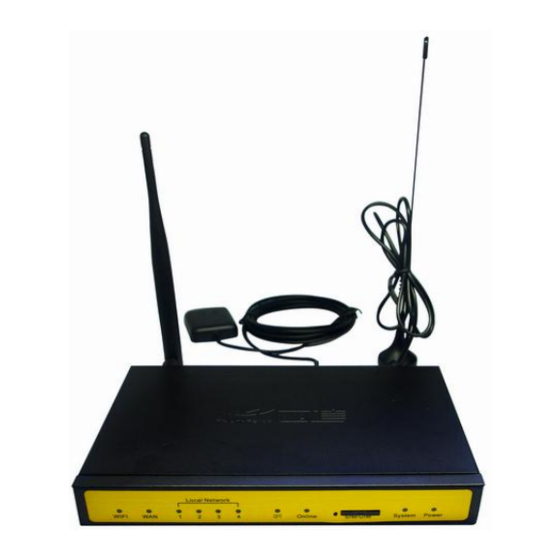

Chapter 1 Brief Introduction of Product 1.1 General F7X33 series ROUTER is a kind of cellular terminal device that provides data transfer function by public cellular network and GPS function. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It... -
Page 7: Working Principle
Embedded processing DATA Interface system GPS Module User interface 10/100M 4 ports RS232 Power WIFI Indicator switch lights Xiamen Four-Faith Communication Technology Co.,Ltd. Page 7 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735... -
Page 8: Specifications
<-104 CDMA2000 1X EVDO Rev A Download speed:3.1Mbps 800MHz,800/1900MHz(optional) Upload speed:1.8Mbps 450MHz (optional) CDMA2000 1X RTT, IS-95 A/B Xiamen Four-Faith Communication Technology Co.,Ltd. Page 8 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735... - Page 9 Item Content 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection 4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV Xiamen Four-Faith Communication Technology Co.,Ltd. Page 9 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324...
- Page 10 Iron, providing IP30 protection Dimensions 206x135x28 mm Weight 795g Environmental Limits Item Content Operating -25~+65º C（-13~+149℉） Temperature Extended -30~+75º C（-22~+167℉） Xiamen Four-Faith Communication Technology Co.,Ltd. Page 10 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
- Page 11 User Manual Operating Temperature Storage -40~+85º C（-40~+185℉） Temperature Operating 95% ( Non-condensing) Humidity Xiamen Four-Faith Communication Technology Co.,Ltd. Page 11 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
-
Page 12: Chapter 2 Installation Introduction
Network cable Console cable optional Power adapter Manual CD Certification card Maintenance card 2.3 Installation and Cable Connection Xiamen Four-Faith Communication Technology Co.,Ltd. Page 12 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735... - Page 13 Insert one end of the network cable into the switch interface with sign “Local Network”, and insert the other end into the Ethernet interface of user’s device. The signal connection of network direct cable is as follows: RJ45-1 RJ45-2 Xiamen Four-Faith Communication Technology Co.,Ltd. Page 13 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：...
-
Page 14: Power
The router provides following indicator lights: “Power”, “System”, “Online”, “GPS”, “Local Network”, “WAN”, “WLAN”. Indicator State Introduction Light Power Router is powered on Xiamen Four-Faith Communication Technology Co.,Ltd. Page 14 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735... -
Page 15: Reset Button Introduction
The router has a “Reset” button to restore it to its original factory default settings. When user press the “Reset” button for up to 15s, the router will restore to its original factory default settings and restart automatically. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 15 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China... -
Page 16: Chapter 3 Configuration And Management
Ethernet port is 192.168.1.1). It will prompt a login page. The default username and password are both “admin”. Please input the username and password login to access the configuration pages. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 16 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China... -
Page 17: Configuration
This page is used to configure the Internet access parameters. WAN Wireless Note: Model Username and password Call center F7133 Cmnet null *99***1# Uninet Xiamen Four-Faith Communication Technology Co.,Ltd. Page 17 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735... - Page 18 You can also use your own DNS address. If you want to use your own DNS, please make sure the DNS address you configured is usable and stable. Keep Online Detection Xiamen Four-Faith Communication Technology Co.,Ltd. Page 18 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...
-
Page 19: Wifi Settings
3.3.3 WIFI Settings WIFI enable Wifi Enable: Enable or disable WIFI function. Wireless Network Xiamen Four-Faith Communication Technology Co.,Ltd. Page 19 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324... - Page 20 WI-FI Protected Access Pre-Shared Key WPA/WPA2-PSK WI-FI Protected Access Pre-Shared Key Configure WEP Wireless Security When you choose WEP security options, the WEP configure page is as following: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 20 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：...
- Page 21 Encryption Method: It can be “TKIP”,”AES” or “AUTO” method. Passphrase: A word or group of 8-63 printable characters WPA2-PSK, WPA/WPA2-PSK configurations are the same as WPA-PSK. Note: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 21 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
-
Page 22: Lan Settings
The router causes your entire local network to appear as a single machine to the Internet, You can make a local server visible and available to the Internet, This is done using the NAT (Network Address Translation). The NAT configuration page is as following: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 22 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China... - Page 23 NAT module, the destination port will be 5001~ 5003 correspondingly and the packet will be sent to host 192.168.0.249. Delete a NAT item Xiamen Four-Faith Communication Technology Co.,Ltd. Page 23 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...
-
Page 24: Dmz
Discard The Following--Discard all packets matched the custom filter rules, Accept all other packets Only Accept The Following--Accept all packets matched the custom filter rules, Discard all other packets Xiamen Four-Faith Communication Technology Co.,Ltd. Page 24 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com... - Page 25 Example: If want to block local network PC 192.168.0.249 telnet(TCP port 23) to any other Internet Address ,the filter item could be configured as following: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 25 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
- Page 26 Only Accept The Following -- Accept all packets matched the custom MAC Restrict rules, Discard all other packets MAC Address: The MAC Address applied to this MAC Restrict item. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 26 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...
-
Page 27: Static Routes
Metric: A number between 1 and 15, It represents the number of routers between your network and the destination. Usually, a setting of 2 or 3 works If you want to delete one custom static route, choose this item and press “Delete” button. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 27 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China... -
Page 28: Router Status
Domain Name Server: The Domain Name Server (DNS) IP Address. IP Address: the LAN port IP Address DHCP: the DHCP server status IP Subnet Mask: The LAN port subnet mask Xiamen Four-Faith Communication Technology Co.,Ltd. Page 28 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com... -
Page 29: Backup Settings
To save your configuration, click the “Backup” button, y our browser will extract the configuration file from the router and will prompt you for a location on your computer to Xiamen Four-Faith Communication Technology Co.,Ltd. Page 29 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China... -
Page 30: Load Default
“No” to give up. 3.3.12 Router Upgrade The software of the router is stored in FLASH memory, and can be upgraded as new software is released by Four-Faith. Upgrade files can be downloaded from the Four-Faith Web site( www.four-faith.com ). If the upgrade file is compressed (.ZIP file or .RAR), you must first extract the binary ( .IMG) file before sending it to the router. -
Page 31: Set Password
This function is used to debug the software, when there is some problem with the router, you can get the log information and send it to us to diagnose the problem. Normally this function should be disabled. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 31 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China... - Page 32 Log Way: there are three log ways The log message is displayed on this web page. You can save the log message to a file by click “Save Log” button. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 32 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...
- Page 33 When you configure the serial port settings , press “call” button ,The router log message will be displayed. You can capture the log message into a file: From the menu, choose “Transfer” ”capture text” Xiamen Four-Faith Communication Technology Co.,Ltd. Page 33 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
-
Page 34: Misc
IP Address and run a syslog server program on it. . 3.3.15 Misc Normally, the four-faith web config tool listens on port 80. If you want to change listening port, please configure “web config port” item. To reboot the router , press the “Reboot” button. -
Page 35: L2Tp Client
L2TP Server dynamically. You can also use the fixed local tunnel IP if the L2TP Server support User Name: Username to login the L2TP Server. Password: Password to login the L2TP Server. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 35 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com... -
Page 36: Ipsec Client
DNS service, which will allow you to register your domain to their IP address, and will forward traffic directed at your domain to your frequently-changing IP address. The four-faith router currently support 88ip(www.88ip.net) and 3322(www.3322.org) Dynamic DNS provider. Xiamen Four-Faith Communication Technology Co.,Ltd. - Page 37 Service Provider: the DDNS service provider Host Name: The 3322 provider’s server hostname Customer Domain: Your custom 3322 domain name. User Name: Your 3322 account username Xiamen Four-Faith Communication Technology Co.,Ltd. Page 37 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
-
Page 38: Serial Settings
3.3.20 Serial Settings There is a console port on Four-Faith router. Normally, this port is used to debug the router. This port can also be used as a serial port. The router has embedded a serial to TCP program. The data sent to the serial port is encapsulated by TCP/IP protocol stack and then is sent to the destination server. -
Page 39: Gps Settings
Enable Serial TCP Function: Enable the serial to TCP function Protocol Type: The protocol type to transmit data. UDP(DTU) – Data transmit with UDP protocol , work as a Four-Faith DTU which has application protocol and hear beat mechanism. Pure UDP – Data transmit with standard UDP protocol. - Page 40 User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 40 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
-
Page 41: Chapter 4 Appendix
3. Choose the correct COM port which connects to modem, choose “OK” 4. Configure the serial port parameters as following, choose “OK” Bits per second: 115200 Xiamen Four-Faith Communication Technology Co.,Ltd. Page 41 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com... - Page 42 Data bits: 8 Parity: None Stop bits: 1 Flow control: None 5. Complete Hyper Terminal operation, It runs as following Xiamen Four-Faith Communication Technology Co.,Ltd. Page 42 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324...
