F3X36Q Industrial
Router User Manual
F3X36Q Industrial Router User
This user manual is suitable for the following model:
Model
F3X36Q
F3X36Q-SIM2
Document Version
V1.0.1
Product Name: F3X36Q
Manual
Type
LTE WIFI Industrial Router
LTE WIFI Industrial Router
Xiamen Four-Faith Communication Technology Co.,Ltd
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen
Tel：+86 592-5907276
Web: www.fourfaith.com
Security Classification
Total: 13 pages
Fax: +86 592-5912735
Advertisement
Table of Contents
Related Manuals for Four-Faith F3X36Q
Summary of Contents for Four-Faith F3X36Q
- Page 1 F3X36Q Industrial Document Version Security Classification Router User Manual V1.0.1 Product Name: F3X36Q Total: 13 pages F3X36Q Industrial Router User Manual This user manual is suitable for the following model: Model Type F3X36Q LTE WIFI Industrial Router F3X36Q-SIM2 LTE WIFI Industrial Router Xiamen Four-Faith Communication Technology Co.,Ltd...
- Page 2 F3X36Q Industrial Router User Manual Files Revised Record Date Version Remark Author 2021-4-6 V1.0.0 Initial Version Jonas 2021-4-19 V1.0.1 Simplify the User Manual Content Jonas Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China. Website: www.fourfaith.com Tel: +86-592-5907276...
-
Page 3: Copyright Notice
Trademark Notice Four-Faith, 四信, are all registered trademarks of Xiamen Four-Faith Communication Technology Co., Ltd., illegal use of the name of Four-Faith, trademarks and other marks of Four-Faith is forbidden, unless written permission is authorized in advance. Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China. -

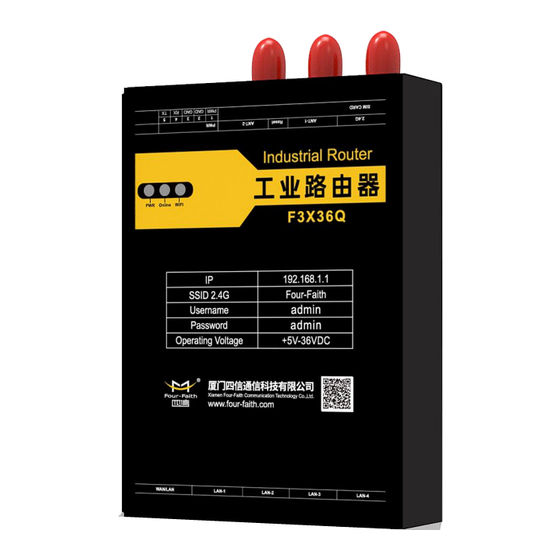

Page 4: Product Picture
F3X36Q Industrial Router User Manual Product Picture Note: There may be differences between models of accessories and interfaces, actual products shall prevail. Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China. Website: www.fourfaith.com Tel: +86-592-5907276 Fax: +86-592-5912735... -
Page 5: Table Of Contents
F3X36Q Industrial Router User Manual Contents Chapter 1 Brief Introduction of Product ................... 1 1.1 General ..........................1 1.2 Working Principle Diagram ....................2 1.3 Specification ........................2 Chapter 2 Installation Introduction ....................4 2.1 Overview ..........................4 2.2 Encasement List ........................4 2.3 Installation and Cable Connection .................. -
Page 6: Chapter 1 Brief Introduction Of Product
F3X36Q Industrial Router User Manual Chapter 1 Brief Introduction of Product 1.1 General F3X36Q Industrial Router is an IoT wireless communication router. It is using public cellular network GPRS/CDMA/WCDMA/EVDO/LTE to provide long distance, wireless and large data transmission function for users. -
Page 7: Working Principle Diagram
F3X36Q Industrial Router User Manual Working Principle Diagram 1.3 Specification Product Interface Note: There may be differences between models of accessories and interfaces, actual products shall prevail. Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China. Website: www.four-faith.com... - Page 8 F3X36Q Industrial Router User Manual Power Item Content Input Voltage DC 12V/1.5A Accepted Voltage Range DC 5~36V Power Consumption Work Mode Consumption Standby 95~135mA@12VDC Communicating 165~220mA@12VDC Physical Properties Item Content Casing Metal casing, IP30 protection level, suitable for most industrial control applications.
-
Page 9: Chapter 2 Installation Introduction
F3X36Q Industrial Router User Manual Chapter 2 Installation Introduction 2.1 Overview Router must be installed correctly before they achieve the designed features, the device must be installed by the guidance of a qualified engineer who recognized by the Company. ➢... - Page 10 F3X36Q Industrial Router User Manual DIN Rail Installing Position Router Dimension Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China. Website: www.four-faith.com Tel: +86-592-5907276 Fax: +86-592-5912735...
- Page 11 F3X36Q Industrial Router User Manual Plate Fixed Dimension Note: This router device uses DIN Rail to install, use M3 screw to secure the clip, the depth is 3-4mm. Antenna Installation: Wireless WAN antenna interface is a standard SMA female antenna interface (marked as ‘ANT’), put the cellular antenna on the interface, make sure it has been tightening to avoid...
- Page 12 F3X36Q Industrial Router User Manual Ethernet Cable Connection: Connect one side of the ethernet cable to the LAN port on the router, the other side to the user device’s ethernet port. The cable’s definition is as following: RJ45-1 RJ45-2 Color...
- Page 13 F3X36Q Industrial Router User Manual 3.5mm Terminal Block Interface Definition： The 5-pin terminal block includes POWER and RS232(RS485) function. The definition is as following: Definition Description Extension Device power supply positive Device power supply negative RS232 GND RS232 receiving RS485 A...
-
Page 14: About Power
F3X36Q Industrial Router User Manual 2.4 About Power The F3X36Q router is usually used in complex external environments. To fit the environment and improve the system stability, the router uses advanced power technology. User can use standard 12VDC/1.5A power adapter which come with the device, or use any DC 5-36V power to provide power supply directly for the device. -
Page 15: Led Indicator
F3X36Q Industrial Router User Manual 2.5 LED Indicator Router has the following LED indicators: ‘PWR’, ‘Online’, ‘LAN’, ‘WAN/LAN’, ‘WIFI. Indicator Status Description Power supply is fine No power Online Device is online Device is offline No connection on LAN On/Flashing... -
Page 16: Chapter 3 Configuration And Management
F3X36Q Industrial Router User Manual Chapter 3 Configuration and Management 3.1 Configuration Connection The router should be connected to the PC with the supplied ethernet cable or WIFI connection before doing the configuration for the router. When using the wired connection method, insert the ethernet cable into any LAN port of the router, insert the other side of the cable into the ethernet port on your PC. -
Page 17: Login To Configuration Page
F3X36Q Industrial Router User Manual Set the PC IP address as 192.168.1.9 (or other IP address in the same 192.168.1 segment), subnet mask is 255.255.255.0, default gateway is 192.168.1.1. DNS can be set to any DNS server available in that area. - Page 18 F3X36Q Industrial Router User Manual You will see a page which similar as the following page after clicking the button. User may need to type in username and password in order to access any items of the menu. Type in the correct username and password, then click Submit. the default username is admin, password is admin.
