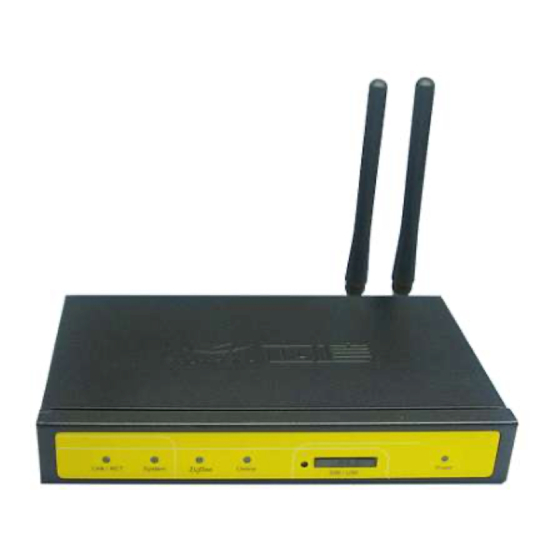

F8X23 Series
User Manual
F8X23 Series User Manual
The user manual is suitable for the following model:
Documentation No.
Product Name：
Model
F8123
ZigBee+GPRS ROUTER
F8223
ZigBee+CDMA ROUTER
F8323
ZigBee+EDGE ROUTER
F8423
ZigBee+WCDMA ROUTER
F8523
ZigBee+TD-SCDMA ROUTER
F8623
ZigBee+EVDO ROUTER
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J3,3rd Floor,No.44,GuanRi Road,SoftWare
Park,XiaMen,China
Tel：+86 592-6300326 ，6300325，6300324
Fax:+86 592-5912735
http://www.fourfaith.com
Product Version
Product Type
Zip Code:361008
Page
Total:
Advertisement
Table of Contents
Related Manuals for Four-Faith F8 23 Series
Summary of Contents for Four-Faith F8 23 Series
- Page 1 The user manual is suitable for the following model: Model Product Type F8123 ZigBee+GPRS ROUTER F8223 ZigBee+CDMA ROUTER F8323 ZigBee+EDGE ROUTER F8423 ZigBee+WCDMA ROUTER F8523 ZigBee+TD-SCDMA ROUTER F8623 ZigBee+EVDO ROUTER Xiamen Four-Faith Communication Technology Co., Ltd. Add：J1-J3,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China Zip Code:361008 Tel：+86 592-6300326 ，6300325，6300324 Fax:+86 592-5912735 http://www.fourfaith.com...
- Page 2 Date Version Remark Author 2012-2-1 1.00 For first Public Frank. Hjm 2012-5-22 1.10 Correct ZigBee Specification Frank. Hjm Xiamen Four-Faith Communication Technology Co.,Ltd. Page 2 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
- Page 3 Four-Faith Communication Technology Co., Ltd. Without written permission, all commercial use of the files from Four-Faith are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual (all files shall be not revised, and the copyright and other proprietorship notice shall be reserved) are welcome.
- Page 4 User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 4 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
-
Page 5: Table Of Contents
3.3.18 Serial Settings ...................... 35 3.3.19 ZigBee Settings ....................36 Chapter 4 Appendix ........................40 Appendix A Accord Format ..................... 42 Xiamen Four-Faith Communication Technology Co.,Ltd. Page 5 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324... -
Page 6: Chapter 1 Brief Introduction Of Product
Support hardware and software WDT Support auto recovery mechanism, including online detect, auto redial when offline to make router always online Ethernet port: 1.5KV magnetic isolation protection Xiamen Four-Faith Communication Technology Co.,Ltd. Page 6 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com... -
Page 7: Working Principle
RS232/ZigBee 10/100M Ethernet Power Indicator lights Interface Interface 1.4 Specifications Cellular Specification Standard and Band Bandwidth TX power Xiamen Four-Faith Communication Technology Co.,Ltd. Page 7 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735... - Page 8 CDMA2000 1X EVDO Rev A Download speed:3.1Mbps, <23dBm <-104 800MHz,800/1900MHz(optional) upload speed:1.8Mbps 450MHz (optional) CDMA2000 1X RTT, IS-95 A/B Xiamen Four-Faith Communication Technology Co.,Ltd. Page 8 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
- Page 9 ZigBee: Standard SMA female interface, 50 ohm, lighting protection(optional) SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection Power Standard 3-PIN power jack, reverse-voltage and overvoltage protection Xiamen Four-Faith Communication Technology Co.,Ltd. Page 9 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：...
- Page 10 Operating -25~+65º C（-13~+149℉） Temperature Extended -30~+75º C（-22~+167℉） Operating Temperature Storage -40~+85º C（-40~+185℉） Temperature Operating 95% ( Non-condensing) Humidity Xiamen Four-Faith Communication Technology Co.,Ltd. Page 10 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735...
-
Page 11: Chapter 2 Installation Introduction
Certification card Maintenance card Stator optional ZigBee Antenna ZigBee 2.3 Installation and Cable Connection : (unit: mm) Dimension Xiamen Four-Faith Communication Technology Co.,Ltd. Page 11 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735... - Page 12 Insert one end of network direct cable into RJ45 outlet with sign “ETH” of the router, and insert the other end into the Ethernet interface of user’s device. The signal connection of network direct cable is as follows: RJ45-1 RJ45-2 Xiamen Four-Faith Communication Technology Co.,Ltd. Page 12 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：...
-
Page 13: Power
We recommend user to use the standard DC 12V/1.5A power. 2.5 Indicator Lights Introduction The router provides five indicator lights: “Power”, “Online”, “Alarm”, “System”, “Link/ACT”. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 13 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：... -
Page 14: Reset Button Introduction
The router has a “Reset” button to restore it to its original factory default settings. When user press the “Reset” button for up to 15s, the router will restore to its original factory default settings and restart automatically. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 14 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China... -
Page 15: Chapter 3 Configuration And Management
Ethernet port is 192.168.1.2). It will prompt a login page. The default username and password are both “admin”. Please input the username and password login to access the configuration pages. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 15 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China... -
Page 16: Configuration
The “Welcome” page will give some contact information, if you have any question or problem, please contact us. 3.3.2 WAN Settings This page is used to configure the Internet access parameters. WAN Wireless Xiamen Four-Faith Communication Technology Co.,Ltd. Page 16 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：... - Page 17 You can also use your own DNS address. If you want to use your own DNS, please make sure the DNS address you configured is usable and stable. Keep Online Detection Xiamen Four-Faith Communication Technology Co.,Ltd. Page 17 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...
-
Page 18: Lan Settings
Note: When you choose the “Route” or “Ping” method, it’s quite important to make sure that the “Primary Detection Server IP” and “Backup Detection Server IP” are usable and stable, because they have to response the detection packet frequently. 3.3.3 LAN Settings Xiamen Four-Faith Communication Technology Co.,Ltd. Page 18 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com... -
Page 19: Nat
Service Type: The protocol type of the target packet Outside Starting Port: The target packet’s destination port Inside Start Port: The destination port of packet which has been processed by the NAT module. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 19 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China... -
Page 20: Dmz
Instead of discarding traffic for services you have not defined, you can have it forwarded to one computer on your network. This computer is called the Default DMZ Server. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 20 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China... -
Page 21: Filter
Only Accept The Following--Accept all packets matched the custom filter rules, Discard all other packets Add Filter Item Direction input: packet from WAN to LAN Xiamen Four-Faith Communication Technology Co.,Ltd. Page 21 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：... - Page 22 Address ,the filter item could be configured as following: The following is the configured filter item: MAC Restrict This filter function is based on the Ethernet MAC address. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 22 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
-
Page 23: Static Routes
VPN tunnel or multiple IP subnets located on your local network. Press “Add” button to start add a custom static route: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 23 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com... -
Page 24: Router Status
This page displays the router’s status information. Account Name: The username to login the router. Firmware Version: Software version information Module Type: The wireless module used to get the Internet access Xiamen Four-Faith Communication Technology Co.,Ltd. Page 24 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com... - Page 25 Interface: The interface name of the PPTP tunnel when the tunnel is up. Local Tunnel IP: The local tunnel IP Address when the tunnel is up. Remote Tunnel IP: the PPTP server’s tunnel IP Address when the tunnel is up. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 25 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...
-
Page 26: Backup Settings
“Browse” button to browse to the file. When you have located it, click the “Restore” button to send the file to the router to restore configuration. 3.3.10 Load Default Xiamen Four-Faith Communication Technology Co.,Ltd. Page 26 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China... -
Page 27: Set Password
The default username and password are both “admin”. To change the username and password, type the new username, old password and new password. 3.3.12 Logs Xiamen Four-Faith Communication Technology Co.,Ltd. Page 27 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel：... - Page 28 Log Way: there are three log ways Web: The log message is displayed on this web page. You can save the log message to a file by click “Save Log” button. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 28 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
- Page 29 None Stopbit: Flow control: None When you configure the serial port settings , press “call” button ,The router log message will be displayed. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 29 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324...
- Page 30 The log message is output to a syslog server, if choose this way, you should input a syslog server’s IP Address and run a syslog server program on it. . Xiamen Four-Faith Communication Technology Co.,Ltd. Page 30 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...
-
Page 31: Misc
User Manual 3.3.13 Misc Normally, the four-faith web config tool listens on port 80. If you want to change listening port, please configure “web config port” item. To reboot the router , press the “Reboot” button. 3.3.14 PPTP Client Enable PPTP Client: Enable or disable PPTP Client function PPTP Server IP: The PPTP server’s IP Address... - Page 32 L2TP Server dynamically. You can also use the fixed local tunnel IP if the L2TP Server support User Name: Username to login the L2TP Server. Password: Password to login the L2TP Server. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 32 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
-
Page 33: Ipsec Client
DNS service, which will allow you to register your domain to their IP address, and will forward traffic directed at your domain to your frequently-changing IP address. The four-faith router currently support 88ip(www.88ip.net) and 3322(www.3322.org) Dynamic DNS provider. 88ip: Xiamen Four-Faith Communication Technology Co.,Ltd. - Page 34 Customer Domain: Your custom 3322 domain name. User Name: Your 3322 account username Password: Your 3322 account password Update Interval: The time interval of IP Address update. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 34 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
-
Page 35: Serial Settings
3.3.18 Serial Settings There is a console port on Four-Faith router. Normally, this port is used to debug the router. This port can also be used as a serial port. The router has embedded a serial to TCP program. The data sent to the serial port is encapsulated by TCP/IP protocol stack and then is sent to the destination server. -
Page 36: Zigbee Settings
Pure UDP – Data transmit with standard UDP protocol. TCP(DTU) -- Data transmit with TCP protocol client , work as a Four-Faith DTU which has application protocol and hear beat mechanism. Pure TCP -- Data transmit with standard TCP protocol Client. - Page 37 0-16383 , for the specified network number ; Set to 65535 for the system to assign a random network MAC Address: This parameter is read-only and can not be set. Can be obtained through the settings page of the Read parameter button Xiamen Four-Faith Communication Technology Co.,Ltd. Page 37 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
- Page 38 3) TCP (DTU): ZigBee to TCP client connections, add the functionality of a custom application layer protocol, similar to the DTU. 4) The Pure the TCP: standard ZigBee transfer TCP client connection. Registration package can be customized. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 38 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com...
- Page 39 TCP Server Port: select the protocol type for TCP Server, the parameters must be configured to configure the input value must be greater than 1024 and the system is not occupied by the port number (Such as port 8080 Web application port) Xiamen Four-Faith Communication Technology Co.,Ltd. Page 39 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...
-
Page 40: Chapter 4 Appendix
3. Choose the correct COM port which connects to modem, choose “OK” 4. Configure the serial port parameters as following, choose “OK” Bits per second: 115200 Xiamen Four-Faith Communication Technology Co.,Ltd. Page 40 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com... - Page 41 Data bits: 8 Parity: None Stop bits: 1 Flow control: None 5. Complete Hyper Terminal operation, It runs as following Xiamen Four-Faith Communication Technology Co.,Ltd. Page 41 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324...
-
Page 42: Appendix A Accord Format
0x23 0x23 0x23 0x04 0x00 0x01 0x00 0x0F 0x31 0x32 0x33 0x34 0x35 0x36 0x2E 3、The Node2Data format: 0x23 0x23 0x23 0x04 0x00 0x01 0x00 0x0F 0x31 0x32 0x33 0x34 0x35 0x36 0x2E Xiamen Four-Faith Communication Technology Co.,Ltd. Page 42 of 42 Add： J1-J3,3 Floor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China...
