ED 41 - 016B
Packaged Air Conditioners
Duct Connection Type
(Low Static Pressure Application)
FDYB-KA Series
— Heat Pump —

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDYB-KA Series and is the answer not in the manual?

Questions and answers

Abu Omer
February 24, 2025

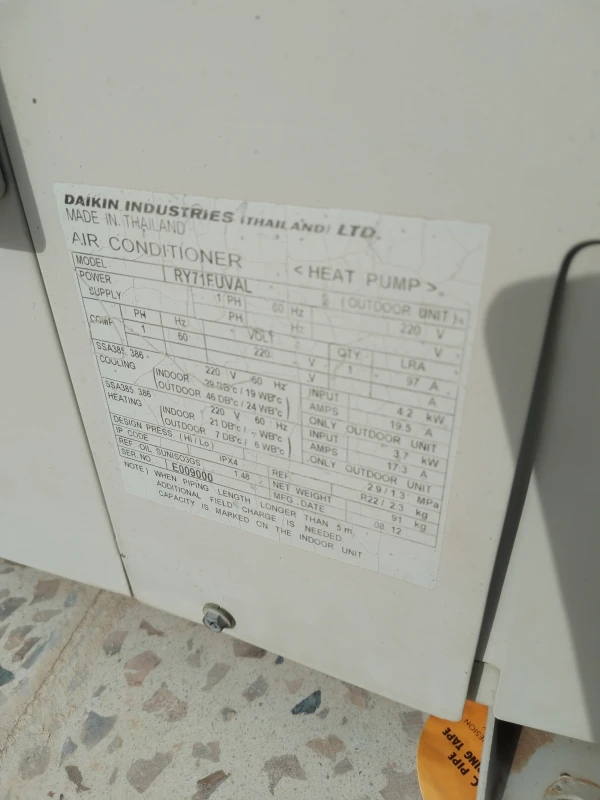

Sir, I have an AC from a Daikin Made in Thailand company. I have a picture of the outdoor AC. Can you tell me how many tons of AC is this?

User image 67bc81451f252
2 comments:
Mr. Anderson
February 24, 2025

The tonnage of an air conditioner can be calculated using its cooling capacity in BTU/h. One ton is equal to 12,000 BTU/h.

From the provided data:
- FDYB50KAVE has a cooling capacity of 76,800 BTU/h.
- FDYB71KAVE has a cooling capacity of 92,500 BTU/h.
- FDYB60KAVE has a cooling capacity of 68,300 BTU/h.

Calculating the tonnage:
- FDYB50KAVE: 76,800 ÷ 12,000 ≈ 6.4 tons
- FDYB71KAVE: 92,500 ÷ 12,000 ≈ 7.7 tons
- FDYB60KAVE: 68,300 ÷ 12,000 ≈ 5.7 tons

The tonnage of FDYB-KA Series air conditioners made in Thailand ranges from approximately 5.7 to 7.7 tons, depending on the specific model.

This answer is automatically generated

Abu Omer
February 24, 2025

The description you have sent is not the description of my model. How can I be sure that this is my model? You have to give a number from the sticker that my customer can be satisfied that yes, this is a four-ton AC or a three-ton or a five-ton AC.

Summary of Contents for Daikin FDYB-KA Series

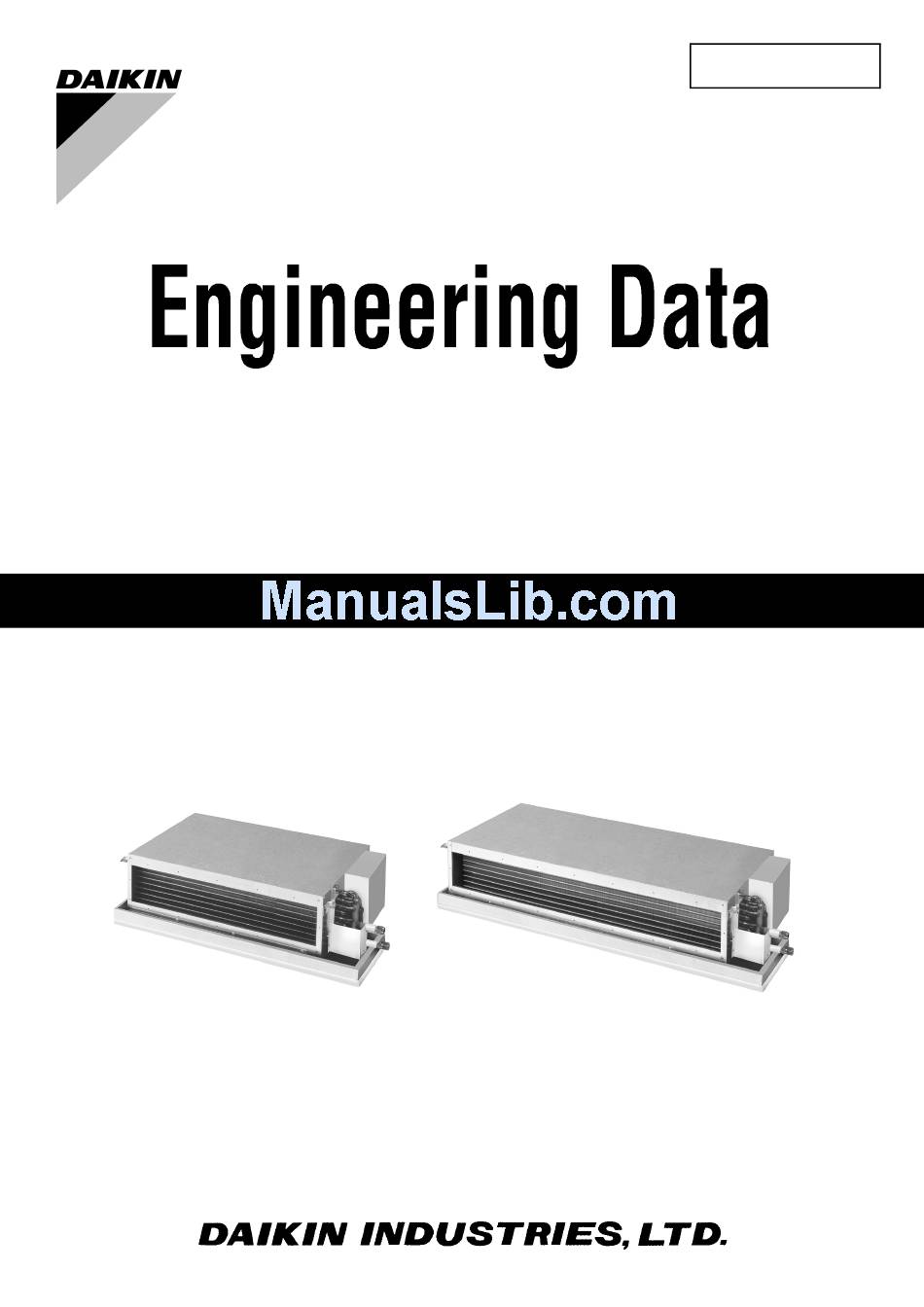

  • Page 1 ED 41 - 016B Packaged Air Conditioners Duct Connection Type (Low Static Pressure Application) FDYB-KA Series — Heat Pump —...
  • Page 2: Table Of Contents

    10.1 Overall Sound Level ................45 10.2 Octave Band Level .................45 11.Fan Performance ..................48 11.1 Fan Performance..................48 12.Electric Characteristics................51 12.1 Heat Pump .....................51 13.Optional Accessories ................52 13.1 Optional Accessories................52 14.Field Wiring ...................54 14.1 Field Wiring ....................54 15.Installation .....................55 15.1 FDYB-KA Series..................55 FDYB-KA Series...
  • Page 3: Power Supply

    ¡ — ¡ — ¡ — ¡ ¡ ¡ — Power Supply Symbol : 1φ 220~240V 50Hz : 1φ 220V 60Hz : 3φ 380~415V 50Hz : 3φ 220V 60Hz : 3φ 380V 60Hz Complied with Australian Standard (P1002) FDYB-KA Series...
  • Page 4: External Appearance

    ED41-016B External Appearance 2. External Appearance External Appearance 2.1.1 Indoor Units FDYB35KAVE FDYB60KAVE FDYB50KAVE FDYB71KAVE 2.1.2 Remote Controller Wired Wireless Signal Receiving Unit BRC1C61 BRC4C62 (Separate Type) 2.1.3 Outdoor Units RY35F RY50G(A) RY60G(A) RY71KU,FU RY200KU RY250KU FDYB-KA Series...
  • Page 5: Function

    1. Air conditioners should not be installed in areas where corrosive gases, such as acid gas or alkaline gas, are produced. 2. If the outdoor unit is to be installed close to the sea shore, direct exposure to the sea breeze should be avoided and choose an outdoor unit with anti-corrosion treatment. FDYB-KA Series...
  • Page 6: Specification

    2. Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat. 3. ∗2 Air Fiow Rate is shown at 220V (380V)–240V (415V). 4. In case of drain piping for outdoor unit, drain piping kit (option) is needed. FDYB-KA Series...
  • Page 7 3. ∗2 Air Fiow Rate is shown at 220V (380V)–240V (415V). 4. ∗3 Each value for indoor unit shows the specification per one unit. 5. In case of drain piping for outdoor unit, drain piping kit (option) is needed. FDYB-KA Series...
  • Page 8: 60Hz

    Outdoor : 7°C(45°F)DB, 6°C(43°F)WB 60Hz–380V 2. Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat. 3. In case of drain piping for outdoor unit, drain piping kit (option) is needed. FDYB-KA Series...
  • Page 9 2. Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat. 3. In case of drain piping for outdoor unit, drain piping kit (option) is needed. 4. ∗2 Each value for indoor unit shows the specification per one unit. FDYB-KA Series...
  • Page 10: Dimensions

    ED41-016B Dimensions 5. Dimensions Indoor Units FDYB35KA FDYB-KA Series...
  • Page 11 Dimensions ED41-016B FDYB50KA FDYB-KA Series...
  • Page 12 ED41-016B Dimensions FDYB60KA FDYB-KA Series...
  • Page 13 Dimensions ED41-016B FDYB71KA FDYB-KA Series...
  • Page 14: Outdoor Units

    ED41-016B Dimensions Outdoor Units RY35F RY50GA Unit (mm) 3D004853B FDYB-KA Series...
  • Page 15 Dimensions ED41-016B RY60GA Unit (mm) 3D004852A RY71KU Unit (mm) C : 3D014835 FDYB-KA Series...
  • Page 16 ED41-016B Dimensions RY71FU Unit (mm) C : 3D001674A RY200KU Unit (mm) C : 3D029265 FDYB-KA Series...
  • Page 17 Dimensions ED41-016B RY250KU Unit (mm) C : 3D029264 FDYB-KA Series...
  • Page 18: Installation Service Space

    ED41-016B Dimensions Installation Service Space (For RY71) 3D001951A-1 FDYB-KA Series...
  • Page 19 Dimensions ED41-016B 3D001951A-2 FDYB-KA Series...
  • Page 20 ED41-016B Dimensions (For RY200 · 250) FDYB-KA Series...
  • Page 21: Piping Diagrams

    Indoor heat exchanger Field piping f 6.4 C1220T–0 Filter Field piping f 12.7 C1220T–0 Indoor unit C : 3D002723 RY50GAV1A Indoor heat exchanger Field piping f 6.4 C1220T–0 Filter Field piping f 15.9 C1220T–0 Indoor unit C : 3D028561 FDYB-KA Series...
  • Page 22 ED41-016B Piping Diagrams RY60GAV1A Indoor heat exchanger Field piping f 6.4 C1220T–0 Filter Field piping f 15.9 C1220T–0 Indoor unit C : 3D028562 RY71KUV1(Y1) 3D014830B FDYB-KA Series...
  • Page 23 Piping Diagrams ED41-016B RY200KUY1(Double Twin) C : 3D029824 RY200KUY1(Triple) C : 3D029825 FDYB-KA Series...
  • Page 24 ED41-016B Piping Diagrams RY250KUY1(Double Twin) C : 3D029828 FDYB-KA Series...
  • Page 25: 60Hz

    Indoor heat exchanger Field piping f 6.4 C1220T–0 Filter Field piping f 15.9 C1220T–0 Indoor unit C : 3D008108A RY60GVAL Indoor heat exchanger Field piping f 6.4 C1220T–0 Filter Field piping f 15.9 C1220T–0 Indoor unit C : 3D008109A FDYB-KA Series...
  • Page 26 ED41-016B Piping Diagrams RY71FUVAL 3D005825 RY200KUTAL(YAL) Double Twin 3D030159 FDYB-KA Series...
  • Page 27 Piping Diagrams ED41-016B RY200KUTAL(YAL) Triple 3D030160 RY250KUTAL(YAL) Double Twin 3D030164 FDYB-KA Series...
  • Page 28: Wiring Diagrams

    ED41-016B Wiring Diagrams 7. Wiring Diagrams Indoor Units FDYB35KAVE FDYB50KAVE FDYB60KAVE FDYB71KAVE FDYB-KA Series...
  • Page 29: Outdoor Units

    Wiring Diagrams ED41-016B Outdoor Units 7.2.1 50Hz RY35FV1A RY50GAV1A FDYB-KA Series...
  • Page 30 ED41-016B Wiring Diagrams RY60GAV1A RY71KUV1 3D014495B FDYB-KA Series...
  • Page 31 Wiring Diagrams ED41-016B RY71KUY1 3D014603C FDYB-KA Series...
  • Page 32 ED41-016B Wiring Diagrams 7.2.2 60Hz RY50GVAL RY60GVAL FDYB-KA Series...
  • Page 33 Wiring Diagrams ED41-016B RY71FUVAL 3D005370B RY200KUTAL 3D028902A FDYB-KA Series...
  • Page 34 ED41-016B Wiring Diagrams RY250KUTAL 3D028903A FDYB-KA Series...
  • Page 35 Wiring Diagrams ED41-016B 7.2.3 50Hz / 60Hz RY200KUY1(YAL) 3D028900A RY250KUY1(YAL) 3D028901A FDYB-KA Series...
  • Page 36: Capacity Table

    ED41-016B Capacity Table 8. Capacity Table 50Hz FDYB35KAVE + RY35FV1A 3D024735A FDYB50KAVE + RY50GAV1A 3D024736A FDYB-KA Series...
  • Page 37 Capacity Table ED41-016B FDYB60KAVE + RY60GAV1A 3D024737A FDYB71KAVE + RY71KUY1 FDYB71KAVE + RY71KUV1 3D024738A FDYB-KA Series...
  • Page 38 ED41-016B Capacity Table FDYB50KAVE×4 + RY200KUY1 FDYB71KAVE×3 + RY200KUY1 3D029856A FDYB60KAVE×4 + RY250KUY1 3D029853A FDYB-KA Series...
  • Page 39: 60Hz

    Capacity Table ED41-016B 60Hz FDYB50KAVE + RY50GVAL 3D024739A FDYB60KAVE + RY60GVAL 3D024740A FDYB-KA Series...
  • Page 40 ED41-016B Capacity Table FDYB71KAVE + RY71FUVAL 3D024741A FDYB50KAVE×4 + RY200KUTAL FDYB71KAVE×3 + RY200KUTAL FDYB50KAVE×4 + RY200KUYAL FDYB71KAVE×3 + RY200KUYAL 3D029857A FDYB-KA Series...
  • Page 41 Capacity Table ED41-016B FDYB60KAVE×4 + RY250KUTAL FDYB60KAVE×4 + RY250KUYAL 3D029855A FDYB-KA Series...
  • Page 42: Change In Capacity (Reference)

    3. You cannot extend the refrigerant piping exceeding the limit shown in the above table. However, if the unit has a limited length of refrigerant piping less than 50m, refer to the correction factor within the range of its limitation. 8.3.2 RY71FU, 200KU, 250KU 3D006500B FDYB-KA Series...
  • Page 43: Operation Limit

    Operation Limit ED41-016B 9. Operation Limit 50Hz (35~71) RY35FV1A / RY50GAV1A / RY60GAV1A RY71KUV1 / RY71KUY1 DU427-963A FDYB-KA Series...
  • Page 44: 60Hz (50~71)

    ED41-016B Operation Limit 60Hz (50~71) RY50GVAL / RY60GVAL 3D006202A RY71FUVAL 3D006675 FDYB-KA Series...
  • Page 45: 50Hz / 60Hz (200, 250)

    Operation Limit ED41-016B 50Hz / 60Hz (200, 250) RY200KUY1, TAL, YAL RY250KUY1, TAL, YAL 3D029783 FDYB-KA Series...
  • Page 46: Sound Level

    10.2 Octave Band Level 10.2.1 Indoor Units (50Hz) FDYB35KAVE/FDYB50KAVE FDYB60KAVE/FDYB71KAVE 240V 220V Octave band center frequency(Hz) Octave band center frequency(Hz) 4D024213 4D024214 10.2.2 Indoor Units (60Hz) FDYB50KAVE FDYB60KAVE/FDYB71KAVE Octave band center frequency(Hz) Octave band center frequency(Hz) 4D024215 4D024216 FDYB-KA Series...
  • Page 47 RY200KUY1 (Cooling) Octave band center frequency(Hz) Octave band center frequency(Hz) Octave band center frequency(Hz) 4D014428 4D014429 4D027632 RY200KUY1 (Heating) RY250KUY1 (Cooling) RY250KUY1 (Heating) Octave band center frequency(Hz) Octave band center frequency(Hz) Octave band center frequency(Hz) 4D027631 4D027634 4D027633 FDYB-KA Series...
  • Page 48 Octave band center frequency(Hz) 3D008113 4D007383 4D007382 RY200KUTAL(YAL) (Cooling) RY200KUTAL(YAL) (Heating) RY250KUTAL(YAL) (Cooling) Octave band center frequency(Hz) Octave band center frequency(Hz) Octave band center frequency(Hz) 4D030106 4D030105 4D030108 RY250KUTAL(YAL) (Heating) Octave band center frequency(Hz) 4D030107 240V, 415V 220V, 380V FDYB-KA Series...
  • Page 49: Fan Performance

    Fan Performance ED41-016B 11. Fan Performance 11.1 Fan Performance FDYB35KAVE FDYB-KA Series...
  • Page 50 ED41-016B Fan Performance FDYB50KAVE FDYB-KA Series...
  • Page 51 Fan Performance ED41-016B FDYB60KAVE FDYB71KAVE FDYB-KA Series...
  • Page 52: Electric Characteristics

    FDYB71KAVE×3 RY200KUYAL 22.2 23.2 13.6 0.6×3 ×3 0.19 Max.60Hz 0.23 418/242V 0.045 FDYB50KAVE×4 RY200KUYAL 60 - 380/220 22.0 23.0 13.6 0.4×4 Min.60Hz ×4 0.19 342/198V 0.23 0.065 FDYB60KAVE×4 RY250KUYAL 27.4 29.8 17.3 0.6×4 ×4 0.19 C : 3D024205 3D029820A FDYB-KA Series...
  • Page 53: Optional Accessories

    KRP4A52 Interface Adaptor for SkyAir Series. DTA102A52 Suction Grille KDGF19A45 KDGF19A71 Switch Box KRP1B100 Drain Pan Cover KKD19A1 4D032189 Note: 1. This optional accessory (marked with ) requires DTA102A52. 13.1.2 Remote Controller Wired Remote Controller BRC1C61 Unit (mm) FDYB-KA Series...
  • Page 54 ED41-016B Optional Accessories Wireless Remote Controller BRC4C62 3D007898 FDYB-KA Series...
  • Page 55: Field Wiring

    9. Never share a common power source with other equipment. VAL MODEL YAL MODEL POWER SUPPLY POWER SUPPLY 1~60Hz 3N~60Hz 220V 380V TAL MODEL V1, MODEL POWER SUPPLY Y1, MODEL 3~60Hz POWER SUPPLY POWER SUPPLY 220V 1~50Hz 3N~50Hz 220V–240V 380V–415V C : 4D006674A C : 4D001694A FDYB-KA Series...
  • Page 56: Installation

    ED41-016B Installation 15. Installation 15.1 FDYB-KA Series 15.1.1 Before Installation Cautions 1. Air conditioners should not be installed in areas where corrosive gases, such as acid gas or alkaline gas, are produced. 2. If the outdoor unit is to be installed close to the sea shore, direct exposure to the sea breeze should be avoided and choose an outdoor unit with anti-corrosion treatment.
  • Page 57: Selecting Installation Site

    For standard installation (air inlet on the both side), choose one of the below two means of (Suspension bolt pitch) installation. Suspension bolt (M10x4) NOTE: For other than standard installation, contact your Daikin dealer for details. Fig. 3 The fan speed for this indoor unit is preset to provide standard external static pressure. <Installation example>...
  • Page 58: Indoor Unit Installation

    Recommended arm length of tool φ6.4 (1/4") 60 to 90 degrees Approx. 150mm φ9.5 (3/8") 60 to 90 degrees Approx. 200mm φ12.7 (1/2") 30 to 60 degrees Approx. 250mm φ15.9 (5/8") 30 to 60 degrees Approx. 300mm C : 3PN00281-18T-5 FDYB-KA Series...
  • Page 59: Drain Piping Work

    • Make sure that water does not leak from the drain piping, connecting parts and the drain plug. Watering can Fig. 13 WHEN ELECTRIC WIRING WORK IS FINISHED • Check drainage flow during COOL running, explained under the section entitled TEST OPERATION. C : 3PN00281-18T-6 FDYB-KA Series...
  • Page 60: Electric Wiring Work

    (Use a round crimp–style terminal for connection to the power supply terminal board. In case it cannot be used due to unavoidable reasons, be sure to observe the following instructions.) • Do not connect wires of different gauge to the same power supply terminal. (Looseness in the connection may cause overheating.) C : 3PN00281-18T-7 FDYB-KA Series...
  • Page 61 Noiseless earth *Wiring between unit Remote controller cord ∗Do not clamp remote controller cords (Shield wire NOTE) 2) together with wires connecting the units. Doing so may cause malfunction. Resine clamp Fig. 14 C : 3PN00281-18T-8 FDYB-KA Series...
  • Page 62: Wiring Example

    (Refer to Fig. 14 of p. 7) 3. For group control remote controller, choose the remote controller that suits the indoor unit which has the most functions (as attached swing flap). C : 3PN00281-18T-9 FDYB-KA Series...
  • Page 63: Field Setting

    (7) Confirm function of unit according to the operation manual. 〈 PRECAUTIONS 〉 1. In case something is wrong with the unit and it does not operate, refer to the malfunction diagnosis label attached to the unit. C : 3PN00281-18T-11 FDYB-KA Series...
  • Page 64: Outdoor Unit Installation

    • To prevent the outdoor unit from falling or inclining from the frame, hang block strap around the hook or use turnbuckle. [mm] Use turnbuckle MODEL (on suction grille side) RY35 RY50 RY60 Anchor bolt hole pitch C : 3PN00281-18T-12 FDYB-KA Series...
  • Page 65 ∗ Only in protected pipes, for outdoor installation use type H07RN · F. V1, VAL, TYPE Power supply • The outdoor unit has the Fuse (5A) for the interconnection cable. Select the interconnection cable size with the Fuse (5A). Indoor unit 1 2 3 Outdoor unit C : 3PN00281-18T-13 FDYB-KA Series...
  • Page 66 Umeda Center Bldg., 4-12, Nakazaki-Nishi 2-chome, Kita-ku, Osaka, 530-8323 Japan Tokyo Office: Shinjuku Sumitomo Bldg., 6-1, Nishi-Shinjuku 2-chome, Shinjuku-ku, Tokyo, 163-0235 Japan Internet: http://www.daikin.com/global/ All rights reserved ED41-016B This book is made of recycled paper. Printed in Japan 03/2002 FS...
