Installation

Disconnecting

This 1 1/8 in. wrench
holds the coupling in a
stationary position.

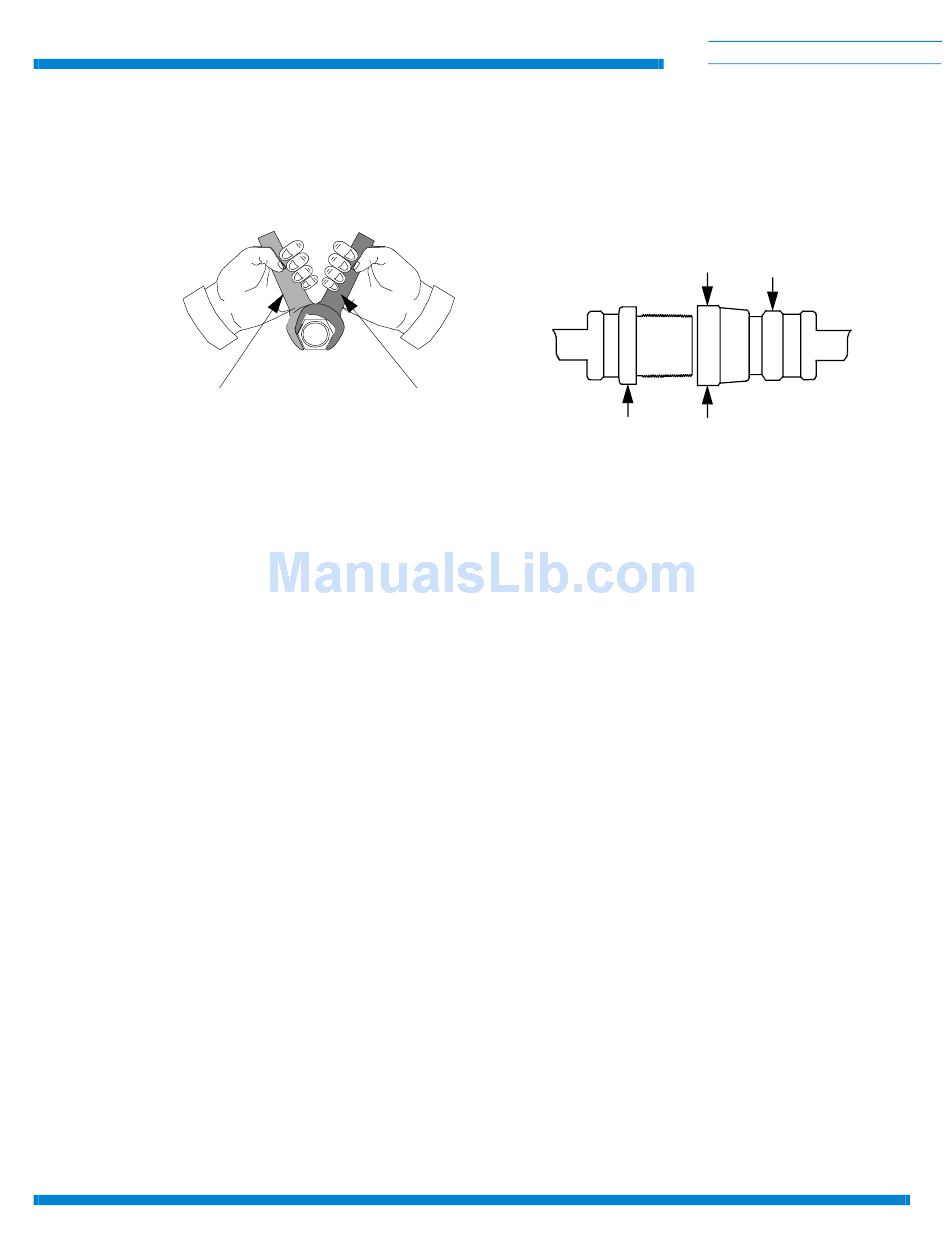

Figure 3-3: Connecting/Disconnecting Helium Flex Line Self Sealing Couplings
3-8
1. Using two wrenches as shown in Figure 3-3, disconnect the two
self sealing coupling connectors quickly to minimize helium
leakage.
This 1 3/16 in. wrench
is used to turn the self
sealing coupling
connector.
-
C TI CRYOGENICS
HELIX TECHNOLOGY CORPORATION
To Tighten Coupling Halves
Turn Here
Hold Here
Hold Here
Turn Here
To Loosen Coupling Halves
Side View
P/N 8040540
