Figure 1-5: 9600 Compressor Connected To Multiple On-Board Cryopumps - HELIX Compressor 9600 Installation & Operating Instructions Manual

9600 Compressor Description
HELIUM SUPPLY
REMOTE
WATER

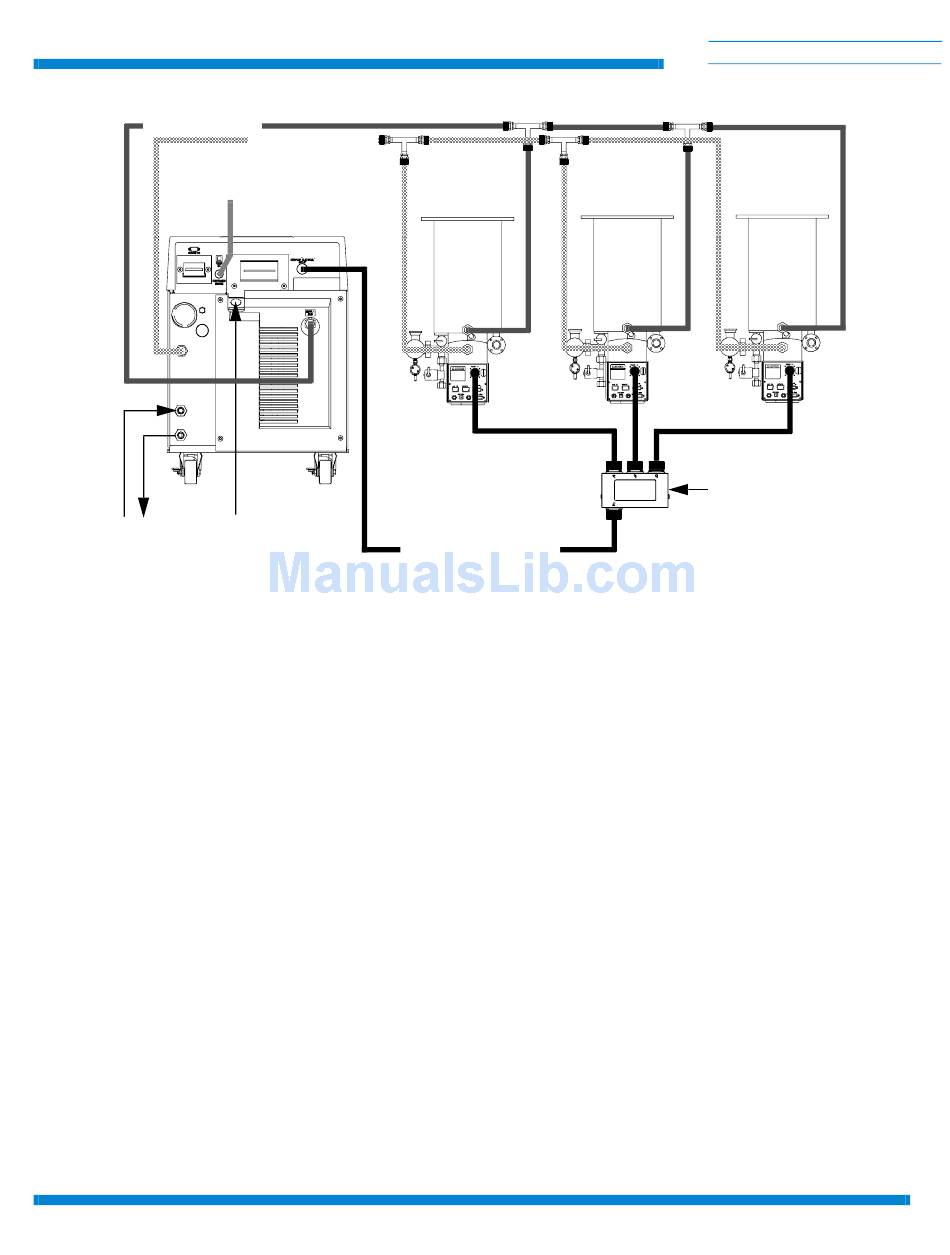

Figure 1-5: 9600 Compressor Connected to Multiple On-Board Cryopumps

1-12
HELIUM RETURN
POWER
NOTE: Your installation (number of pumps per compressor) will vary
based upon the On-Board Cryopumps or Waterpumps used. Refer to
Appendix A to consult your local CTI-CRYOGENICS Customer Support
Center for information on specific compressor/pump applications.
ON-BOARD POWER
CABLE
-
C TI CRYOGENICS
HELIX TECHNOLOGY CORPORATION
ON-BOARD SPLITTER
BOX
P/N 8040540
