MODEL:
All Models
INPUT IMPEDANCES:
1MΩ (Input)
INPUT SENSITIVITY:
(For full power at 100Hz, with Gain/Master at "10", and tone controls at "0")
TONE CONTROLS:
BASS: ±15dB @ 80Hz
HIGH-MID: ±12dB @ 1.2kHz
SHAPE FILTER:
BRIGHT: +13dB @ 10kHz
VINTAGE: Dynamic compression (-9dB max) with low pass (-6dB/oct) @ 400Hz
EFFECTS LOOP IMPEDANCES:
SEND: 1kΩ (balanced)
LINE OUT:
OUTPUT IMPEDANCE: 3.3kΩ (balanced)
HEADPHONE OUTPUT:
280mW into 32Ω/Channel
Rumble 40
MODEL:
POWER REQUIREMENT:
110W Max / 45W Typical
POWER AMP OUTPUT:
40W into 8Ω
SPEAKERS:
One 10 in (25.4 cm), 8Ω, Special Design Ceramic
Rumble 200
MODEL:
POWER REQUIREMENT:
400W Max / 70W Typical
POWER AMP OUTPUT:
140W into 8Ω
200W into 4Ω
SPEAKERS:
One 15 in (38.1 cm), 8Ω, Eminence® Ceramic
Piezo Tweeter
MODEL:
Rumble 500
POWER REQUIREMENT:
950W Max / 150W Typical
POWER AMP OUTPUT:
350W into 8Ω
500W into 4Ω
SPEAKERS:
Two 10 in (25.4 cm), 16Ω, Eminence® Ceramic
Piezo Tweeter
Specifications are subject to change without notice. Visit www.fender.com for additional product information.
10

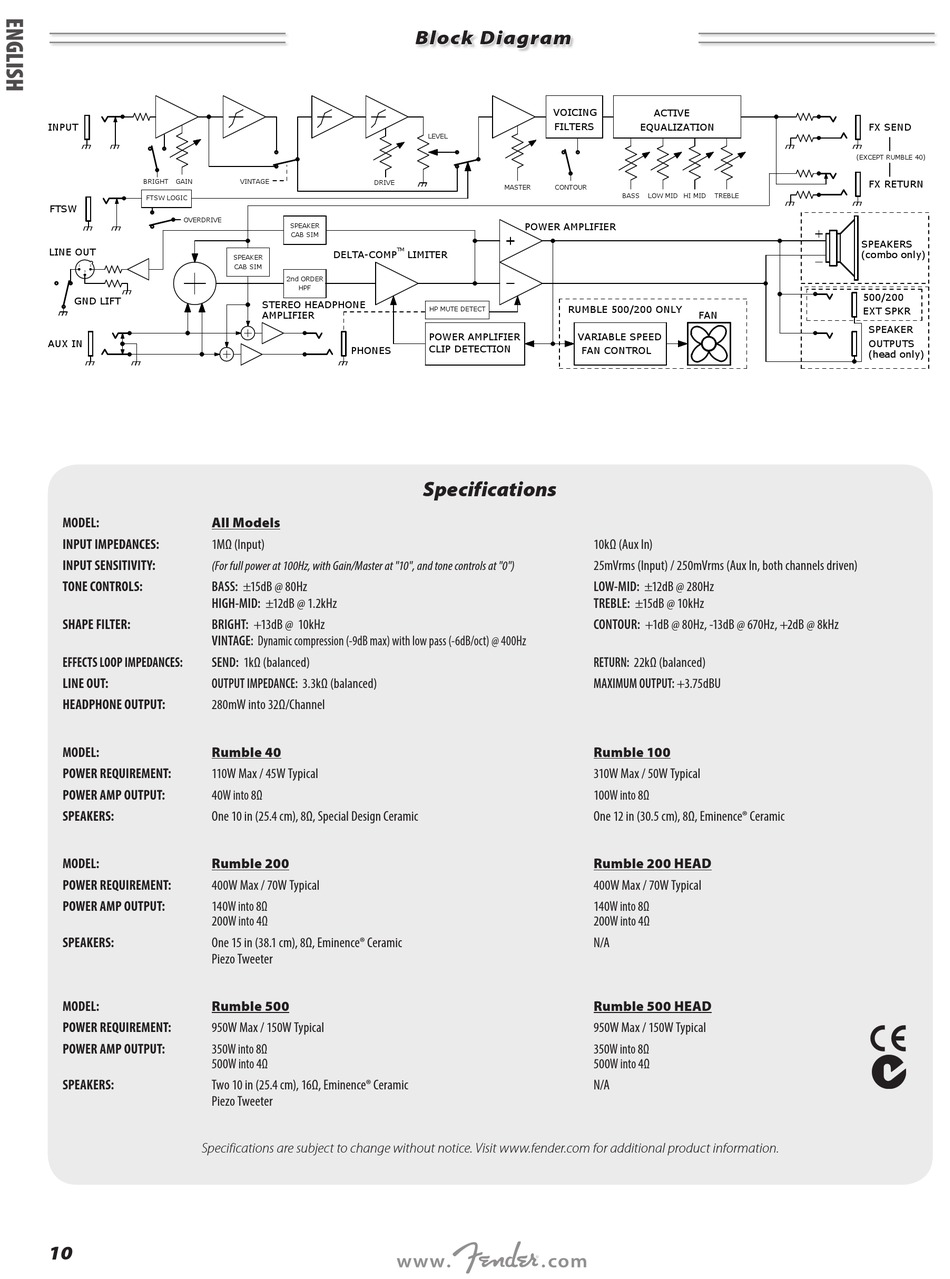

Block Diagram
Specifications
10kΩ (Aux In)
25mVrms (Input) / 250mVrms (Aux In, both channels driven)
LOW-MID: ±12dB @ 280Hz
TREBLE: ±15dB @ 10kHz
CONTOUR: +1dB @ 80Hz, -13dB @ 670Hz, +2dB @ 8kHz
RETURN: 22kΩ (balanced)
MAXIMUM OUTPUT: +3.75dBU
Rumble 100
310W Max / 50W Typical
100W into 8Ω
One 12 in (30.5 cm), 8Ω, Eminence® Ceramic
Rumble 200 HEAD
400W Max / 70W Typical
140W into 8Ω
200W into 4Ω
N/A
Rumble 500 HEAD
950W Max / 150W Typical
350W into 8Ω
500W into 4Ω
N/A
