Summary of Contents for ELTA FANS CETO 250

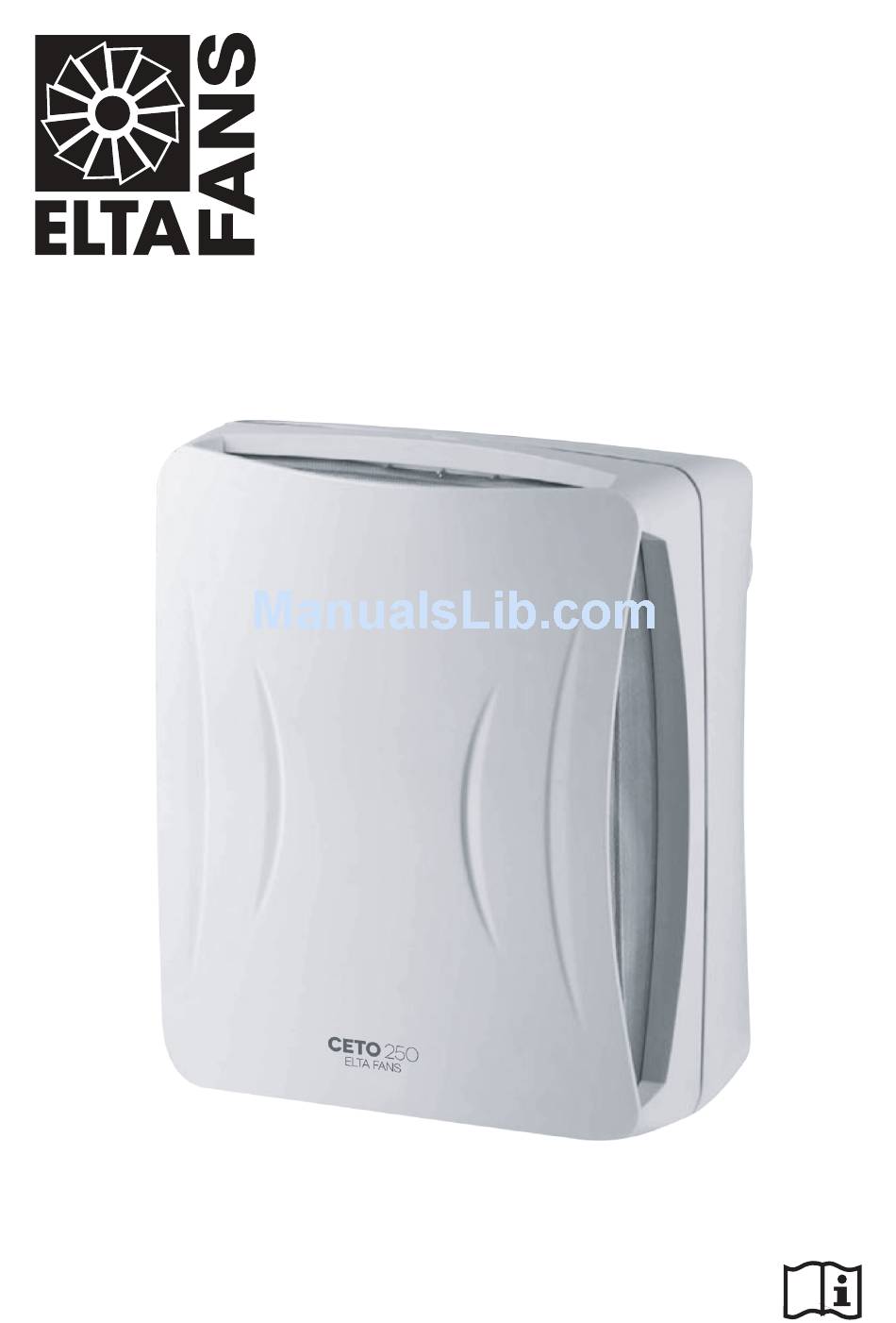

- Page 1 CETO 250 CETO 250 Instruction leaflet Instruction leafl et...
-
Page 2: Safety And Recommendations

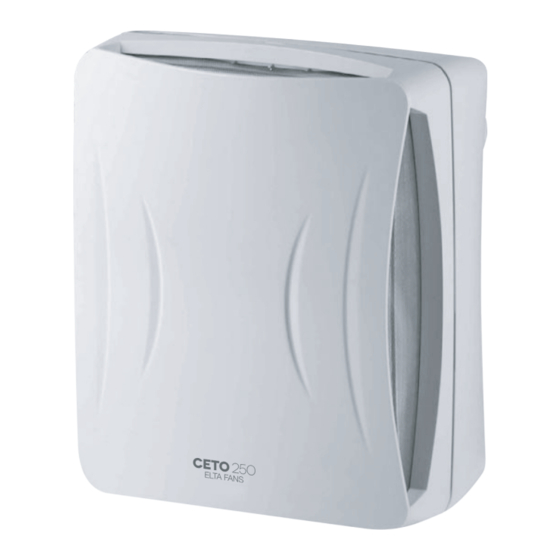

CETO 250 RANGE CENTRIFUGAL EXTRACTOR FANS Suitable for remove bathroom, kitchen and utility room applications Thank you for placing your confidence in Elta Fans by buying this product. It has been manufactured in accordance with current technical safety regulations, production and quality standards as laid down by the international Quality Standard ISO 9001. -
Page 3: Installation
INSTALLATION: Fig.1 Fig.2A Fig.2B Fig.1B... - Page 4 N LA LB Fig.4 Fig.3 CETO 250 M Fig.5A Fig.5B Fig.6A Fig.6B...
- Page 5 CETO 250 T Fig.7A Fig.7A Fig.7B CETO 250 HT Fig.8A Fig.8B T(min.) T(min.) HR(%) L LS L LS Fig.9A Fig.9B...
- Page 6 Suitable for remove bathroom, kitchen and utility room applications DESCRIPTION Suitable for both ceiling and wall installation, the CETO 250 fans can be either surface or recessed-mounted in a vertical or horizontal plane. The CETO 250 is ideally suited for kitchen and Utility ventilation.
- Page 7 By pressing the upper and lower clips, fit the front cover back onto the fan body. Switch the mains power supply on and check that the fan is working correctly. Wall Installation—Surface Mounting Using 100mm Elta Fans Wall Kit. Drill a Ø115mm hole through the wall, ensuring sufficient space for the fan to be installed.
-
Page 8: Electrical Connections And Wiring
CETO 250 T Models with adjustable timer. The timer enables the fan to operate for the time set after the switch has been turned off (Fig. 7A). In timer mode the CETO 250 fans operate at slow speed. IMPORTANT: The fan is timed to start up 50 seconds after being switched on, which means that for the first 50 seconds it does not operate. -
Page 9: Cleaning And Maintenance
1 and 30 minutes. In timer mode the CETO 250 operates at slow speed. IMPORTANT: The humidity sensor on the CETO 250 fans are factory set to 60%. To modify the factory settings, the potentiometers are situated beside the connection cover (Fig. - Page 10 GUARANTEE The CETO 250 range products are covered by a three year guarantee, subject to the specified maintenance stated within this booklet.
- Page 12 Elta Fans 46 Third Avenue, Pensnett Trading Estate, Kingswinford, West Midlands, DY6 7US, United Kingdom Tel: +44 (0) 1384 275803, Fax: +44 (0) 1384 275810, E-mail: residential@eltafans.co.uk Ref. 9023041400...
