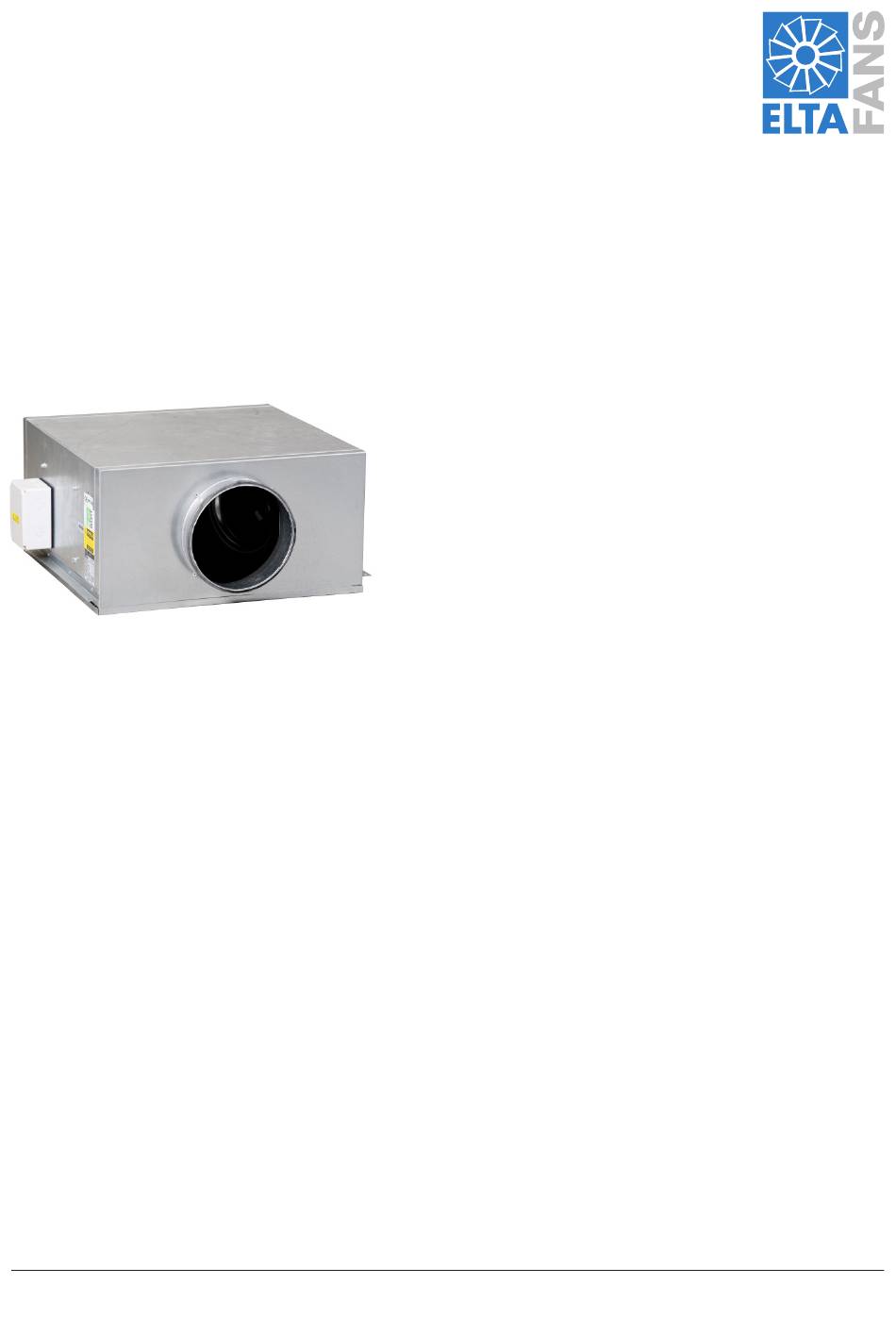

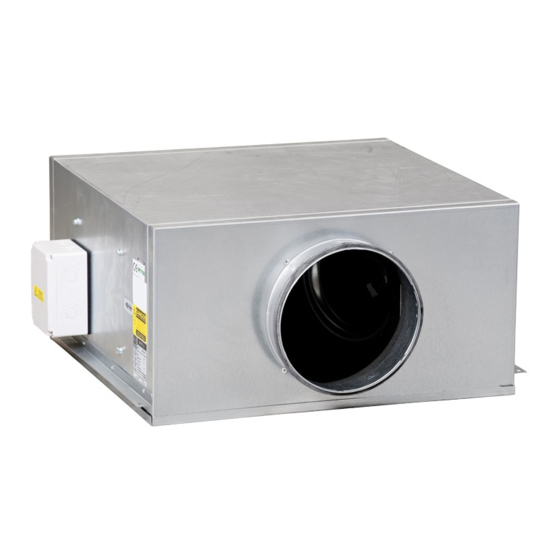

- Page 1 QUIETFLOW TWIN SQT Installation & Maintenance These instructions must be read fully before commencing installation.
-
Page 2: Installation Instructions
General It is important these Installation and Maintenance Instructions are fully adhered to. Full details of the unit supplied are shown on the product nameplate. If in doubt about any detail contact Elta Fans Ltd or its agents for clarification. - Page 3 Only a suitably qualified and competent person may carry out maintenance after the electrical supply has been isolated. Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication.
- Page 4 Guarantee Elta Fans Ltd will, free of charge, within a period of 1 year from the date of dIspatch from their works, repair or at its option replace any goods which are proved to have defects as a result of defective materials or workmanship. The goods MUST be returned to Elta Fans Ltd carriage paid for examination.
-
Page 5: Wiring Diagrams
152-2MOEA03K1 Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication. Confirmation of dimensions and data will be supplied on request. - Page 6 152-000236 Wiring Diagrams EC TWIN FAN C/W AUTO CHANGOVER PANEL (149-ACO14E) TWIN FAN GREEN/YELLOW ACO PANEL VOLT FREE CONTACT N/O CLOSE ON FAIL 230 VAC 5A 220 - 240V 1PH 50Hz SUPPLY EC TWIN FAN C/W AUTO CHANGOVER PANEL (149-ACO14E) AND SPEED CONTROLLER (149-POT-10) TWIN FAN 149-POT-10 GREEN/YELLOW...
- Page 7 Check the individual product accessories table for fan controller compatibility. Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication.
- Page 8 152-02298951 Wiring Diagrams EC TWIN FAN C/W AUTO CHANGOVER PANEL (149-ACO14E) EC TWIN FAN C/W AUTO CHANGOVER PANEL (149-ACO14E) TWIN FAN TWIN FAN GREEN/YELLOW GREEN/YELLOW ACO PANEL ACO PANEL 220 - 240V 1PH 50Hz SUPPLY 220 - 240V 1PH 50Hz SUPPLY EC TWIN FAN C/W AUTO CHANGOVER PANEL (149-ACO14E) EC TWIN FAN C/W AUTO CHANGOVER PANEL (149-ACO14E) TWIN FAN...
- Page 9 Check the individual product accessories table for fan controller compatibility. Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication.
- Page 10 152-2MOEA03K1 Wiring Diagrams EC TWIN FAN C/W AUTO CHANGOVER PANEL (149-AC0/18) TWIN FAN GREEN/YELLOW ACO PANEL 220 - 240V 1PH 50Hz SUPPLY EC TWIN FAN C/W AUTO CHANGOVER PANEL (149-AC0/18) TWIN FAN 149-POT-10 ACO PANEL 220 - 240V 1PH 50Hz SUPPLY ALL WIRING AND CONTROL EQUIPMENT MUST COMPLY TO THE LATEST IEE REGULATIONS, IN PARTICULAR PART 552-01-02/03 Issue:...
- Page 11 Check the individual product accessories table for fan controller compatibility. Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication.
- Page 12 152-2MOEA03K3 Wiring Diagrams FULL SPEED CONFIGURATION - WITH ACO PANEL FAN 2 ONLY APPLICABLE TO SUFFIX MODELS MODELS ENABLE FAIL FAN2 FAN1 ACO PANEL TERMINAL BOX ACO PANEL TYPES: AC03/B AC03/BDV AC03/BV AC03/BO AC03/BD AC03/BDVO AC03/BDO 380 - 440V 3PH 50 Hz SUPPLY FULL SPEED CONFIGURATION - WITH ACO PANEL FAN 1 FAN 2...
- Page 13 Check the individual product accessories table for fan controller compatibility. Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication.
- Page 14 EC Directives stated below. In the event that alterations are made to the machinery without prior consent from Elta Fans Ltd, this declaration becomes invalid. EC Declaration of Conformity...
- Page 15 Notes Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication. Confirmation of dimensions and data will be supplied on request.
- Page 16 QUIETFLOW TWIN SQT Notes Tel 01384 275800 Fax 01384 275810 Email bs@eltafans.co.uk Website eltafans.com...
- Page 17 Building Services Tel +44 (0) 1384 275800 Fax +44 (0) 1384 275810 Email bs@eltafans.co.uk 46 Third Avenue, Pensnett Trading Estate, Kingswinford, West Midlands, DY6 7US United Kingdom Applied Technology & Building Services Export Tel +44 (0) 1489 566500 Fax +44 (0) 1489 566555 Email at@eltafans.co.uk / export@eltafans.co.uk 17 Barnes Wallis Road, Segensworth East Industrial Estate, Fareham, Hampshire, PO15 5ST United Kingdom...
