Installation manual

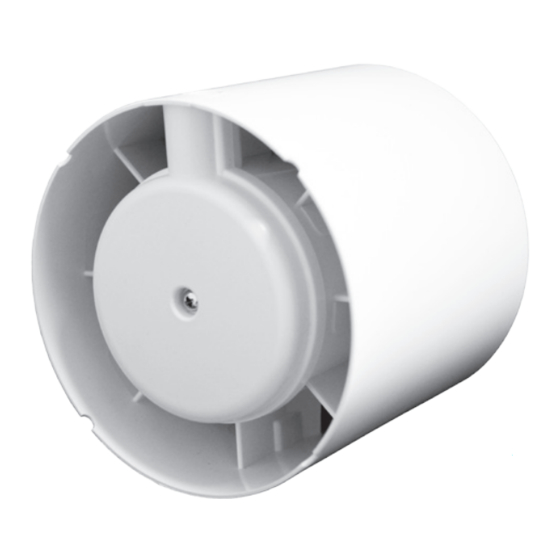

AVIO - Axial fan
Read this manual carefully before using the product and keep
it in a safe place for reference.
This product was constructed up to standard and in compliance
with regulations relating to electrical equipment and must be
installed by technically qualified personnel.
The manufacturer assumes no responsibility for damage to persons
or property resulting from failure to observe the regulations
contained in this booklet.
PRECAUTIONS FOR INSTALLATION, USE AND MAINTENANCE
• T he device should not be used for applications other than those specified in this manual.
• A fter removing the product from its packaging, verify its condition. In case of doubt,
contact a qualified technician. Do not leave packaging within the reach of small children
or people with disabilities.
• D o not touch the appliance with wet or damp hands/feet.
• T his appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision.
• D o not use the product in the presence of flammable vapours, such as alcohol,
insecticides, gasoline, etc...
• I f any abnormalities in operation are detected, disconnect the device from the mains
supply and contact a qualified technician immediately. Use original spare parts only for
repairs.
• T he electrical system to which the device is connected must comply with regulations.
• B efore connecting the product to the power supply or the power outlet, ensure that:
- the data plate (voltage and frequency) correspond to those of the electrical mains
- the electrical power supply/socket is adequate for maximum device power. If not,
contact a qualified technician.
• T he device should not be used as an activator for water heaters, stoves, etc., nor
should it discharge into hot air/fume vent ducts deriving from any type of combustion
unit. It must expel air outside via its own special duct.
• O perating temperature: 0°C up to +50°C.
• T he device is designed to extract clean air only, i.e. without grease, soot, chemical or
corrosive agents, or flammable or explosive mixtures.
• D o not leave the device exposed to atmospheric agents (rain, sun, snow, etc.).
• D o not immerse the device or its parts in water or other liquids.
• T urn off the main switch whenever a malfunction is detected or when cleaning.
• F or installation an omnipolar switch should be incorporated in the fixed wiring, in
accordance with the wiring regulations, to provide a full disconnection under overvoltage
category III conditions (contact opening distance equal to or greater than 3mm).
• I f the supply cord is damaged, it must be replaced by the manufacturer, its service
Fig. 1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ELTA FANS AVIO Series
Summary of Contents for ELTA FANS AVIO Series

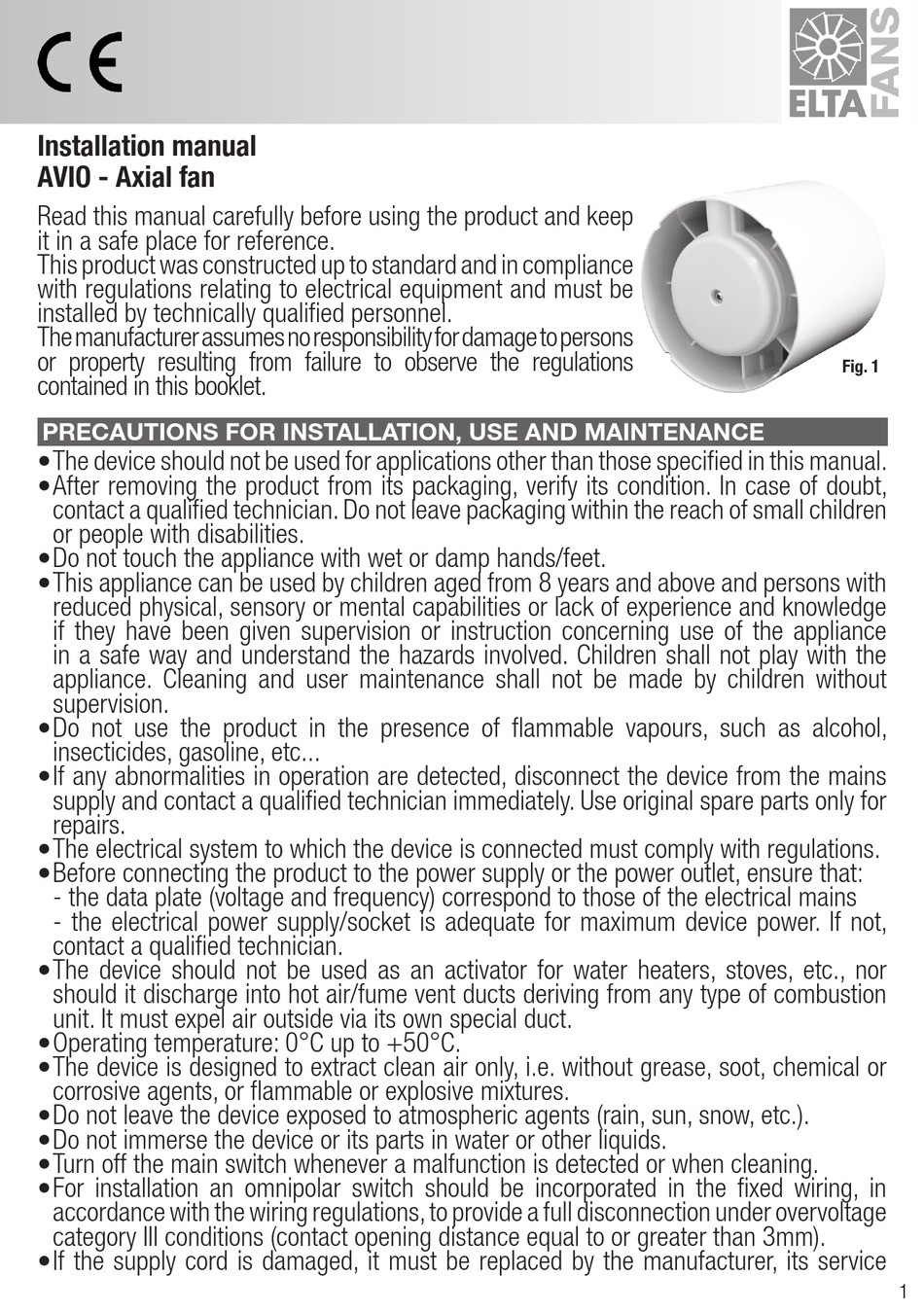

- Page 1 Installation manual AVIO - Axial fan Read this manual carefully before using the product and keep it in a safe place for reference. This product was constructed up to standard and in compliance with regulations relating to electrical equipment and must be installed by technically qualified personnel.
- Page 2 agent or similarly qualified persons in order to avoid a hazard. • D o not obstruct the fan or exhaust grille to ensure optimum air passage. • E nsure adequate air return into the room in compliance with existing regulations in order to ensure proper device operation. • I f the environment in which the product is installed also houses a fuel-operating device (water heater, methane stove etc., that is not a “sealed chamber” type), it is essential to ensure adequate air intake, to ensure good combustion and proper equipment operation. • I nstall the product so that the impeller is not accessible from the air outlet side as verified by contact with the Test Finger (test probe “B” of the norm EN61032) in compliance with the current safety regulations. INTRODUCTION AVIO (Fig. 1) is an axial fan designed to ensure air extraction in small/medium-sized rooms such as bathrooms, toilets and kitchens.
- Page 3 INSTALLATION (Fig. 2) short length ducting (less than 1.5m) vertical ceiling - min. height 2,3m...
- Page 4 MOUNTING AND ELECTRICAL WIRING AVIO100= ø99 mm AVIO125= ø119 mm AVIO150= ø148 mm AVIO100 - AVIO125 - AVIO150...
- Page 5 TIMER AVIO100T - AVIO125T - AVIO150T ACCESSORY ON DEMAND...
- Page 6 MAINTENANCE / CLEANING The unit should be cleaned regularly as explained in this leaflet to maintain performance and warranty cover. Cleaning should be carried out as and when required but please note intervals between cleaning should not exceed 6 months. The installer should explain this cleaning regime to the homeowner/occupier and ask the homeowner/occupier to keep a record of the cleaning done on this leaflet as this will be required to be provided by the homeowner/occupier to claim against any product failure under warranty. Year Required Maintenance Inspect, clean if required Inspect, clean if required Inspect, clean if required DISPOSAL AND RECYCLING Information on disposal of units at the end of life. This product complies with EU Directive 2002/96/EC. The symbol of the crossed-out dustbin indicates that this product must be collected separately from other waste at the end of its life. The user must, therefore, dispose of the product in question at suitable electronic and electro- technical waste disposal collection centres, or else send the product back to the...
- Page 7 ErP Directive - Regulations 1253/2014 1254/2014 a) Mark ELTA FANS AVIO100, AVIO125, AVIO150, b) Model AVIO100T AVIO125T AVIO150T c) SEC class c1) SEC warm climates kWh/m2.a -2,6 -3,8 c2) SEC average climates kWh/m2.a -10,2 -10,7 -11,4 c3) SEC cold climates kWh/m2.a...
- Page 8 Elta Fans Limited Building Services 46 Third Avenue Pensnett Trading Estate Kingswinford West Midlands DY6 7US United Kingdom T: +44 (0) 1384 275800 F: +44 (0) 1384 275810 E: bs@eltafans.co.uk CFI00012 - 06 - 0818...
