G
Installation Manual (installer & user)

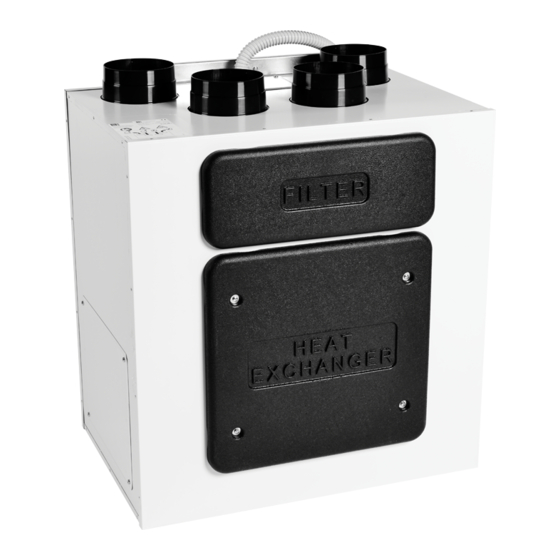

VIGO400A
Heat Recovery Ventilation Unit
Read this manual carefully before using the product and keep it in a safe place for reference as
necessary.
This product was constructed up to standard and in compliance with regulations relating to
electrical equipment and must be installed by technically qualified personnel.
The manufacturer assumes no responsibility for damage to persons or property resulting from
failure to observe the instructions contained in this manual.
1 INDEX
1 Index
1
2
2
2
3
3
3
4
4
4
4
4
5
7
8
8
9
10
11
13
16
17
17
17
18
18
20
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ELTA FANS VIGO400A
Summary of Contents for ELTA FANS VIGO400A
-

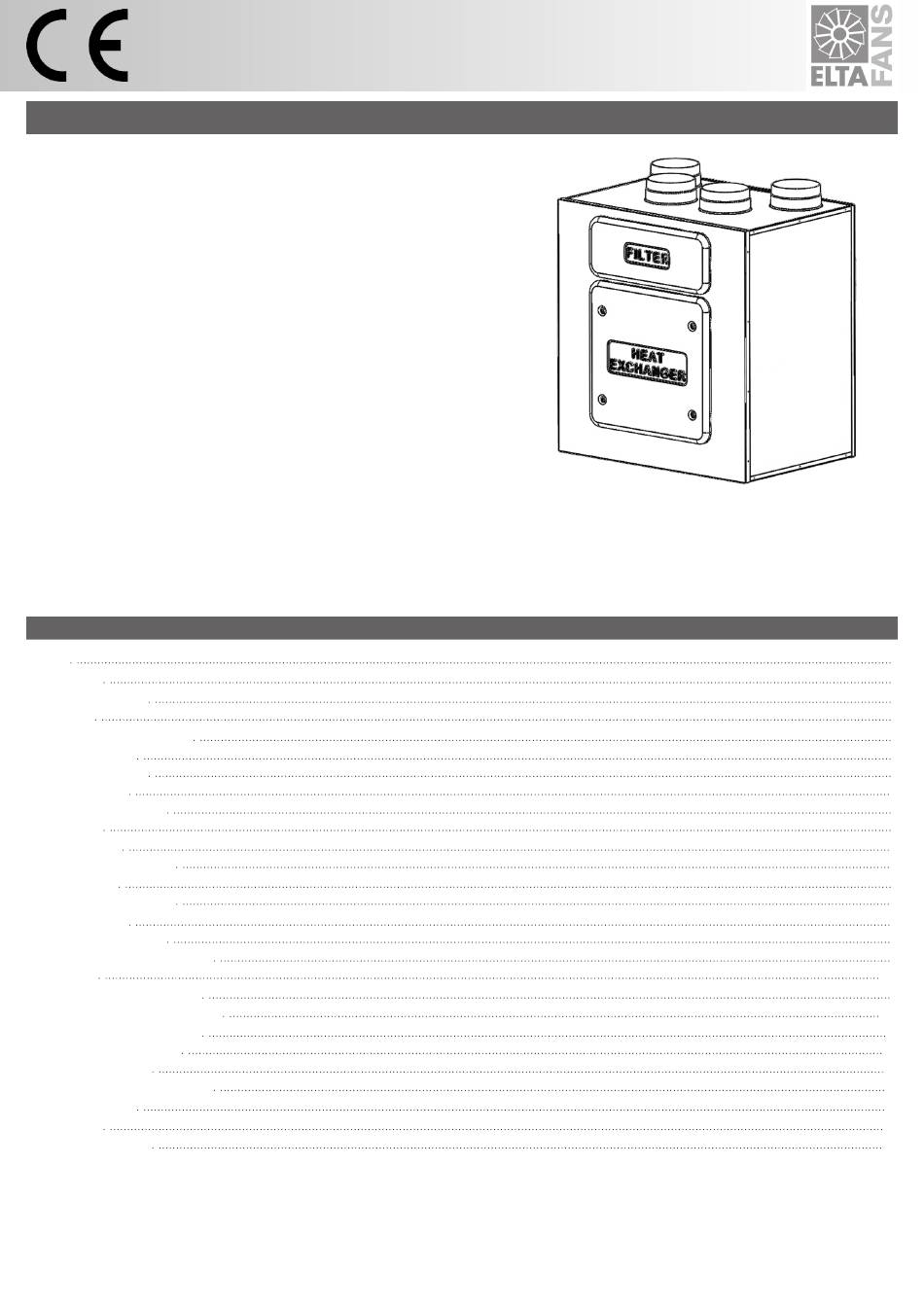

Page 1: Table Of Contents
Installation Manual (installer & user) VIGO400A Heat Recovery Ventilation Unit Read this manual carefully before using the product and keep it in a safe place for reference as necessary. This product was constructed up to standard and in compliance with regulations relating to electrical equipment and must be installed by technically qualified personnel. -
Page 2: Precautions
The key to proper, safe and smooth operation of the unit is to read this manual thoroughly, use the unit according to given guidelines and follow all safety requirements. The VIGO400A is supplied with its CTRL-DSP remote multifunction control panel as standard. The package also includes 2 condensation elbows and 2 plugs for the water drainage. -
Page 3: Dimensions And Weight
3.2 Dimensions (mm) and Weight ø155 ø148 Weight Kg 3.3 Connections LEFT Connections from and to outside are set on the left side of the unit front view DEFAULT RIGHT Connections from and to outside are set on the right side of the unit front view The factory setting is LEFT. -
Page 4: Space Required
Fig. 3.b Connections in RIGHT orientation Intake air from outside Exhaust air to outside Supply air to inside Extract air from inside Winter condensation drainage Summer condensation drainage To set the RIGHT orientation of the machine: • Modify the orientation on the CTRL-DSP (point 7.2 - Installer menu: 3 Machine Orientation). •... -
Page 5: Transport And Storage
4 TRANSPORT AND STORAGE WARNING Make sure that specific warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied! The appliance is delivered in one carton box. The appliance should be stored and transported in such a way that it is protected against physical damage that can harm spigots, casing, display etc. It should be covered so that dust, rain and snow cannot enter and damage the unit and its components. -
Page 6: Installation
5.3 Installation The unit must be installed in the following position. It is important that the unit is vertical in order for the condensation drainage to work properly. Spirit level Fig. 5.a.b Fig. 5.c Fig. 5.d Fig. 5.e Fig. 5.f Individual ‘dry traps’... -
Page 7: Electric Connections
The installation and service of the unit and complete ventilation system must be performed by an authorized installer and in accordance with local rules and regulations. The unit must be earthed. The VIGO400A is wired internally from factory. To connect the the CTRL-DSP to the mother board use a 4pole twisted-pair cable: max length 30m. Figures below show the wiring diagram. -
Page 8: Commissioning
6 COMMISSIONING 6.1 Setting Fan speed The speed of the unit can be adjusted during installation according to required ventilation rate. Figure 6.a below shows performance curves (for supply air and extract air) at different settings of the 0-10V signal to the motors. Airflow and consumption refer to one single motor. -
Page 9: Before Starting The System
Supply Extract Exhaust Breakout Total noise measured in reverberation chamber at ELTA FANS laboratory (UK) dBA figures are average spherical free-field, for comparitive use only. 6.2 Before Starting the System When the installation is finished , check that: • Filters are mounted correctly •... -
Page 10: Operation
7 OPERATION WARNING Make sure that specific warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied! Fig. 7.a Temperature probes in LEFT orientation Intake air from outside Exhaust air to outside Supply air to inside Extract air from inside In case of RIGHT orientation, follows instructions as per point 3.3 - Fig. -
Page 11: User Menu On Ctrl-Dsp
When powered on, the CTRL-DSP displays as follows: Fig. 7.c CTRL-DSP operation screen 7.1 User Menu on CTRL-DSP To enter the user menu press OK or ESC. To exit the user menu press ESC or wait for about 60 seconds. User menu 1 Mode Selection 2 Boost... - Page 12 It allows to select the Boost speed. User menu Press OK to select. 1 Mode Selection Choice NO or YES using or . 2 Boost Press OK to select. Boost speed can be selected only if the Mode selection is 3V or HOLIDAY. 3 Boost Duration Boost function can be activated in these ways: 4 Reset FILTER Alarm...
-
Page 13: Installer Menu On Ctrl-Dsp
7.2 Installer Menu on CTRL-DSP The Installer menu can be selected either by selecting point 6 in the User menu or by holding OK+ESC for about 7 seconds. To exit the installer menu press ESC or wait for about 60 seconds. Installer menu 1 Language 2 Date/Time... - Page 14 It allows to set the Bypass operation parameters. Installer menu Press OK to enter. 1 Language Use or to choose “Desired Temperature”, “Tmax Free Heating”, “Tmin Free Cooling”. 2 Date/Time For definitions see “Bypass” (paragraph 7.3). Press OK to select. 3 Machine orientation 4 Bypass settings The setting ranges are:...
- Page 15 It allows to adjust the various speeds. Installer menu Press OK to enter. 6 Heating Threshold Use or to choose speed 1, speed 2, speed 3 or Holiday. 7 Dehumidification Press OK to select. 8 Speed Setting The setting ranges are: 9 Airflow Balancing speed 1: 10% ÷...
-
Page 16: Additional Functionalities
1-10V signal received at the SLAVE input. All the operating logics described in the Mode selection are ignored (paragraph 7.1). BYPASS The VIGO400A is equipped with a physical bypass which allows to mitigate the heat exchange when the indoor and outdoor temperature combinations are such that the heat exchange is not recommended. In this case the Bypass icon is activated on the LCD. -
Page 17: Maintenance And Service
FAULT HANDLING Code error description (Fig.7.b - E000 no RS485 connection E001 no rotation of the exhaust air fan (Fig.8.a - E002 no rotation of the intake air fan (Fig.8.a - E003 thermistor T11 broken/disconnected (Fig.7.a) E004 thermistor T12 broken/disconnected (Fig.7.a) E005 thermistor T21 broken/disconnected (Fig.7.a) E006 thermistor T22 broken/disconnected (Fig.7.a) E007 dehumidifier alarm (BST INPUT) -
Page 18: Description Of Components
8.2 Description of Components Fans The fans have external rotor motors of EC type which can be steplessly controlled individually between 10–100%. The motor bearings are life time lubricated and maintenance free. It is possible to easily disconnect and replace the fans if necessary. Filters The filters are of filter quality G4 for both the supply air and extract air filter. -
Page 19: Service
8.4 Service WARNING Make sure that the mains supply to the unit is disconnected before performing any installation, service, maintenance or electrical work! WARNING The installation and service of the unit and complete ventilation system must be performed by an authorized installer and in accordance with local rules and regulations. -
Page 20: Trouble Shooting
Fig. 8.l Fig. 8.m 8.5 Trouble shooting Fans do not start 1. Check that main supply gets to the unit. 2. Check that all connections are working (all connections in terminal box and fast couplings of intake and exhaust air fans). Reduced airflow 1. - Page 21 ErP Directive - Regulations 1253/2014 - 1254/2014 ELTA FANS a) Mark VIGO400A b) Model c) SEC class -17,3 c1) SEC warm climates kWh/m2.a -42,1 c2) SEC average climates kWh/m2.a -80,8 c3) SEC cold climates kWh/m2.a Energy label Residential - bidirectional...
- Page 22 GUARANTEE The product is offered with a five year warranty. First year of warranty covers parts and labour, following this period the warranty covers replacement parts only based on maintenance having being carried out in accordance with our literature and terms and conditions of sale. Proof of Purchase, Periodic inspection and maintenance will be required in the event of any warranty claim.
- Page 23 NOTES...
- Page 24 Elta Fans Limited Building Services 46 Third Avenue Pensnett Trading Estate Kingswinford West Midlands DY6 7US United Kingdom T: +44 (0) 1384 275800 F: +44 (0) 1384 275810 E: bs@eltafans.co.uk...
