G
Installation manual

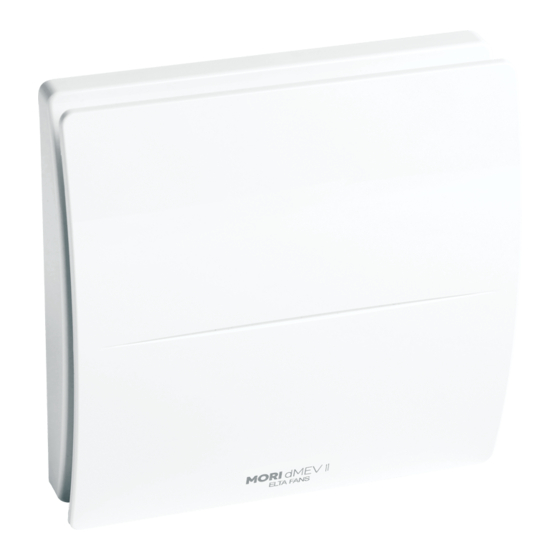

MORI dMEV II - dMEV unit
Read this manual carefully before using the product and keep
it in a safe place for reference.
This product was constructed up to standard and in compliance
with regulations relating to electrical equipment and must be
installed by technically qualified personnel.
The manufacturer assumes no responsibility for damage to
persons or property resulting from failure to observe the
regulations contained in this booklet.
PRECAUTIONS FOR INSTALLATION, USE AND MAINTENANCE
• The device should not be used for applications other than those specified in this manual.
• After removing the product from its packaging, verify its condition. In case of doubt,
contact a qualified technician. Do not leave packaging within the reach of small children
or people with disabilities.
• Do not touch the appliance with wet or damp hands/feet.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision.
• Do not use the product in the presence of flammable vapours, such as alcohol,
insecticides, gasoline, etc.
• If any abnormalities in operation are detected, disconnect the device from the mains
supply and contact a qualified technician immediately. Use original spare parts only for
repairs.
• The electrical system to which the device is connected must comply with regulations.
• Before connecting the product to the power supply or the power outlet, ensure that:
- the data plate (voltage and frequency) correspond to those of the electrical mains
- the electrical power supply/socket is adequate for maximum device power. If not,
contact a qualified technician.
• The device should not be used as an activator for water heaters, stoves, etc., nor
should it discharge into hot air/fume vent ducts deriving from any type of combustion
unit. It must expel air outside via its own special duct.
• Operating temperature: 0°C up to +50°C.
• The device is designed to extract typical household air only, i.e. without excessive
grease, soot, chemical or corrosive agents, or flammable or explosive mixtures.
• Do not leave the device exposed to atmospheric agents (rain, sun, snow, etc.).
• Do not immerse the device or its parts in water or other liquids.
• Turn off the main switch whenever a malfunction is detected or when cleaning.
• For installation an omnipolar switch should be incorporated in the fixed wiring, in
accordance with the wiring regulations, to provide a full disconnection under overvoltage
category III conditions (contact opening distance equal to or greater than 3mm).
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
Fig. 1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MORI dMEV II T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ELTA FANS MORI dMEV II T

  • Page 1 Installation manual MORI dMEV II - dMEV unit Read this manual carefully before using the product and keep it in a safe place for reference. This product was constructed up to standard and in compliance with regulations relating to electrical equipment and must be installed by technically qualified personnel.
  • Page 2: Technical Specifications

    • Timer and Integral Humidistat versions available. • IPX4 degree of protection. •Power supply 220V to 240V~ 50Hz. Static pressure Power Sound pressure Airflow Model Pa max W max dB(A) @3m MORI dMEV II T 83/47/29/21 23,1/13/8/6 26/23/13/11 MORI dMEV II HT 83/47/29/21 23,1/13/8/6 26/23/13/11...
  • Page 3 VERSIONS MORI dMEV II T (Timer version) The fan is provided with over-run timer, adjustable from 0-30 minutes via a trimmer (fig. 17A). The fan works at the selected trickle speed (or off) and can be boosted using the integrated pull cord switch or light switch. Once the boost switch is turned off the fan will continue to run at the boost speed for the set period of time before reverting back to the trickle speed.
  • Page 4: Standard Conformity

    STANDARD CONFORMITY 2014/35/EU Low Voltage Directive (LVD) 2014/30/EU Electromagnetic Compatibility (EMC), in conformity with the following standards: Electrical Safety EN60335-1(2012)+A11+A13; EN 60335-2-80(2003)+A1+A2. Electromagnetic Compatibility EN 55014-1(2017); EN 55014-2(2015); EN 61000-3-2(2014); EN 61000-3-3(2013). INSTALLATION (Fig.2) perimetrical exhausting wall ceiling (accessory included in the box) window (kit on demand) direct exhausting short ducting...
  • Page 5 MOUNTING AND ELECTRICAL WIRING MORI dMEV II = ø99 mm...
  • Page 6 SURFACE CABLE 4 x ø 5 mm H03VV-F ; H05VV-F 2 X 0,5 ÷ 1,5 mm BASE/STD 3 X 0,5 ÷ 1,5 mm 3 X 0,5 ÷ 1,5 mm T-HT 4 X 0,5 ÷ 1 mm Ø10mm...
  • Page 7 RECESSED CABLE ENTRY 4 x ø 5 mm H03VV-F ; H05VV-F 2 X 0,5 ÷ 1,5 mm BASE/STD 3 X 0,5 ÷ 1,5 mm 3 X 0,5 ÷ 1,5 mm T-HT 4 X 0,5 ÷ 1 mm The ceiling mounting gasket should be sandwiched between the fan and For window mounting instruction please see the individual installation the ceiling ensuring that it is flat against the ceiling.
  • Page 8 6L/s   in room 8L/s   in room 13L/s    + higher humidity set point MORI dMEV II M (ISSUE A & B) MORI dMEV II T - MORI dMEV II HT = Jumper present...
  • Page 9 CLICK...
  • Page 10: Maintenance & Cleaning

    MAINTENANCE / CLEANING The unit should be cleaned regularly as explained in this leaflet to maintain performance and warranty cover. Cleaning should be carried out as and when required but please note intervals between cleaning should not exceed 6 months. The installer should explain this cleaning regime to the homeowner/occupier and ask the homeowner/occupier to keep a record of the cleaning done on this leaflet as this will be required to be provided by the homeowner/occupier to claim against any product failure under warranty.
  • Page 11: Disposal And Recycling

    DISPOSAL AND RECYCLING Information on disposal of units at the end of life. This product complies with EU Directive 2002/96/EC. The symbol of the crossed-out dustbin indicates that this product must be collected separately from other waste at the end of its life. The user must, therefore, dispose of the product in question at suitable electronic and electro-technical waste disposal collection centres, or else send the product back to the retailer when purchasing a new, equivalent type device.
  • Page 12 ErP Directive - Regulations 1253/2014 1254/2014 a) Mark ELTA FANS ELTA FANS MORI dMEV II T MORI dMEV II HT b) Model c) SEC class c1) SEC warm climates kWh/m2.a -5,4 -11,3 c2) SEC average climates kWh/m2.a -25,7 c3) SEC cold climates kWh/m2.a...
  • Page 13 NOTES...
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 Elta Fans Limited Building Services 46 Third Avenue Pensnett Trading Estate Kingswinford West Midlands DY6 7US United Kingdom T: +44 (0) 1384 275800 F: +44 (0) 1384 275810 E: bs@eltafans.co.uk 001435 - 05 - 0518...
