Chapter 5

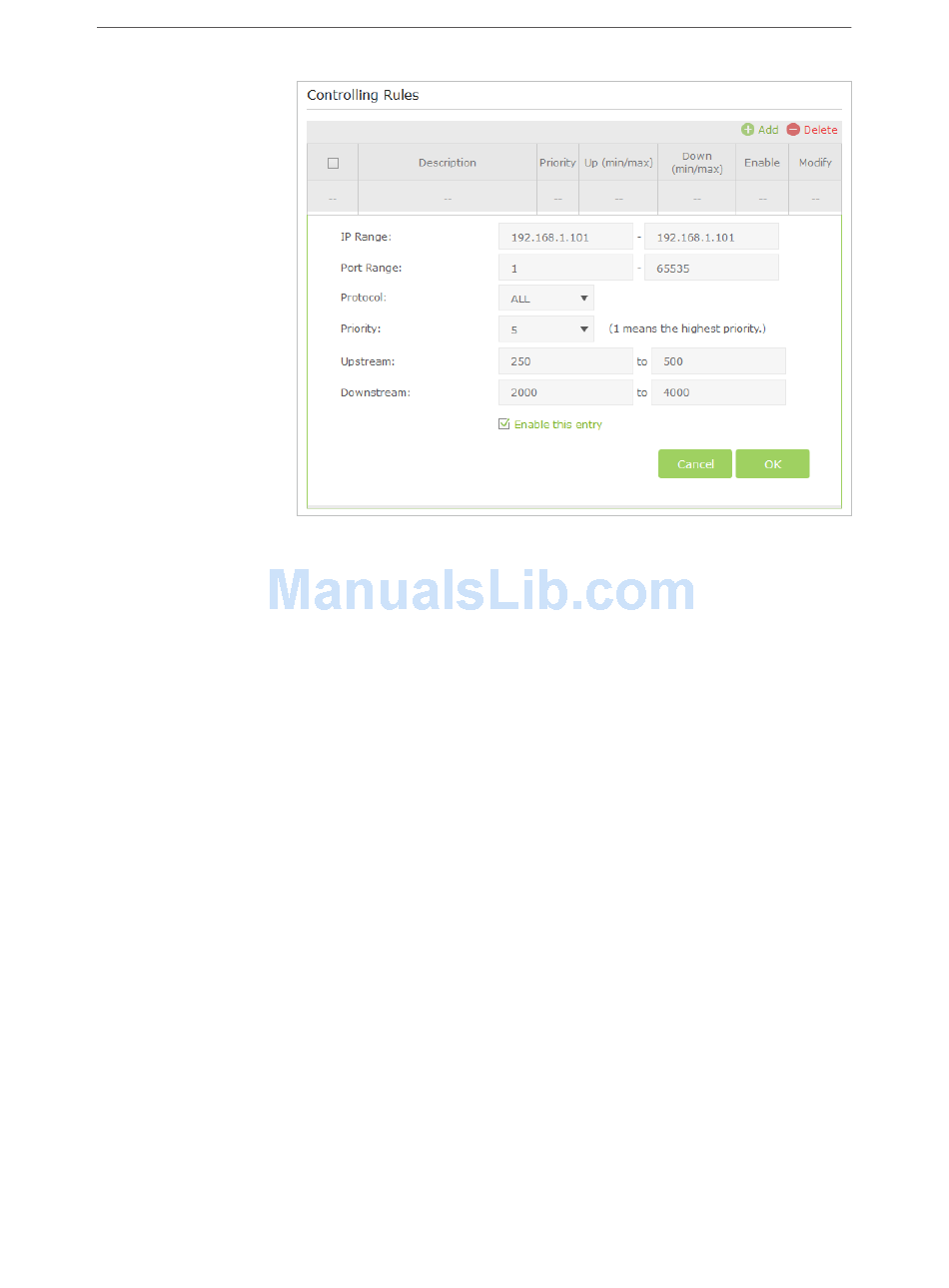

1 ) IP Range: Enter the IP address. The field can be single IP
address or IP address range according to your demands.
When you enter a single IP address, the computer with
this IP address will get independent given bandwidth.
When you enter an IP address range, all computers in the
range will share the given bandwidth.
2 ) Port Range: Keep the default settings. The default port
range of TCP protocol or UDP protocol is from 1 to 65535.
3 ) Protocol: Keep the default setting. Or you can choose the
TCP protocol or UDP protocol or both of them.
4 ) Priority: Keep the default setting. You can change the
value if you want to first guarantee the bandwidth for
one computer. The smaller value has the higher priority.
5 ) Upstream/Downstream:
to your division.
6 ) Check to enable this entry and click
settings.
5. Follow the steps above to add a rule for the other client
device. And then you will get the following table.
Bandwidth Control
Enter the bandwidth according
OK to save the
