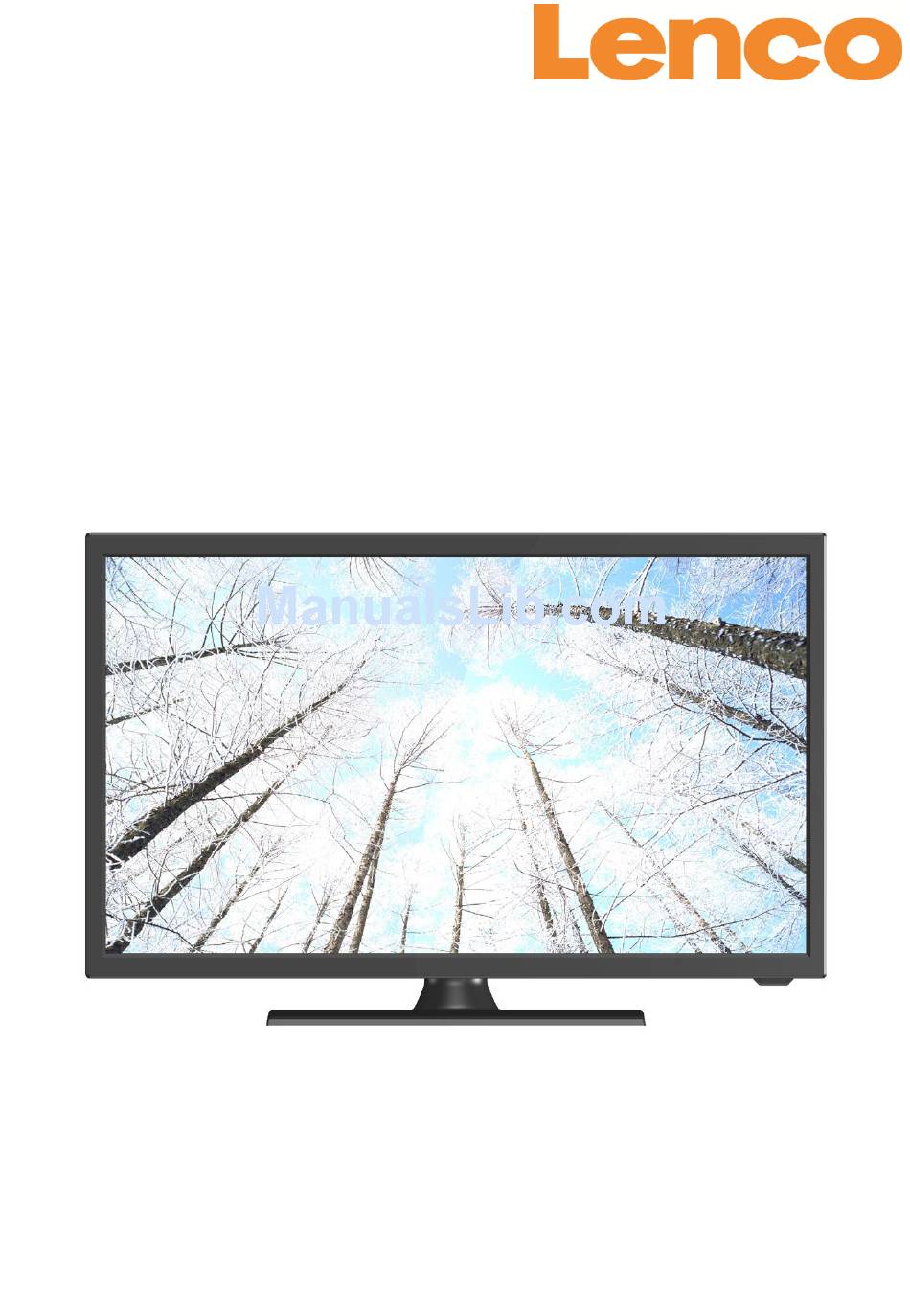

- Page 1 24” (61 cm) HD LED TV with DVB-T/T2/S2 and DVD player MODEL NO.: DVL-2460 USER MANUAL...
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS Safety information CAUTION: DVD/VIDEO CD/CD PLAYER IS A CLASS 1 LASER PRODUCT. HOWEVER THIS DVD/VIDEO CD/CD PLAYER USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD/VIDEO CD/CD PLAYER CORRECTLY AS INSTRUCTED. - Page 3 Clean only with a slightly damp cloth. If the cord is damaged, have it repaired by the manufacturer, its service or a similarly qualified person in order to avoid any hazard. The cord should always be readily accessible. ...
- Page 4 Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit. Avoid placing the device on any surfaces that may be subject to vibrations or shocks. ...
- Page 5 Connect this product to the power outlet which has a protective earth connection. LASER SAFETY This set employs an optical laser beam system in the CD mechanism designed with built-in safeguards. Do not attempt to disassemble. Exposure to this invisible laser light beam may be harmful to the human eye.
-
Page 6: Accessories
If the disc is brought from a cold to a warm environment, moisture may form on the disc. Wipe this moisture off with a soft, dry, lint-free cloth before using the disc. Improper disc storage You can damage discs if you store them in the following places: Areas exposed to direct sunlight ... -
Page 7: Table Of Contents
TABLE OF CONTENTS GETTING STARTED IMPORTANT INSTRUCTIONS…………………………………………………………………………………………………………….1 ACCESSORIES…………………………………………………………………………………………………………………………………..5 FEATURES………………………………………………………………………………………………………………………………………..7 GENERAL PARTS………………………………………………………………………………………………………………………………8 REMOTE CONTROL………………………………………………………………………………………………………………………..10 REMOTE CONTROL PREPARATION…………………………………………………………………………………………………12 BASIC CONNECTION………………………………………………………………………………………………………………………13 OPERATIONS BASIC OPERATIONS……………………………………………………………………………………………………………………….19 DVD………………………………………………………………………………………………………………………………………….19 TV…………………………………………………………………………………………………………………………………………….26 MAIN MENU………………………………………………………………………………………………………………………………….31 FIRST TIME INSTALLATION………………………………………………………………………………………………………….31 DTV MODE………………………………………………………………………………………………………………………………..32 ATV AND OTHER MODES……………………………………………………………………………………………………………40 SATELLITE MODE……………………………………………………………………………………………………………………….40 PC/VGA MODE………………………………………………………………………………………………………………………….45 FOR REFERENCE MAINTENANCE……………………………………………………………………………………………………………………………..46 WALL MOUNTING…………………………………………………………………………………………………………………………46 STAND INSTALLATION…………………………………………………………………………………………………………………….47... -
Page 8: Features
FEATURES 24" LED Display This unit has a built-in 24” LED display window to provide clear vision and low radiation. With Built-in DVD Player Support Auto TV Scanning Support TELETEXT (Europe) Function Support USB Multimedia Playback Support Multi-languages On Screen Display Support Full Function Remote Control Support HDMI, SCART, YPBPR, AV, VGA, PC AUDIO and CI Input Support EARPHONE and COAXIAL Output... -
Page 9: General Parts
GENERAL PARTS MAIN UNIT Front View Side View Back View LED display screen Remote control sensor/Power indicator- In standby mode the indicator light is red; when switching on the unit the indicator light is blue. Stand holder VOLUME +/- button- To increase/decrease the volume level or move left/right. - Page 10 GENERAL PARTS Back View Power input VGA input terminal PC AUDIO input terminal SCART input terminal RF input terminal- To connect the external Satellite TV Antenna (DVB-S2). RF input terminal- To connect the external TV antenna (DVB-T/DVB-T2/DVB-C). COAXIAL output terminal Mini AV input terminal CI+ input terminal Mini YPbPr input terminal...
-
Page 11: Remote Control
REMOTE CONTROL POWER\STANDBY: Set the unit in standby mode; press it again to switch it on. MEDIA: Select USB mode. : PLAY/PAUSE in TIMESHIFT and USB mode. D.SETUP: Display the main disc menu. : Stop playing. AUDIO/LANG: Switch available soundtrack (TV); Switch available soundtrack language (DVD). - Page 12 REMOTE CONTROL 21 A-B: Repeat DVD scenes of your preference. 22 CH +/-: Press to play the next or previous channel. : Return to the previous channel. 24 P.MODE: Select the picture mode. 25 SUBTITLE: Enable/disable subtitles. /FAV: Play the previous file; Display the favorite channels list.
-
Page 13: Remote Control Preparation
REMOTE CONTROL PREPARATION BATTERY INSTALLATION Install the batteries as the following pictures. Be sure the + and – terminals are positioned as indicated in the battery compartment (Fig1). SERVICE LIFE OF BATTERIES The batteries normally last for one year although this depends on how often the remote control is used. -
Page 14: Basic Connection
BASIC CONNECTION Ensure all the cables are disconnected from the main unit before connecting to the AC power source. Read through the instructions before connecting other equipment. CONNECTING TO AC POWER SOURCE To power outlet AC Adaptor CONNECT EXTERNAL ANTENNA TO UNIT Install external antenna into antenna jack for best picture. -
Page 15: Hdmi Connection
HDMI CONNECTION Use HDMI cable to connect the unit with other devices to receive high-definition HDMI cable (Not included) multimedia signal. Back of DVD/VCR PC/VGA CONNECTION Audio cable VGA cable (Not included) (Not included) Use VGA cable and Audio cable to Back of PC connect the unit with TV or PC, and use this product as a monitor. - Page 16 SCART CONNECTION SCART cable (Not included) Back of DVD/VCR AV (COMPOSITE VIDEO) CONNECTION AV cable For basic connection, use the composite (Not included) Audio L/R (white/red) and CVBS (yellow) cable to connect the unit with other devices. Back of DVD/VCR...
- Page 17 YPBPR CONNECTION AUDIO cable YPbPr cable (Not included) (Not included) Adaptor cable (Included) Back of DVD/VCR NOTE: As your TV contains a mini YPbPr terminal, you may need to use the special adaptor cable (supplied), with a 3.5mm head on one end and 3 female RCA terminals on the other end, to connect this TV with external devices.
- Page 18 COAXIAL CONNECTION Use the coaxial cable to connect the unit with an amplifier or other audio decoding device for coaxial audio signal output. (Coaxial cable is not included.) USB CONNECTION (Not included) INSERT A CI CARD CI slot (CI card is not included)
-
Page 19: Operations
HEADPHONES CONNECTION HEADPHONES cable (Not included) MAKE SURE ALL THE EQUIPMENTS AND POWER ADAPTOR ARE CONNECTED PROPERLY AND THE UNIT IS SET IN THE CORRECT MODE BEFORE ANY KIND OF OPERATION. -
Page 20: Basic Operations
BASIC OPERATIONS Press the POWER button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red). Press the SOURCE button on the unit or remote control to switch the unit to DVD mode. 1. -
Page 21: Music Playback
Fast forward/Fast backward During playback, press to fast forward/backward. Press to resume normal play. 5. Pause/play During playback, press to pause playing, press it again to resume normal playback. 6. Music playback a) Insert the disc which contains music files and after a few seconds, the screen will show all the folders on the disc. - Page 22 During normal playing, press , the player will play the next or previous file. Press REPEAT to change play mode. SINGLE: play one file only. REPEAT ONE: repeat one file. REPEAT FOLDER: all the files in the folder will be played repeatedly. FOLDER: all the files in the folder will be played.
- Page 23 Picture Shrink/Zoom Press ZOOM button repeatedly to enlarge or shrink picture to 50%, 75%, 100%, 125%, 150% and 200%. NOTE: If the picture is enlarged, you may press the navigation buttons to pan across other portions of the picture. 9. Enjoying Video CD with playback control When playing VCD 2.0 with PBC, the player will show the VCD version.
- Page 24 DVD DISC VCD/CD DISC (In the PBC OFF mode) CHAPTER REPEAT CHAPTER REPEAT TRACK TRACK REPEAT TITLE REPEAT DISC TITLE REPEAT ALL A-B repeat play Repeating sections between two specific points (A-B repeat) Press A-B during playing at the point where repeat play is to be started (A). Press A-B at the point where repeat is to be ended (B).
- Page 25 16. Initial settings Once the initial programming is entered it will be retained in the memory until changed, the player can always be operated under the same conditions. Common procedure for initial settings Press D.SETUP on the remote control. ...
- Page 26 AUDIO Downmix - It is used to select the desired audio output mode. Options: LT/RT-Left/Right mix mode STEREO PREFERENCE 3.1. TV TYPE - Select desired TV system. 3.2. AUDIO - Select desired audio language, if your disc contains multiple audio languages.
- Page 27 Press the SOURCE button on the unit or remote control to switch the unit to ATV or DTV mode. SELECT DESIRED PROGRAM Press CH+ to play the next channel. Press CH- to play the previous channel. Press the numbered buttons on the remote control directly to select your desired program. NOTE: Press -/-- repeatedly to switch the digit.
- Page 28 FAVORITE LIST When viewing an available channel, press the FAV button on the remote control to enter Favorite List menu page. Press the UP or DOWN navigation button to select your preferred channel. Press OK to confirm the selection. Note: To add a favorite channel, please refer to the operations of “Channel>Programme Edit”.
- Page 29 MEDIA PLAYBACK Press the SOURCE button on the unit or remote control to switch the unit to USB mode. Insert a USB memory device into USB slot before following operations. Press the UP/DOWN/LEFT/RIGHT navigation button to move the cursor. Press EXIT to return to the previous menu page. PHOTO Press the LEFT/RIGHT navigation button to select Photo in the main menu and press OK to enter it.
- Page 30 Use the navigation buttons to select your desired option and press OK to confirm it. Press EXIT to return. MOVIE Press the LEFT/RIGHT navigation button to select Movie in the main menu and press OK to enter it. Use the navigation buttons to select your desired folder or file. When selecting files, press the RED button to enter the submenu and you can delete a file accordingly.
- Page 31 TEXT Press the LEFT/RIGHT navigation button to select Text in the main menu and press OK to enter Use the navigation buttons to select your desired folder or file. When selecting files, press the RED button to enter the submenu and you can delete a file accordingly.
-
Page 32: Main Menu
MAIN MENU The unit contains different setting menus. Once the initial programming is entered, it will remain in the memory until changed, and the unit can always be operated under the same conditions. The settings will remain in the memory until the settings are changed, even after setting the player to the standby mode. -
Page 33: Dtv Mode
DTV MODE Press SOURCE on the unit or remote control to select the DTV input source. CHANNEL 1.1. Antenna Press the OK or RIGHT navigation button to enter it. Use the navigation buttons to select DVB-T or DVB-C. 1.2. Auto Tuning Press the OK or RIGHT navigation button to enter it. - Page 34 1.4. DTV Manual Tuning Press the OK or RIGHT navigation button to enter it. Use the LEFT/RIGHT navigation button to select the channel. Then press OK to start searching. 1.5. Programme Edit Press the OK or RIGHT navigation button to enter it. Press the UP/DOWN navigation button to highlight your desired channel.
-
Page 35: Picture Mode
PICTURE 2.1. Picture Mode Press the UP/DOWN/LEFT/RIGHT navigation buttons to select an option. Picture Mode: available options: Standard, Mild, Personal, Dynamic. Contrast/Brightness/Colour/Tint/Sharpness: adjustable value: 0-100. NOTE: Contrast, Brightness, Colour and Sharpness are adjustable only when Picture Mode is “User”. Tint is adjustable only for NTSC system. 2.2. -
Page 36: Sound Mode
SOUND 3.1. Sound Mode Press the UP/DOWN/LEFT/RIGHT navigation buttons to select an option. Sound Mode: available options: Standard, Music, Movie, Sports, Personal. Treble/Bass: adjustable value: 0-100. NOTE: Treble and Bass are adjustable only when Sound Mode is “User”. 3.2. Balance This item is used to adjust the audio output between the left and right speaker from -50 to 50. -
Page 37: Time Zone
TIME 4.1. Clock It displays current system time when an available channel was saved. Time Zone 4.2. This item is used to select your desired time zone. 4.3. Off Time Off Time: available options: Off/Once/Every Day/Mon.~Fri/Mon.~Sat/Sat.~Sun/Sun. Hour/Minute: use the navigation buttons to adjust the Hour/Minute when Off Time is not “Off”. 4.4. -
Page 38: Set Password
Available options: Off, 5/10/15/20/25/30/35 seconds. LOCK Press the RIGHT navigation button and input the factory default password “0000” using the numbered buttons on the remote control. Press the UP/DOWN navigation button to select the preferred item. NOTE: If you forget the password, please use the universal password “8899”. 5.1. - Page 39 5.6. Hotel Model Press the RIGHT navigation button to enter it. Press the UP/DOWN navigation button to move the cursor. Press the LEFT/RIGHT navigation button to select an option. Hotel Mode: turn on/off Hotel Mode. Source Lock: turn on/off the lock of available sources. Default Source: set the default source.
-
Page 40: Audio Language
SETUP 6.1. Language This item is used to select desired on-screen display language. 6.2. TT Language This item is used to select desired teletext language. 6.3. Audio Language Press RIGHT navigation button to enter it. Then you can select desired primary audio language and secondary audio Language. 6.4. -
Page 41: Atv And Other Modes
6.7. Blue Screen This item is used to turn on/off Blue Screen. The screen background will turn blue at very weak or no signal condition, if the Blue Screen is ON. 6.8. First Time Installation This item is used to recall the First Time installation menu. 6.9. -
Page 42: Auto Tuning
Auto Tuning Press the MENU button to call out the main menu. Highlight “Channel” using the navigation buttons and press OK to enter it. Then highlight “Auto Tuning” and press OK to enter it. Country: select your country. Satellite: select an available satellite. Scan Mode: select your scan mode. - Page 43 When the “Satellite” (Left) column is highlighted: (1) Press the YELLOW button on the remote control to enter the Add menu. Satellite Name Press the RIGHT navigation button to enter rename page. Use the navigation buttons to complete a new name.
- Page 44 When the “Transponder” (Middle) column is highlighted: Press YELLOW button on remote control to enter Add menu. Frequency Press the LEFT/RIGHT navigation button to move the cursor and press the numbered buttons on the remote control to input your desired value. Symbol(ks/s) Press the LEFT/RIGHT navigation button to move the cursor and press the numbered buttons on the...
- Page 45 When the “Ku_ASTRA…” (Right) column is highlighted: LNB (Low Noise Block) Type Press the LEFT/RIGHT navigation button to enter submenu. Then use UP/DOWN navigation button to select desired option. LNB Power Press LEFT/RIGHT navigation button to select desired option. 22KHz Press LEFT/RIGHT navigation button to select desired option.
-
Page 46: Pc/Vga Mode
PC/VGA MODE Connect a personal computer to this unit. Power on your computer and this unit. Press SOURCE button on the unit or remote control to select PC-RGB (VGA) input source. Press MENU button to display the main menu and select “PICTURE” using LEFT/RIGHT navigation button. -
Page 47: Maintenance
MAINTENANCE Be sure to press POWER button to set the player to the standby mode and disconnect the power plug before maintaining the player. Wipe the player with a dry, soft cloth. If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth. -
Page 48: Stand Installation
STAND INSTALLATION Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below. Step 1 Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged. -
Page 49: Specifications
SPECIFICATIONS Display Device 24 inch LED TV Resolution 1920×1080 Display Colors 16.7M Contrast Ratio 1000:1 Aspect Ratio 16:9 30,000 Hrs Life Time Movie: AVI, MPEG, MPEG-4, MKV, RMVB Music: MP3, WAV, AAC Multimedia Playback Format under TV Mode Photo: JPG/JPEG Text: TXT DVD/CD/CDR/CDRW/DVD-R/DVD+R/ Supported Discs... -
Page 50: Troubleshooting
GENERAL TROUBLESHOOTING Check the following points before assuming malfunctions of this unit: Symptom[COMMON] Remedy No power. Insert the power plug securely into the power outlet. No picture. Ensure that the equipment is connected properly. Ensure that the equipment is connected properly. ... -
Page 51: General Troubleshooting
GENERAL TROUBLESHOOTING Symptom [DVD] Remedy Play does not start even Confirm the region code setting is right. when title is selected. Audio soundtrack and/or If the audio soundtrack and/or subtitle language does not exist on the subtitle language is not the disc, the language selected at the initial settings will not be seen/heard. - Page 52 Guarantee Lenco offers service and warranty in accordance with the European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly.
