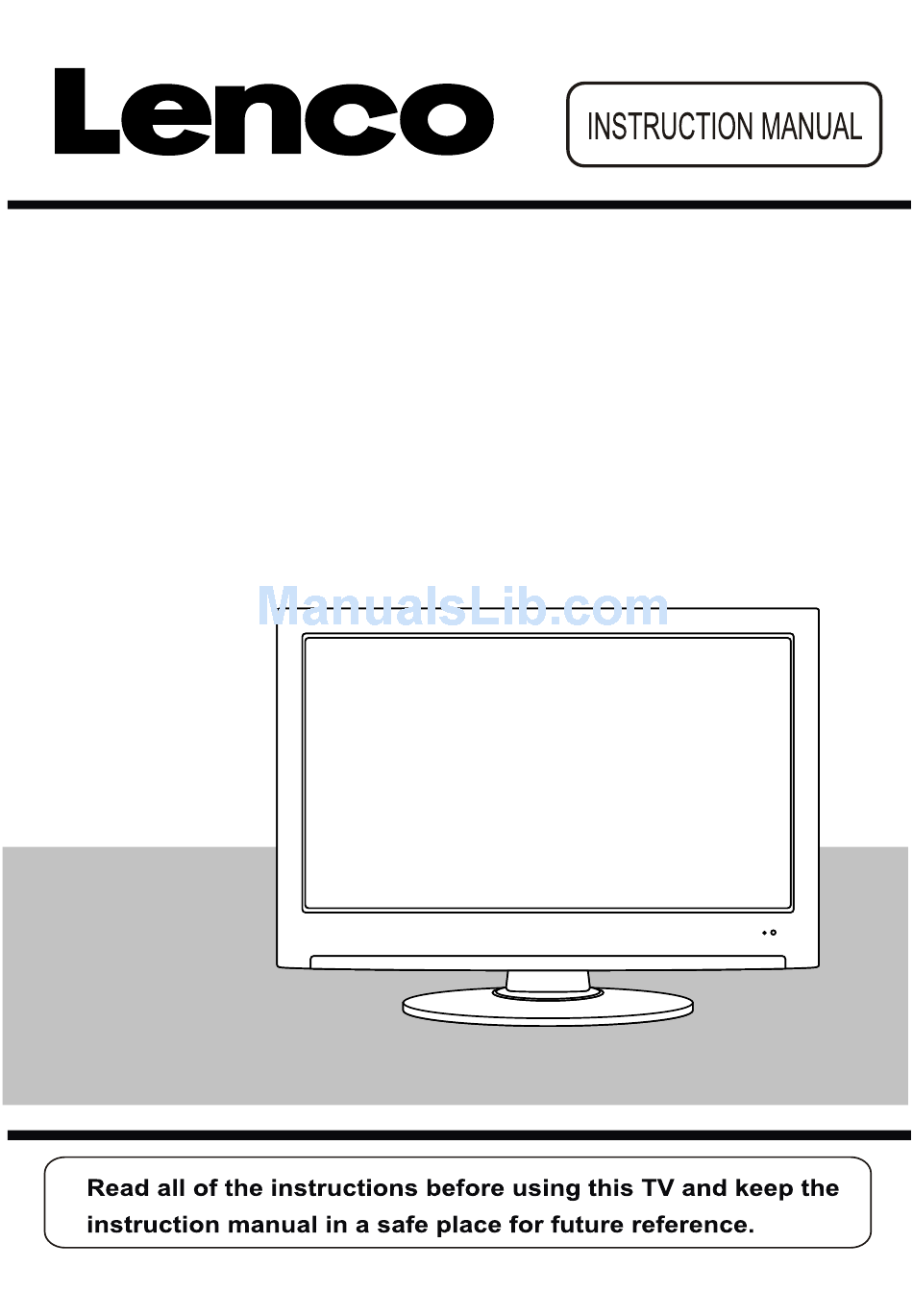

- Page 1 22” (55.5cm) Full HD LED TV WITH DVB-S Model No.: LED-2213 For information and support, www.lenco.eu...
-
Page 2: Table Of Contents
Contents SAFETY INFORMATION Unit Remote Control Aerial connection 8-11 Connecting external devices Auto installation setup Source menu 14-21 Menu settings 21-35 DVBS Operation TROUBLE SHOOTING GUIDE TECHNICAL SPECIFICATIONS options... -
Page 3: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE. Take note of the following safety information which appears on the back of the TV. CAUTION TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. - Page 4 I MPORTANT SAFETY INFORMATION (Continued) This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers connected with such use. Although this appliance has been carefully manufactured and rigorously checked prior leaving the factory, as with all electrical appliances it is possible for problems to develop.
-
Page 5: Headphone Warning
I MPORTANT SAFETY INFORMATION (continued) Liquids spilt into the unit can cause serious damage. Switch the set OFF and disconnect the mains power supply, then consult a qualified service person before attempting to use the unit again. Do NOT remove the safety covers. There are no useable or serviceable parts inside. You may invalidate the warranty. -
Page 6: Unit And Accessories
Unit and Accessories LED Indicator Remote Control Window (keep clear) The functions of the TV buttons are described below. MENU Press to display the OSD menu, Press again to exit the menu. CH-/CH+: Press to scan through channels. They are also can be used to move down/up in the OSD menu screen. VOL-/VOL+: Press to adjust the volume. -
Page 7: Remote Control
Remote control Turn the TV on/standby. POWER: Buttons for TELETEXT(In ATV mode) TV/TXT: Teletext on/off CANCEL: Turn off the Teletext display REVEAL: Reveal any hidden text, for example-quiz answer NICAM/A2 HOLD : Hold or carry on the current subpage SIZE: Press to see top half of page double size, Press again to see the bottom half of page double size, Press again for normal size SUBPAGE: press to subpage, again to cancel. - Page 8 Remote control (continued) MENU INPUT PICTURE: Select the picture mode. SOUND: Select the sound mode. DISPLAY: Display current mode information. EXIT MUTE: Mutes the Audio. SLEEP: Standby Timer. TV/RADIO: Disc menu change between TV and Radio. DVBS-SAT: Display the satellite list. DVBS-AUDIO: Shows the list of available languages for the DISPLAY...
-
Page 9: Aerial Connection
Aerial connection USER GUIDE WARNING! ENSURE THE TV AND ALL ANCILLARY EQUIPMENT IS UNPLUGGED FROM THE MAINS BEFORE MAKING ANY CONNECTIONS! Connecting the TV Antenna Connect the TV antenna to the aerial socket with a 75 ohm co-axial plug. For best results use a high gain TV aerial, preferably roof or loft mounted. - Page 10 Connecting external devices (continued) SCART POWER: Connect to the mains adaptor. HDMI: Connect it to the HDMI of DVD or other equipment. VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC. PC-IN: Connect it to the audio output terminal of PC. SCART: Connect them to the SCART video output terminal of DVD.(used in component source) Headphone: Connect it to your headphone or other audio equipment.
- Page 11 Connecting external devices (continued) PC connection As PCs are sometimes still supplied with a ‘conventional’ CRT monitor, you may need to adjust the display settings of your PCs graphics card, otherwise the pictures may not appear correctly. Switch on your PC (still with your original monitor connected) no w select the screen resolution, and select 60Hz refresh rate.
- Page 12 Connecting external devices (continued) Connecting Video camera and Video recorder Video camera Connect the AV cable to the TV and to the video camera. Turn on both video camera and the TV. Select AV/CVBS source You can now see the playback picture from the video camera. Note: To connect the video camera using other cables, refer to the video camera instruction manual.
-
Page 13: Connecting An Audio System
Connecting external devices (continued) Connecting an audio system You can supply the TV sound to the stereo system (A) with the Scart socket. Use a special scart cable SCART to RCA. (Please consult your hi-fi instructions for details). If you have a surround sound amplifier/decoder (B) Use the Scart cable or the special scart cable Scart to RCA. -
Page 14: Auto Installation Setup
Auto installation setup Power On / Off the LCD TV 1. Connect to the power supply with a power code and an adaptor. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. -
Page 15: Menu Settings
Bas c Use Menu Settings 1. Turn the LCD TV on. 2. Press the MENU button on the Remote Control. 3. Use the buttons to navigate through the menu. 4. Press the EXIT button to exit the Menu. CHANNEL MENU Allows you to search channels and set up a variety of channel options. - Page 16 Application Menu Settings (continued) Use the buttons to select the CHANNEL menu (as the picture above), press button to enter the menu. The CHANNEL menu includes the following options : Country Press buttons to select the Country. (Can be selected in ATV mode) Auto Search Press button to start auto search.
- Page 17 Program Edit: Press button to enter the submenu as the following picture. Program Edit menu for ATV NAME: Select the channel, press GREEN button on the remote control to change the name of the channel. (Use button to name, and press OK button to confirm) LOCK: Select the channel, press RED button to lock the channel.
- Page 18 Menu Settings (continued) Use the buttons to select the PICTURE menu (as the picture above), press button to enter the menu. Choose from Standard, Movie, Vivid and Personal. Picture Mode Note: Contrast, Brightness, Color and Sharpness can only be adjusted in the Personal mode option in the Picture Mode Settings.
- Page 19 Application Menu Settings (continued) Use the buttons to select the SOUND menu (as the picture above), press button to enter the menu. Sound Mode Allows you to select among: Standard, Music, Movie and Personal. Bass (Can be adjusted when the sound mode is set to User) Controls the relative intensity of lower pitched sounds.
- Page 20 Menu Settings (continued) Use the buttons to select the SETTING menu (as the picture above), press button to enter the menu. The SETTING menu includes the following options: Language Allows you to select menu language. OSD Timer Allows you to select the time for OSD menu displays on the screen.
- Page 21 Menu Settings (continued) Use the buttons to select the FUNCTION menu (as the picture above), press button to enter the menu. The FUNCTION menu includes the following options : Sleep Timer Allows you to setup the sleep timer to : 15min, 30min, 45min, 60min, 75min, 90min,105min, 120min and off.
- Page 22 Menu Settings (continued) Use the buttons to select the PC SETUP menu (as the picture above), press button to enter the menu. The PC SETUP menu includes the following options : H-Position Adjust the transverse position of the screen. V-Position Adjust the vertical position of the screen.
-
Page 23: Dvbs Operation
DVBS Operation 1 Main Menu All the important settings and features of your receiver can be operated in Main Menu . The Main Menu consists of four sub-menus which are " Installation" , “ System setting ”, " Channel Organizer " and "Multimedia" . Press the MENU key when the menu is off, The MAIN MENU screen will appear 1.1 Installation... - Page 24 1.1.1.2 Transponder You can select the current Transponder or add the new Transponder. 1.1.1.3 Local Frequency You can change the local frequency. Note: You must press OK to save this local frequency when the cursor is on the Local Frequency item before you select another satellite. 1.1.1.4 22K Tone You can change the 22k tone.
- Page 25 Move the curser to Back or Next button and press OK to exit the submenu to the last menu. When you select DiSEqC1.2: Press OK to enter the submenu of the Adjust Antenna. Press UP/DOWN to move the curser to the item of the Transponder. Press LEFT/RIGHT to select the current transponder.
- Page 26 1.1.2 Auto Scan Press UP/DOWN key to move the curser to the satellite you want to select, and press OK to mark or unmark. Press the RED button to scan all channel of the marked satellite. Press the GREEN button to Blind Scan the marked satellite.
- Page 27 1.1.3.3 Polarity You can select the polarity. 1.1.3.4 Symbeol Rate You can select Symbol Rate. 1.1.3.5 NIT Searching You can select the NIT Searching. 1.1.3.6 Free You can select the free mode. 1.2 System setting In this menu, you can configure the systems such as language Setting, OSD style, Parental Control, TV Settings, Time Setting and System Update.
- Page 28 1.2.1.5 Time Setting Press OK go to Time Setting below: If a broadcaster provides GMT , you can set the time using GMT , or set your own time by yourself. If the GMT usage is ON then the Current time is set automatically or you can set the time zone.
- Page 29 ● Change PIN Modifying the PIN. You must enter the 4 digits PIN and confirm it again; the system PIN will be changed into the new PIN as show on. 1.2.3 System Update In this menu, you can select “ Update by OTA ”, “ Update by DEV ” ●...
- Page 30 1.2.4 System info The system information displays information about your receiver such as software hardware and date. 1.2.5 Timer You can set the timer to make the receiver perform designated actions. Use the UP/DOWN buttons to select timer. Press the LEFT/RIGHT key to activate/inactivate current timer.
- Page 31 1.3 Channel Organizer In the MAIN MENU screen, press UP/DOWN to move the cursor to Channel Organiser, and then press OK to enter the Channel Organizer menu. The Channel Organizer menu consists of three sub-menus; “ Channel Manager” , “Favorites Manager”...
- Page 32 Edit (YELLOW button) Select the channel that you wish to edit, press the YELLOW (Edit) button to move into the modify program menu. In this menu, you can modify the Program Name, Frequency, Symbol rate, Video PID, Audio PID. If you want to rename the channel, use the UP/DOWN keys to select “program Name ”...
- Page 33 1.3.2 Favorites Manager Press the UP/DOWN keys to select the channel. Press the LEFT/RIGHT keys to select the favorite group. Press the OK button to add the selected channel to the Favorite group. To remove the channel from the favorite group, repeat same operation.
- Page 34 1.4.1 My Album Select “My Album ” , press the OK key, then press BLUE key. Use the ▲▼◄► keys to select a picture by thumbprint. To change Folder press the Blue key. Press the OK key to play selected picture full screen.
- Page 35 1.4.4 Gomoku Line up the balls against the computer. Options include Move First, Move Later, Human; Easy and Normal. 1.5 Calendar View Calendars month by month from the year 1900 to 2100. Starts by highlighting today. Find out what day of the week you were born. 2.Other operation functions 2.1 Program List In normal operation status (no menu operation),...
- Page 36 Press YELLOW button to sort program by Free-Pay. to select easy program you want. Press BLUE button to go back the screen before sorted. 2.2 System Information In normal operation status (no menu operation), press INFO button, Program Information menu will appear on screen. In this menu, the user can view the current program information.
- Page 37 You can set up the event timer by pressing RED key in the EPG schedule screen. To set up an timer event: 1.Press UP/DOWN to move the cursor to the event for which you want to add a timer. 2.Press RED key to add a timer. shows you current event timer information based on the event you have chosen.
-
Page 38: Trouble Shooting Guide
USER GUIDE TROUBLE SHOOTING GUIDE To assist in locating possible faults use the help guide below. No Picture, no sound Check that the TV is correctly plugged in. Check that the TV is connected to a suitable power source. Check the electrical supply is turned on. No Picture Ensure that the TV is powered on. -
Page 39: Technical Specifications
TECHNICAL SPECIFICATIONS Specifications of the TV that you have just purchased may vary from the information in this table due to technical innovations. TV Specifications TV System PAL / BG / DK / I Audio System BG / DK / I SECAM L/L’ Screensize 22 ”(Diagonal) Resolution...
