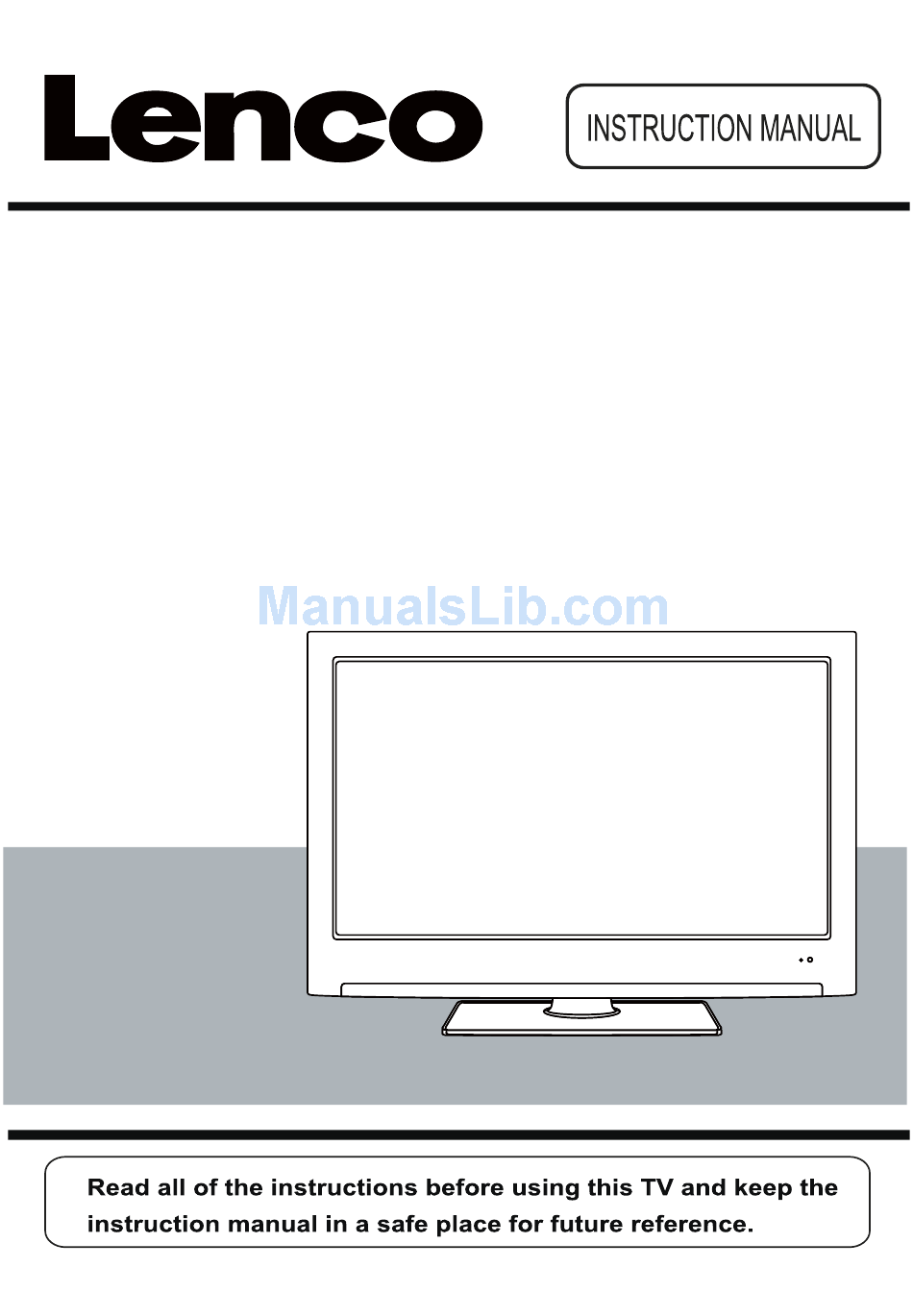

  • Page 1 55.5cm (22”) Full HD LED TV WITH DVB-S Model No.: LED-2215 For information and support, www. lenco.eu...

  • Page 2: Table Of Contents

    Contents SAFETY INFORMATION Product Introduction Front View Connecting external devices Remote Control Basic Operation 8-15 OSD Menu Channel menu Picture menu Sound menu Time menu Option menu Lock menu Hotel menu 16-18 Multimedia Operation 19-21 Recording Operation 22-36 DVBS Operation TROUBLE SHOOTING GUIDE TECHNICAL SPECIFICATIONS...

  • Page 3: Safety Information

    SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE. Take note of the following safety information which appears on the back of the TV. CAUTION TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
  • Page 4 I MPORTANT SAFETY INFORMATION (Continued) This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers connected with such use. Although this appliance has been carefully manufactured and rigorously checked prior leaving the factory, as with all electrical appliances it is possible for problems to develop.

  • Page 5: Headphone Warning

    I MPORTANT SAFETY INFORMATION (continued) Liquids spilt into the unit can cause serious damage. Switch the set OFF and disconnect the mains power supply, then consult a qualified service person before attempting to use the unit again. Do NOT remove the safety covers. There are no useable or serviceable parts inside. You may invalidate the warranty.

  • Page 6: Product Introduction

    Product Introduction Front View Led Indicator & Remote Control window SWITCH (Keep clear) Turn on/off the power supply. The functions of the TV buttons are described below. MENU Press to display the OSD menu, Press again to exit the menu. CH-/CH+: Press to scan through channels.

  • Page 7: Connecting External Devices

    Connecting external devices (continued) Common Interface: CI slot. RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal. MINI AV: Connect it to the audio & video output terminals of DVD with the Converter cable. (Audio terminals are shared with YPbPr) MINI YPbPr: Connect it to the YPbPr video output terminal of DVD with the Converter cable.

  • Page 8: Remote Control

    Remote control The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER POWER: Turn the TV on/standby. PICTURE: Select the picture mode.

  • Page 9: Basic Operation

    Basic Operation Basic Operation Power on/off 1. Connect to the power supply with the power cord and turn on the switch 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Input Source Press POWER button on the TV or remote control.

  • Page 10: Osd Menu

    OSD Menu OSD Menu 1. CHANNEL menu Description Auto Scan Press OK button to enter the hint menu, and select the Country and Tune Type mode for the TV, then press OK button to start auto tuning. DTV Manual Tuning Press OK button to enter the DTV Manual Tuning menu, select a DTV channel, and press OK button to start searching.
  • Page 11 OSD Menu OSD Menu Programme Edit Press OK button to enter the Programme Edit menu as the following picture. Rename Delete: Select a channel and press RED button, “Delete” will appear on the right of the program edit menu next to the channel you have chosen, then press RED button again, the program will be deleted.

  • Page 12: Picture Menu

    OSD Menu OSD Menu 2. PICTURE menu Description Picture Mode: Choose from Standard, Dynamic, User and Mild. Note: Contrast, Brightness, Color and sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings. Contrast: Controls the difference between the brightest and darkest regions of the picture.

  • Page 13: Sound Menu

    OSD Menu OSD Menu 3. SOUND menu SPDIF MODE Description Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User. Treble(Could be adjusted when the sound mode is User): Controls the relative intensity of higher pitched sounds. Bass (Can be adjusted when the sound mode is set to User): Controls the relative intensity of lower pitched sounds.

  • Page 14: Time Menu

    OSD Menu OSD Menu 4. TIME menu No Action Auto Standby Time Zone Western Austr.. Description Clock: Use the buttons to select the position, and use the buttons to set the time. Note: User can not change time manually during DTV mode, for time is from signal source directly.

  • Page 15: Option Menu

    OSD Menu OSD Menu 5. OPTION menu OSD Duration Description OSD Language: Allows you to select menu language. Audio Language 1st/2nd (can be selected in DTV mode): Allows you to select first and second audio language. Subtitle Language 1st/2nd (can be selected in DTV mode): Allows you to select first and second subtitle language.

  • Page 16: Lock Menu

    OSD Menu OSD Menu 6. LOCK menu Hotel model Description Lock System: Turn on/off the Lock System function. Note: You should enter the code to operate the menu.(original code is 0000) Set Password: Set pin code. If the Pin code has been changed you must enter the present code.
  • Page 17 OSD Menu OSD Menu 7.Hotel Mode Input Source CADTV SCART YPBPR DVB-S HDMI...

  • Page 18: Multimedia Operation

    Multimedia Operation Multimedia Operation Basic Operation 1). Press the INPUT button on the remote control to display the input source menu, select USB source by the buttons, and press OK button to enter the Multimedia menu seen below. Input Source CADTV SCART YPBPR...
  • Page 19 Multimedia Operation Multimedia Operation 1. Photo Play the photo Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Music: Play/pause the music program (you can only play or pause the music you have programed). Playlist: Display the playlist on the screen, and you can select the photo by button, and press OK button to program.
  • Page 20 Multimedia Operation Multimedia Operation 3. Movie Play the movie Goto Timer Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Set A-B: Select and play the preferable paragraph of the program by seting A and B at the beginning and end, and there will be a sign on the left screen, press OK button again to cancel.

  • Page 21: Recording Operation

    Recording Operation Recording Operation PVR settings Press the MENU button, and select CHANNEL menu. Recording Timer 1). Recorded List Channel Recorded list: Display the Recorder List menu. INFO: Display the information of the program you recorded. RED button: Delete the program you select. 2).
  • Page 22 Recording Operation Recording Operation 3). Schedule List Display the recorder shedule Note: a. Could’t add shedules which have existent on the list; b. Could’t add shedules when the list is full, you have to delete some schedules; c. You could delete a schedules by RED button on the remote control. 4).
  • Page 23 Recording Operation Recording Operation 5) Record Start When you finish the settings above, you could start recording by select Start Recording in the menu and press OK button in DTV mode. (You can also start recording by press the REC button on the remote control) Record buttons REC( Recording): Press to enter the recording mode.

  • Page 24: Dvbs Operation

    DVBS Operation 1 Main Menu All the important settings and features of your receiver can be operated in Main Menu . The Main Menu consists of four sub-menus which are " Installation" , “ System setting ”, " Channel Organizer " and "Multimedia" . Press the MENU key when the menu is off, The MAIN MENU screen will appear 1.1 Installation...
  • Page 25 1.1.1.2 Transponder You can select the current Transponder or add the new Transponder. 1.1.1.3 Local Frequency You can change the local frequency. Note: You must press OK to save this local frequency when the cursor is on the Local Frequency item before you select another satellite. 1.1.1.4 22K Tone You can change the 22k tone.
  • Page 26 Move the curser to Back or Next button and press OK to exit the submenu to the last menu. When you select DiSEqC1.2: Press OK to enter the submenu of the Adjust Antenna. Press UP/DOWN to move the curser to the item of the Transponder. Press LEFT/RIGHT to select the current transponder.
  • Page 27 1.1.2 Auto Scan Press UP/DOWN key to move the curser to the satellite you want to select, and press OK to mark or unmark. Press the RED button to scan all channel of the marked satellite. Press the GREEN button to Blind Scan the marked satellite.

  • Page 28: System Setting

    1.1.3.3 Polarity You can select the polarity. 1.1.3.4 Symbeol Rate You can select Symbol Rate. 1.1.3.5 NIT Searching You can select the NIT Searching. 1.1.3.6 Free You can select the free mode. 1.2 System setting In this menu, you can configure the systems such as language Setting, OSD style, Parental Control, TV Settings, Time Setting and System Update.
  • Page 29 1.2.1.5 Time Setting Press OK go to Time Setting below: If a broadcaster provides GMT , you can set the time using GMT , or set your own time by yourself. If the GMT usage is ON then the Current time is set automatically or you can set the time zone.
  • Page 30 Change PIN Modifying the PIN. You must enter the 4 digits PIN and confirm it again; the system PIN will be changed into the new PIN as show on. 1.2.3 System Update In this menu, you can select “ Update by OTA ”, “ Update by DEV ” Update by DVBS You can update your STB software by USB.
  • Page 31 1.2.4 System info The system information displays information about your receiver such as software hardware and date. 1.2.5 Timer You can set the timer to make the receiver perform designated actions. Use the UP/DOWN buttons to select timer. Press the LEFT/RIGHT key to activate/inactivate current timer.
  • Page 32 1.3 Channel Organizer In the MAIN MENU screen, press UP/DOWN to move the cursor to Channel Organiser, and then press OK to enter the Channel Organizer menu. The Channel Organizer menu consists of three sub-menus; “ Channel Manager” , “Favorites Manager”...
  • Page 33 Edit (YELLOW button) Select the channel that you wish to edit, press the YELLOW (Edit) button to move into the modify program menu. In this menu, you can modify the Program Name, Frequency, Symbol rate, Video PID, Audio PID. If you want to rename the channel, use the UP/DOWN keys to select “program Name ”...
  • Page 34 1.3.2 Favorites Manager Press the UP/DOWN keys to select the channel. Press the LEFT/RIGHT keys to select the favorite group. Press the OK button to add the selected channel to the Favorite group. To remove the channel from the favorite group, repeat same operation.
  • Page 35 1.4.1 My Album Select “My Album ” , press the OK key, then press BLUE key. Use the keys to select a picture by thumbprint. To change Folder press the Blue key. Press the OK key to play selected picture full screen.
  • Page 36 1.4.4 Gomoku Line up the balls against the computer. Options include Move First, Move Later, Human; Easy and Normal. 1.5 Calendar View Calendars month by month from the year 1900 to 2100. Starts by highlighting today. Find out what day of the week you were born. 2.Other operation functions 2.1 Program List In normal operation status (no menu operation),...
  • Page 37 Press YELLOW button to sort program by Free-Pay. to select easy program you want. Press BLUE button to go back the screen before sorted. 2.2 System Information In normal operation status (no menu operation), press INFO button, Program Information menu will appear on screen. In this menu, the user can view the current program information.
  • Page 38 You can set up the event timer by pressing RED key in the EPG schedule screen. To set up an timer event: 1.Press UP/DOWN to move the cursor to the event for which you want to add a timer. 2.Press RED key to add a timer. shows you current event timer information based on the event you have chosen.

  • Page 39: Trouble Shooting Guide

    USER GUIDE TROUBLE SHOOTING GUIDE To assist in locating possible faults use the help guide below. No Picture, no sound Check that the TV is correctly plugged in. Check that the TV is connected to a suitable power source. Check the electrical supply is turned on. No Picture Ensure that the TV is powered on.

  • Page 40: Technical Specifications

    TECHNICAL SPECIFICATIONS Specifications of the TV that you have just purchased may vary from the information in this table due to technical innovations. TV Specifications TV System PAL / BG / DK / I; SECAM BG/DK/L’L Audio System BG / DK / I SECAM L/L’ Screensize 21.6”(Diagonal) Resolution...
