Summary of Contents for LENCO LED-2217

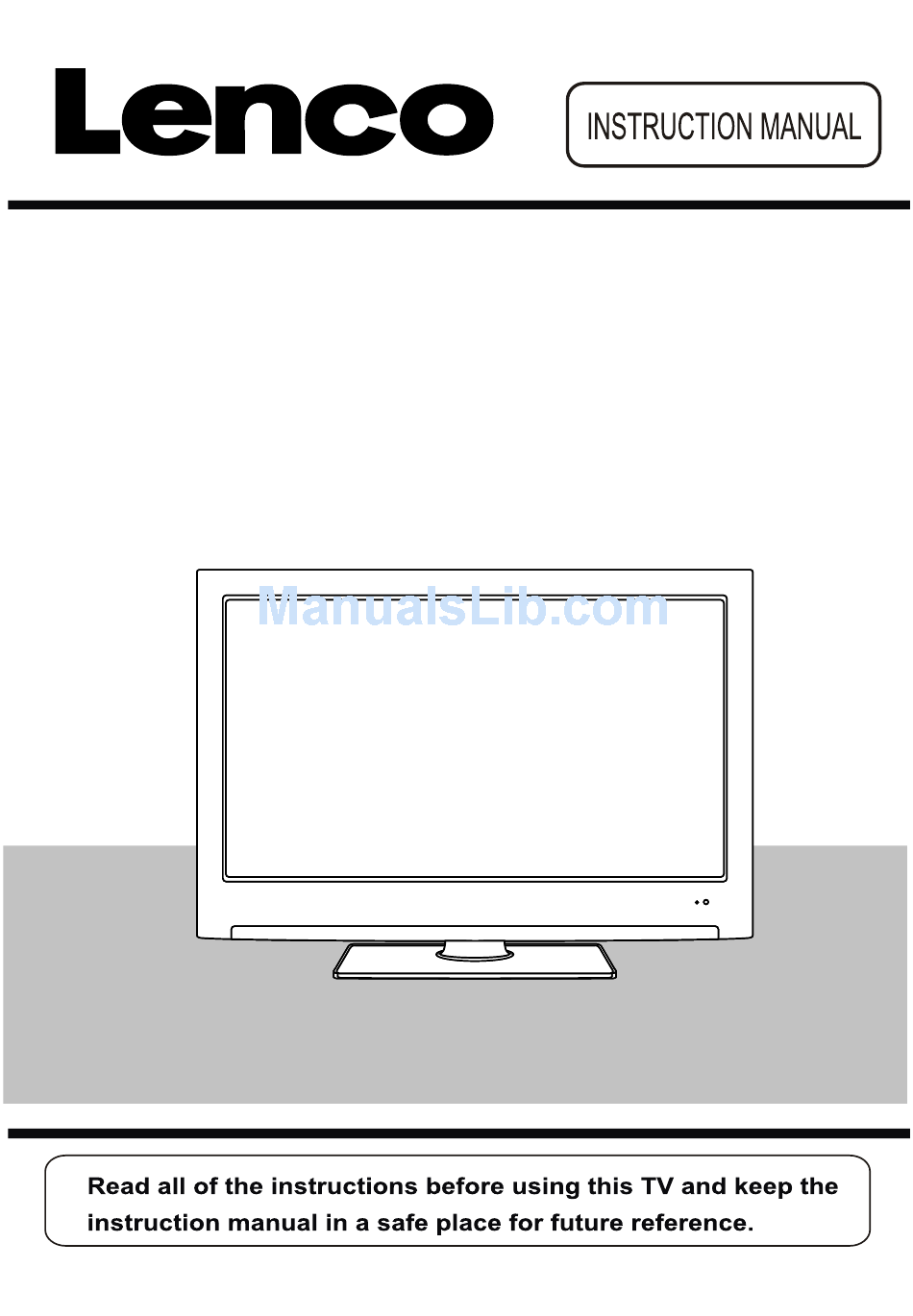

- Page 1 55.5cm (22”) Full HD LED TV WITH DVB-S2,H.264,DVB-T/C AND CI Model No.: LED-2217 For information and support, www.lenco.eu...
-
Page 2: Table Of Contents
Contents SAFETY INFORMATION ......................3 Headphone Warning ............................... 4 Where to install ................................4 LED Screen..................................4 Unit and Accessories ........................5 Getting Started.........................5 Front view..................................5 Remote Control ........................6-7 Aerial connection ........................8 Connecting the TV Antenna ............................8 Connecting external devices ....................8 HDMI Lead .................................. - Page 3 LOCK menu................................... 25 Multimedia Operation......................26 Basic Operation ................................26 1. Photo ..................................27 2. Music ..................................27 3. Movie ..................................28 4. Text ................................... 28 Recording Operation ......................... 29-31 DVD Operation ......................... 32-39 TROUBLE SHOOTING GUIDE ....................40 TECHNICAL SPECIFICATIONS ....................40 cations ................................
-
Page 4: Safety Information
Introduction Thank you for purchasing this LED TV which has been designed and manufactured to give you many years of trouble free service. You may already be familiar with using a similar product but please take time to read these instructions which have been written to ensure you get the very best from your purchase. -
Page 5: Headphone Warning
This unit has been produced according to all current Do not allow water or moisture to enter the TV. Do safety regulations. The following safety tips should NOT use in wet or moist areas such as Bathrooms, safeguard users against careless use and the dangers steamy kitchens or near swimming pools. -
Page 6: Unit And Accessories
Unit and Accessories Getting Started Front view POWER MUTE REC LIST CH/LIST SUBTITLE REPEAT TV/AV DISPLAY MENU EXIT INPUT PICTURE SOUND SLEEP SCREEN MENU TV/TXT CANCEL REVEAL NICAM/A2 HOLD SIZE SUBPAGE INDEX TV set Remote Control Batteries VOL+ for Remote VOL- Control POWER... -
Page 7: Remote Control
Remote control The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER: Turn the TV on/standby. MUTE: Press to mute the sound, press again or press VOL+ to unmute. - Page 8 Remote control (continued) REC LIST CH/LIST SUBTITLE REPEAT INPUT DISPLAY MENU EXIT CH / : Scan through channels. VOL / : Adjust the volume. PICTURE: Select the picture mode. EPG: To show the Electronic Program Guide during no-menu state only in DTV mode. SOUND: Select the sound mode.
-
Page 9: Aerial Connection
Installing Batteries in the Aerial connection Remote Control WARNING! ENSURE THE TV AND ALL ANCILLARY 1. Remove the battery compart- EQUIPMENT IS UNPLUGGED FROM THE MAINS BEFORE ment cover at the rear of the MAKING ANY CONNECTIONS! remote control by pushing the retaining clip forward and Connecting the TV Antenna pulling up. - Page 10 Connecting external devices (continued) Output t Common Int fac Output t MINI MINI POWER HDMI SCART PC-IN YPbPr Converter cable audio USB device Satelliten Receiver oder Blue-Ray DVD...
-
Page 11: Connections
Connecting external devices (continued) VGA, HDMI PC Connection Use a PC-VGA cable (not supplied) to connect the TV to CONNECTIONS your PC. You can also use an HDMI cable to connect to your PC (if your PC Graphic card supports HDMI). When Name Function Description the HDMI cable is used, the PC audio cable is no longer... -
Page 12: Connecting An Audio System
Connecting Video camera and Video recorder Connecting an audio system You can supply the TV sound to the stereo system (A) with Video camera the Scart socket. Use a special Scart cable SCART to RCA. Connect the AV cable to the TV and to the video cam- (Please consult y structions for details). -
Page 13: Coax Connection
COAX Connection SCART Connection TV Back MINI MINI DVB-S2 POWER HDMI SCART PC-IN YPbPr Coax Cable cable VCR Back Connect t evice to the COAX output jack on the TV. Connect the SCART connect to the ext and the SCART connect V. -
Page 14: Av Connection
AV Connection TV Back MINI MINI HDMI SCART PC-IN YPbPr Audio and video cable (RCA) Mini audio and video transfer cable DVD or VCR back DVD or VCR Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the TV set using the RCA cable. Match the jack colors: Video is yellow, Audio left is white, and Audio right is red. -
Page 15: Common Interface Slot
Common Interface Slot Auto installation setup USING YOUR COMMON INTERFACE SLOT Power On / Off the LED TV Common Interface To turn on the LED TV The Common Interface (CI) slot is designed to accept Press the power button on the LED TV or the POWER but- the Conditional Access Module (CAM) and Smart Card ton on the remote control, the standby indicator will light in order to view the pay TV programmes and additional... -
Page 16: Installation Menu Operation
ATV will install an Analogue Television cable service INSTALLATION MENU OPERATION DTV will install a Digital Terrestrial Television service (DVBT) INSTALLATION GUIDE During the channel search this menu is displayed show- When powering up f rst time the Installation Guide ing the progress. -
Page 17: Tv Settings Menu
SATELLITE / DISH SETTINGS TV SETTINGS Menu Input Source CADTV SATELLITE SCART YPbPr HDMI DIGITAL CABLE (DVBC) SETTINGS All the above installations can also be accessed through the Main Menu system. In the TV Settings menu. To access the correct service you need the TV to be in the correct mode, ATV, DTV, cable or Satellite. - Page 18 Unlike QUICKSTART the satellite search will search the You can manually tune CADTV channels in the TV SET- whole satellite for channels and will not be instant. TINGS menu. Also the channels will appear in the order on the satellite Frequency and not the pre-set order.
-
Page 19: Programme Edit
PROGRAMME EDIT Dish Setup 1. If you do not hav xed dish aligned to Astra 19.2E ted with universal LNB you will need to use this section. 2. If you hav ed Dish aligned to a different Satellite or with a different LNB you will need to use this sec- tion. - Page 20 Press button to navigate to LNB section of the menu. Input Frame (On-screen keyboard) Select the LNB type and settings for your second LNB and switch settings. Press the blue Key to search the satellite channels. A full description of the advanced Dish set up for multiple satellites using DiSEqC switches and DiSEqC positioner follows.
- Page 21 Transponder List Add Transponder The list shows the transponders for the selected satellite. Press RED button to enter the add transponder menu. No. Can not be manually edited. Frequency: Set the downlink frequency. Symbol (ks/s): Set the Symbol Rate. Polarity: (H/V) Dish Parameter description LNB Type: LNB Frequency Edit Transponder menu...
- Page 22 Highlight the LNB Type , and use the buttons and Ok KHz: The level of the LO switch / DS switch ( Require to enter submenu then you c rameters. the user to have installed 22KHzSatellite signal switch). Press to select Auto/On/Off. Auto: Automatically issued 22 KHz pulse signal to control switching.
- Page 23 Press RED button to enter “Set Limit” and Mot as “DiSEqC1.3” “Set Limit’ menu same. Move Continue: Control of the east or the west continued to turn the polar axis to the desired position. Move Step: Control of the east or wes xed polar axis step rotation.
-
Page 24: Menu Settings
Move Auto: East or west of Automatic Control continued MENU SETTINGS to turn the polar axis to the desired position. Move Continue: Manual control of the east or the west Picture menu continued to turn the polar axis to the desired position. Move Step: Control of the east or wes xed polar axis step rotation. -
Page 25: Sound Menu
SOUND menu On Time: Press OK button to enter the submenu, you could set the time when the TV set will be turned on automatically, you could also set the frequency, volume and program. Sleep Timer: Allows you to setup the sleep timer among: 10min, 120min,180min, 240min and off. -
Page 26: Lock Menu
LOCK menu The password must be entered to access the Lock Menu. The default password is 0000. Once inside the menu you can change the password to your own choice. Channel lock is used to block selected Channels Parental Guidance blocks programmes according to their parental level. -
Page 27: Hotel Mode
7.Hotel Mode Input Source CADTV SATELLITE SCART YPbPr HDMI... -
Page 28: Multimedia Operation
Multimedia Operation Basic Operation 1). Press the INPUT button on the remote control to display the input source menu, select USB source by the buttons, and press OK button to enter the Multimedia menu seen below. Input Source CADTV SATELLITE SCART YPbPr HDMI... - Page 29 Multimedia Operation 1. Photo Play the photo Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Music: Play/pause the music program (you can only play or pause the music you have programed). Playlist: Display the playlist on the screen, and you can select the photo by button, and press OK button to program.
-
Page 30: Movie
Multimedia Operation 3. Movie Play the movie GOTO Time Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Set A-B: Select and play the preferable paragraph of the program by seting A and B at the beginning and end, and there will be a sign on the left screen, press OK button again to cancel. -
Page 31: Recording Operation
Recording Operation PVR settings Press the MENU button, and select CHANNEL menu. Recording Timer 1). Recorded List Display the recorded list Recorded list: Display the Recorder List menu, and changed the mode of program. INFO: Display the information of the program you recorded. RED button: Delete the program you select. - Page 32 Recording Operation 3). Schedule List Display the recorder shedule Note: a. Could’t add shedules which have existent on the list; b. Could’t add shedules when the list is full, you have to delete some schedules; c. You could delete a schedules by RED button on the remote control. 4).
- Page 33 Recording Operation 5) Record Start When you finish the settings above, you could start recording by select Start Recording in the menu and press OK button in DTV and DVBS mode. (You can also start recording by press the button on the remote control) Record buttons Recording: Press to enter the recording mode.
-
Page 34: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE To assist in locating possible faults use the help guide below. No Picture, no sound Check that the TV is correctly plugged in. Check that the TV is connected to a suit- able power source. Check the electrical supply is turned on. ted securely. - Page 35 I LENCO II LED-2217 55,5...
