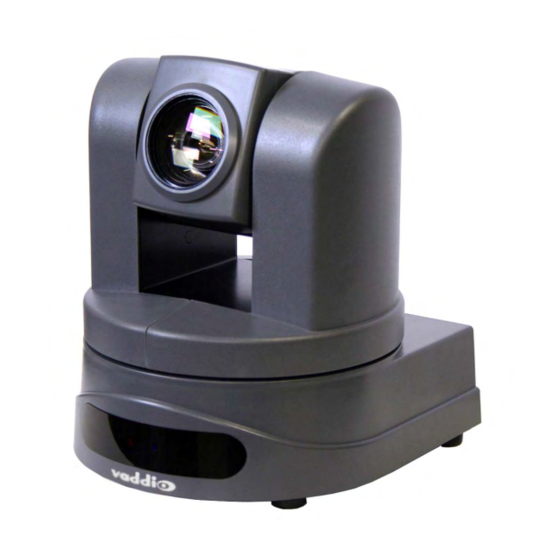

ClearVIEW™ HD-USB PTZ
USB, H.264 and Analog HD Pan/Tilt/Zoom Conferencing Camera
Part Numbers:
999-6990-000 - North America
999-6990-001 - International
© 2012 Vaddio - All Rights Reserved. ClearVIEW HD-USB PTZ Conferencing Camera - Document Number 342-0437 Rev B
Installation and User Guide
Camera Software Revision 1.2.0
Advertisement
Table of Contents
Related Manuals for VADDIO ClearVIEW 999-6990-000
Summary of Contents for VADDIO ClearVIEW 999-6990-000

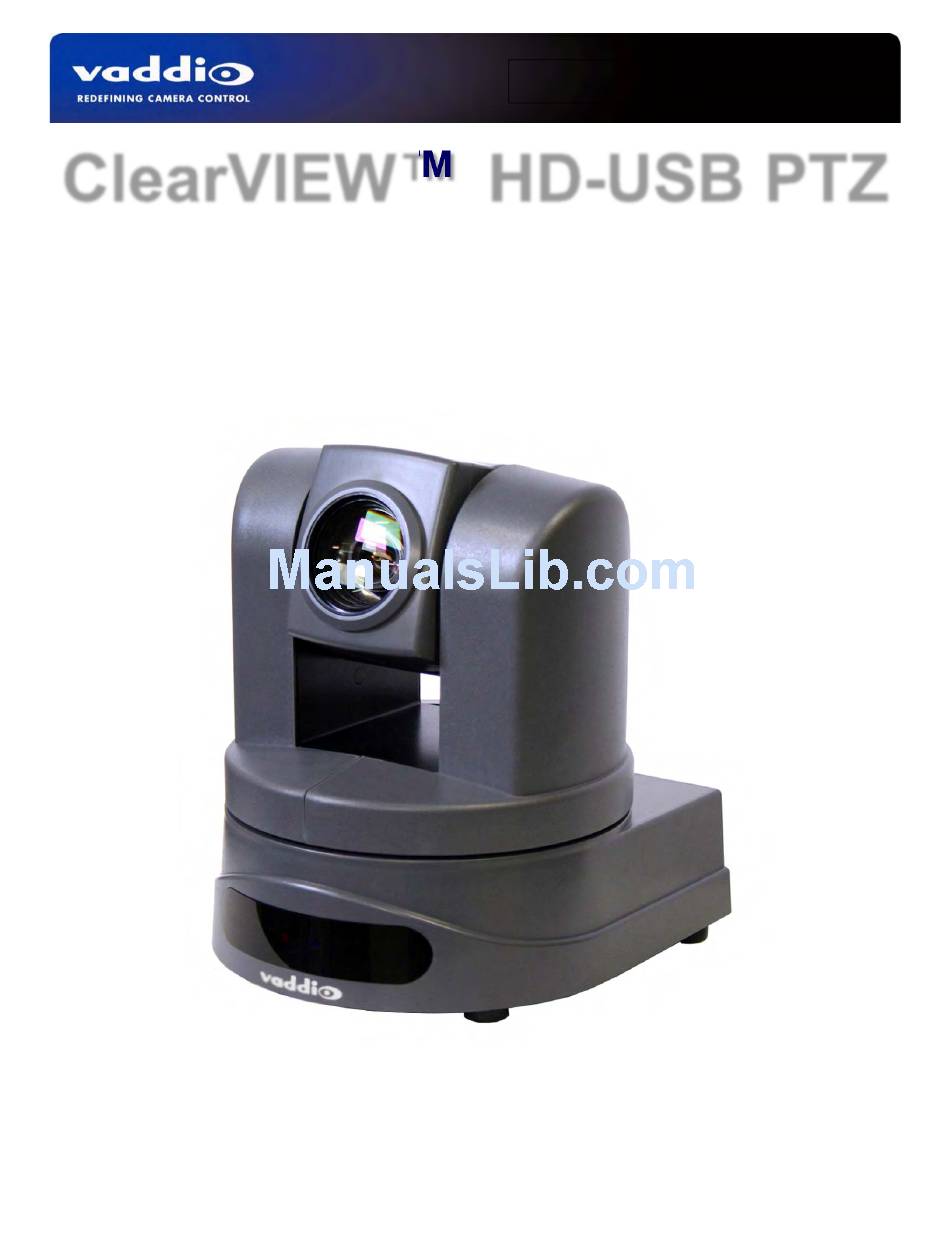

- Page 1 ClearVIEW™ HD-USB PTZ USB, H.264 and Analog HD Pan/Tilt/Zoom Conferencing Camera Part Numbers: 999-6990-000 - North America 999-6990-001 - International © 2012 Vaddio - All Rights Reserved. ClearVIEW HD-USB PTZ Conferencing Camera - Document Number 342-0437 Rev B Camera Software Revision 1.2.0...
-
Page 2: Table Of Contents
ClearVIEW HD-USB Conferencing Camera Table of Contents ClearVIEW HD-USB PTZ Conferencing Camera ...................... 4 Diagram: Front View with Feature Call-outs: ....................4 Diagram: Rear View Connectors with Feature Call-outs: ................. 5 First Time Set-up with the ClearVIEW HD-USB PTZ Camera .................. 6 ... - Page 3 Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. Do not connect Ethernet or Power over Ethernet (POE) cables directly to the RJ-45 ports on the device as damage may result.
-
Page 4: Clearview Hd-Usb Ptz Conferencing Camera
The information contained in this manual will help you install and operate your product. If these instructions are misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product drawings for the Vaddio product line on the Vaddio website. -
Page 5: Diagram: Rear View Connectors With Feature Call-Outs
ClearVIEW HD-USB Conferencing Camera ClearVIEW HD-USB PTZ Conferencing Camera Diagram: Rear View Connectors with Feature Call-outs: ④ ⑤ ③ ⑥ ② ① ⑦ ⑨ ⑧ ⑩ ⑪ ⑫ ⑬ Connectors and Functions: 1) 12 VDC Input: Power input on EIAJ-04 connector for local power. 2) HD Video Select: A rotary switch that allows the user to choose the component HD output video resolution and format. -
Page 6: First Time Set-Up With The Clearview Hd-Usb Ptz Camera
The lower row of connectors and the brains of the HD-USB Camera are located on this permanent slot card. The card is not removable and is not compatible with any other Vaddio camera. Please do not try to remove this card at any time. -
Page 7: Getting Started
ClearVIEW HD-USB Conferencing Camera Getting Started: Step 1: Using the HD Video Select Rotary Switch and Camera Settings Dip Switch on the back of the camera, set up the camera’s output resolution and functional preferences referencing a label on the bottom of the camera. HD Video Camera Settings 10-Pos Dip Switches Select Switch... -
Page 8: For Release 1.2.0 Of The Camera And Software, Only The Usb 2.0 Streaming Video Is Active
2) Real Player 3) VLC Media Player Other Compatibilities: As more UC soft-client and lecture capture programs are released and gain popularity, Vaddio will provide a continuing research and development effort to ensure the camera’s viability and compatibility with other manufacturer’s products. -
Page 9: Internal Web Pages And Control
To see the IP address for a longer than the 15 seconds at boot up, then… Screen 2) Pick up the Vaddio IR Remote Commander and find the Data Screen button. Button 3) Press and hold the Data Screen button on the remote for 4 seconds. -
Page 10: Static Ip Set-Up
ClearVIEW HD-USB Conferencing Camera Static IP Set-up: It is highly recommended that the Network Administrator and/or network personnel are involved on the Static IP set-up of the HD-USB camera. Please do not try to set the Static IP of the camera without help from network personnel…please? The static IP can be assigned either through the network or directly to a computer using a cross-over cable. -
Page 11: Screen Shot Tour
ClearVIEW HD-USB Conferencing Camera CREEN IP Camera Control page with functions called out below. ➐ ➏ ➊ ➋ ➌ ➍ ➎ Store Preset pop-up menu dramatization 1) Pan, Tilt and Home Controls: These intuitive controls use the up/down arrows for camera tilt, the left/right arrows for camera pan and the center button to move the camera to the home position. -
Page 12: Admin
ClearVIEW HD-USB Conferencing Camera Admin Pages: Clicking on the Admin link button will open the Log-in window. Enter the default password (password) on this line and click on Log-in. ◄ Password is: password After Login, the Admin link buttons are exposed and include Streaming, Labels, Networking, Security, Diagnostics, System, Help and Logout Admin. - Page 13 ClearVIEW HD-USB Conferencing Camera Room Labels: The room Labels menu allows the admin to label the company name, room name, room phone and help phone on a per camera basis. The labels appear on every page at the top/middle of the page. Simply enter the room information and click Save.
- Page 14 ClearVIEW HD-USB Conferencing Camera If Static IP is chosen, a new menu pops up where the Admin is to input the IP address, Subnet Mask and Gateway. Click on Save to keep the static IP information. ◄ ◄ ◄ By clicking on the Security link button, the Update Password screen is displayed. The default user password is blank and the User password is: password, and the user name is blank and ready to be set.
- Page 15 By clicking the Diagnostics link button, a set of self-diagnostics will be displayed. These diagnostics may help the Vaddio technical support team diagnose a problem with the HD-USB camera. The System link button is where the Firmware Updates will be loaded. There will be several firmware updates and upgrades over the life of the camera.
- Page 16 ClearVIEW HD-USB Conferencing Camera By clicking on “Show more…” the software versions are displayed. To update the firmware files, chose the appropriate file and click on Begin Firmware Update. When in doubt, call Vaddio Tech Support for assistance. ◄ ◄...
- Page 17 Please do not interrupt the firmware load. ◄ Service/Help information can be found under the Help tab. Support phone numbers and e-mail, manuals, FAQ’s and System information is listed on this page. Have this page open when calling Vaddio Tech Support. ◄ See next page for “Vertical”...
-
Page 18: Diagram: Basic Connectivity Example 1
ClearVIEW HD-USB Conferencing Camera Finally, the Vertical button at the top right of the camera control page reduces the size of the camera control window and drops the menu bars to allow the controls to be open and on screen along with any soft-codec application without taking up too much space. -
Page 19: Diagram: Connectivity Example 2
ClearVIEW HD-USB Conferencing Camera Diagram: Connectivity Example 2: This example uses the HD-USB PTZ Camera and Vaddio’s EasyTalk™ USB Mixer/Amp, two (2) Echo Cancelling EasyMic™ MicPODs and Two (2) Bose Ceiling Speakers to create a complete room system using programs such as Skype®, Jabber®, Google+®, Microsoft Lync®... -
Page 20: Diagram: Connection Diagram Example Using A Cdn (For Release 2.0 When Ip Is Enabled)
The systems will negotiate the highest resolutions possible, depending on the computer speed, network quality, cabling etc..., and display the video signal of the camera. The camera can be controlled with the supplied Vaddio IR Remote Commander or through IP as described earlier through the cameras web pages. Make a test call to ensure the system is working properly. -
Page 21: Vlc Media Player Example
CIF, 640x480 (VGA), 576p, 720p/30 1080p/30 (1080p Ethernet H.264 only) (Release 2.0.0) User Control Vaddio IR Remote Commander, On Screen Display for camera set-up, RS-232, Ethernet (web page) Supported Media Players Apple Quick-Time, VLC Media Player and Reel Player Supported Browsers Internet Explorer 8 &... -
Page 22: Compliance And Ce Declaration Of Conformity: Clearview Hd-Usb Ptz Camera
Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. ICES-003 Compliance... -
Page 23: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 24: Appendix 1: Rs-232 Communication Specification
TXD (to RXD of control source) NOTE: The Vaddio ClearVIEW HD-USB Control Protocol is similar, but not identical to the Sony® VISCA™ command set and is not compatible with Vaddio Joysticks. This is an abbreviated Command set intended to give external control systems basic control over the camera. -
Page 25: Firmware Version 1.2.0 Release Notes
WebEx Compatibility: The video compatibility problem between HD-USB and WebEx has been resolved with a new software release of the WebEx client. Version WBS 28.7 and above is compatible with Vaddio USB devices. Improved Interoperability with Various UC software Clients:... -
Page 26: Table: Supported Uvc Resolutions
ClearVIEW HD-USB Conferencing Camera Table: Supported UVC Resolutions Format Resolution Frame Rate Aspect Ratio MJPEG 1280 x 720 15/30 16:9 960 x 544 15/30 16:9 704 x 576 15/30 640 x 480 15/30 640 x 360 15/30 16:9 424 x 240 15/30 352 x 240 15/30... -
Page 27: Appendix 2 - Telnet Serial Command Api
ERIAL OMMAND The Vaddio Serial Command protocol is a high level text based command line interface supported via telnet session on the ClearVIEW HD-USB PTZ Camera. The Vaddio Serial Command protocol is not supported on the RS-232 port. The RS-232 port is dedicated for VISCA commands only. The command application protocol interface is intended to allow external device such as AMX and Crestron to control the camera. - Page 28 ClearVIEW HD-USB Conferencing Camera Camera Preset NAME camera preset - Recall and set camera presets SYNOPSIS camera preset {recall|store} [1-6] DESCRIPTION Method used to recall and store camera presets OPTIONS recall Recall preset store Store preset preset Required value from 1-6 used to indicate the preset number ...
- Page 29 ClearVIEW HD-USB Conferencing Camera Exit NAME exit - ends the current API command session SYNOPSIS exit DESCRIPTION Exit ends the current API command session. If the session is over telnet, the session is ended and the socket is closed. If the session is over serial, a new session is started.
- Page 30 ClearVIEW HD-USB Conferencing Camera Network Settings NAME network settings - get current network settings SYNOPSIS network settings {get} DESCRIPTION Method used to get the current network settings of the device OPTIONS get Get the current network settings for the machine ...
- Page 31 ClearVIEW HD-USB Conferencing Camera Streaming Mode NAME streaming mode - Gets or sets the current streaming mode SYNOPSIS streaming mode {get|usb} DESCRIPTION Method used to get or set the current streaming settings OPTIONS get Get the current streaming mode Set the current streaming mode to USB ...
- Page 32 ©2012 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, ClearVIEW, EZCamera, EasyTalk, EasyMic, EasyUSB and PowerRite are trademarks of Vaddio. All other trademarks are property of their respective owners.
