- Page 1 LED Studiobeam ORDERCODE 42444...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED StudioBeam Product Guide ™ Warning.................…...……………..…………………………….………..….. Safety-instructions………………………………………………………………………………………………………… Operating Determinations.……………………………………………………………………………………………… Rigging.……………………………………………………………………………………………………………………… Description................…...………………………………………….………..…. Features and Overview ………………………………...….……………….………….……….……….……………… Set Up and Operation..............……..…………………………………………….… Control Modes……………………………………………………………………………………………………………... DMX Channels.................……………………………………………………..… Maintenance...................………..………….…….………………………..Troubleshooting................………………….………………….………………... No Light..…………………………………..........………………….………………………..…….. Product Specifications..............……………….…….………………………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Always let the installation be carried out by an authorized dealer ! Procedure: If the LED StudioBeam is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the LED StudioBeam, with the mounting-bracket, to the trussing system. -
Page 7: Description

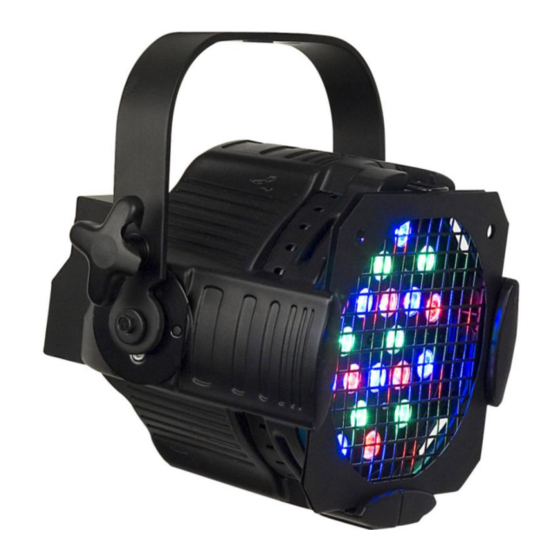

Description of the device Features The Showtec LED Studiobeam is a LED parcan with high output and great effects. • Never change lamps again! • 24 LEDs 1W powerLEDs (8 Red, 8 Green, 8 Blue) • 7 DMX channels (R, G, B, Colors, Strobe, Sound-active and Dimmer) •... -
Page 8: Set Up And Operation
Damages caused by non-observance are not subject to warranty. Control Modes 1. AUTO Mix Color Mode When dipswitch #9 and #10 are turned on, the LED Studiobeam is in AUTO Mix Color Mode. - Dipswitches #1 - #7 control the changing speed. 2. Sound Control Mode When dipswitch #10 is turned on, the parcan will automatically change its color to the beat of the music. -
Page 9: Dmx Channels
DMX dipswitches. You need to know that DMX address settings are the sum of the dip switch values. A standard DMX address for a Showtec LED Studiobeam, which has 7 channels is as follow: Example LED StudioBeam Address Value DMX Dip Switches "ON"... -
Page 10: Maintenance
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the LED Studiobeam, as this may damage the unit and the warranty will become void. -
Page 11: Product Specifications
Product Specification Model: Showtec LED Studiobeam Voltage: 240V-50Hz (CE) Power: 40W Fuse: T 500mA at 230V 24 1W LED, 8 x red, 8 x green, 8 x blue LED Lifetime according to use > 50.000 hours Reflected beam angle 15°...
