The Harmonizer
Vfader Module

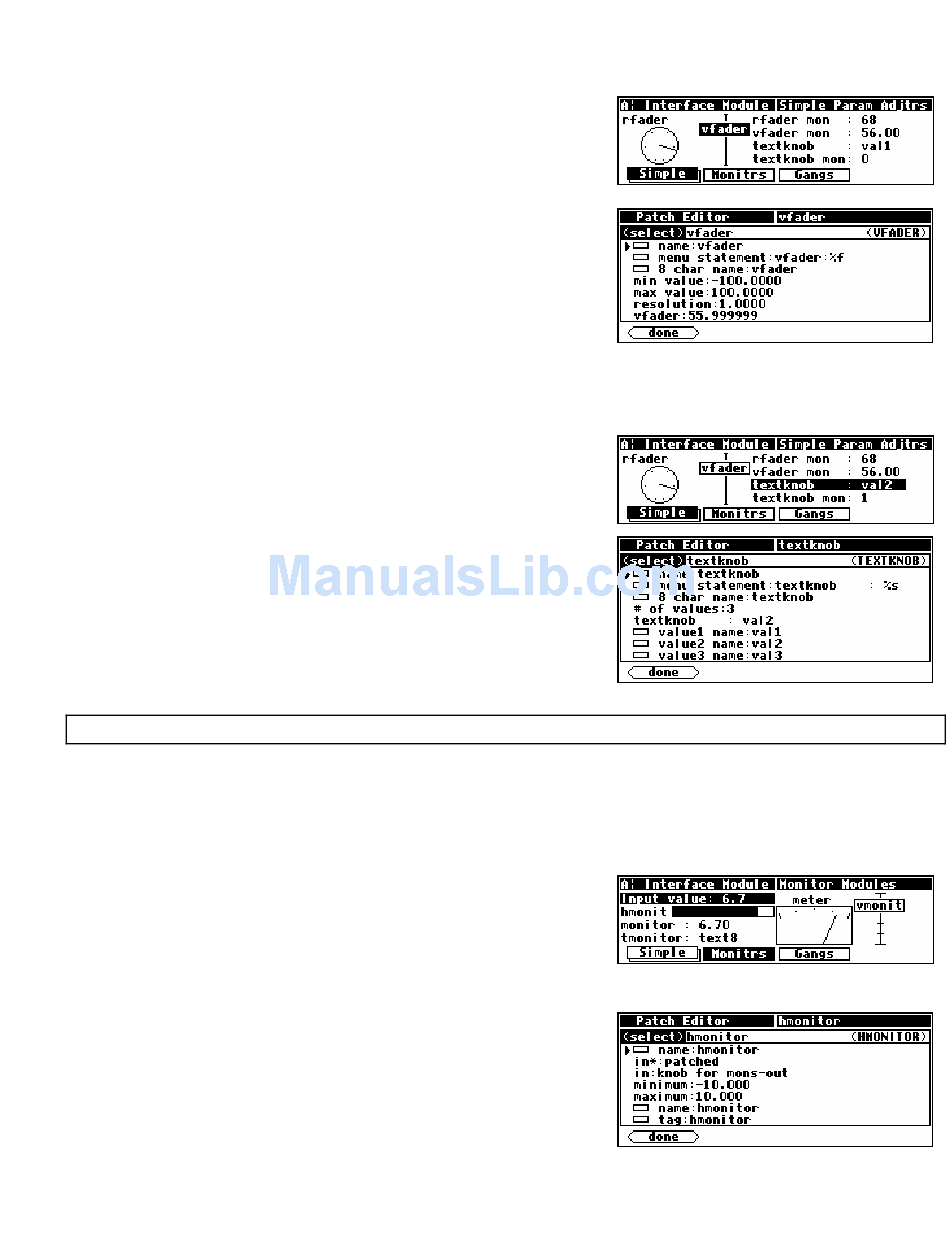

The vfader module creates a graphic on the
screen. The graphic, including title, takes up four lines of the
screen and one sixth of the width of the screen. Up to six of
these modules can fit on one menu page.
8 char name
Six characters of the
as a title. Refer to the Modules Section for complete
information.
Textknob Module
The textknob module creates a multiple choice selection in a
single line by half screen width area of a
menu page.
The choices appear in place of the
statement 8 char name
. The
userobject is connected to the head module. The control
output reflects which selection is made. If the 1st selection is
made the output will equal 0. If the 3rd selection is made, the
output value will equal 2. Refer to the Modules Section for
complete information.
Just as "parameter adjuster" modules are used to generate control signals and are displayed as
parameters in
PARAMETER
control signals and may be displayed on those same menu pages.
Graphical Control Signal Monitors
There are five different monitor modules. Three of these, the
hmonitor, meter, and vmonitor modules, produce
graphical displays. The screen to the right
Interface Modules
from the "
graphical monitors
(among others)
Each of the graphical control signal monitor modules has a
control signal input and four specifiers:
name tag
and .
•
minimum
sets the lowest value that may be indicated by
the monitor.
•
maximum
sets the highest value that may be indicated by
the monitor.
