Front

Printer parts

Printer parts
Front ...................................................................................................................................................................................... 430
Side ........................................................................................................................................................................................ 431
Top Cover (Inside) ........................................................................................................................................................... 432
Roll Cover (Inside) ........................................................................................................................................................... 433
Carriage ............................................................................................................................................................................... 433
Ink Tank Cover (Inside) .................................................................................................................................................. 434
Stand ..................................................................................................................................................................................... 435
Control Panel ..................................................................................................................................................................... 396

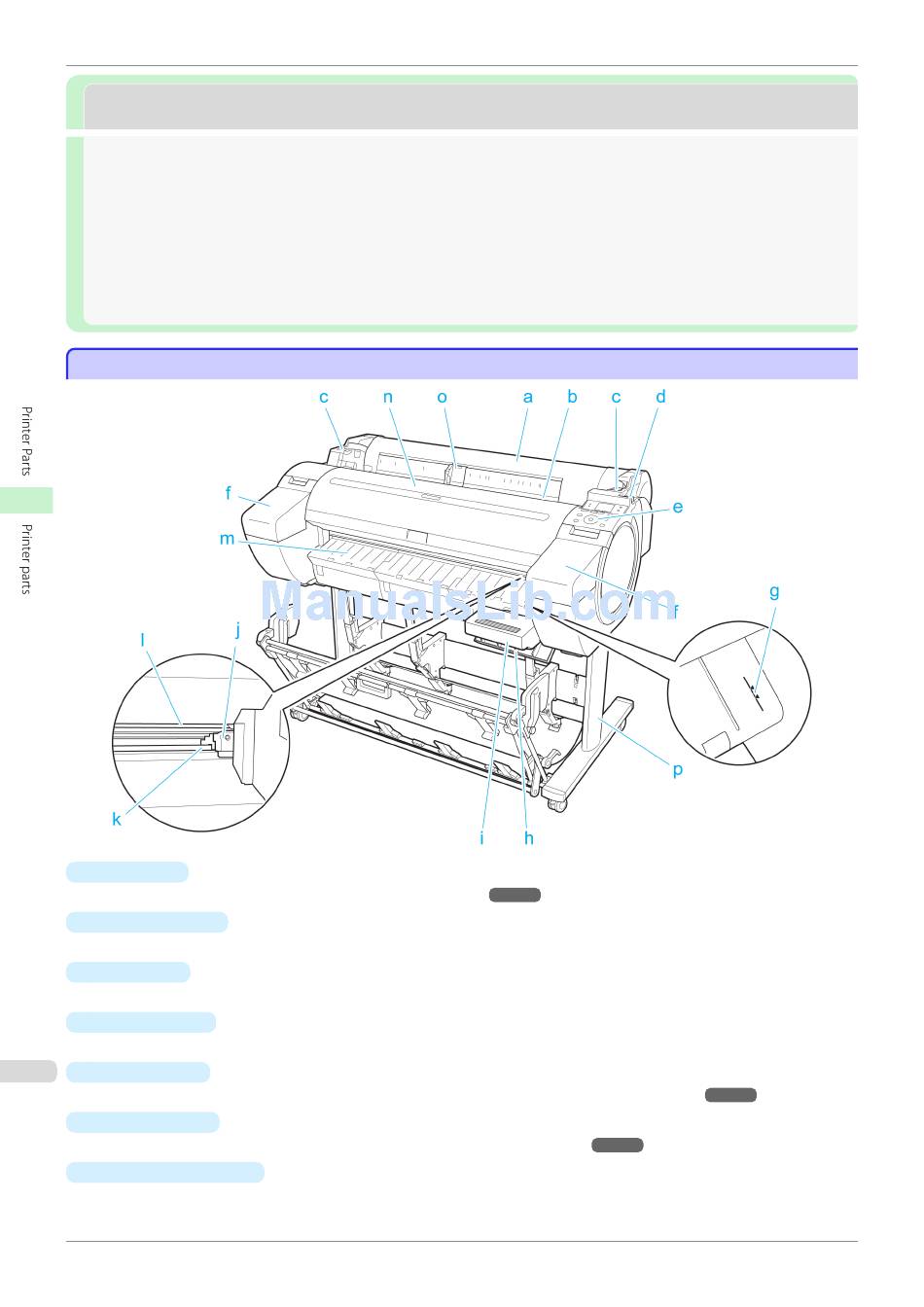

Front

Front
a Roll Cover
Open this cover to load rolls. (See "Roll Cover (Inside).")
b Paper Feed Slot
When loading paper, insert it here.
c Roll Ledge
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder Slot.
d Release Lever
When releasing the Paper Retainer, push this lever back.
430
e Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.")
f Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).")
g Paper Alignment Line
An orange line for alignment of paper.
P.433
➔
P.434
➔
iPF780
P.396
➔
User's Guide
