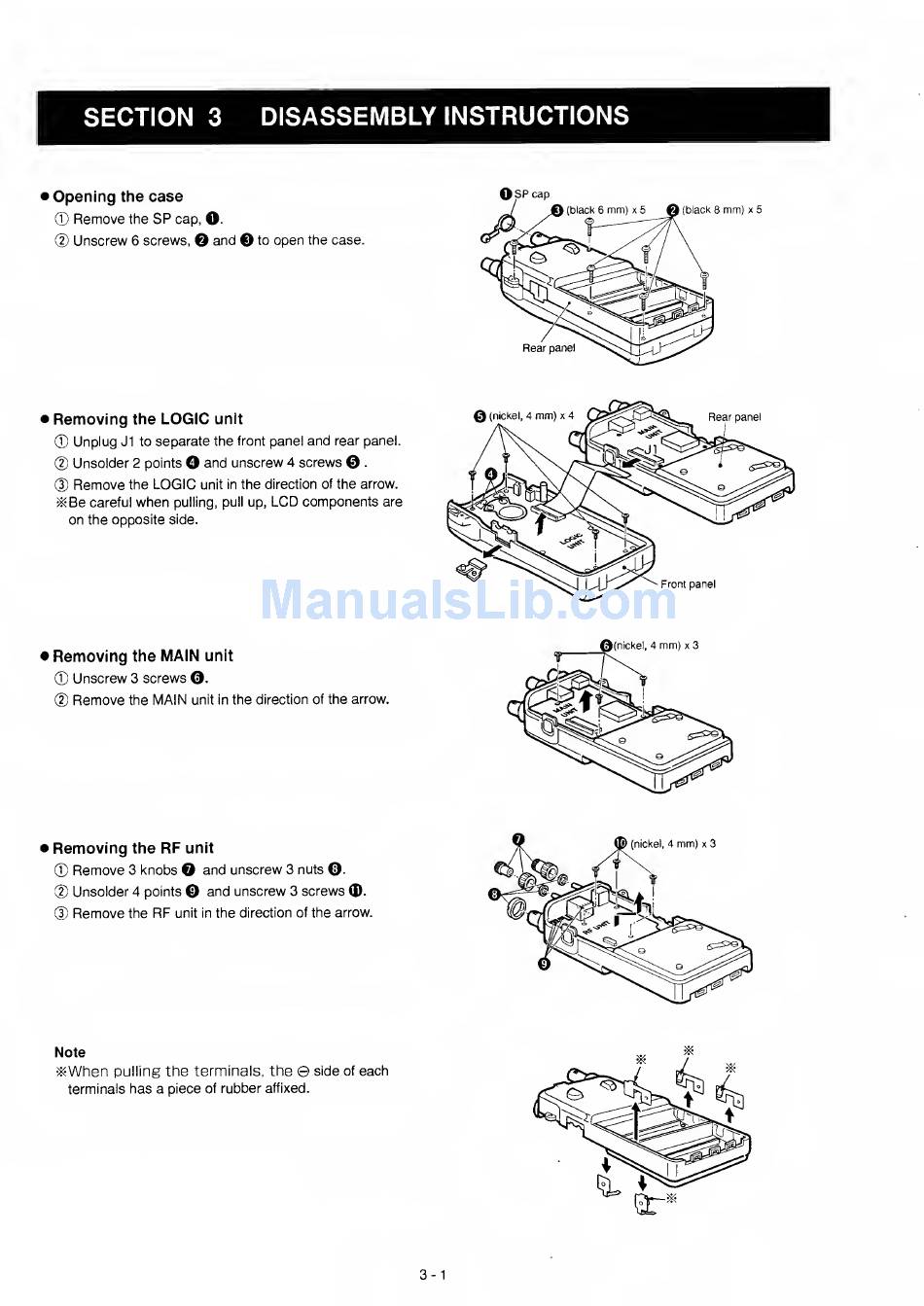

SECTION
3
DISASSEMBLY INSTRUCTIONS
• Opening
the
case
®
Remove
the
SP
cap,
O-
@
Unscrew
6 screws,
O
and
0
to
open
the case.
• Removing
the
LOGiC
unit
®
Unplug
J1 to
separate
the front
panel
and
rear panel.
@
Unsolder 2 points
O
and unscrew 4 screws
0
.
(D
Remove
the
LOGIC
unit
in
the direction of the arrow.
iJ^Be careful
when
pulling, pull up,
LCD
components
are
on the opposite side.
• Removing
the
MAiN
unit
®
Unscrew
3
screws
©.
(D
Remove
the
MAIN
unit
in
the direction
of
the arrow.
•
Removing
the
RF
unit
®
Remove
3
knobs
O
and unscrew
3
nuts
0.
@
Unsolder 4
points
0
and unscrew 3 screws
®.
@
Remove
the
RF
unit
in
the direction of
the arrow.
Note
•)KWhen
pulling
the terminals,
the
©
side
of
each
terminals
has a piece
of
rubber
affixed.
3-1
