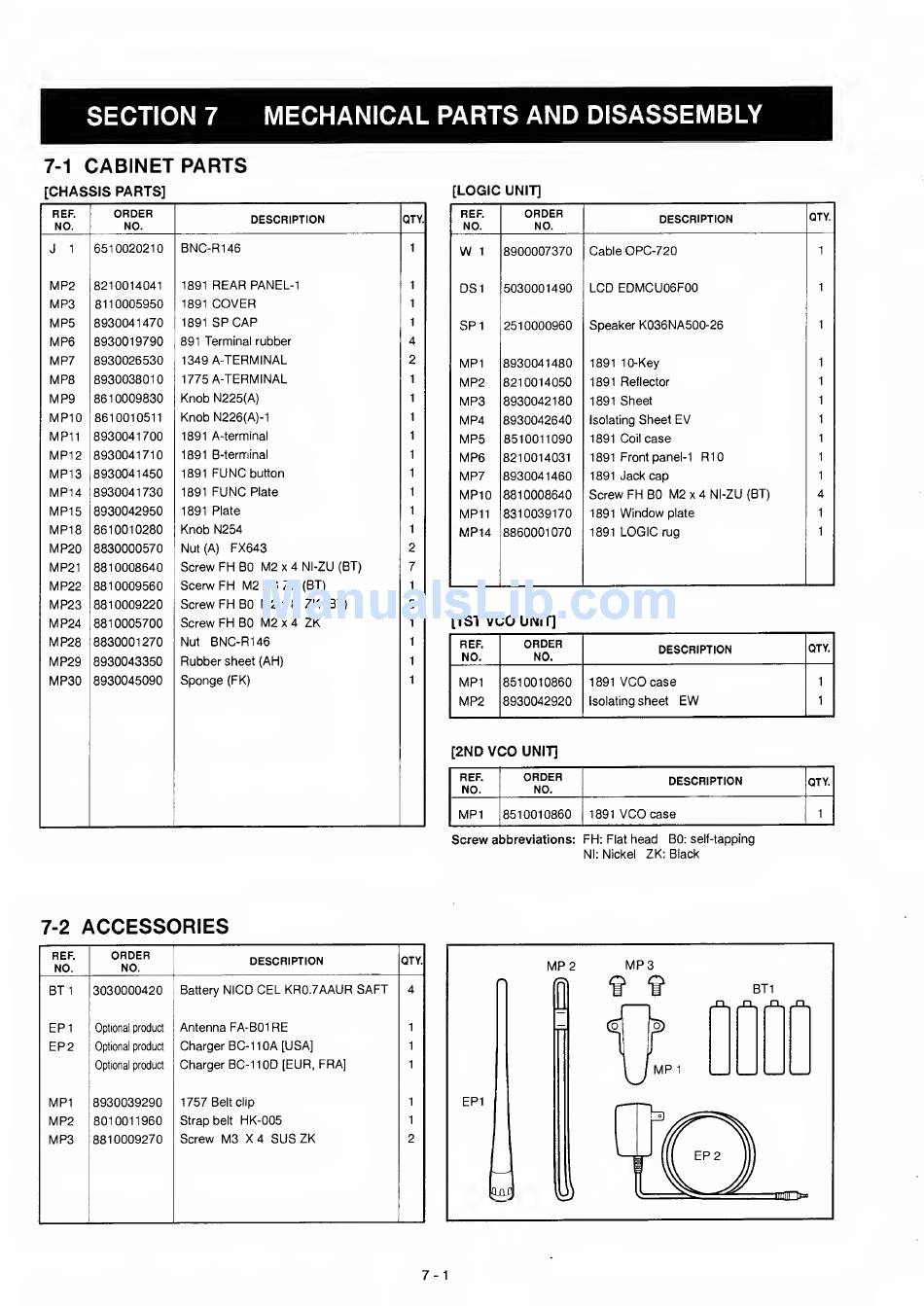

SECTION
7
MECHANICAL PARTS
AND
DISASSEMBLY
7-1
CABINET PARTS
[CHASSIS PARTS]
REF.
NO.
ORDER
NO.
DESCRIPTION
QTY.
J
1
6510020210
BNC-R146
1
MP2
8210014041 1891
REAR
PANEL-1
1
MP3
8110005950 1891
COVER
1
MP5
8930041470
1891
SP
CAP
1
MP6
8930019790
891 Terminal rubber
4
MP7
8930026530 1349
A-TERMINAL 2
MP8
8930038010 1775
A-TERMINAL
1
MP9
8610009830 Knob N225(A)
1
MP10
8610010511
Knob
N226(A)-1
1
MP11 8930041700
1891 A-terminal
1
MP12
8930041710 1891
B-terminal
1
MP13
8930041450 1891
FUNC
button
1
MP14
8930041730 1891
FUNC
Plate
1
MP15
8930042950
1891
Plate
1
MP18 8610010280 Knob N254
1
MP20
8830000570 Nut
(A)
FX643
2
MP21 8810008640 Screw
FH
BO
M2
x
4 NI-ZU
(BT)
7
MP22
8810009560
ScerwFH M2
x
6
ZK
(BT)
1
MP23
8810009220 Screw
FH BO
M2
x
8
ZK
(BT) 5
MP24
8810005700 Screw
FH BO
M2
x
4
ZK
1
MP28
8830001270
Nut
BNC-R146
1
MP29
8930043350 Rubber sheet (AH)
1
MP30 8930045090 Sponge
(FK)
1
[LOGIC
UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION QTY.
W
1
8900007370 Cable
OPC-720
1
DS1
5030001490
LCD EDMCU06FOO
1
SP1
2510000960 Speaker
K036NA500-26
1
MP1 8930041480
1891 10-Key
1
MP2
8210014050 1891
Reflector
1
MP3
8930042180 1891 Sheet
1
MP4
8930042640
Isolating
Sheet
EV
1
MP5
8510011090
1891
Coil
case
1
MP6
8210014031
1891 Front panel-1
R10
1
MP7
8930041460
1891 Jack cap
1
MP10
8810008640 Screw
FH BO
M2
x
4 NI-ZU (BT)
4
MP11 8310039170
1891
Window
plate
1
MP14 8860001070
1891
LOGIC
rug
1
[1ST
VCO
UNIT]
REF
NO.
ORDER
NO.
DESCRIPTION
QTY
MP1 8510010860
1891
VCO
case
1
MP2
8930042920
Isolating
sheet
EW
1
[2ND
VCO
UNIT]
REF
NO.
I
ORDER
NO.
DESCRIPTION
QTY
MP1
i
8510010860
1891
VCO
case
1
Screw abbreviations; FH:
Flat
head
BO: self-tapping
Nl:
Nickel
ZK: Black
7-2
ACCESSORIES
REF.
NO.
ORDER
NO.
DESCRIPTION
QTY.
BT1 3030000420
Battery
NICD CEL KR0.7AAUR SAFT
4
EP1
Optional product
Antenna FA-B01
RE
1
EP2
Optional product
Charger BC-110A [USA]
1
Optional product
Charger BC-110D [EUR, FRA]
1
MP1 8930039290
1757
Belt
clip 1
MP2
8010011960 Strap
belt
HK-005
1
MP3
8810009270
Screw
M3
X4
SUS ZK
2
7-1
