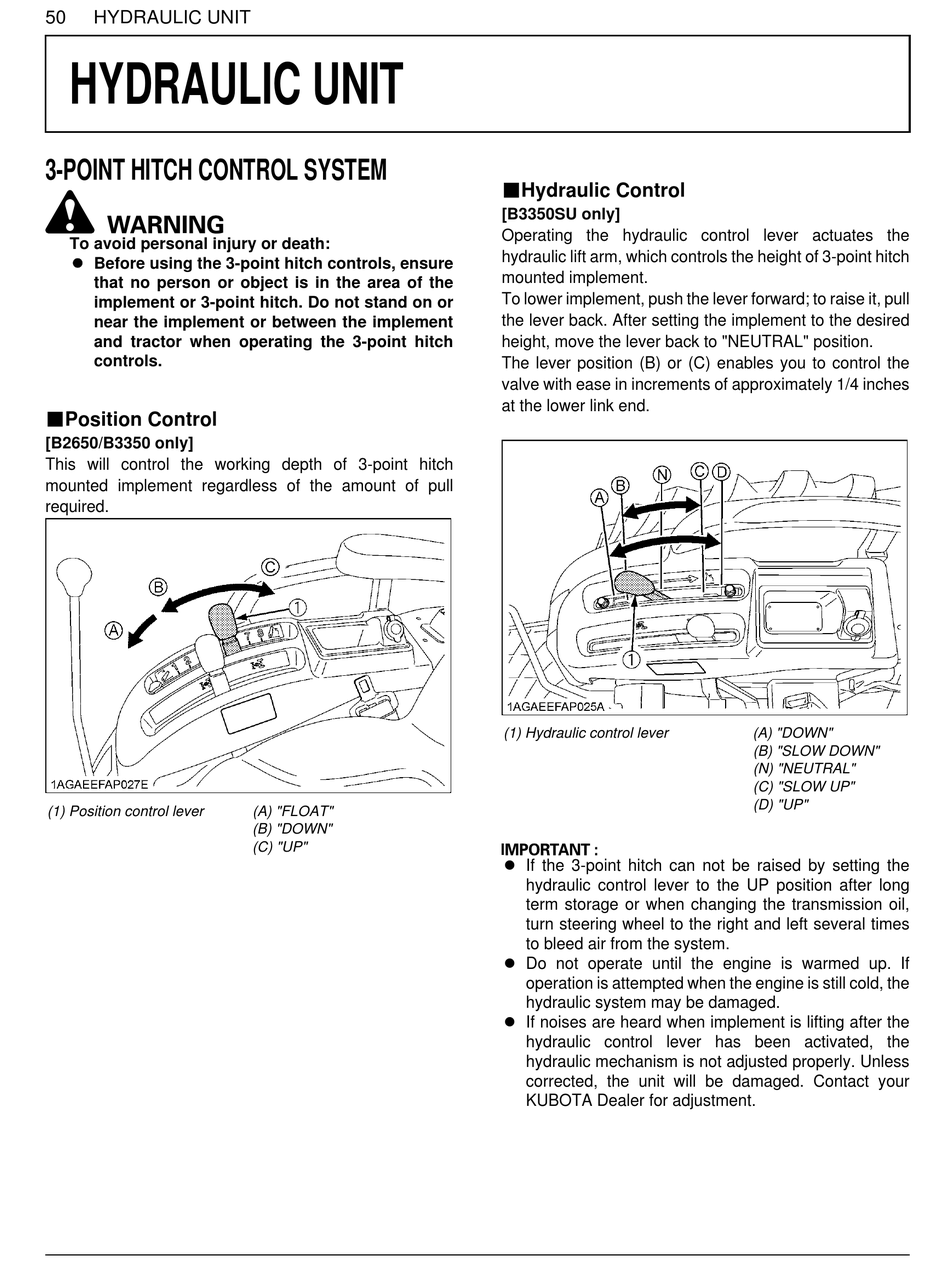

HYDRAULIC UNIT

HYDRAULIC UNIT

3-POINT HITCH CONTROL SYSTEM

To avoid personal injury or death:
A Before using the 3-point hitch controls, ensure
that no person or object is in the area of the
implement or 3-point hitch. Do not stand on or
near the implement or between the implement
and tractor when operating the 3-point hitch
controls.
BPosition Control
[B2650/B3350 only]
This will control the working depth of 3-point hitch
mounted implement regardless of the amount of pull
required.
(1) Position control lever (A) "FLOAT"
(B) "DOWN"
(C) "UP"
BHydraulic Control
[B3350SU only]
Operating the hydraulic control lever actuates the
hydraulic lift arm, which controls the height of 3-point hitch
mounted implement.
To lower implement, push the lever forward; to raise it, pull
the lever back. After setting the implement to the desired
height, move the lever back to "NEUTRAL" position.
The lever position (B) or (C) enables you to control the
valve with ease in increments of approximately 1/4 inches
at the lower link end.
(1) Hydraulic control lever
A If the 3-point hitch can not be raised by setting the
hydraulic control lever to the UP position after long
term storage or when changing the transmission oil,
turn steering wheel to the right and left several times
to bleed air from the system.
A Do not operate until the engine is warmed up. If
operation is attempted when the engine is still cold, the
hydraulic system may be damaged.
A If noises are heard when implement is lifting after the
hydraulic control lever has been activated, the
hydraulic mechanism is not adjusted properly. Unless
corrected, the unit will be damaged. Contact your
KUBOTA Dealer for adjustment.
(A) "DOWN"
(B) "SLOW DOWN"
(N) "NEUTRAL"
(C) "SLOW UP"
(D) "UP"
