Lan Port Mirror - Draytek vigor2920 series User Manual

Select All
Sort
Refresh
Add and Edit
IP Bind List
Add
Edit
Delete
After finishing all the settings here, please click OK to save the configuration.
Note: Before you select Strict Bind, you have to bind one set of IP/MAC address for one
PC. If not, no one of the PCs can access into Internet. And the web user interface of the
router might not be accessed.

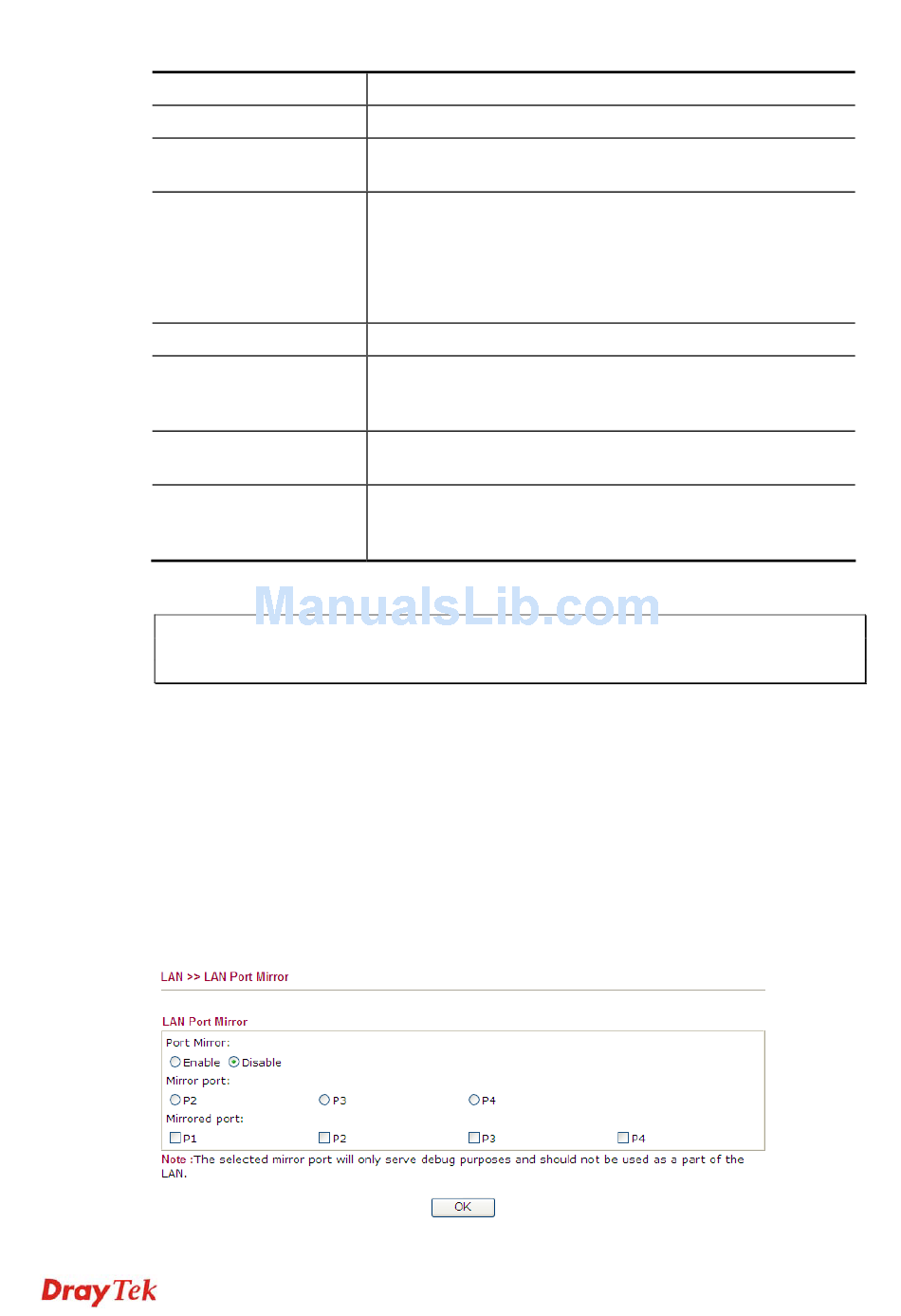

4 . 2 . 6 L A N P o r t M
4 . 2 . 6 L A N P o r t M
LAN port mirror can be applied for the users in LAN. Generally speaking, this function copies
traffic from one or more specific ports to a target port. This mechanism helps manager track
the network errors or abnormal packets transmission without interrupting the flow of data
access the network. By the way, user can apply this function to monitor all traffics which user
needs to check.
There are some advantages supported in this feature. First, it is more economical without other
detecting equipments to be set up. Second, it may be able to view traffic on one or more ports
within a VLAN at the same time. Third, it can transfer all data traffics to be mirrored to one
analyzer connect to the mirroring port. Last, it is more convenient and easy to configure in
user's interface.
Click this link to select all the items in the ARP table.
Reorder the table based on the IP address.
Refresh the ARP table listed below to obtain the newest ARP
table information.
IP Address – Type the IP address that will be used for the
specified MAC address.
Mac Address – Type the MAC address that is used to bind
with the assigned IP address.
Comment – Type a brief description for such list.
It displays a list for the IP bind to MAC information.
It allows you to add the one you choose from the ARP table or
the IP/MAC address typed in Add and Edit to the table of IP
Bind List.
It allows you to edit and modify the selected IP address and
MAC address that you create before.
You can remove any item listed in IP Bind List. Simply click
and select the one, and click Delete. The selected item will be
removed from the IP Bind List.
i r r o r
i r r o r
141
Vigor2920 Series User's Guide
