Installation Guide

5.0 Design

5.1 Design

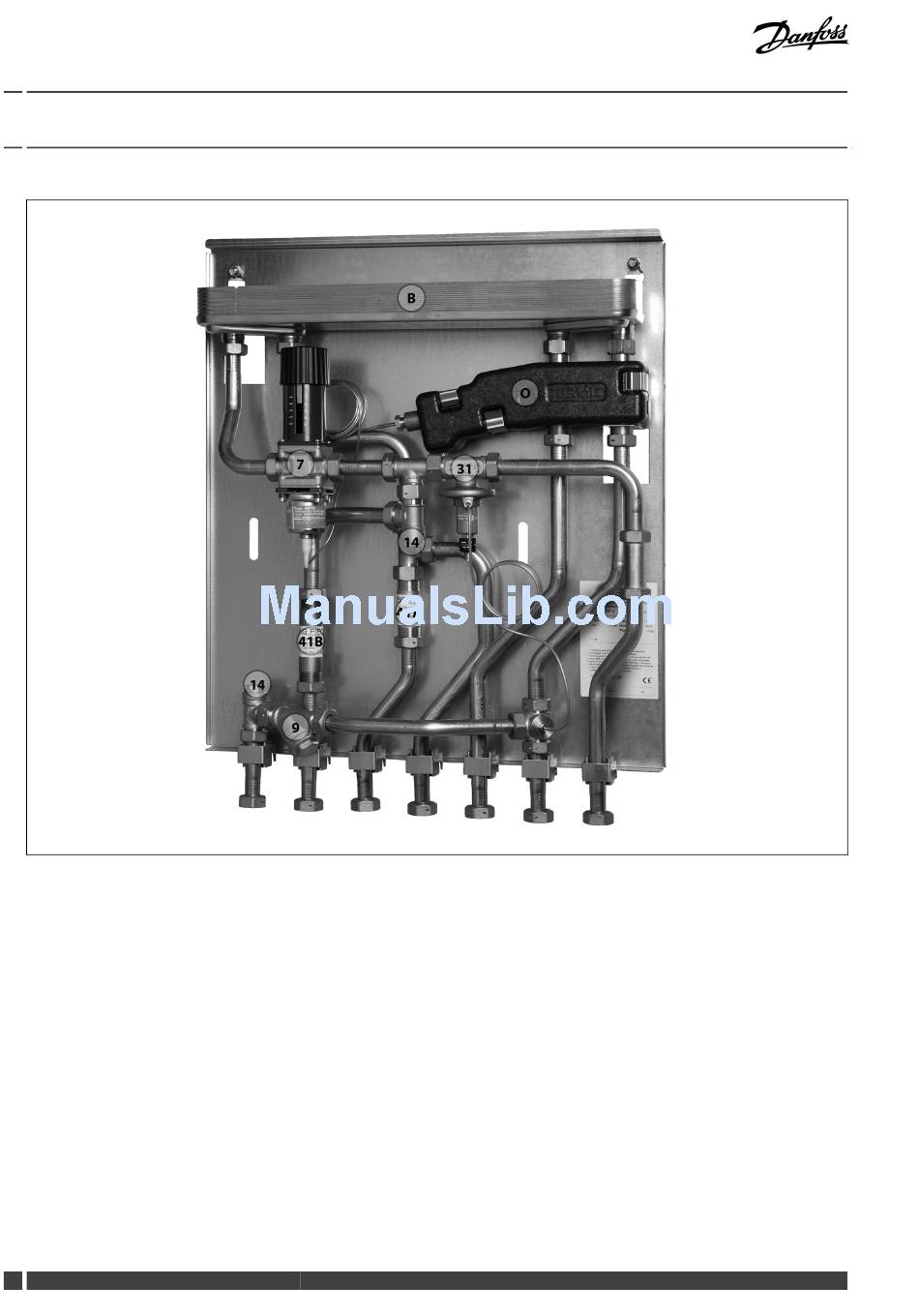

Your substation might look different than the substation shown.
Design description
B Heat exchanger, DHW
O Termix sensor accelerator
7
Thermostatic valve, DHW
9
Strainer
8
DEN-GT
Termix VMTD-F-B
14
Sensor pocket, energy meter
31
Differential pressure controller
41A Fitting piece, cold water mains
41B Fitting piece, energy meter
VI.CW.C3.02 / LUK40110
