Summary of Contents for Dynatone DPP610

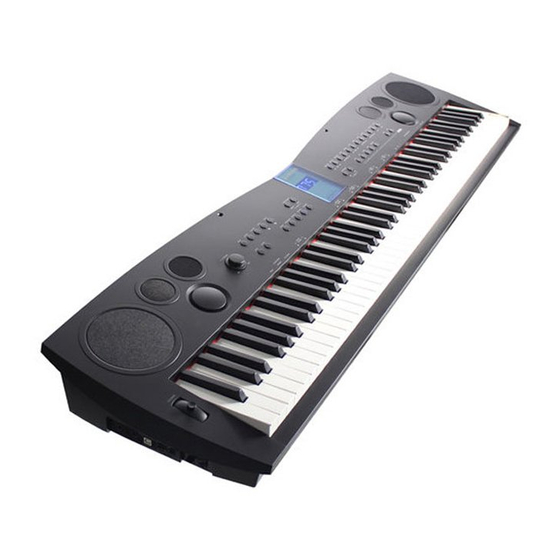

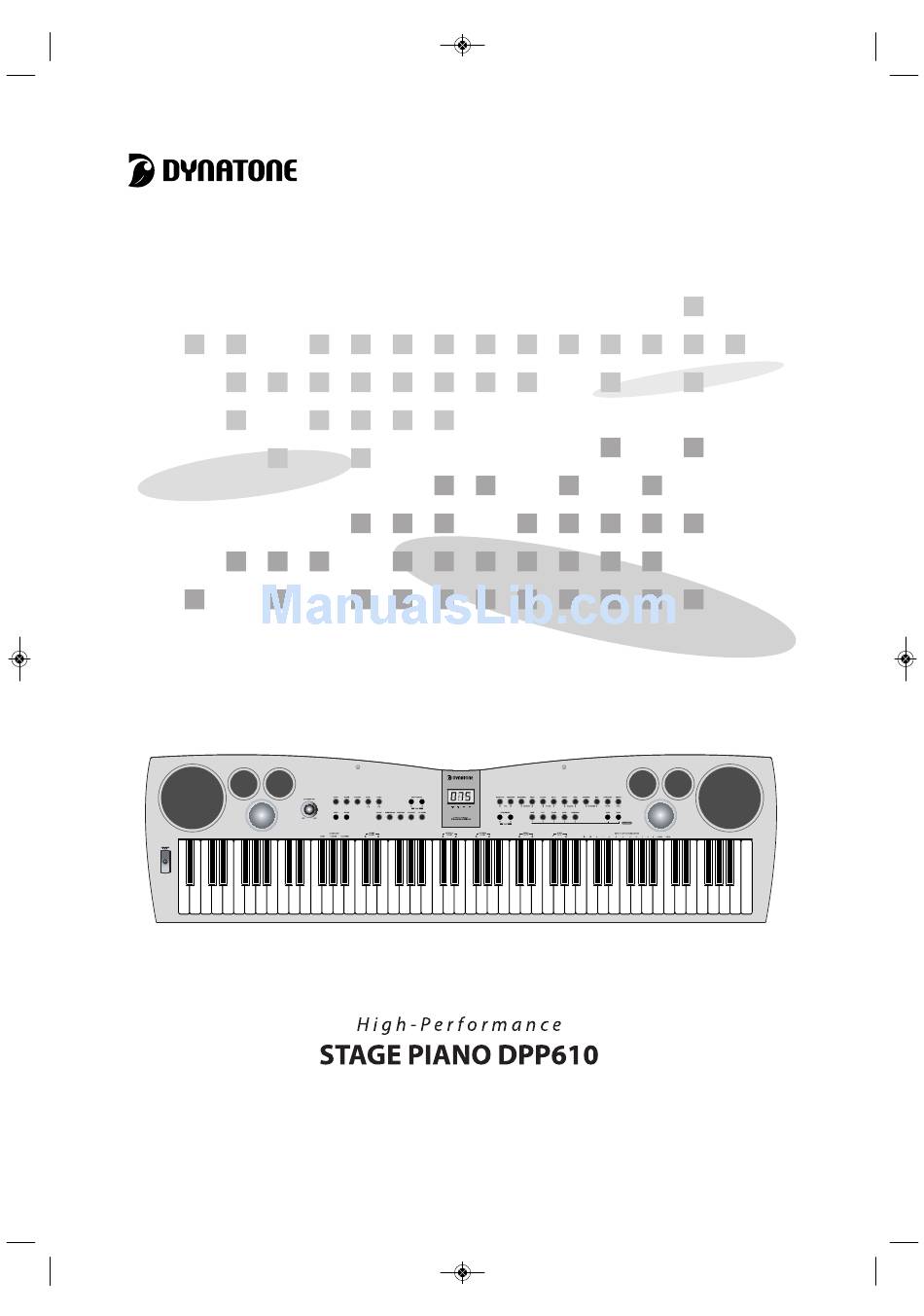

  • Page 1 수출 DPP-610 표지_표지 2013-11-22 오후 3:31 페이지 2 OWNER'S MANUAL N e w f e e l , n e w l o o k a n d n e w s o u n d...

  • Page 2: Precautions

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 1 PRECAUTIONS PLEASE READ CAREFULLY BEFORE PROCEEDING Please keep these precautions in a safe place for future reference. WARNING Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards.
  • Page 3 수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 2 CAUTION Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, damage to the piano or other property. These precautions include, but are not limited to, the following: ㆍDo not place the power cord near heat sources ㆍDo not rest your weight or place heavy objects...

  • Page 4: Welcome

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 3 Welcome Thank you and congratulations on your purchase of the High-Performance STAGE PIANO. Your new High-Performance STAGE PIANO delivers various specifications in compact body. Sharing much in common with high-end models, your piano offers 128-polyphony, new Advanced Real Hammer Action keyboard (ARHA), USB MIDI interface and hundreds of additional sounds and rhythm styles.

  • Page 5: Table Of Contents

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 4 Table of Contents PRECAUTIONS Recording PRECAUTIONS Recording Music Welcome Registration Main Features Storing a Registration Memory Table of Contents Recall a Registration Memory Unpacking MIDI MIDI Local Control General Guide DEMO Turning ON the Power Headphone Playback of Demo Music Connecting Your Computer...

  • Page 6: Unpacking

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 5 Carefully remove the Digital Piano and its accessories from the packing box. The Digital Piano set consists of the following items. Unpacking Main Unit Owner's Manual Music Stand Non-Slip Pedal AC Adapter ☞...

  • Page 7: General Guide

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 6 General Guide Turning ON the Power ⓐ Connecting the AC adapter. First insert the DC plug of AC Adapter into DC In connector on the piano then plug a AC plug of AC adapter into the proper AC outlet on the wall.

  • Page 8: Connecting Your Computer

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 7 Connecting Your Computer (USB Terminal)

  • Page 9: Pedal Connector

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 8 Pedal Connector q DAMPER PEDAL CONNECTOR With piano tones, depressing the pedal causes notes to linger, much like a piano's damper pedal. With organ tones, depressing the pedal causes notes to continue to sound until the pedal is released. w ASSIGNABLE PEDAL CONNECTOR This pedal connector can be assigned to one of following functions.

  • Page 10: Panel Controls And Terminals

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 9 Panel Controls and Terminals ⓖ ⓗ ⑩ ⑪ ⑫ ⑬ ⑭ ⓐ ⓟ ⓠ ⓑ ⓒ ⓓ ⓔ ⓕ ⓙ ⓚ VOLUME SECTION SETUP SECTION ⓐ MASTER VOLUME Page 11 ⓝ Multi Function Display ⓞ...
  • Page 11 수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 10 ① ⓝ ⓤ ⓡ ⓢ ⓣ ⓦ ⓧ ⓥ ② ③ ④ ⑤ ⓞ ⓜ ⓨ ⑧ ⑨ ⓘ ⑥ ⑦ VOICE SECTION TERMINAL SECTION ① VOICE buttons Page 11 Page 6 POWER switch ②...

  • Page 12: Basic Operation

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 11 Basic Operation Adjusting the Volume The piano has one volume knob on the panel for adjusting the volume. MASTER VOLUME This determines the entire volume of the piano. ☞ This also determines the volume level of the HEADPHONE(s). Selecting Voices The piano features a wealth of rich, authentic voices, including piano, strings and brass instruments.

  • Page 13: Gm Voice

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 12 VOICE LIST Grand Vibra- Harpsi- Saxo- Per- Organ E.Organ Violin Strings Brass Bass Piano phone chord phone cussion Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group A...
  • Page 14 수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 13 CHANGING GM VOICE BY GM NUMBER KEYS. Instead of the DATA buttons, you can change the GM voice by using GM number keys. q Press and hold down the GM VOICE button. The Pop-up display shows you the current selected voice number.

  • Page 15: Layer

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 14 Layer The Layer mode of the piano allows you to select and play two different voices simultaneously in a layer. This makes it easy to create exceptionally rich and thick tonal textures. The volume balance can be set for the two voices.

  • Page 16: Split

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 15 Split The Split mode of the piano allows you to select and play two different voices with your left and right hands - For example, play bass with the left and piano with the right . PLAYING WITH SPLIT VOICE q Select the main voice.

  • Page 17: Changing The Split Point

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 16 Changing the Split Point To assign new split point, hold down the SPLIT button and press a key. (Default F3#) ▼ SPLIT POINT (Default F#3) ASSIGNABLE SPLIT POINT RANGE (C2 ~ C7) Reverb Reverb is an effect that recreates the decaying reflections of a sound in a performance space, and reproduces the special ambience of a concert hall.

  • Page 18: Effect

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 17 Effect This control adds richness to the sound. There are 8 different Effect types: Chorus 1, 2, 3, 4 , Feedback, Flanger Short delay and Feedback Delay. EFFECT ON/OFF To turn on effect, press the EFFECT button. The lamp lights and effect is set ON.

  • Page 19: Using The Metronome

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 18 Using the Metronome The piano features a convenient metronome that is ideal for practicing. START/STOP OF THE METRONOME To start the metronome, simply press the METRONOME button. Press the METRONOME button again to stop the metronome sound. ADJUSTING THE TEMPO OF THE METRONOME You can set the tempo over range 40 ~ 250 beats per minute by using the TEMPO buttons.

  • Page 20: Setup

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 19 Setup Tune The Tune function lets you make fine adjustments to the pitch, allowing you to accurately match the tuning with that of other instruments. Press and hold down the SETUP button and press the TUNE UP or DOWN button. ☞...

  • Page 21: Octave Shift

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 20 Octave Shift The OCTAVE SHIFT function makes it's possible to shift the octave of the keyboard, allowing you to match the octave of the keyboard to the range of other instruments. Press and hold down the SETUP button and press the OCTAVE SHIFT UP or DOWN button. ☞...

  • Page 22: Touch

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 21 Touch Touch determines how your playing strength (velocity) affects the volume of the voices. 10 types are available for tailoring the keyboard response to the selected voice, type of song, or your own playing preference.

  • Page 23: Auto-Accompaniment

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 22 This keyboard automatically plays bass and chord parts in Auto - accordance with the chords you finger. The bass and chord parts are played using sounds and voices that are Accompaniment automatically selected to select the rhythm you are using. All of this means that you get full, realistic accompaniments for the melody notes you play with your right hand, creating the mood of a one-person ensemble.

  • Page 24: Tempo Control Adjustment

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 23 Tempo Control Adjustment Whenever you select a different style, the preset tempo for that style is also selected, and the tempo is shown in the Multi Function display after STYLE SELECT Pop-up display. (Unless you try changing the style during playback, in which case the same tempo is maintained.) Press the TEMPO buttons.

  • Page 25: Main Loops

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 24 Main Loops Each of the styles has two main loops. The lamp of the currently selected pattern lights. Main loop1(FILL1) is basic pattern of the style and Main loop2(FILL2) is a variation of Main loop 1. Judicious switching between FILL 1 and FILL 2 patterns within a song can add variety and make the overall rhythm more interesting.

  • Page 26: Changing The Split Point

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 25 Changing the Split Point Right range and left range for Auto Accompaniment can be divided at any keys. To assign new split point, hold down the SPLIT button and press a key. (Default F#3) SPLIT POINT When Single Finger or Fingered is selected the keyboard is automatically divided into left and right sections.

  • Page 27: Single Finger

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 26 Single Finger To play Auto Accompaniment to the selected style, press one, two, three or four keys in the left range(below and including the split point), following the rules described below. CHORD EXAMPLE MAJOR Pressing just one key produces a full...

  • Page 28: Full Keyboard

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 27 Fingered Allows you to play a complete style arrangement when you play three or four fingered chords in the left range of the keyboard split. Major: C Minor: Cm Dominant 7: C7 Minor 7th: Cm7 Major 7th: CM 7 Augmented: Caug...

  • Page 29: Using The Auto Accompaniment

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 28 Using the Auto Accompaniment The following procedure describes how to use the keyboard's Auto Accompaniment feature. Before starting, you should first select the rhythm you want to use and set the tempo of the rhythm to the value you want.

  • Page 30: Recording

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 29 The piano features comprehensive song recording functions that allow you to record your own performance. Recording Recording Music q Select Record mode. Select the desired voice and press the RECORD button. Then, the RECORD lamp lights and the TRACK 1 lamp flashes.

  • Page 31: Registration

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 30 A Registration is a particular setup of rhythm, sound, Auto Accompaniment or any other parameters or features you are using. To change the functions during Registration playing you can store your desired conditions in one button.

  • Page 32: Demo

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 31 There are 50 classical musics in your piano. You can playback the music for your own listening pleasure, or use them for practice. Playback of Demo Music q Press the DEMO button. The lamp turns on and display shows music no.

  • Page 33: Demo Music List

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 32 Demo Music List Display Title Composer d 0 1 Etude op.10 no.1 C h o p i n , F r y d e r y k d 0 2 Etude op.10 no.4 F r a n c i s z e k d 0 3 Etude op.10 no.5...

  • Page 34: Midi Implementation

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 33 MIDI Implementation MIDI Implementation Chart Function Recognized Transmitted Remark Basic Channel Default 1 -3 Mode Default OMNI OFF, POLY OMNI OFF, POLY Note ON/OFF 9nH kk vv #kk:note ON (0-127) #vv:velocity (1-127) Pitch Bender EnH bi bh Maximum swing +/- 1 tone...

  • Page 35: Gm Voice & Drum Table

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 34 GM Voice & Drum Table GM Voice List GM # VOICE GM # VOICE 0 6 5 0 0 1 Grand Piano 1 Soprano Saxophone 0 0 2 0 6 6 Alto Saxophone Grand Piano 2 0 0 3 0 6 7...

  • Page 36: Drum Table

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 35 Drum Table Prog 1 Prog 9 Prog 17 Prog 25 Prog 26 Standard Drum (b-1) Room Drum Rock Drum Elec. Drum (b-2) Analog Drum 27 - D#1 High Q 28 - E1 Slap 29 - F1 Scratch Push...
  • Page 37 수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 36 Prog 33 Prog 41 Prog 49 Prog 57 Prog 60 비고 Jazz Drum Brush Drum Orchestra Drum (b-3) SFX 1 (b-4) SFX 2 (b-5) 27 - D#1 Closed Hi Hat Conga 28 - E1 Pedal Hi-Hat Whistle 29 - F1...

  • Page 38: Troubleshooting

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 37 Troubleshooting ※ Be sure to check to following table whenever you encounter problems with the DIGITAL PIANO operation. PROBLEM CAUSE SOLUTION No sound 1. Power supply problem. 1. Check the power cord whether it's properly in AC outlet.

  • Page 39: Specifications

    수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 38 Specifications Section Contents PRODUCT HIGH PERFORMANCE STAGE PIANO KEYBOARD 88 KEYS (STANDARD) - 7 1/4 OCTAVES TOUCH RESPONSE OFF, HARD 1/2/3, SOFT 1/2/3, NORMAL1/2/3 MAX. POLYPHONY 128 NOTES SOUND GENERAL MIDI 128 VOICES 3 DRUM KIT, 2 SOUND EFFECT SET ACCOMPANIMENT STYLE 80 RHYTHM STYLES...
  • Page 40 수출 DPP-610 표지_표지 2013-11-22 오후 3:31 페이지 1 D Y N A T O N E C O R P . w w w . d y n a t o n e . b i z Part No. 11958309...
